Class CFStrategy is an abstract class that provides an interface for specifying the details of a complex fluid model. More...

#include <ibamr/CFStrategy.h>

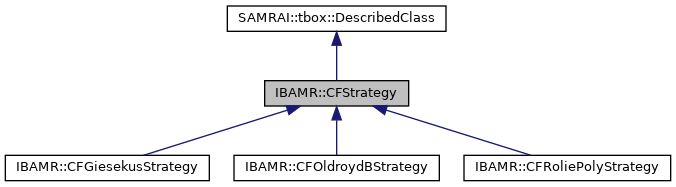

Inheritance diagram for IBAMR::CFStrategy:

[legend]

Public Member Functions
	CFStrategy (std::string object_name)
	This constructor does nothing interesting. More...

virtual void	computeRelaxation (int R_idx, SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > R_var, int C_idx, SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > C_var, TensorEvolutionType evolve_type, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, double data_time)=0
	Compute the action of the relaxation operator, given the conformation tensor. More...

virtual void	computeStress (int sig_idx, SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > sig_var, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, double data_time)=0
	Convert the conformation tensor to the stress tensor. More...

Private Attributes
std::string	d_object_name

Detailed Description

Derived classes must implement the computeRelaxation and computeStress functions.

The patch data index specifying either the conformation tensor or the square root or logarithm of the conformation tensor is given to the class. The function setDataOnPatchHierarchy is called by the advection diffusion integrator and expects the relaxation tensor.

Constructor & Destructor Documentation

◆ CFStrategy()

IBAMR::CFStrategy::CFStrategy ( std::string object_name )

Member Function Documentation

◆ computeRelaxation()

virtual void IBAMR::CFStrategy::computeRelaxation	(	int	R_idx,
		SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	R_var,
		int	C_idx,
		SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	C_var,
		TensorEvolutionType	evolve_type,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		double	data_time
	)

pure virtual

The parameter evolve_type determines the form of the tensor provided in C_idx. A helper function to convert from the data stored in C_idx to the conformation tensor is provided by convert_to_conformation_tensor.

The symmetric tensor in patch data index C_idx is stored using Voigt notation.

Implemented in IBAMR::CFRoliePolyStrategy, IBAMR::CFOldroydBStrategy, and IBAMR::CFGiesekusStrategy.

◆ computeStress()

virtual void IBAMR::CFStrategy::computeStress	(	int	sig_idx,
		SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	sig_var,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		double	data_time
	)

pure virtual

This conversion should be done in-place. The conformation tensor is provided in the patch index sig_idx with ghost cells filled. Implementations of this function MUST provide correct ghost cell information in sig_idx.

Implemented in IBAMR::CFRoliePolyStrategy, IBAMR::CFOldroydBStrategy, and IBAMR::CFGiesekusStrategy.

Member Data Documentation

◆ d_object_name

std::string IBAMR::CFStrategy::d_object_name

private

The documentation for this class was generated from the following file:

include/ibamr/CFStrategy.h
