IBAMR::StokesWaveGeneratorStrategy Class Reference

Strategy class for generating Stokes wave.

#include <ibamr/StokesWaveGeneratorStrategy.h>

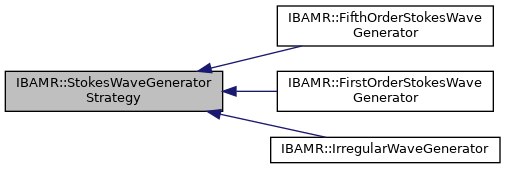

Inheritance diagram for IBAMR::StokesWaveGeneratorStrategy:

Public Member Functions
	StokesWaveGeneratorStrategy (const std::string &object_name, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db)
	Constructor of the class. More...
virtual	~StokesWaveGeneratorStrategy ()=default
	Destructor of the class. More...
virtual double	getSurfaceElevation (double x, double time) const =0
virtual double	getVelocity (double x, double z_plus_d, double time, int comp_idx) const =0
double	getWaterDepth () const
double	getWaveAngularFrequency () const
double	getWaveNumber () const
double	getWaveAmplitude () const
double	getGravity () const

Public Attributes
WaveGenerationData	d_wave_gen_data

Protected Member Functions
void	getFromInput (SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db)

Protected Attributes
std::string	d_object_name
double	d_depth
	Wave parameters. More...
double	d_omega
double	d_wave_number
double	d_amplitude
double	d_gravity
bool	d_deep_water_limit = false

Constructor & Destructor Documentation

StokesWaveGeneratorStrategy()

IBAMR::StokesWaveGeneratorStrategy::StokesWaveGeneratorStrategy	(	const std::string &	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db
	)

~StokesWaveGeneratorStrategy()

virtual IBAMR::StokesWaveGeneratorStrategy::~StokesWaveGeneratorStrategy ( )

virtualdefault

Member Function Documentation

getSurfaceElevation()

virtual double IBAMR::StokesWaveGeneratorStrategy::getSurfaceElevation ( double  x, double  time  ) const

pure virtual

Get surface elevation at a specified horizontal position and time.

Implemented in IBAMR::IrregularWaveGenerator, IBAMR::FifthOrderStokesWaveGenerator, and IBAMR::FirstOrderStokesWaveGenerator.

getVelocity()

virtual double IBAMR::StokesWaveGeneratorStrategy::getVelocity ( double  x, double  z_plus_d, double  time, int  comp_idx  ) const

pure virtual

Get velocity component at a specified position and time.

Note

We assume that the bottom left corner of the numerical wave tank is at (0,0) in 2D or at (0,0,0) in 3D. The

Parameters

z_plus_d	is the \( y \) (in 2D) or the \( z \) (in 3D) coordinate of a point in the numerical wave tank. In partcular
z_plus_d	is not with respect to free-surface as generally taken in some textbooks.

Implemented in IBAMR::IrregularWaveGenerator, IBAMR::FifthOrderStokesWaveGenerator, and IBAMR::FirstOrderStokesWaveGenerator.

getWaterDepth()

double IBAMR::StokesWaveGeneratorStrategy::getWaterDepth

(

)

const

getWaveAngularFrequency()

double IBAMR::StokesWaveGeneratorStrategy::getWaveAngularFrequency

(

)

const

getWaveNumber()

double IBAMR::StokesWaveGeneratorStrategy::getWaveNumber

(

)

const

getWaveAmplitude()

double IBAMR::StokesWaveGeneratorStrategy::getWaveAmplitude

(

)

const

getGravity()

double IBAMR::StokesWaveGeneratorStrategy::getGravity

(

)

const

getFromInput()

void IBAMR::StokesWaveGeneratorStrategy::getFromInput ( SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >  db )

protected

Get wave parameters from input db.

Member Data Documentation

d_wave_gen_data

WaveGenerationData IBAMR::StokesWaveGeneratorStrategy::d_wave_gen_data

d_object_name

std::string IBAMR::StokesWaveGeneratorStrategy::d_object_name

protected

Book-keeping.

d_depth

double IBAMR::StokesWaveGeneratorStrategy::d_depth

protected

Parameters

d_wave_number	: Wave number of dominant wave component [$2\pi/m$]
d_amplitude	: Amplitude of the dominant wave component [m]
d_depth	: Depth of water, from sea bed to still water level [m]
d_gravity	: Acceleration due to gravity [$m/s^2$]
d_omega	: Angular frequency [$2 \pi/s$] (optional)

\NOTE The class calculates a more accurate value of omega from the expansion coefficients and the provided value in not used.

d_omega

double IBAMR::StokesWaveGeneratorStrategy::d_omega

protected

d_wave_number

double IBAMR::StokesWaveGeneratorStrategy::d_wave_number

protected

d_amplitude

double IBAMR::StokesWaveGeneratorStrategy::d_amplitude

protected

d_gravity

double IBAMR::StokesWaveGeneratorStrategy::d_gravity

protected

d_deep_water_limit

bool IBAMR::StokesWaveGeneratorStrategy::d_deep_water_limit = false

protected

If we are calculating in deep water limit.

---

The documentation for this class was generated from the following file:

• include/ibamr/StokesWaveGeneratorStrategy.h
