Class CartCellDoubleLinearCFInterpolation is a concrete SAMRAI::xfer::RefinePatchStrategy which sets coarse-fine interface ghost cell values for cell-centered double precision patch data via linear interpolation in the normal and tangential directions at coarse-fine interfaces.

#include <ibtk/CartCellDoubleLinearCFInterpolation.h>

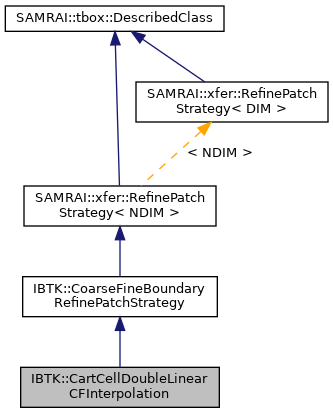

Inheritance diagram for IBTK::CartCellDoubleLinearCFInterpolation:

[legend]

Public Member Functions
	CartCellDoubleLinearCFInterpolation ()=default
	Constructor. More...

	~CartCellDoubleLinearCFInterpolation ()
	Destructor. More...

virtual void	setPhysicalBoundaryConditions (hier::Patch< DIM > &patch, const double fill_time, const hier::IntVector< DIM > &ghost_width_to_fill)=0

virtual hier::IntVector< DIM >	getRefineOpStencilWidth () const=0

virtual void	preprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)=0

virtual void	postprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)=0

virtual void	preprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

virtual void	postprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

SAMRAI::xfer::RefinePatchStrategy interface.
void	setPhysicalBoundaryConditions (SAMRAI::hier::Patch< NDIM > &patch, double fill_time, const SAMRAI::hier::IntVector< NDIM > &ghost_width_to_fill) override

SAMRAI::hier::IntVector< NDIM >	getRefineOpStencilWidth () const override

void	preprocessRefine (SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Box< NDIM > &fine_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

void	postprocessRefine (SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Box< NDIM > &fine_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

Extension of SAMRAI::xfer::RefinePatchStrategy interface to support more
complex coarse-fine interface discretizations.
std::set< int >	d_patch_data_indices

bool	d_consistent_type_2_bdry = false

SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineOperator< NDIM > >	d_refine_op

SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	d_hierarchy

std::vector< SAMRAI::hier::CoarseFineBoundary< NDIM > >	d_cf_boundary

std::vector< SAMRAI::hier::BoxArray< NDIM > >	d_domain_boxes

std::vector< SAMRAI::hier::IntVector< NDIM > >	d_periodic_shift

void	setConsistentInterpolationScheme (bool consistent_type_2_bdry) override

void	setPatchDataIndex (int patch_data_index) override
	Reset the patch data index operated upon by this class. More...

void	setPatchDataIndices (const std::set< int > &patch_data_indices) override
	Reset the patch data indices operated upon by this class. More...

void	setPatchDataIndices (const SAMRAI::hier::ComponentSelector &patch_data_indices) override
	Reset the patch data indices operated upon by this class. More...

void	setPatchHierarchy (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy) override

void	clearPatchHierarchy () override

void	computeNormalExtension (SAMRAI::hier::Patch< NDIM > &patch, const SAMRAI::hier::IntVector< NDIM > &ratio, const SAMRAI::hier::IntVector< NDIM > &ghost_width_to_fill) override

	CartCellDoubleLinearCFInterpolation (const CartCellDoubleLinearCFInterpolation &from)=delete
	Copy constructor. More...

CartCellDoubleLinearCFInterpolation &	operator= (const CartCellDoubleLinearCFInterpolation &that)=delete
	Assignment operator. More...

Constructor & Destructor Documentation

◆ CartCellDoubleLinearCFInterpolation() [1/2]

IBTK::CartCellDoubleLinearCFInterpolation::CartCellDoubleLinearCFInterpolation ( )

default

◆ ~CartCellDoubleLinearCFInterpolation()

IBTK::CartCellDoubleLinearCFInterpolation::~CartCellDoubleLinearCFInterpolation ( )

◆ CartCellDoubleLinearCFInterpolation() [2/2]

IBTK::CartCellDoubleLinearCFInterpolation::CartCellDoubleLinearCFInterpolation ( const CartCellDoubleLinearCFInterpolation & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ setPhysicalBoundaryConditions() [1/2]

void IBTK::CartCellDoubleLinearCFInterpolation::setPhysicalBoundaryConditions	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	fill_time,
		const SAMRAI::hier::IntVector< NDIM > &	ghost_width_to_fill
	)

overridevirtual

Function to set data associated with the given list of patch data indices at patch boundaries that intersect the physical domain boundary. The patch data components set in this routine correspond to the "scratch" components specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Presently, the implementation does nothing.

Parameters

patch	Patch on which to fill boundary data.
fill_time	Double simulation time for boundary filling.
ghost_width_to_fill	Integer vector describing maximum ghost width to fill over all registered scratch components.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ getRefineOpStencilWidth() [1/2]

SAMRAI::hier::IntVector<NDIM> IBTK::CartCellDoubleLinearCFInterpolation::getRefineOpStencilWidth ( ) const

overridevirtual

Function to return maximum stencil width needed over user-defined data interpolation operations. This is needed to determine the correct interpolation data dependencies.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ preprocessRefine() [1/2]

void IBTK::CartCellDoubleLinearCFInterpolation::preprocessRefine	(	SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Box< NDIM > &	fine_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

overridevirtual

Function to perform user-defined preprocess data refine operations. This member function is called before standard refine operations (expressed using concrete subclasses of the SAMRAI::xfer::RefineOperator base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Presently, the implementation does nothing.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ postprocessRefine() [1/2]

void IBTK::CartCellDoubleLinearCFInterpolation::postprocessRefine	(	SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Box< NDIM > &	fine_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

overridevirtual

Function to perform user-defined postprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the SAMRAI::xfer::RefineOperator base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ setConsistentInterpolationScheme()

void IBTK::CartCellDoubleLinearCFInterpolation::setConsistentInterpolationScheme ( bool consistent_type_2_bdry )

overridevirtual

Whether or not to employ a consistent interpolation scheme at "Type 2" coarse-fine interface ghost cells.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ setPatchDataIndex()

void IBTK::CartCellDoubleLinearCFInterpolation::setPatchDataIndex ( int patch_data_index )

overridevirtual

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ setPatchDataIndices() [1/2]

void IBTK::CartCellDoubleLinearCFInterpolation::setPatchDataIndices ( const std::set< int > & patch_data_indices )

overridevirtual

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ setPatchDataIndices() [2/2]

void IBTK::CartCellDoubleLinearCFInterpolation::setPatchDataIndices ( const SAMRAI::hier::ComponentSelector & patch_data_indices )

overridevirtual

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ setPatchHierarchy()

void IBTK::CartCellDoubleLinearCFInterpolation::setPatchHierarchy ( SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy )

overridevirtual

Set the patch hierarchy used in constructing coarse-fine interface boundary boxes.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ clearPatchHierarchy()

void IBTK::CartCellDoubleLinearCFInterpolation::clearPatchHierarchy ( )

overridevirtual

Clear the patch hierarchy used in constructing coarse-fine interface boundary boxes.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ computeNormalExtension()

void IBTK::CartCellDoubleLinearCFInterpolation::computeNormalExtension	(	SAMRAI::hier::Patch< NDIM > &	patch,
		const SAMRAI::hier::IntVector< NDIM > &	ratio,
		const SAMRAI::hier::IntVector< NDIM > &	ghost_width_to_fill
	)

overridevirtual

Compute the normal extension of fine data at coarse-fine interfaces.

Implements IBTK::CoarseFineBoundaryRefinePatchStrategy.

◆ operator=()

CartCellDoubleLinearCFInterpolation& IBTK::CartCellDoubleLinearCFInterpolation::operator= ( const CartCellDoubleLinearCFInterpolation & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ setPhysicalBoundaryConditions() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::setPhysicalBoundaryConditions	(	hier::Patch< DIM > &	patch,
		const double	fill_time,
		const hier::IntVector< DIM > &	ghost_width_to_fill
	)

pure virtualinherited

Pure virtual function to set data associated with the given list of patch data indices at patch boundaries that intersect the physical domain boundary. The specific boundary conditions are determined by the user. The patch data components set in this routine correspond to the "scratch" components specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

patch	hier::Patch on which to fill boundary data.
fill_time	Double simulation time for boundary filling.
ghost_width_to_fill	Integer vector describing maximum ghost width to fill over all registered scratch components.

◆ getRefineOpStencilWidth() [2/2]

virtual hier::IntVector<DIM> SAMRAI::xfer::RefinePatchStrategy< DIM >::getRefineOpStencilWidth

pure virtualinherited

Pure virtual function to return maximum stencil width needed over user-defined data interpolation operations. This is needed to determine the correct interpolation data dependencies.

◆ preprocessRefine() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Pure virtual function to perform user-defined preprocess data refine operations. This member function is called before standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefine() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Pure virtual function to perform user-defined postprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ preprocessRefineBoxes()

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called before standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the preprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefineBoxes()

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called after standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the postprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Member Data Documentation

◆ d_patch_data_indices

std::set<int> IBTK::CartCellDoubleLinearCFInterpolation::d_patch_data_indices

private

The patch data indices corresponding to the "scratch" patch data that is operated on by this class.

◆ d_consistent_type_2_bdry

bool IBTK::CartCellDoubleLinearCFInterpolation::d_consistent_type_2_bdry = false

private

Boolean value indicating whether we are enforcing a consistent interpolation scheme at "Type 2" coarse-fine interface ghost cells.

◆ d_refine_op

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineOperator<NDIM> > IBTK::CartCellDoubleLinearCFInterpolation::d_refine_op

private

Initial value:

=

new SAMRAI::geom::CartesianCellDoubleLinearRefine<NDIM>()

Refine operator employed to fill coarse grid ghost cell values.

◆ d_hierarchy

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchHierarchy<NDIM> > IBTK::CartCellDoubleLinearCFInterpolation::d_hierarchy

private

Cached hierarchy-related information.

◆ d_cf_boundary

std::vector<SAMRAI::hier::CoarseFineBoundary<NDIM> > IBTK::CartCellDoubleLinearCFInterpolation::d_cf_boundary

private

◆ d_domain_boxes

std::vector<SAMRAI::hier::BoxArray<NDIM> > IBTK::CartCellDoubleLinearCFInterpolation::d_domain_boxes

private

◆ d_periodic_shift

std::vector<SAMRAI::hier::IntVector<NDIM> > IBTK::CartCellDoubleLinearCFInterpolation::d_periodic_shift

private

The documentation for this class was generated from the following file:

ibtk/include/ibtk/CartCellDoubleLinearCFInterpolation.h

Public Member Functions

Extension of SAMRAI::xfer::RefinePatchStrategy interface to support more

Constructor & Destructor Documentation

◆ CartCellDoubleLinearCFInterpolation() [1/2]

◆ ~CartCellDoubleLinearCFInterpolation()

◆ CartCellDoubleLinearCFInterpolation() [2/2]

Member Function Documentation

◆ setPhysicalBoundaryConditions() [1/2]

◆ getRefineOpStencilWidth() [1/2]

◆ preprocessRefine() [1/2]

◆ postprocessRefine() [1/2]

◆ setConsistentInterpolationScheme()

◆ setPatchDataIndex()

◆ setPatchDataIndices() [1/2]

◆ setPatchDataIndices() [2/2]

◆ setPatchHierarchy()

◆ clearPatchHierarchy()

◆ computeNormalExtension()

◆ operator=()

◆ setPhysicalBoundaryConditions() [2/2]

◆ getRefineOpStencilWidth() [2/2]

◆ preprocessRefine() [2/2]

◆ postprocessRefine() [2/2]

◆ preprocessRefineBoxes()

◆ postprocessRefineBoxes()

Member Data Documentation

◆ d_patch_data_indices

◆ d_consistent_type_2_bdry

◆ d_refine_op

◆ d_hierarchy

◆ d_cf_boundary

◆ d_domain_boxes

◆ d_periodic_shift
