Class CartExtrapPhysBdryOp is a concrete SAMRAI::xfer::RefinePatchStrategy for setting ghost cell values at physical boundaries via constant, linear, or quadratic extrapolation from interior values.

#include <ibtk/CartExtrapPhysBdryOp.h>

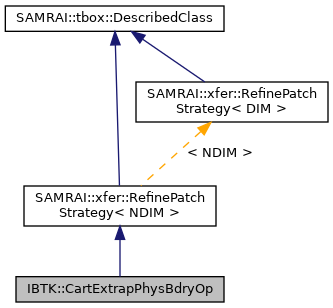

Inheritance diagram for IBTK::CartExtrapPhysBdryOp:

[legend]

Public Member Functions
	CartExtrapPhysBdryOp ()=default
	Default constructor. More...

	CartExtrapPhysBdryOp (int patch_data_index, const std::string &extrap_type="CONSTANT")
	Constructor. More...

	CartExtrapPhysBdryOp (const std::set< int > &patch_data_indices, const std::string &extrap_type="CONSTANT")
	Constructor. More...

	CartExtrapPhysBdryOp (const SAMRAI::hier::ComponentSelector &patch_data_indices, const std::string &extrap_type="CONSTANT")
	Constructor. More...

	~CartExtrapPhysBdryOp ()=default
	Destructor. More...

void	setPatchDataIndex (int patch_data_index)
	Reset the patch data index operated upon by this class. More...

void	setPatchDataIndices (const std::set< int > &patch_data_indices)
	Reset the patch data indices operated upon by this class. More...

void	setPatchDataIndices (const SAMRAI::hier::ComponentSelector &patch_data_indices)
	Reset the patch data indices operated upon by this class. More...

void	setExtrapolationType (const std::string &extrap_type)
	Set the extrapolation type employed by this class. More...

virtual void	setPhysicalBoundaryConditions (hier::Patch< DIM > &patch, const double fill_time, const hier::IntVector< DIM > &ghost_width_to_fill)=0

virtual hier::IntVector< DIM >	getRefineOpStencilWidth () const=0

virtual void	preprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)=0

virtual void	postprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)=0

virtual void	preprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

virtual void	postprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

Implementation of SAMRAI::xfer::RefinePatchStrategy interface.
std::set< int >	d_patch_data_indices

std::string	d_extrap_type = "nullptr"

void	setPhysicalBoundaryConditions (SAMRAI::hier::Patch< NDIM > &patch, double fill_time, const SAMRAI::hier::IntVector< NDIM > &ghost_width_to_fill) override

SAMRAI::hier::IntVector< NDIM >	getRefineOpStencilWidth () const override

void	preprocessRefine (SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Box< NDIM > &fine_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

void	postprocessRefine (SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Box< NDIM > &fine_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

	CartExtrapPhysBdryOp (const CartExtrapPhysBdryOp &from)=delete
	Copy constructor. More...

CartExtrapPhysBdryOp &	operator= (const CartExtrapPhysBdryOp &that)=delete
	Assignment operator. More...

void	setPhysicalBoundaryConditions_cell (SAMRAI::hier::Patch< NDIM > &patch, const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &bdry_fill_boxes)
	The implementation of setPhysicalBoundaryConditions() for cell-centered quantities. More...

void	setPhysicalBoundaryConditions_face (SAMRAI::hier::Patch< NDIM > &patch, const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &bdry_fill_boxes)
	The implementation of setPhysicalBoundaryConditions() for face-centered quantities. More...

void	setPhysicalBoundaryConditions_node (SAMRAI::hier::Patch< NDIM > &patch, const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &bdry_fill_boxes)
	The implementation of setPhysicalBoundaryConditions() for node-centered quantities. More...

void	setPhysicalBoundaryConditions_side (SAMRAI::hier::Patch< NDIM > &patch, const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &bdry_fill_boxes)
	The implementation of setPhysicalBoundaryConditions() for side-centered quantities. More...

Constructor & Destructor Documentation

◆ CartExtrapPhysBdryOp() [1/5]

IBTK::CartExtrapPhysBdryOp::CartExtrapPhysBdryOp ( )

default

Note: This constructor leaves the class in an undefined state. In particular, the patch data indices requiring cell filling and extrapolation type must each be set prior to use of method setPhysicalBoundaryConditions().

See also: setPatchDataIndex; setPatchDataIndices; setExtrapolationType

◆ CartExtrapPhysBdryOp() [2/5]

IBTK::CartExtrapPhysBdryOp::CartExtrapPhysBdryOp	(	int	patch_data_index,
		const std::string &	extrap_type = `"CONSTANT"`
	)

Parameters

patch_data_index	Patch data index requiring ghost cell filling.
extrap_type	Type of extrapolation to perform: `"CONSTANT"` specifies constant extrapolation, `"LINEAR"` specifies linear extrapolation, and `"QUADRATIC"` specifies quadratic extrapolation. At codim 2 or 3 boundaries, "QUADRATIC" reduces to "LINEAR" extrapolation.

◆ CartExtrapPhysBdryOp() [3/5]

IBTK::CartExtrapPhysBdryOp::CartExtrapPhysBdryOp	(	const std::set< int > &	patch_data_indices,
		const std::string &	extrap_type = `"CONSTANT"`
	)

Parameters

patch_data_indices	Collection of patch data indices which require ghost cell filling.
extrap_type	Type of extrapolation to perform: `"CONSTANT"` specifies constant extrapolation, `"LINEAR"` specifies linear extrapolation, and `"QUADRATIC"` specifies quadratic extrapolation. At codim 2 or 3 boundaries, "QUADRATIC" reduces to "LINEAR" extrapolation.

◆ CartExtrapPhysBdryOp() [4/5]

IBTK::CartExtrapPhysBdryOp::CartExtrapPhysBdryOp	(	const SAMRAI::hier::ComponentSelector &	patch_data_indices,
		const std::string &	extrap_type = `"CONSTANT"`
	)

Parameters

patch_data_indices	Collection of patch data indices which require ghost cell filling.
extrap_type	Type of extrapolation to perform: `"CONSTANT"` specifies constant extrapolation, `"LINEAR"` specifies linear extrapolation, and `"QUADRATIC"` specifies quadratic extrapolation. At codim 2 or 3 boundaries, "QUADRATIC" reduces to "LINEAR" extrapolation.

◆ ~CartExtrapPhysBdryOp()

IBTK::CartExtrapPhysBdryOp::~CartExtrapPhysBdryOp ( )

default

◆ CartExtrapPhysBdryOp() [5/5]

IBTK::CartExtrapPhysBdryOp::CartExtrapPhysBdryOp ( const CartExtrapPhysBdryOp & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ setPatchDataIndex()

void IBTK::CartExtrapPhysBdryOp::setPatchDataIndex ( int patch_data_index )

◆ setPatchDataIndices() [1/2]

void IBTK::CartExtrapPhysBdryOp::setPatchDataIndices ( const std::set< int > & patch_data_indices )

◆ setPatchDataIndices() [2/2]

void IBTK::CartExtrapPhysBdryOp::setPatchDataIndices ( const SAMRAI::hier::ComponentSelector & patch_data_indices )

◆ setExtrapolationType()

void IBTK::CartExtrapPhysBdryOp::setExtrapolationType ( const std::string & extrap_type )

Parameters

extrap_type Type of extrapolation to perform: "CONSTANT" specifies constant extrapolation, "LINEAR" specifies linear extrapolation, and "QUADRATIC" specifies quadratic extrapolation. At codim 2 or 3 boundaries, "QUADRATIC" reduces to "LINEAR" extrapolation.

◆ setPhysicalBoundaryConditions() [1/2]

void IBTK::CartExtrapPhysBdryOp::setPhysicalBoundaryConditions	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	fill_time,
		const SAMRAI::hier::IntVector< NDIM > &	ghost_width_to_fill
	)

override

Function to set data associated with the given list of patch data indices at patch boundaries that intersect the physical domain boundary. The patch data components set in this routine correspond to the "scratch" components specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Parameters

patch	Patch on which to fill boundary data.
fill_time	Double simulation time for boundary filling.
ghost_width_to_fill	Integer vector describing maximum ghost width to fill over all registered scratch components.

◆ getRefineOpStencilWidth() [1/2]

SAMRAI::hier::IntVector<NDIM> IBTK::CartExtrapPhysBdryOp::getRefineOpStencilWidth ( ) const

override

Function to return maximum stencil width needed over user-defined data interpolation operations. This is needed to determine the correct interpolation data dependencies.

Presently, the refine operator stencil width is zero.

◆ preprocessRefine() [1/2]

void IBTK::CartExtrapPhysBdryOp::preprocessRefine	(	SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Box< NDIM > &	fine_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

override

Function to perform user-defined preprocess data refine operations. This member function is called before standard refine operations (expressed using concrete subclasses of the SAMRAI::xfer::RefineOperator base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Presently, the implementation does nothing.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefine() [1/2]

void IBTK::CartExtrapPhysBdryOp::postprocessRefine	(	SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Box< NDIM > &	fine_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

override

Function to perform user-defined postprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the SAMRAI::xfer::RefineOperator base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Presently, the implementation does nothing.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ operator=()

CartExtrapPhysBdryOp& IBTK::CartExtrapPhysBdryOp::operator= ( const CartExtrapPhysBdryOp & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ setPhysicalBoundaryConditions_cell()

void IBTK::CartExtrapPhysBdryOp::setPhysicalBoundaryConditions_cell	(	SAMRAI::hier::Patch< NDIM > &	patch,
		const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &	bdry_fill_boxes
	)

private

◆ setPhysicalBoundaryConditions_face()

void IBTK::CartExtrapPhysBdryOp::setPhysicalBoundaryConditions_face	(	SAMRAI::hier::Patch< NDIM > &	patch,
		const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &	bdry_fill_boxes
	)

private

◆ setPhysicalBoundaryConditions_node()

void IBTK::CartExtrapPhysBdryOp::setPhysicalBoundaryConditions_node	(	SAMRAI::hier::Patch< NDIM > &	patch,
		const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &	bdry_fill_boxes
	)

private

◆ setPhysicalBoundaryConditions_side()

void IBTK::CartExtrapPhysBdryOp::setPhysicalBoundaryConditions_side	(	SAMRAI::hier::Patch< NDIM > &	patch,
		const std::vector< std::pair< SAMRAI::hier::Box< NDIM >, std::pair< int, int > > > &	bdry_fill_boxes
	)

private

◆ setPhysicalBoundaryConditions() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::setPhysicalBoundaryConditions	(	hier::Patch< DIM > &	patch,
		const double	fill_time,
		const hier::IntVector< DIM > &	ghost_width_to_fill
	)

pure virtualinherited

Pure virtual function to set data associated with the given list of patch data indices at patch boundaries that intersect the physical domain boundary. The specific boundary conditions are determined by the user. The patch data components set in this routine correspond to the "scratch" components specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

patch	hier::Patch on which to fill boundary data.
fill_time	Double simulation time for boundary filling.
ghost_width_to_fill	Integer vector describing maximum ghost width to fill over all registered scratch components.

◆ getRefineOpStencilWidth() [2/2]

virtual hier::IntVector<DIM> SAMRAI::xfer::RefinePatchStrategy< DIM >::getRefineOpStencilWidth ( ) const

pure virtualinherited

Pure virtual function to return maximum stencil width needed over user-defined data interpolation operations. This is needed to determine the correct interpolation data dependencies.

◆ preprocessRefine() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Pure virtual function to perform user-defined preprocess data refine operations. This member function is called before standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefine() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Pure virtual function to perform user-defined postprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ preprocessRefineBoxes()

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called before standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the preprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefineBoxes()

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called after standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the postprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Member Data Documentation

◆ d_patch_data_indices

std::set<int> IBTK::CartExtrapPhysBdryOp::d_patch_data_indices

private

◆ d_extrap_type

std::string IBTK::CartExtrapPhysBdryOp::d_extrap_type = "nullptr"

private

The documentation for this class was generated from the following file:

ibtk/include/ibtk/CartExtrapPhysBdryOp.h

Public Member Functions

Implementation of SAMRAI::xfer::RefinePatchStrategy interface.

Constructor & Destructor Documentation

◆ CartExtrapPhysBdryOp() [1/5]

◆ CartExtrapPhysBdryOp() [2/5]

◆ CartExtrapPhysBdryOp() [3/5]

◆ CartExtrapPhysBdryOp() [4/5]

◆ ~CartExtrapPhysBdryOp()

◆ CartExtrapPhysBdryOp() [5/5]

Member Function Documentation

◆ setPatchDataIndex()

◆ setPatchDataIndices() [1/2]

◆ setPatchDataIndices() [2/2]

◆ setExtrapolationType()

◆ setPhysicalBoundaryConditions() [1/2]

◆ getRefineOpStencilWidth() [1/2]

◆ preprocessRefine() [1/2]

◆ postprocessRefine() [1/2]

◆ operator=()

◆ setPhysicalBoundaryConditions_cell()

◆ setPhysicalBoundaryConditions_face()

◆ setPhysicalBoundaryConditions_node()

◆ setPhysicalBoundaryConditions_side()

◆ setPhysicalBoundaryConditions() [2/2]

◆ getRefineOpStencilWidth() [2/2]

◆ preprocessRefine() [2/2]

◆ postprocessRefine() [2/2]

◆ preprocessRefineBoxes()

◆ postprocessRefineBoxes()

Member Data Documentation

◆ d_patch_data_indices

◆ d_extrap_type
