Class CellCellNoCornersFillPattern is a concrete implementation of the abstract base class SAMRAI::xfer::VariableFillPattern. It is used to calculate overlaps according to a pattern that limits overlaps to the cell-centered ghost region surrounding a patch on the target level, excluding all corners (and, in 3D, patch edges). More...

#include <ibtk/CellNoCornersFillPattern.h>

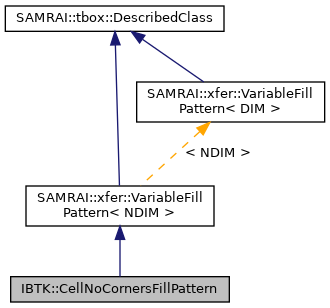

Inheritance diagram for IBTK::CellNoCornersFillPattern:

[legend]

Public Member Functions
	CellNoCornersFillPattern (int stencil_width, bool overwrite_interior)
	Constructor. More...

	~CellNoCornersFillPattern ()=default
	Destructor. More...

SAMRAI::tbox::Pointer< SAMRAI::hier::BoxOverlap< NDIM > >	calculateOverlap (const SAMRAI::hier::BoxGeometry< NDIM > &dst_geometry, const SAMRAI::hier::BoxGeometry< NDIM > &src_geometry, const SAMRAI::hier::Box< NDIM > &dst_patch_box, const SAMRAI::hier::Box< NDIM > &src_mask, bool overwrite_interior, const SAMRAI::hier::IntVector< NDIM > &src_offset) const override

SAMRAI::tbox::Pointer< SAMRAI::hier::BoxOverlap< NDIM > >	calculateOverlapOnLevel (const SAMRAI::hier::BoxGeometry< NDIM > &dst_geometry, const SAMRAI::hier::BoxGeometry< NDIM > &src_geometry, const SAMRAI::hier::Box< NDIM > &dst_patch_box, const SAMRAI::hier::Box< NDIM > &src_mask, bool overwrite_interior, const SAMRAI::hier::IntVector< NDIM > &src_offset, int dst_level_num, int src_level_num) const override

void	setTargetPatchLevelNumber (int level_num) override

SAMRAI::hier::IntVector< NDIM > &	getStencilWidth () override

const std::string &	getPatternName () const override

virtual tbox::Pointer< hier::BoxOverlap< DIM > >	calculateOverlap (const hier::BoxGeometry< DIM > &dst_geometry, const hier::BoxGeometry< DIM > &src_geometry, const hier::Box< DIM > &dst_patch_box, const hier::Box< DIM > &src_mask, const bool overwrite_interior, const hier::IntVector< DIM > &src_offset) const=0

virtual tbox::Pointer< hier::BoxOverlap< DIM > >	calculateOverlapOnLevel (const hier::BoxGeometry< DIM > &dst_geometry, const hier::BoxGeometry< DIM > &src_geometry, const hier::Box< DIM > &dst_patch_box, const hier::Box< DIM > &src_mask, const bool overwrite_interior, const hier::IntVector< DIM > &src_offset, const int dst_level_num, const int src_level_num) const

virtual const std::string &	getPatternName () const=0

Private Member Functions
	CellNoCornersFillPattern ()=delete
	Default constructor. More...

	CellNoCornersFillPattern (const CellNoCornersFillPattern &from)=delete
	Copy constructor. More...

CellNoCornersFillPattern &	operator= (const CellNoCornersFillPattern &that)=delete
	Assignment operator. More...

Private Attributes
SAMRAI::hier::IntVector< NDIM >	d_stencil_width

const bool	d_overwrite_interior

int	d_target_level_num = IBTK::invalid_level_number

Detailed Description

On levels other than the target level (or in cases in which the target level cannot be determined), the overlap pattern defaults to that provided by class SAMRAI::pdat::CellOverlap.

Constructor & Destructor Documentation

◆ CellNoCornersFillPattern() [1/3]

IBTK::CellNoCornersFillPattern::CellNoCornersFillPattern	(	int	stencil_width,
		bool	overwrite_interior
	)

Parameters

stencil_width	the width to fill
overwrite_interior	whether to include the patch interior

Note: The parameter overwrite_interior takes precedence over the value passed in to the function calculateOverlap on the target patch level.

◆ ~CellNoCornersFillPattern()

IBTK::CellNoCornersFillPattern::~CellNoCornersFillPattern ( )

default

◆ CellNoCornersFillPattern() [2/3]

IBTK::CellNoCornersFillPattern::CellNoCornersFillPattern ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ CellNoCornersFillPattern() [3/3]

IBTK::CellNoCornersFillPattern::CellNoCornersFillPattern ( const CellNoCornersFillPattern & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ calculateOverlap() [1/2]

SAMRAI::tbox::Pointer<SAMRAI::hier::BoxOverlap<NDIM> > IBTK::CellNoCornersFillPattern::calculateOverlap	(	const SAMRAI::hier::BoxGeometry< NDIM > &	dst_geometry,
		const SAMRAI::hier::BoxGeometry< NDIM > &	src_geometry,
		const SAMRAI::hier::Box< NDIM > &	dst_patch_box,
		const SAMRAI::hier::Box< NDIM > &	src_mask,
		bool	overwrite_interior,
		const SAMRAI::hier::IntVector< NDIM > &	src_offset
	)		const

override

Calculate overlaps between the destination and source geometries according to the desired pattern. This will return the portion of the intersection of the geometries that lies in the ghost region of the specified width surrounding the patch, excluding all edges and corners. The patch is identified by the argument dst_patch_box.

Parameters

dst_geometry	geometry object for destination box
src_geometry	geometry object for source box
dst_patch_box	box for the destination patch
src_mask	the source mask, the box resulting from shifting the source box
overwrite_interior	controls whether or not to include the destination box interior in the overlap
src_offset	the offset between source and destination index space (src + src_offset = dst)

Returns: pointer to the calculated overlap object

◆ calculateOverlapOnLevel() [1/2]

SAMRAI::tbox::Pointer<SAMRAI::hier::BoxOverlap<NDIM> > IBTK::CellNoCornersFillPattern::calculateOverlapOnLevel	(	const SAMRAI::hier::BoxGeometry< NDIM > &	dst_geometry,
		const SAMRAI::hier::BoxGeometry< NDIM > &	src_geometry,
		const SAMRAI::hier::Box< NDIM > &	dst_patch_box,
		const SAMRAI::hier::Box< NDIM > &	src_mask,
		bool	overwrite_interior,
		const SAMRAI::hier::IntVector< NDIM > &	src_offset,
		int	dst_level_num,
		int	src_level_num
	)		const

override

Calculate overlaps between the destination and source geometries according to the desired pattern. This will return the portion of the intersection of the geometries that lies in the ghost region of the specified width surrounding the patch, excluding all edges and corners. The patch is identified by the argument dst_patch_box.

Parameters

dst_geometry	geometry object for destination box
src_geometry	geometry object for source box
dst_patch_box	box for the destination patch
src_mask	the source mask, the box resulting from shifting the source box
overwrite_interior	controls whether or not to include the destination box interior in the overlap
src_offset	the offset between source and destination index space (src + src_offset = dst)
dst_level_num	the level of the patch hierarchy on which the dst boxes are located
src_level_num	the level of the patch hierarchy on which the src boxes are located

Returns: pointer to the calculated overlap object

◆ setTargetPatchLevelNumber()

void IBTK::CellNoCornersFillPattern::setTargetPatchLevelNumber ( int level_num )

overridevirtual

Set the target patch level number for the variable fill pattern.

Reimplemented from SAMRAI::xfer::VariableFillPattern< NDIM >.

◆ getStencilWidth()

SAMRAI::hier::IntVector<NDIM>& IBTK::CellNoCornersFillPattern::getStencilWidth ( )

overridevirtual

Returns the stencil width.

Implements SAMRAI::xfer::VariableFillPattern< NDIM >.

◆ getPatternName() [1/2]

const std::string& IBTK::CellNoCornersFillPattern::getPatternName ( ) const

override

Returns a string name identifier "CELL_NO_CORNERS_FILL_PATTERN".

◆ operator=()

CellNoCornersFillPattern& IBTK::CellNoCornersFillPattern::operator= ( const CellNoCornersFillPattern & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ calculateOverlap() [2/2]

virtual tbox::Pointer< hier::BoxOverlap<DIM> > SAMRAI::xfer::VariableFillPattern< DIM >::calculateOverlap	(	const hier::BoxGeometry< DIM > &	dst_geometry,
		const hier::BoxGeometry< DIM > &	src_geometry,
		const hier::Box< DIM > &	dst_patch_box,
		const hier::Box< DIM > &	src_mask,
		const bool	overwrite_interior,
		const hier::IntVector< DIM > &	src_offset
	)		const

pure virtualinherited

This pure virtual method provides an interface to calculate overlaps between the destination and source geometries.

Parameters

dst_geometry	geometry object for destination box
src_geometry	geometry object for source box
dst_patch_box	box for the destination patch
src_mask	the source mask, the box resulting from shifting the source box
overwrite_interior	controls whether or not to include the destination box interior in the overlap
src_offset	the offset between source and destination index space. src + src_offset = dst

Returns: Pointer to the calculated overlap object

◆ calculateOverlapOnLevel() [2/2]

virtual tbox::Pointer< hier::BoxOverlap<DIM> > SAMRAI::xfer::VariableFillPattern< DIM >::calculateOverlapOnLevel	(	const hier::BoxGeometry< DIM > &	dst_geometry,
		const hier::BoxGeometry< DIM > &	src_geometry,
		const hier::Box< DIM > &	dst_patch_box,
		const hier::Box< DIM > &	src_mask,
		const bool	overwrite_interior,
		const hier::IntVector< DIM > &	src_offset,
		const int	dst_level_num,
		const int	src_level_num
	)		const

virtualinherited

This virtual method provides an interface to calculate overlaps between the destination and source geometries on a specified level of the patch hierarchy.

Note: A default implementation is provided that simply calls the pure virtual method calculateOverlap() for implementations that are level independent.

Parameters

dst_geometry	geometry object for destination box
src_geometry	geometry object for source box
dst_patch_box	box for the destination patch
src_mask	the source mask, the box resulting from shifting the source box
overwrite_interior	controls whether or not to include the destination box interior in the overlap
src_offset	the offset between source and destination index space. src + src_offset = dst
dst_level_num	the level of the patch hierarchy on which the dst boxes are located
src_level_num	the level of the patch hierarchy on which the src boxes are located

Returns: Pointer to the calculated overlap object

◆ getPatternName() [2/2]

virtual const std::string& SAMRAI::xfer::VariableFillPattern< DIM >::getPatternName

pure virtualinherited

Return a string name identifying the concrete subclass.

Member Data Documentation

◆ d_stencil_width

SAMRAI::hier::IntVector<NDIM> IBTK::CellNoCornersFillPattern::d_stencil_width

private

◆ d_overwrite_interior

const bool IBTK::CellNoCornersFillPattern::d_overwrite_interior

private

◆ d_target_level_num

int IBTK::CellNoCornersFillPattern::d_target_level_num = IBTK::invalid_level_number

private

The documentation for this class was generated from the following file:

ibtk/include/ibtk/CellNoCornersFillPattern.h
