IBTK::FELagrangeMapping< dim, spacedim, n_nodes > Class Template Reference

#include <ibtk/FEMapping.h>

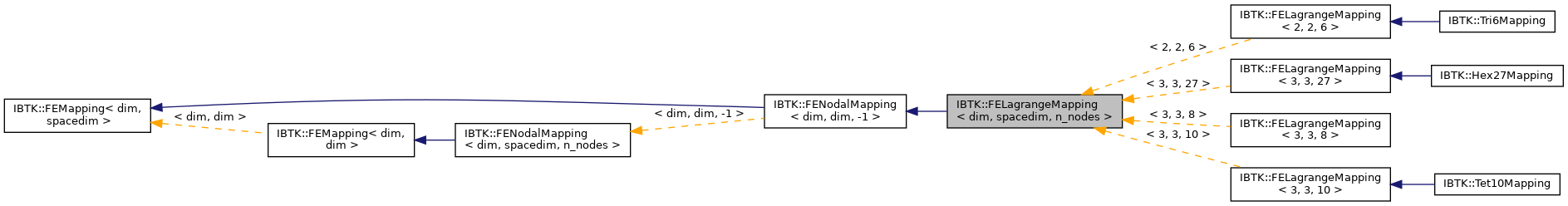

Inheritance diagram for IBTK::FELagrangeMapping< dim, spacedim, n_nodes >:

Public Types
using	key_type = quadrature_key_type

Public Member Functions
	FELagrangeMapping (const key_type quad_key, const libMesh::ElemType mapping_element_type, const FEUpdateFlags update_flags)
virtual void	reinit (const libMesh::Elem *elem) override
virtual const std::vector< double > &	getJxW () const override
virtual const std::vector< double > &	getJxW () const =0
virtual const std::vector< libMesh::Point > &	getQuadraturePoints () const override
virtual const std::vector< libMesh::Point > &	getQuadraturePoints () const =0
virtual const std::vector< Eigen::Matrix< double, spacedim, dim > > &	getContravariants () const override
virtual const std::vector< Eigen::Matrix< double, spacedim, dim > > &	getContravariants () const =0
virtual const std::vector< Eigen::Matrix< double, spacedim, dim > > &	getCovariants () const override
virtual const std::vector< Eigen::Matrix< double, spacedim, dim > > &	getCovariants () const =0
std::unique_ptr< FEMapping< 2, 2 > >	build (const key_type key, const FEUpdateFlags update_flags)
std::unique_ptr< FEMapping< 3, 3 > >	build (const key_type key, const FEUpdateFlags update_flags)

Static Public Member Functions
static std::unique_ptr< FEMapping< dim, spacedim > >	build (const key_type key, const FEUpdateFlags update_flags)

Protected Member Functions
virtual void	fillTransforms (const libMesh::Elem *elem) override
virtual bool	isAffine () const
virtual void	fillJacobians () override
virtual void	fillJxW () override
virtual void	fillQuadraturePoints (const libMesh::Elem *elem) override

Protected Attributes
const int	d_n_nodes
boost::multi_array< std::array< double, dim >, 2 >	d_dphi
const QuadratureData	d_quadrature_data
FEUpdateFlags	d_update_flags
std::vector< Eigen::Matrix< double, spacedim, dim > >	d_contravariants
std::vector< Eigen::Matrix< double, spacedim, dim > >	d_covariants
std::vector< double >	d_Jacobians
std::vector< double >	d_JxW
std::vector< libMesh::Point >	d_quadrature_points
PointMap< dim, spacedim, n_nodes >	d_point_map

Friends
class	Hex27Mapping

Detailed Description

template<int dim, int spacedim = dim, int n_nodes = -1>
class IBTK::FELagrangeMapping< dim, spacedim, n_nodes >

A generic implementation for Lagrange-type elements: works for all elements in that family but is less efficient than the specialized classes for lower-order or tensor-product elements. Supports nonzero codimension.

Member Typedef Documentation

key_type

template<int dim, int spacedim = dim, int n_nodes = -1>

using IBTK::FELagrangeMapping< dim, spacedim, n_nodes >::key_type = quadrature_key_type

Key type. Completely describes (excepting p-refinement) a libMesh quadrature rule.

Constructor & Destructor Documentation

FELagrangeMapping()

template<int dim, int spacedim = dim, int n_nodes = -1>

IBTK::FELagrangeMapping< dim, spacedim, n_nodes >::FELagrangeMapping	(	const key_type	quad_key,
		const libMesh::ElemType	mapping_element_type,
		const FEUpdateFlags	update_flags
	)

Constructor.

Parameters

[in]	quad_key	The quadrature key (i.e., a complete description of the quadrature rule).
[in]	mapping_element_type	The element type used to compute the mapping from the reference element to the physical element. This may be different from the element type in the quadrature rule - for example, one could provide TRI6 in the quadrature rule and TRI3 here.
[in]	update_flags	An enum describing which values need to be computed on each element.

Member Function Documentation

fillTransforms()

template<int dim, int spacedim = dim, int n_nodes = -1>

virtual void IBTK::FELagrangeMapping< dim, spacedim, n_nodes >::fillTransforms ( const libMesh::Elem *  elem )

overrideprotectedvirtual

Compute the contravariants and covariants. In general each mapping will have to overload this function.

Implements IBTK::FEMapping< dim, spacedim >.

reinit()

virtual void IBTK::FENodalMapping< dim, spacedim, n_nodes >::reinit ( const libMesh::Elem *  elem )

overridevirtualinherited

Recalculate relevant quantities for the provided element.

Implements IBTK::FEMapping< dim, spacedim >.

getJxW() [1/2]

virtual const std::vector<double>& IBTK::FENodalMapping< dim, spacedim, n_nodes >::getJxW

inlineoverridevirtualinherited

getJxW() [2/2]

template<int dim, int spacedim = dim>

virtual const std::vector<double>& IBTK::FEMapping< dim, spacedim >::getJxW ( ) const

pure virtualinherited

Get the current jacobian times quadrature weight (JxW) values.

getQuadraturePoints() [1/2]

virtual const std::vector<libMesh::Point>& IBTK::FENodalMapping< dim, spacedim, n_nodes >::getQuadraturePoints

inlineoverridevirtualinherited

getQuadraturePoints() [2/2]

template<int dim, int spacedim = dim>

virtual const std::vector<libMesh::Point>& IBTK::FEMapping< dim, spacedim >::getQuadraturePoints ( ) const

pure virtualinherited

Get the positions of the quadrature points on the current element.

getContravariants() [1/2]

virtual const std::vector<Eigen::Matrix<double, spacedim, dim> >& IBTK::FENodalMapping< dim, spacedim, n_nodes >::getContravariants

inlineoverridevirtualinherited

getContravariants() [2/2]

template<int dim, int spacedim = dim>

virtual const std::vector<Eigen::Matrix<double, spacedim, dim> >& IBTK::FEMapping< dim, spacedim >::getContravariants ( ) const

pure virtualinherited

Get the contravariants.

getCovariants() [1/2]

virtual const std::vector<Eigen::Matrix<double, spacedim, dim> >& IBTK::FENodalMapping< dim, spacedim, n_nodes >::getCovariants

inlineoverridevirtualinherited

getCovariants() [2/2]

template<int dim, int spacedim = dim>

virtual const std::vector<Eigen::Matrix<double, spacedim, dim> >& IBTK::FEMapping< dim, spacedim >::getCovariants ( ) const

pure virtualinherited

Get the covariants.

isAffine()

virtual bool IBTK::FENodalMapping< dim, spacedim, n_nodes >::isAffine

protectedvirtualinherited

Boolean indicating that the mapping is affine - if it is we can skip some computations. The default implementation returns false. Inheriting classes should overload this they represent affine mappings.

fillJacobians()

virtual void IBTK::FENodalMapping< dim, spacedim, n_nodes >::fillJacobians

overrideprotectedvirtualinherited

Compute determinants of contravariants (the Jacobians). The default implementation given here is usually the correct one.

Implements IBTK::FEMapping< dim, spacedim >.

fillJxW()

virtual void IBTK::FENodalMapping< dim, spacedim, n_nodes >::fillJxW

overrideprotectedvirtualinherited

Compute JxW values. The default implementation given here is usually the correct one.

Implements IBTK::FEMapping< dim, spacedim >.

fillQuadraturePoints()

virtual void IBTK::FENodalMapping< dim, spacedim, n_nodes >::fillQuadraturePoints ( const libMesh::Elem *  elem )

overrideprotectedvirtualinherited

Compute the positions of quadrature points on the current element.

Implements IBTK::FEMapping< dim, spacedim >.

build() [1/3]

template<int dim, int spacedim = dim>

static std::unique_ptr<FEMapping<dim, spacedim> > IBTK::FEMapping< dim, spacedim >::build ( const key_type  key, const FEUpdateFlags  update_flags  )

staticinherited

Return a pointer to the correct mapping for a given quadrature key and update flags object.

build() [2/3]

std::unique_ptr< FEMapping< 2, 2 > > IBTK::FEMapping< 2, 2 >::build ( const key_type  key, const FEUpdateFlags  update_flags  )

inherited

build() [3/3]

std::unique_ptr< FEMapping< 3, 3 > > IBTK::FEMapping< 3, 3 >::build ( const key_type  key, const FEUpdateFlags  update_flags  )

inherited

Friends And Related Function Documentation

Hex27Mapping

template<int dim, int spacedim = dim, int n_nodes = -1>

friend class Hex27Mapping

friend

Member Data Documentation

d_n_nodes

template<int dim, int spacedim = dim, int n_nodes = -1>

const int IBTK::FELagrangeMapping< dim, spacedim, n_nodes >::d_n_nodes

protected

Number of nodes for the considered element type.

d_dphi

template<int dim, int spacedim = dim, int n_nodes = -1>

boost::multi_array<std::array<double, dim>, 2> IBTK::FELagrangeMapping< dim, spacedim, n_nodes >::d_dphi

protected

Values of shape function gradients on the reference element at quadrature points.

d_quadrature_data

const QuadratureData IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_quadrature_data

protectedinherited

Information on the relevant quadrature rule.

d_update_flags

FEUpdateFlags IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_update_flags

protectedinherited

Computed update flags for the mapping.

d_contravariants

std::vector<Eigen::Matrix<double, spacedim, dim> > IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_contravariants

protectedinherited

Array of contravariants.

d_covariants

std::vector<Eigen::Matrix<double, spacedim, dim> > IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_covariants

protectedinherited

Array of covariants (i.e., the transpose of the inverse of the covariants when dim == spacedim)

d_Jacobians

std::vector<double> IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_Jacobians

protectedinherited

Array of Jacobians.

d_JxW

std::vector<double> IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_JxW

protectedinherited

Array of JxW values.

d_quadrature_points

std::vector<libMesh::Point> IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_quadrature_points

protectedinherited

Array of mapped quadrature points.

d_point_map

PointMap<dim, spacedim, n_nodes> IBTK::FENodalMapping< dim, spacedim, n_nodes >::d_point_map

protectedinherited

Object that computes quadrature point locations. This is sufficiently different from the rest of the mapping code that it is implemented in another class.

---

The documentation for this class was generated from the following file:

• ibtk/include/ibtk/FEMapping.h
