Class MergingLoadBalancer merges the boxes generated by a load balancer in a final step to decrease the total number of boxes. In essence, it postprocesses the list of boxes generated by its parent class to try and coalesce the set of boxes on each process. More...

#include <ibtk/MergingLoadBalancer.h>

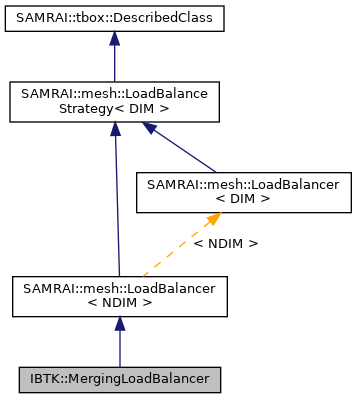

Inheritance diagram for IBTK::MergingLoadBalancer:

[legend]

Public Member Functions
virtual void	loadBalanceBoxes (SAMRAI::hier::BoxArray< NDIM > &out_boxes, SAMRAI::hier::ProcessorMapping &mapping, const SAMRAI::hier::BoxList< NDIM > &in_boxes, const SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, const SAMRAI::hier::BoxArray< NDIM > &physical_domain, const SAMRAI::hier::IntVector< NDIM > &ratio_to_hierarchy_level_zero, const SAMRAI::hier::IntVector< NDIM > &min_size, const SAMRAI::hier::IntVector< NDIM > &max_size, const SAMRAI::hier::IntVector< NDIM > &cut_factor, const SAMRAI::hier::IntVector< NDIM > &bad_interval) const override

void	setMaxWorkloadFactor (double factor, int level_number=-1)

void	setWorkloadTolerance (double tolerance, int level_number=-1)

void	setWorkloadPatchDataIndex (int data_id, int level_number=-1)

void	setUniformWorkload (int level_number=-1)

void	setBinPackMethod (const std::string &method, int level_number=-1)

void	setIgnoreLevelDomainIsSingleBox (bool flag)

bool	getLoadBalanceDependsOnPatchData (int level_number) const

void	loadBalanceBoxes (hier::BoxArray< DIM > &out_boxes, hier::ProcessorMapping &mapping, const hier::BoxList< DIM > &in_boxes, const tbox::Pointer< hier::PatchHierarchy< DIM > > hierarchy, int level_number, const hier::BoxArray< DIM > &physical_domain, const hier::IntVector< DIM > &ratio_to_hierarchy_level_zero, const hier::IntVector< DIM > &min_size, const hier::IntVector< DIM > &max_size, const hier::IntVector< DIM > &cut_factor, const hier::IntVector< DIM > &bad_interval) const

virtual void	printClassData (std::ostream &os) const

Private Member Functions
void	getFromInput (tbox::Pointer< tbox::Database > db)

void	chopUniformSingleBox (hier::BoxArray< DIM > &out_boxes, tbox::Array< double > &out_workloads, const hier::Box< DIM > &in_box, const hier::IntVector< DIM > &min_size, const hier::IntVector< DIM > &max_size, const hier::IntVector< DIM > &cut_factor, const hier::IntVector< DIM > &bad_interval, const hier::BoxArray< DIM > &physical_domain) const

void	chopBoxesWithUniformWorkload (hier::BoxArray< DIM > &out_boxes, tbox::Array< double > &out_workloads, const hier::BoxList< DIM > &in_boxes, const tbox::Pointer< hier::PatchHierarchy< DIM > > hierarchy, int level_number, const hier::IntVector< DIM > &min_size, const hier::IntVector< DIM > &max_size, const hier::IntVector< DIM > &cut_factor, const hier::IntVector< DIM > &bad_interval, const hier::BoxArray< DIM > &physical_domain) const

void	chopBoxesWithNonuniformWorkload (hier::BoxArray< DIM > &out_boxes, tbox::Array< double > &out_workloads, const hier::BoxList< DIM > &in_boxes, const tbox::Pointer< hier::PatchHierarchy< DIM > > hierarchy, int level_number, const hier::IntVector< DIM > &ratio_to_coarsest_hierarchy_level, int wrk_indx, const hier::IntVector< DIM > &min_size, const hier::IntVector< DIM > &max_size, const hier::IntVector< DIM > &cut_factor, const hier::IntVector< DIM > &bad_interval, const hier::BoxArray< DIM > &physical_domain) const

void	binPackBoxes (hier::BoxArray< DIM > &boxes, hier::ProcessorMapping &mapping, tbox::Array< double > &workloads, const std::string &bin_pack_method) const

int	getWorkloadDataId (int level_number) const

double	getMaxWorkloadFactor (int level_number) const

double	getWorkloadTolerance (int level_number) const

std::string	getBinPackMethod (int level_number) const

Private Attributes
std::string	d_object_name

bool	d_processor_layout_specified

hier::IntVector< DIM >	d_processor_layout

bool	d_ignore_level_box_union_is_single_box

int	d_master_workload_data_id

double	d_master_max_workload_factor

double	d_master_workload_tolerance

std::string	d_master_bin_pack_method

tbox::Array< int >	d_workload_data_id

tbox::Array< double >	d_max_workload_factor

tbox::Array< double >	d_workload_tolerance

tbox::Array< std::string >	d_bin_pack_method

bool	d_opt_for_single_box

tbox::Pointer< tbox::Timer >	t_load_balance_boxes

tbox::Pointer< tbox::Timer >	t_load_balance_boxes_remove_intersection

tbox::Pointer< tbox::Timer >	t_bin_pack_boxes

tbox::Pointer< tbox::Timer >	t_bin_pack_boxes_sort

tbox::Pointer< tbox::Timer >	t_bin_pack_boxes_pack

tbox::Pointer< tbox::Timer >	t_chop_boxes

Detailed Description

Note: During regridding, the boxes generated by this class are subsequently read by GriddingAlgorithm, which will enforce minimum and maximum size constraints; i.e., to take full advantage of this class one must set up the GriddingAlgorithm objects to have very large maximum box sizes.

Member Function Documentation

◆ loadBalanceBoxes() [1/2]

virtual void IBTK::MergingLoadBalancer::loadBalanceBoxes	(	SAMRAI::hier::BoxArray< NDIM > &	out_boxes,
		SAMRAI::hier::ProcessorMapping &	mapping,
		const SAMRAI::hier::BoxList< NDIM > &	in_boxes,
		const SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		const SAMRAI::hier::BoxArray< NDIM > &	physical_domain,
		const SAMRAI::hier::IntVector< NDIM > &	ratio_to_hierarchy_level_zero,
		const SAMRAI::hier::IntVector< NDIM > &	min_size,
		const SAMRAI::hier::IntVector< NDIM > &	max_size,
		const SAMRAI::hier::IntVector< NDIM > &	cut_factor,
		const SAMRAI::hier::IntVector< NDIM > &	bad_interval
	)		const

overridevirtual

◆ setMaxWorkloadFactor()

void SAMRAI::mesh::LoadBalancer< DIM >::setMaxWorkloadFactor	(	double	factor,
		int	level_number = `-1`
	)

inherited

Set the max workload factor for either the specified level or all hierarchy levels. See discussion about inputs above for information on how this value is used during load balancing operations.

Parameters

factor	Double value of multiplier for average workload used in box chopping. The default value is 1.0.
level_number	Optional integer number for level to which factor is applied. If no value is given, the factor will be used for all levels.

◆ setWorkloadTolerance()

void SAMRAI::mesh::LoadBalancer< DIM >::setWorkloadTolerance	(	double	tolerance,
		int	level_number = `-1`
	)

inherited

Set the workload tolerance for either the specified level or all hierarchy levels. See discussion about inputs above for information on how this value is used during load balancing operations.

Parameters

factor	Double value of tolerance. The default value is 0.0;
level_number	Optional integer number for level to which factor is applied. If no value is given, the value will be used for all levels.

◆ setWorkloadPatchDataIndex()

void SAMRAI::mesh::LoadBalancer< DIM >::setWorkloadPatchDataIndex	(	int	data_id,
		int	level_number = `-1`
	)

inherited

Configure the load balancer to use the data stored in the hierarchy at the specified descriptor index for estimating the workload on each cell.

Parameters

data_id	Integer value of patch data identifier for workload estimate on each cell.
level_number	Optional integer number for level on which data id is used. If no value is given, the data will be used for all levels.

◆ setUniformWorkload()

void SAMRAI::mesh::LoadBalancer< DIM >::setUniformWorkload ( int level_number = -1 )

inherited

Configure the load balancer to load balance boxes by assuming all cells on the specified level or all hierarchy levels are weighted equally.

Parameters

level_number Optional integer number for level on which uniform workload estimate will be used. If the level number is not specified, a uniform workload estimate will be used on all levels.

◆ setBinPackMethod()

void SAMRAI::mesh::LoadBalancer< DIM >::setBinPackMethod	(	const std::string &	method,
		int	level_number = `-1`
	)

inherited

Configure the load balancer to use the bin-packing procedure for mapping patches to processors indicated by the string.

Parameters

method	String value indicating bin-packing method to use. See input file description above for valid options. The default value is "GREEDY".
level_number	Optional integer number for level on which bin-packing method will be used. If no value is given, the prescribed methods will be used on all levels.

◆ setIgnoreLevelDomainIsSingleBox()

void SAMRAI::mesh::LoadBalancer< DIM >::setIgnoreLevelDomainIsSingleBox ( bool flag )

inherited

Set the boolean flag to control chopping of level boxes when the union of the input boxes passed to the loadBalanceBoxes() routine is a single box. The default value is false, which means that the domain will be chopped to make patch boxes based on the (single box) union of the boxes describing the level regardless of the input boxes. When the value is set to true, the domain will be chopped by chopping each of the input boxes.

Parameters

flag	Boolean value indicating whether to ignore the set of input boxes to the loadBalanceBoxes() routine when the union of those boxes is a single box.

◆ getLoadBalanceDependsOnPatchData()

bool SAMRAI::mesh::LoadBalancer< DIM >::getLoadBalanceDependsOnPatchData ( int level_number ) const

virtualinherited

Return true if load balancing procedure for given level depends on patch data on mesh; otherwise return false. This can be used to determine whether a level needs to be rebalanced although its box configuration is unchanged. This function is pure virtual in the LoadBalanceStrategy<DIM> base class.

Returns: Boolean value indicating whether load balance depends on patch data.

Parameters

level_number Integer patch level number.

Implements SAMRAI::mesh::LoadBalanceStrategy< DIM >.

◆ loadBalanceBoxes() [2/2]

void SAMRAI::mesh::LoadBalancer< DIM >::loadBalanceBoxes	(	hier::BoxArray< DIM > &	out_boxes,
		hier::ProcessorMapping &	mapping,
		const hier::BoxList< DIM > &	in_boxes,
		const tbox::Pointer< hier::PatchHierarchy< DIM > >	hierarchy,
		int	level_number,
		const hier::BoxArray< DIM > &	physical_domain,
		const hier::IntVector< DIM > &	ratio_to_hierarchy_level_zero,
		const hier::IntVector< DIM > &	min_size,
		const hier::IntVector< DIM > &	max_size,
		const hier::IntVector< DIM > &	cut_factor,
		const hier::IntVector< DIM > &	bad_interval
	)		const

virtualinherited

Given a list of boxes, representing the domain of a level in the AMR hierarchy, generate an array of boxes and an associated processor mapping from which the patches for the level will be generated and assigned. The resulting boxes and processor mapping will be determined based on parameters set via input or member functions above. This function is pure virtual in the LoadBalanceStrategy<DIM> base class.

Parameters

out_boxes	Output box array for generating patches on level.
mapping	Output processor mapping for patches on level.
in_boxes	Input box list representing union of patches on level.
hierarchy	Input patch hierarchy in which level will reside.
level_number	Input integer number of level in patch hierarchy. This value must be >= 0.
physical_domain	Array of boxes describing the physical extent of the problem domain in the index space associated with the level. This box array cannot be empty.
ratio_to_hierarchy_level_zero	Input integer vector indicating ratio between index space of level to load balance and hierarchy level 0 (i.e., coarsest hierarchy level).
min_size	Input integer vector of minimum dimensions for output boxes. All entries must be > 0.
max_size	Input integer vector of maximum dimensions for output boxes. All entries must be >= min_size.
cut_factor	Input integer vector used to create boxes with correct dimensions. The length of each box dimension will be an integer multiple of the corresponding cut factor vector entry. All vector entries must be > 0. See hier::BoxUtilities documentation for more details.
bad_interval	Input integer vector used to create boxes near physical domain boundary with sufficient number of cells. No box face will be closer to the boundary than the corresponding interval of cells to the boundary (the corresponding value is given by the normal direction of the box face) unless the face coincides with the boundary itself. The point of this argument is to have no patch live within a certain ghost cell width of the boundary if its boundary does not coincide with that boundary . That is, all ghost cells along a face will be either in the domain interior or outside the domain. All entries must be >= 0. See hier::BoxUtilities documentation for more details.

Implements SAMRAI::mesh::LoadBalanceStrategy< DIM >.

◆ printClassData()

virtual void SAMRAI::mesh::LoadBalancer< DIM >::printClassData ( std::ostream & os ) const

virtualinherited

Print out all members of the class instance to given output stream.

◆ getFromInput()

void SAMRAI::mesh::LoadBalancer< DIM >::getFromInput ( tbox::Pointer< tbox::Database > db )

privateinherited

◆ chopUniformSingleBox()

void SAMRAI::mesh::LoadBalancer< DIM >::chopUniformSingleBox	(	hier::BoxArray< DIM > &	out_boxes,
		tbox::Array< double > &	out_workloads,
		const hier::Box< DIM > &	in_box,
		const hier::IntVector< DIM > &	min_size,
		const hier::IntVector< DIM > &	max_size,
		const hier::IntVector< DIM > &	cut_factor,
		const hier::IntVector< DIM > &	bad_interval,
		const hier::BoxArray< DIM > &	physical_domain
	)		const

privateinherited

◆ chopBoxesWithUniformWorkload()

void SAMRAI::mesh::LoadBalancer< DIM >::chopBoxesWithUniformWorkload	(	hier::BoxArray< DIM > &	out_boxes,
		tbox::Array< double > &	out_workloads,
		const hier::BoxList< DIM > &	in_boxes,
		const tbox::Pointer< hier::PatchHierarchy< DIM > >	hierarchy,
		int	level_number,
		const hier::IntVector< DIM > &	min_size,
		const hier::IntVector< DIM > &	max_size,
		const hier::IntVector< DIM > &	cut_factor,
		const hier::IntVector< DIM > &	bad_interval,
		const hier::BoxArray< DIM > &	physical_domain
	)		const

privateinherited

◆ chopBoxesWithNonuniformWorkload()

void SAMRAI::mesh::LoadBalancer< DIM >::chopBoxesWithNonuniformWorkload	(	hier::BoxArray< DIM > &	out_boxes,
		tbox::Array< double > &	out_workloads,
		const hier::BoxList< DIM > &	in_boxes,
		const tbox::Pointer< hier::PatchHierarchy< DIM > >	hierarchy,
		int	level_number,
		const hier::IntVector< DIM > &	ratio_to_coarsest_hierarchy_level,
		int	wrk_indx,
		const hier::IntVector< DIM > &	min_size,
		const hier::IntVector< DIM > &	max_size,
		const hier::IntVector< DIM > &	cut_factor,
		const hier::IntVector< DIM > &	bad_interval,
		const hier::BoxArray< DIM > &	physical_domain
	)		const

privateinherited

◆ binPackBoxes()

void SAMRAI::mesh::LoadBalancer< DIM >::binPackBoxes	(	hier::BoxArray< DIM > &	boxes,
		hier::ProcessorMapping &	mapping,
		tbox::Array< double > &	workloads,
		const std::string &	bin_pack_method
	)		const

privateinherited

◆ getWorkloadDataId()

int SAMRAI::mesh::LoadBalancer< DIM >::getWorkloadDataId ( int level_number ) const

privateinherited

◆ getMaxWorkloadFactor()

double SAMRAI::mesh::LoadBalancer< DIM >::getMaxWorkloadFactor ( int level_number ) const

privateinherited

◆ getWorkloadTolerance()

double SAMRAI::mesh::LoadBalancer< DIM >::getWorkloadTolerance ( int level_number ) const

privateinherited

◆ getBinPackMethod()

std::string SAMRAI::mesh::LoadBalancer< DIM >::getBinPackMethod ( int level_number ) const

privateinherited

Member Data Documentation

◆ d_object_name

std::string SAMRAI::mesh::LoadBalancer< DIM >::d_object_name

privateinherited

◆ d_processor_layout_specified

bool SAMRAI::mesh::LoadBalancer< DIM >::d_processor_layout_specified

privateinherited

◆ d_processor_layout

hier::IntVector<DIM> SAMRAI::mesh::LoadBalancer< DIM >::d_processor_layout

privateinherited

◆ d_ignore_level_box_union_is_single_box

bool SAMRAI::mesh::LoadBalancer< DIM >::d_ignore_level_box_union_is_single_box

privateinherited

◆ d_master_workload_data_id

int SAMRAI::mesh::LoadBalancer< DIM >::d_master_workload_data_id

privateinherited

◆ d_master_max_workload_factor

double SAMRAI::mesh::LoadBalancer< DIM >::d_master_max_workload_factor

privateinherited

◆ d_master_workload_tolerance

double SAMRAI::mesh::LoadBalancer< DIM >::d_master_workload_tolerance

privateinherited

◆ d_master_bin_pack_method

std::string SAMRAI::mesh::LoadBalancer< DIM >::d_master_bin_pack_method

privateinherited

◆ d_workload_data_id

tbox::Array<int> SAMRAI::mesh::LoadBalancer< DIM >::d_workload_data_id

privateinherited

◆ d_max_workload_factor

tbox::Array<double> SAMRAI::mesh::LoadBalancer< DIM >::d_max_workload_factor

privateinherited

◆ d_workload_tolerance

tbox::Array<double> SAMRAI::mesh::LoadBalancer< DIM >::d_workload_tolerance

privateinherited

◆ d_bin_pack_method

tbox::Array<std::string> SAMRAI::mesh::LoadBalancer< DIM >::d_bin_pack_method

privateinherited

◆ d_opt_for_single_box

bool SAMRAI::mesh::LoadBalancer< DIM >::d_opt_for_single_box

privateinherited

◆ t_load_balance_boxes

tbox::Pointer<tbox::Timer> SAMRAI::mesh::LoadBalancer< DIM >::t_load_balance_boxes

privateinherited

◆ t_load_balance_boxes_remove_intersection

tbox::Pointer<tbox::Timer> SAMRAI::mesh::LoadBalancer< DIM >::t_load_balance_boxes_remove_intersection

privateinherited

◆ t_bin_pack_boxes

tbox::Pointer<tbox::Timer> SAMRAI::mesh::LoadBalancer< DIM >::t_bin_pack_boxes

privateinherited

◆ t_bin_pack_boxes_sort

tbox::Pointer<tbox::Timer> SAMRAI::mesh::LoadBalancer< DIM >::t_bin_pack_boxes_sort

privateinherited

◆ t_bin_pack_boxes_pack

tbox::Pointer<tbox::Timer> SAMRAI::mesh::LoadBalancer< DIM >::t_bin_pack_boxes_pack

privateinherited

◆ t_chop_boxes

tbox::Pointer<tbox::Timer> SAMRAI::mesh::LoadBalancer< DIM >::t_chop_boxes

privateinherited

The documentation for this class was generated from the following file:

ibtk/include/ibtk/MergingLoadBalancer.h

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Function Documentation

◆ loadBalanceBoxes() [1/2]

◆ setMaxWorkloadFactor()

◆ setWorkloadTolerance()

◆ setWorkloadPatchDataIndex()

◆ setUniformWorkload()

◆ setBinPackMethod()

◆ setIgnoreLevelDomainIsSingleBox()

◆ getLoadBalanceDependsOnPatchData()

◆ loadBalanceBoxes() [2/2]

◆ printClassData()

◆ getFromInput()

◆ chopUniformSingleBox()

◆ chopBoxesWithUniformWorkload()

◆ chopBoxesWithNonuniformWorkload()

◆ binPackBoxes()

◆ getWorkloadDataId()

◆ getMaxWorkloadFactor()

◆ getWorkloadTolerance()

◆ getBinPackMethod()

Member Data Documentation

◆ d_object_name

◆ d_processor_layout_specified

◆ d_processor_layout

◆ d_ignore_level_box_union_is_single_box

◆ d_master_workload_data_id

◆ d_master_max_workload_factor

◆ d_master_workload_tolerance

◆ d_master_bin_pack_method

◆ d_workload_data_id

◆ d_max_workload_factor

◆ d_workload_tolerance

◆ d_bin_pack_method

◆ d_opt_for_single_box

◆ t_load_balance_boxes

◆ t_load_balance_boxes_remove_intersection

◆ t_bin_pack_boxes

◆ t_bin_pack_boxes_sort

◆ t_bin_pack_boxes_pack

◆ t_chop_boxes
