Defines index ranges for multidimensional arrays. More...

#include <MDA_Access.h>

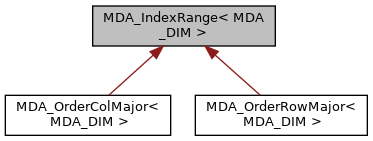

Inheritance diagram for MDA_IndexRange< MDA_DIM >:

Public Types
typedef short	dim_t
	Type for the dimension counter. More...

typedef int	index_t
	Type for the index. More...

Public Member Functions
	MDA_IndexRange (const size_t sz=((size_t ) 0), const index_t st=((index_t ) 0))
	Constructor for setting index data using size and starting points. More...

	MDA_IndexRange (const index_t si, const index_t sf)
	Constructor for setting index data to a range. More...

virtual	~MDA_IndexRange ()
	Virtual destructor to support inheritance. More...

void	setSizeAndStart (const size_t sz=((size_t ) 0), const index_t st=((index_t ) 0))

void	setInclusiveRange (const index_t first[MDA_DIM], const index_t final[MDA_DIM])

const MDA_IndexRange &	adjustDim (dim_t d, index_t first, index_t final)
	Adjust the dimensions. More...

bool	operator== (const MDA_IndexRange &r) const
	Equivalence comparison. More...

bool	operator!= (const MDA_IndexRange &r) const
	Inequivalence comparison. More...

std::ostream &	streamPut (std::ostream &os) const
	Output to ostream. More...

std::istream &	streamGet (std::istream &is)
	Input from istream. More...

const index_t &	beg (size_t i) const
	Give starting index of a given dimension. More...

const index_t &	end (size_t i) const
	Give ending index (one more than the last valid index) of a given dimension. More...

const size_t &	size (size_t i) const
	Give size along a given dimension. More...

size_t	totalSize () const
	Give size for all dimensions. More...

bool	has (index_t i0) const
	Check if indices are in range. More...

bool	has (index_t i0, index_t i1) const
	Check if indices are in range. More...

bool	has (index_t i0, index_t i1, index_t i2) const
	Check if indices are in range. More...

bool	has (index_t i0, index_t i1, index_t i2, index_t i3) const
	Check if indices are in range. More...

Protected Types
enum	{ D0 = 0, D1 = (MDA_DIM > 1 ? 1 : 0), D2 = (MDA_DIM > 2 ? 2 : 0), D3 = (MDA_DIM > 3 ? 3 : 0), D4 = (MDA_DIM > 4 ? 4 : 0) }
	Dimension number (to avoid compiler warnings, set to zero when unused). More...

Protected Attributes
index_t	d_start [MDA_DIM >0?MDA_DIM:1]
	Array of starting indices. More...

index_t	d_stop [MDA_DIM >0?MDA_DIM:1]
	Array of stopping indices. More...

size_t	d_size [MDA_DIM >0?MDA_DIM:1]
	Array of sizes. More...

Private Member Functions
void	setDependentData ()
	Set dependent data. More...

Friends
std::ostream &	operator<< (std::ostream &os, const MDA_IndexRange< MDA_DIM > &r)

std::istream &	operator>> (std::istream &is, MDA_IndexRange< MDA_DIM > &r)

Detailed Description

template<unsigned short MDA_DIM>
class MDA_IndexRange< MDA_DIM >

Defines the abstract index range and methods for setting and accessing it.

Nothing is known about the ordering of the array.

Member Typedef Documentation

◆ dim_t

template<unsigned short MDA_DIM>

typedef short MDA_IndexRange< MDA_DIM >::dim_t

Type dim_t could be "unsigned short" instead of "short", but using short causes the GNU compiler to issue unneeded warnings about certain comparisons always being false (when instantiating with MDA_DIM of 1).

◆ index_t

template<unsigned short MDA_DIM>

typedef int MDA_IndexRange< MDA_DIM >::index_t

Member Enumeration Documentation

◆ anonymous enum

template<unsigned short MDA_DIM>

anonymous enum

protected

Enumerator
D0
D1
D2
D3
D4

Constructor & Destructor Documentation

◆ MDA_IndexRange() [1/2]

template<unsigned short MDA_DIM>

MDA_IndexRange< MDA_DIM >::MDA_IndexRange	(	const size_t *	sz = `((size_t*)0)`,
		const index_t *	st = `((index_t*)0)`
	)

inline

Any pointers that are NULL are not used. The resulting default settings are:

Array sizes are 0
Array starting indices are 0 Since all arguments have default values, this serves at the default constructor.

There is another constructor which accepts the first and final indices instead of the sizes and first indices. NOTE: the place of the starting points is different than it is for the constructor taking final indices instead of sizes.

Parameters

sz	Array sizes
st	Array starting indices

◆ MDA_IndexRange() [2/2]

template<unsigned short MDA_DIM>

MDA_IndexRange< MDA_DIM >::MDA_IndexRange	(	const index_t *	si,
		const index_t *	sf
	)

inline

This version takes two index_t* arguments, for the initial and final indices. It does not support default arguments until after the indices argument. NOTE: the place of the initial indices is different than it is for the constructor taking sizes instead of final indices.

If si is NULL, starting indices are set to 0. If sf is NULL, sizes are set to zero.

Parameters

si	Array of initial indices
sf	Array of final indices

◆ ~MDA_IndexRange()

template<unsigned short MDA_DIM>

virtual MDA_IndexRange< MDA_DIM >::~MDA_IndexRange ( )

inlinevirtual

Member Function Documentation

◆ setSizeAndStart()

template<unsigned short MDA_DIM>

void MDA_IndexRange< MDA_DIM >::setSizeAndStart	(	const size_t *	sz = `((size_t*)0)`,
		const index_t *	st = `((index_t*)0)`
	)

inline

Set size and starting indices.

Parameters

sz	Array sizes (NULL for no change)
st	Starting indices (NULL for no change)

◆ setInclusiveRange()

template<unsigned short MDA_DIM>

void MDA_IndexRange< MDA_DIM >::setInclusiveRange	(	const index_t	first[MDA_DIM],
		const index_t	final[MDA_DIM]
	)

inline

Set first and final indices (inclusive).

Parameters

first	First valid indices (NULL for no change)
final	Final valid indices (NULL for no change)

◆ adjustDim()

template<unsigned short MDA_DIM>

const MDA_IndexRange& MDA_IndexRange< MDA_DIM >::adjustDim	(	dim_t	d,
		index_t	first,
		index_t	final
	)

inline

Adjust the first and final indices. Set the dimension to adjust to >= MDA_DIM to adjust all dimensions. Note: The third argument is the increment to the final index and not the size.

Note: No error checking is done, for example, to make sure that the resulting size is non-negative.

Returns: Adjusted MDA_IndexRange object

Parameters

d	Dimension to adjust
first	Increment to first index
final	Increment to final index

◆ operator==()

template<unsigned short MDA_DIM>

bool MDA_IndexRange< MDA_DIM >::operator== ( const MDA_IndexRange< MDA_DIM > & r ) const

inline

◆ operator!=()

template<unsigned short MDA_DIM>

bool MDA_IndexRange< MDA_DIM >::operator!= ( const MDA_IndexRange< MDA_DIM > & r ) const

inline

◆ streamPut()

template<unsigned short MDA_DIM>

std::ostream& MDA_IndexRange< MDA_DIM >::streamPut ( std::ostream & os ) const

inline

◆ streamGet()

template<unsigned short MDA_DIM>

std::istream& MDA_IndexRange< MDA_DIM >::streamGet ( std::istream & is )

inline

◆ beg()

template<unsigned short MDA_DIM>

const index_t& MDA_IndexRange< MDA_DIM >::beg ( size_t i ) const

inline

Parameters

i	index of dimension

◆ end()

template<unsigned short MDA_DIM>

const index_t& MDA_IndexRange< MDA_DIM >::end ( size_t i ) const

inline

Parameters

i	index of dimension

◆ size()

template<unsigned short MDA_DIM>

const size_t& MDA_IndexRange< MDA_DIM >::size ( size_t i ) const

inline

Parameters

i	index of dimension

◆ totalSize()

template<unsigned short MDA_DIM>

size_t MDA_IndexRange< MDA_DIM >::totalSize ( ) const

inline

◆ has() [1/4]

template<unsigned short MDA_DIM>

bool MDA_IndexRange< MDA_DIM >::has ( index_t i0 ) const

inline

◆ has() [2/4]

template<unsigned short MDA_DIM>

bool MDA_IndexRange< MDA_DIM >::has	(	index_t	i0,
		index_t	i1
	)		const

inline

◆ has() [3/4]

template<unsigned short MDA_DIM>

bool MDA_IndexRange< MDA_DIM >::has	(	index_t	i0,
		index_t	i1,
		index_t	i2
	)		const

inline

◆ has() [4/4]

template<unsigned short MDA_DIM>

bool MDA_IndexRange< MDA_DIM >::has	(	index_t	i0,
		index_t	i1,
		index_t	i2,
		index_t	i3
	)		const

inline

◆ setDependentData()

template<unsigned short MDA_DIM>

void MDA_IndexRange< MDA_DIM >::setDependentData ( )

inlineprivate

Friends And Related Function Documentation

◆ operator<<

template<unsigned short MDA_DIM>

std::ostream& operator<<	(	std::ostream &	os,
		const MDA_IndexRange< MDA_DIM > &	r
	)

friend

◆ operator>>

template<unsigned short MDA_DIM>

std::istream& operator>>	(	std::istream &	is,
		MDA_IndexRange< MDA_DIM > &	r
	)

friend

Member Data Documentation

◆ d_start

template<unsigned short MDA_DIM>

index_t MDA_IndexRange< MDA_DIM >::d_start[MDA_DIM >0?MDA_DIM:1]

protected

◆ d_stop

template<unsigned short MDA_DIM>

index_t MDA_IndexRange< MDA_DIM >::d_stop[MDA_DIM >0?MDA_DIM:1]

protected

◆ d_size

template<unsigned short MDA_DIM>

size_t MDA_IndexRange< MDA_DIM >::d_size[MDA_DIM >0?MDA_DIM:1]

protected

The documentation for this class was generated from the following file:

/samrai/include/MDA_Access.h
