#include <MethodOfLinesPatchStrategy.h>

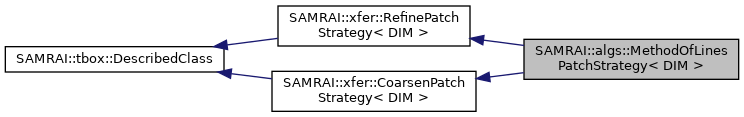

Inheritance diagram for SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >:

[legend]

Public Member Functions
	MethodOfLinesPatchStrategy ()

virtual	~MethodOfLinesPatchStrategy ()=0

virtual void	registerModelVariables (MethodOfLinesIntegrator< DIM > *integrator)=0

virtual void	initializeDataOnPatch (hier::Patch< DIM > &patch, const double time, const bool initial_time) const =0

virtual double	computeStableDtOnPatch (hier::Patch< DIM > &patch, const double time) const =0

virtual void	singleStep (hier::Patch< DIM > &patch, const double dt, const double alpha_1, const double alpha_2, const double beta) const =0

virtual void	tagGradientDetectorCells (hier::Patch< DIM > &patch, const double regrid_time, const bool initial_error, const int tag_index, const bool uses_richardson_extrapolation_too)

virtual void	setPhysicalBoundaryConditions (hier::Patch< DIM > &patch, const double fill_time, const hier::IntVector< DIM > &ghost_width_to_fill)=0

virtual hier::IntVector< DIM >	getRefineOpStencilWidth () const

virtual void	preprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)

virtual void	postprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)

virtual hier::IntVector< DIM >	getCoarsenOpStencilWidth () const

virtual void	preprocessCoarsen (hier::Patch< DIM > &coarse, const hier::Patch< DIM > &fine, const hier::Box< DIM > &coarse_box, const hier::IntVector< DIM > &ratio)

virtual void	postprocessCoarsen (hier::Patch< DIM > &coarse, const hier::Patch< DIM > &fine, const hier::Box< DIM > &coarse_box, const hier::IntVector< DIM > &ratio)

tbox::Pointer< hier::VariableContext >	getInteriorWithGhostsContext () const

tbox::Pointer< hier::VariableContext >	getInteriorContext () const

void	setInteriorWithGhostsContext (tbox::Pointer< hier::VariableContext > context)

void	setInteriorContext (tbox::Pointer< hier::VariableContext > context)

virtual void	preprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

virtual void	postprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

Private Attributes
tbox::Pointer< hier::VariableContext >	d_interior_with_ghosts

tbox::Pointer< hier::VariableContext >	d_interior

Detailed Description

template<int DIM>
class SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >

Class MethodOfLinesPatchStrategy<DIM> is an abstract type defining the interface for operations invoked during the integration routines defined in the MethodOfLinesIntegrator<DIM> class. This class is derived from the xfer::RefinePatchStrategy<DIM> and xfer::CoarsenPatchStrategy<DIM> abstract base classes. These base classes define the interfaces for user-defined interlevel data refining and coarsening operations and the specification of physical boundary conditions.

See also: algs::MethodOfLinesIntegrator; xfer::RefinePatchStrategy; xfer::CoarsenPatchStrategy

Constructor & Destructor Documentation

◆ MethodOfLinesPatchStrategy()

template<int DIM>

SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::MethodOfLinesPatchStrategy ( )

Blank constructor for MethodOfLinesPatchStrategy<DIM>.

◆ ~MethodOfLinesPatchStrategy()

template<int DIM>

virtual SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::~MethodOfLinesPatchStrategy ( )

pure virtual

Virtual destructor for MethodOfLinesPatchStrategy<DIM>.

Member Function Documentation

◆ registerModelVariables()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::registerModelVariables ( MethodOfLinesIntegrator< DIM > * integrator )

pure virtual

Register variables specific to the problem to be solved with the integrator using the registerVariable function. This defines the way data for each quantity will be manipulated on the patches. For more information, refer to
MethodOfLinesIntegrator<DIM>::registerVariable.

◆ initializeDataOnPatch()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::initializeDataOnPatch	(	hier::Patch< DIM > &	patch,
		const double	time,
		const bool	initial_time
	)		const

pure virtual

Set the initial data on a patch interior (i.e., NO GHOST CELLS).
Setting "initial_time" true will initialize data at time. Setting it false will interpolate data from the appropriate coarser patch.

◆ computeStableDtOnPatch()

template<int DIM>

virtual double SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::computeStableDtOnPatch	(	hier::Patch< DIM > &	patch,
		const double	time
	)		const

pure virtual

Compute the stable time increment for a patch.

◆ singleStep()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::singleStep	(	hier::Patch< DIM > &	patch,
		const double	dt,
		const double	alpha_1,
		const double	alpha_2,
		const double	beta
	)		const

pure virtual

Advance a single Runge Kutta step.

Parameters

patch	patch that RK step is being applied
dt	timestep
alpha_1	first coefficient applied in the RK step
alpha_2	second coefficient
beta	third coefficient

◆ tagGradientDetectorCells()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::tagGradientDetectorCells	(	hier::Patch< DIM > &	patch,
		const double	regrid_time,
		const bool	initial_error,
		const int	tag_index,
		const bool	uses_richardson_extrapolation_too
	)

inlinevirtual

Using a user-specified gradient detection scheme, determine cells which have high gradients and, consequently, should be refined.

◆ setPhysicalBoundaryConditions()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::setPhysicalBoundaryConditions	(	hier::Patch< DIM > &	patch,
		const double	fill_time,
		const hier::IntVector< DIM > &	ghost_width_to_fill
	)

pure virtual

Set user-defined boundary conditions at the physical domain boundary.

Implements SAMRAI::xfer::RefinePatchStrategy< DIM >.

◆ getRefineOpStencilWidth()

template<int DIM>

virtual hier::IntVector<DIM> SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::getRefineOpStencilWidth ( ) const

inlinevirtual

Return maximum stencil width needed for user-defined data interpolation operations. Default is to return zero, assuming no user-defined operations provided.

Implements SAMRAI::xfer::RefinePatchStrategy< DIM >.

◆ preprocessRefine()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::preprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtual

Pre- and post-processing routines for implementing user-defined spatial interpolation routines applied to variables. The interpolation routines are used in the MOL AMR algorithm for filling patch ghost cells before advancing data on a level and after regridding a level to fill portions of the new level from some coarser level. These routines are called automatically from within patch boundary filling schedules; thus, some concrete function matching these signatures must be provided in the user's patch model. However, the routines only need to perform some operations when "USER_DEFINED_REFINE" is given as the interpolation method for some variable when the patch model registers variables with the MOL integration algorithm, typically. If the user does not provide operations that refine such variables in either of these routines, then they will not be refined.

The order in which these operations are used in each patch boundary filling schedule is:

(1) {Call user's preprocessRefine() routine.}
(2) {Refine all variables with standard interpolation operators.}
(3) {Call user's postprocessRefine() routine.}

Also, user routines that implement these functions must use data corresponding to the d_scratch context on both coarse and fine patches.

Implements SAMRAI::xfer::RefinePatchStrategy< DIM >.

◆ postprocessRefine()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::postprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtual

Pure virtual function to perform user-defined postprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Implements SAMRAI::xfer::RefinePatchStrategy< DIM >.

◆ getCoarsenOpStencilWidth()

template<int DIM>

virtual hier::IntVector<DIM> SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::getCoarsenOpStencilWidth ( ) const

inlinevirtual

Return maximum stencil width needed for user-defined data coarsen operations. Default is to return zero, assuming no user-defined operations provided.

Implements SAMRAI::xfer::CoarsenPatchStrategy< DIM >.

◆ preprocessCoarsen()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::preprocessCoarsen	(	hier::Patch< DIM > &	coarse,
		const hier::Patch< DIM > &	fine,
		const hier::Box< DIM > &	coarse_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtual

Pre- and post-processing routines for implementing user-defined spatial coarsening routines applied to variables. The coarsening routines are used in the MOL AMR algorithm synchronizing coarse and fine levels when they have been integrated to the same point. These routines are called automatically from within the data synchronization coarsen schedules; thus, some concrete function matching these signatures must be provided in the user's patch model. However, the routines only need to perform some operations when "USER_DEFINED_COARSEN" is given as the coarsening method for some variable when the patch model registers variables with the MOL level integration algorithm, typically. If the user does not provide operations that coarsen such variables in either of these routines, then they will not be coarsened.

The order in which these operations are used in each coarsening schedule is:

(1) {Call user's preprocessCoarsen() routine.}
(2) {Coarsen all variables with standard coarsening operators.}
(3) {Call user's postprocessCoarsen() routine.}

Also, user routines that implement these functions must use corresponding to the d_new context on both coarse and fine patches for time-dependent quantities.

Implements SAMRAI::xfer::CoarsenPatchStrategy< DIM >.

◆ postprocessCoarsen()

template<int DIM>

virtual void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::postprocessCoarsen	(	hier::Patch< DIM > &	coarse,
		const hier::Patch< DIM > &	fine,
		const hier::Box< DIM > &	coarse_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtual

Perform user-defined coarsening operations. This member function is called after standard coarsening operations (expressed using concrete subclasses of the CoarsenOperator<DIM> base class).
The postprocess function should move data from the source components on the fine patch into the source components on the coarse patch in the specified coarse box region. Recall that the source components are specified in calls to the registerCoarsen() function in the CoarsenAlgorithm<DIM> class.

Parameters

coarse	Coarse patch containing destination data.
fine	Fine patch containing source data.
coarse_box	hier::Box region on coarse patch into which data is copied.
ratio	Integer vector containing ratio

Implements SAMRAI::xfer::CoarsenPatchStrategy< DIM >.

◆ getInteriorWithGhostsContext()

template<int DIM>

tbox::Pointer<hier::VariableContext> SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::getInteriorWithGhostsContext ( ) const

inline

The method of lines integrator controls the context for the data to be used in the numerical routines implemented in the concrete patch strategy. These accessor methods allow the patch strategy to access the particular data contexts used in the integrator.

Return pointer to data context with ghost cells.

◆ getInteriorContext()

template<int DIM>

tbox::Pointer<hier::VariableContext> SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::getInteriorContext ( ) const

inline

Return pointer to data context with NO ghosts.

◆ setInteriorWithGhostsContext()

template<int DIM>

void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::setInteriorWithGhostsContext ( tbox::Pointer< hier::VariableContext > context )

inline

Set pointer to data context with ghosts.

◆ setInteriorContext()

template<int DIM>

void SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::setInteriorContext ( tbox::Pointer< hier::VariableContext > context )

inline

Set pointer to data context with NO ghosts.

◆ preprocessRefineBoxes()

template<int DIM>

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called before standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the preprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Reimplemented in SAMRAI::solv::CartesianRobinBcHelper< DIM >.

◆ postprocessRefineBoxes()

template<int DIM>

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called after standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the postprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Reimplemented in SAMRAI::solv::CartesianRobinBcHelper< DIM >.

Member Data Documentation

◆ d_interior_with_ghosts

template<int DIM>

tbox::Pointer<hier::VariableContext> SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::d_interior_with_ghosts

private

◆ d_interior

template<int DIM>

tbox::Pointer<hier::VariableContext> SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >::d_interior

private

The documentation for this class was generated from the following file:

/samrai/include/MethodOfLinesPatchStrategy.h
