#include <PatchFaceDataOpsInteger.h>

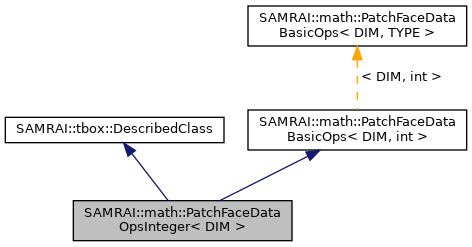

Inheritance diagram for SAMRAI::math::PatchFaceDataOpsInteger< DIM >:

[legend]

Public Member Functions
	PatchFaceDataOpsInteger ()

virtual	~PatchFaceDataOpsInteger ()

int	numberOfEntries (const tbox::Pointer< pdat::FaceData< DIM, int > > &data, const hier::Box< DIM > &box) const

void	copyData (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src, const hier::Box< DIM > &box) const

void	swapData (tbox::Pointer< hier::Patch< DIM > > patch, const int data1_id, const int data2_id) const

void	printData (const tbox::Pointer< pdat::FaceData< DIM, int > > &data, const hier::Box< DIM > &box, std::ostream &s=tbox::plog) const

void	setToScalar (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const int &alpha, const hier::Box< DIM > &box) const

void	abs (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src, const hier::Box< DIM > &box) const

void	scale (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const int &alpha, const tbox::Pointer< pdat::FaceData< DIM, int > > &src, const hier::Box< DIM > &box) const

void	addScalar (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src, const int &alpha, const hier::Box< DIM > &box) const

void	add (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src1, const tbox::Pointer< pdat::FaceData< DIM, int > > &src2, const hier::Box< DIM > &box) const

void	subtract (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src1, const tbox::Pointer< pdat::FaceData< DIM, int > > &src2, const hier::Box< DIM > &box) const

void	multiply (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src1, const tbox::Pointer< pdat::FaceData< DIM, int > > &src2, const hier::Box< DIM > &box) const

void	divide (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src1, const tbox::Pointer< pdat::FaceData< DIM, int > > &src2, const hier::Box< DIM > &box) const

void	reciprocal (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const tbox::Pointer< pdat::FaceData< DIM, int > > &src, const hier::Box< DIM > &box) const

void	linearSum (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const int &alpha, const tbox::Pointer< pdat::FaceData< DIM, int > > &src1, const int &beta, const tbox::Pointer< pdat::FaceData< DIM, int > > &src2, const hier::Box< DIM > &box) const

void	axpy (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const int &alpha, const tbox::Pointer< pdat::FaceData< DIM, int > > &src1, const tbox::Pointer< pdat::FaceData< DIM, int > > &src2, const hier::Box< DIM > &box) const

void	axmy (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const int &alpha, const tbox::Pointer< pdat::FaceData< DIM, int > > &src1, const tbox::Pointer< pdat::FaceData< DIM, int > > &src2, const hier::Box< DIM > &box) const

int	min (const tbox::Pointer< pdat::FaceData< DIM, int > > &data, const hier::Box< DIM > &box) const

int	max (const tbox::Pointer< pdat::FaceData< DIM, int > > &data, const hier::Box< DIM > &box) const

void	setRandomValues (tbox::Pointer< pdat::FaceData< DIM, int > > &dst, const int &width, const int &low, const hier::Box< DIM > &box) const

Private Member Functions
	PatchFaceDataOpsInteger (const PatchFaceDataOpsInteger< DIM > &)

void	operator= (const PatchFaceDataOpsInteger< DIM > &)

Private Attributes
ArrayDataNormOpsInteger< DIM >	d_array_ops

Detailed Description

template<int DIM>
class SAMRAI::math::PatchFaceDataOpsInteger< DIM >

Class PatchFaceDataOpsInteger<DIM> provides a collection of operations that may be used to manipulate integer face-centered patch data. The operations include basic arithmetic, min, max, etc. With the exception of a few basic routines, this class inherits its interface (and thus its functionality) from the base class PatchFaceDataBasicOps<DIM> from which it is derived.

A more extensive set of operations is implemented for real (double and float) and complex patch data in the classes PatchFaceDataOpsReal<DIM> and PatchFaceDataOpsComplex<DIM>, repsectively.

See also: math::PatchFaceDataBasicOps

Constructor & Destructor Documentation

◆ PatchFaceDataOpsInteger() [1/2]

template<int DIM>

SAMRAI::math::PatchFaceDataOpsInteger< DIM >::PatchFaceDataOpsInteger ( )

Empty constructor and destructor.

◆ ~PatchFaceDataOpsInteger()

template<int DIM>

virtual SAMRAI::math::PatchFaceDataOpsInteger< DIM >::~PatchFaceDataOpsInteger ( )

virtual

◆ PatchFaceDataOpsInteger() [2/2]

template<int DIM>

SAMRAI::math::PatchFaceDataOpsInteger< DIM >::PatchFaceDataOpsInteger ( const PatchFaceDataOpsInteger< DIM > & )

private

Member Function Documentation

◆ numberOfEntries()

template<int DIM>

int SAMRAI::math::PatchFaceDataOpsInteger< DIM >::numberOfEntries	(	const tbox::Pointer< pdat::FaceData< DIM, int > > &	data,
		const hier::Box< DIM > &	box
	)		const

Return the number of data values for the face-centered data object in the given box. Note that it is assumed that the box refers to the cell-centered index space corresponding to the patch hierarchy.

◆ copyData()

template<int DIM>

void SAMRAI::math::PatchFaceDataOpsInteger< DIM >::copyData	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src,
		const hier::Box< DIM > &	box
	)		const

Copy dst data to src data over given box.

◆ swapData()

template<int DIM>

void SAMRAI::math::PatchFaceDataOpsInteger< DIM >::swapData	(	tbox::Pointer< hier::Patch< DIM > >	patch,
		const int	data1_id,
		const int	data2_id
	)		const

Swap pointers for patch data objects. Objects are checked for consistency of depth, box, and ghost box.

◆ printData()

template<int DIM>

void SAMRAI::math::PatchFaceDataOpsInteger< DIM >::printData	(	const tbox::Pointer< pdat::FaceData< DIM, int > > &	data,
		const hier::Box< DIM > &	box,
		std::ostream &	s = `tbox::plog`
	)		const

Print data entries over given box to given output stream.

◆ setToScalar()

template<int DIM>

void SAMRAI::math::PatchFaceDataOpsInteger< DIM >::setToScalar	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const int &	alpha,
		const hier::Box< DIM > &	box
	)		const

Initialize data to given scalar over given box.

◆ abs()

template<int DIM>

void SAMRAI::math::PatchFaceDataOpsInteger< DIM >::abs	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src,
		const hier::Box< DIM > &	box
	)		const

Set destination component to absolute value of source component. That is, each destination entry is set to \(d_i = \| s_i \|\).

◆ operator=()

template<int DIM>

void SAMRAI::math::PatchFaceDataOpsInteger< DIM >::operator= ( const PatchFaceDataOpsInteger< DIM > & )

private

◆ scale()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::scale	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const int &	alpha,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src, elementwise.

◆ addScalar()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::addScalar	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src,
		const int &	alpha,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src + alpha, elementwise.

◆ add()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::add	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src1,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 + src2, elementwise.

◆ subtract()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::subtract	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src1,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 - src2, elementwise.

◆ multiply()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::multiply	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src1,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 * src2, elementwise.

◆ divide()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::divide	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src1,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 / src2, elementwise. No check for division by zero.

◆ reciprocal()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::reciprocal	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = 1 / src, elementwise. No check for division by zero.

◆ linearSum()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::linearSum	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const int &	alpha,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src1,
		const int &	beta,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src1 + beta * src2, elementwise.

◆ axpy()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::axpy	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const int &	alpha,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src1,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src1 + src2, elementwise.

◆ axmy()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::axmy	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const int &	alpha,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src1,
		const tbox::Pointer< pdat::FaceData< DIM, int > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src1 - src2, elementwise.

◆ min()

int SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::min	(	const tbox::Pointer< pdat::FaceData< DIM, int > > &	data,
		const hier::Box< DIM > &	box
	)		const

inherited

Return the minimum patch data component entry When the data is complex, the result is the data element with the smallest norm.

◆ max()

int SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::max	(	const tbox::Pointer< pdat::FaceData< DIM, int > > &	data,
		const hier::Box< DIM > &	box
	)		const

inherited

Return the maximum patch data component entry When the data is complex, the result is the data element with the largest norm.

◆ setRandomValues()

void SAMRAI::math::PatchFaceDataBasicOps< DIM, int >::setRandomValues	(	tbox::Pointer< pdat::FaceData< DIM, int > > &	dst,
		const int &	width,
		const int &	low,
		const hier::Box< DIM > &	box
	)		const

inherited

Set patch data to random values. See the operations in the ArrayDataBasicOps<DIM> class for details on the generation of the random values for each data type.

Member Data Documentation

◆ d_array_ops

template<int DIM>

ArrayDataNormOpsInteger<DIM> SAMRAI::math::PatchFaceDataOpsInteger< DIM >::d_array_ops

private

The documentation for this class was generated from the following file:

/samrai/include/PatchFaceDataOpsInteger.h
