#include <PatchSideDataOpsComplex.h>

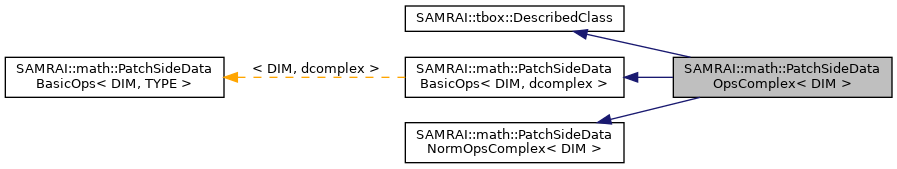

Inheritance diagram for SAMRAI::math::PatchSideDataOpsComplex< DIM >:

[legend]

Public Member Functions
	PatchSideDataOpsComplex ()

virtual	~PatchSideDataOpsComplex ()

void	copyData (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src, const hier::Box< DIM > &box) const

void	swapData (tbox::Pointer< hier::Patch< DIM > > patch, const int data1_id, const int data2_id) const

void	printData (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box, std::ostream &s=tbox::plog) const

void	setToScalar (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const dcomplex &alpha, const hier::Box< DIM > &box) const

void	scale (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const dcomplex &alpha, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src, const hier::Box< DIM > &box) const

void	addScalar (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src, const dcomplex &alpha, const hier::Box< DIM > &box) const

void	add (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src1, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src2, const hier::Box< DIM > &box) const

void	subtract (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src1, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src2, const hier::Box< DIM > &box) const

void	multiply (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src1, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src2, const hier::Box< DIM > &box) const

void	divide (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src1, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src2, const hier::Box< DIM > &box) const

void	reciprocal (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src, const hier::Box< DIM > &box) const

void	linearSum (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const dcomplex &alpha, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src1, const dcomplex &beta, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src2, const hier::Box< DIM > &box) const

void	axpy (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const dcomplex &alpha, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src1, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src2, const hier::Box< DIM > &box) const

void	axmy (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const dcomplex &alpha, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src1, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src2, const hier::Box< DIM > &box) const

dcomplex	min (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box) const

dcomplex	max (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box) const

void	setRandomValues (tbox::Pointer< pdat::SideData< DIM, dcomplex > > &dst, const dcomplex &width, const dcomplex &low, const hier::Box< DIM > &box) const

int	numberOfEntries (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box) const

double	sumControlVolumes (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const tbox::Pointer< pdat::SideData< DIM, double > > &cvol, const hier::Box< DIM > &box) const

void	abs (tbox::Pointer< pdat::SideData< DIM, double > > &dst, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &src, const hier::Box< DIM > &box) const

double	L1Norm (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > cvol=NULL) const

double	L2Norm (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > cvol=NULL) const

double	weightedL2Norm (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &weight, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > cvol=NULL) const

double	RMSNorm (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > cvol=NULL) const

double	weightedRMSNorm (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &weight, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > cvol=NULL) const

double	maxNorm (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > cvol=NULL) const

dcomplex	dot (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data1, const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data2, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > cvol=NULL) const

dcomplex	integral (const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &data, const hier::Box< DIM > &box, const tbox::Pointer< pdat::SideData< DIM, double > > vol) const

Private Member Functions
	PatchSideDataOpsComplex (const PatchSideDataOpsComplex< DIM > &)

void	operator= (const PatchSideDataOpsComplex< DIM > &)

Private Attributes
ArrayDataBasicOps< DIM, dcomplex >	d_array_ops

Detailed Description

template<int DIM>
class SAMRAI::math::PatchSideDataOpsComplex< DIM >

Class PatchSideDataOpsComplex<DIM> provides a collection of operations that may be used to manipulate complex side-centered patch data. The operations include basic arithmetic and norms. With the exception of a few basic routines, this class inherits its interface (and thus its functionality) from the base classes PatchSideDataBasicOps<DIM>, PatchSideDataNormOpsComplex<DIM> from which it is derived. The name of each of these base classes is indicative of the set of side-centered patch data operations that it provides.

A similar set of operations is implemented for real (double and float) and integer patch data in the classes PatchSideDataOpsReal<DIM> and PatchSideDataOpsInteger<DIM>, repsectively.

See also: math::PatchSideDataBasicOps; math::PatchSideDataNormOpsComplex

Constructor & Destructor Documentation

◆ PatchSideDataOpsComplex() [1/2]

template<int DIM>

SAMRAI::math::PatchSideDataOpsComplex< DIM >::PatchSideDataOpsComplex ( )

Empty constructor and destructor.

◆ ~PatchSideDataOpsComplex()

template<int DIM>

virtual SAMRAI::math::PatchSideDataOpsComplex< DIM >::~PatchSideDataOpsComplex ( )

virtual

◆ PatchSideDataOpsComplex() [2/2]

template<int DIM>

SAMRAI::math::PatchSideDataOpsComplex< DIM >::PatchSideDataOpsComplex ( const PatchSideDataOpsComplex< DIM > & )

private

Member Function Documentation

◆ copyData()

template<int DIM>

void SAMRAI::math::PatchSideDataOpsComplex< DIM >::copyData	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src,
		const hier::Box< DIM > &	box
	)		const

Copy dst data to src data over given box.

◆ swapData()

template<int DIM>

void SAMRAI::math::PatchSideDataOpsComplex< DIM >::swapData	(	tbox::Pointer< hier::Patch< DIM > >	patch,
		const int	data1_id,
		const int	data2_id
	)		const

Swap pointers for patch data objects. Objects are checked for consistency of depth, box, and ghost box.

◆ printData()

template<int DIM>

void SAMRAI::math::PatchSideDataOpsComplex< DIM >::printData	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box,
		std::ostream &	s = `tbox::plog`
	)		const

Print data entries over given box to given output stream.

◆ setToScalar()

template<int DIM>

void SAMRAI::math::PatchSideDataOpsComplex< DIM >::setToScalar	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const dcomplex &	alpha,
		const hier::Box< DIM > &	box
	)		const

Initialize data to given scalar over given box.

◆ operator=()

template<int DIM>

void SAMRAI::math::PatchSideDataOpsComplex< DIM >::operator= ( const PatchSideDataOpsComplex< DIM > & )

private

◆ scale()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::scale	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const dcomplex &	alpha,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src, elementwise.

◆ addScalar()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::addScalar	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src,
		const dcomplex &	alpha,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src + alpha, elementwise.

◆ add()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::add	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src1,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 + src2, elementwise.

◆ subtract()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::subtract	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src1,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 - src2, elementwise.

◆ multiply()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::multiply	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src1,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 * src2, elementwise.

◆ divide()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::divide	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src1,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = src1 / src2, elementwise. No check for division by zero.

◆ reciprocal()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::reciprocal	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = 1 / src, elementwise. No check for division by zero.

◆ linearSum()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::linearSum	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const dcomplex &	alpha,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src1,
		const dcomplex &	beta,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src1 + beta * src2, elementwise.

◆ axpy()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::axpy	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const dcomplex &	alpha,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src1,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src1 + src2, elementwise.

◆ axmy()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::axmy	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const dcomplex &	alpha,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src1,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src2,
		const hier::Box< DIM > &	box
	)		const

inherited

Set dst = alpha * src1 - src2, elementwise.

◆ min()

dcomplex SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::min	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box
	)		const

inherited

Return the minimum patch data component entry When the data is complex, the result is the data element with the smallest norm.

◆ max()

dcomplex SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::max	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box
	)		const

inherited

Return the maximum patch data component entry When the data is complex, the result is the data element with the largest norm.

◆ setRandomValues()

void SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::setRandomValues	(	tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	dst,
		const dcomplex &	width,
		const dcomplex &	low,
		const hier::Box< DIM > &	box
	)		const

inherited

Set patch data to random values. See the operations in the ArrayDataBasicOps<DIM> class for details on the generation of the random values for each data type.

◆ numberOfEntries()

template<int DIM>

int SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::numberOfEntries	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box
	)		const

inherited

Return the number of data values for the side-centered data object in the given box. Note that it is assumed that the box refers to the cell-centered index space corresponding to the patch hierarchy.

◆ sumControlVolumes()

template<int DIM>

double SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::sumControlVolumes	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const tbox::Pointer< pdat::SideData< DIM, double > > &	cvol,
		const hier::Box< DIM > &	box
	)		const

inherited

Return sum of control volume entries for the side-centered data object.

◆ abs()

template<int DIM>

void SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::abs	(	tbox::Pointer< pdat::SideData< DIM, double > > &	dst,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	src,
		const hier::Box< DIM > &	box
	)		const

inherited

Set destination component to norm of source component. That is, each destination entry is set to \(d_i = \sqrt{ {real(s_i)}^2 + {imag(s_i)}^2 }\).

◆ L1Norm()

template<int DIM>

double SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::L1Norm	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	cvol = `NULL`
	)		const

inherited

Return discrete \(L_1\)-norm of the data using the control volume to weight the contribution of each data entry to the sum. That is, the return value is the sum \(\sum_i ( \sqrt{data_i * \bar{data_i}}*cvol_i )\). If the control volume is NULL, the return value is \(\sum_i ( \sqrt{data_i * \bar{data_i}} )\).

◆ L2Norm()

template<int DIM>

double SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::L2Norm	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	cvol = `NULL`
	)		const

inherited

Return discrete \(L_2\)-norm of the data using the control volume to weight the contribution of each data entry to the sum. That is, the return value is the sum \(\sqrt{ \sum_i ( data_i * \bar{data_i} cvol_i ) }\). If the control volume is NULL, the return value is \(\sqrt{ \sum_i ( data_i * \bar{data_i} ) }\).

◆ weightedL2Norm()

template<int DIM>

double SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::weightedL2Norm	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	weight,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	cvol = `NULL`
	)		const

inherited

Return discrete weighted \(L_2\)-norm of the data using the control volume to weight the contribution of the data and weight entries to the sum. That is, the return value is the sum \(\sqrt{ \sum_i ( (data_i * wgt_i) * \bar{(data_i * wgt_i)} cvol_i ) }\). If the control volume is NULL, the return value is \(\sqrt{ \sum_i ( (data_i * wgt_i) * \bar{(data_i * wgt_i)} cvol_i ) }\).

◆ RMSNorm()

template<int DIM>

double SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::RMSNorm	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	cvol = `NULL`
	)		const

inherited

Return discrete root mean squared norm of the data. If the control volume is not NULL, the return value is the \(L_2\)-norm divided by the square root of the sum of the control volumes. Otherwise, the return value is the \(L_2\)-norm divided by the square root of the number of data entries.

◆ weightedRMSNorm()

template<int DIM>

double SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::weightedRMSNorm	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	weight,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	cvol = `NULL`
	)		const

inherited

Return discrete weighted root mean squared norm of the data. If the control volume is not NULL, the return value is the weighted \(L_2\)-norm divided by the square root of the sum of the control volumes. Otherwise, the return value is the weighted \(L_2\)-norm divided by the square root of the number of data entries.

◆ maxNorm()

template<int DIM>

double SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::maxNorm	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	cvol = `NULL`
	)		const

inherited

Return the \(\max\)-norm of the data using the control volume to weight the contribution of each data entry to the maximum. That is, the return value is \(\max_i ( \sqrt{data_i * \bar{data_i}} )\), where the max is over the data elements where \(cvol_i > 0\). If the control volume is NULL, it is ignored during the computation of the maximum.

◆ dot()

template<int DIM>

dcomplex SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::dot	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data1,
		const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data2,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	cvol = `NULL`
	)		const

inherited

Return the dot product of the two data arrays using the control volume to weight the contribution of each product to the sum. That is, the return value is the sum \(\sum_i ( data1_i * \bar{data2_i} * cvol_i )\). If the control volume is NULL, it is ignored during the summation.

◆ integral()

template<int DIM>

dcomplex SAMRAI::math::PatchSideDataNormOpsComplex< DIM >::integral	(	const tbox::Pointer< pdat::SideData< DIM, dcomplex > > &	data,
		const hier::Box< DIM > &	box,
		const tbox::Pointer< pdat::SideData< DIM, double > >	vol
	)		const

inherited

Return the integral of the function represented by the data array. The return value is the sum \(\sum_i ( data_i * vol_i )\).

Member Data Documentation

◆ d_array_ops

ArrayDataBasicOps<DIM,dcomplex > SAMRAI::math::PatchSideDataBasicOps< DIM, dcomplex >::d_array_ops

privateinherited

The documentation for this class was generated from the following file:

/samrai/include/PatchSideDataOpsComplex.h

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

template<int DIM> class SAMRAI::math::PatchSideDataOpsComplex< DIM >

Constructor & Destructor Documentation

◆ PatchSideDataOpsComplex() [1/2]

◆ ~PatchSideDataOpsComplex()

◆ PatchSideDataOpsComplex() [2/2]

Member Function Documentation

◆ copyData()

◆ swapData()

◆ printData()

◆ setToScalar()

◆ operator=()

◆ scale()

◆ addScalar()

◆ add()

◆ subtract()

◆ multiply()

◆ divide()

◆ reciprocal()

◆ linearSum()

◆ axpy()

◆ axmy()

◆ min()

◆ max()

◆ setRandomValues()

◆ numberOfEntries()

◆ sumControlVolumes()

◆ abs()

◆ L1Norm()

◆ L2Norm()

◆ weightedL2Norm()

◆ RMSNorm()

◆ weightedRMSNorm()

◆ maxNorm()

◆ dot()

◆ integral()

Member Data Documentation

◆ d_array_ops

template<int DIM>
class SAMRAI::math::PatchSideDataOpsComplex< DIM >
