#include <BoxGeneratorStrategy.h>

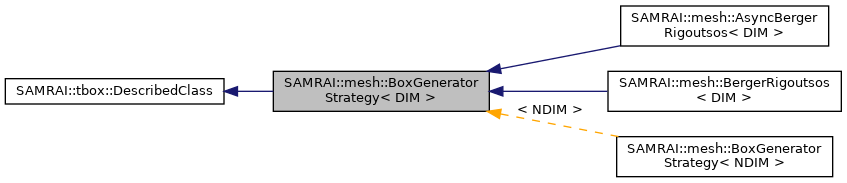

Inheritance diagram for SAMRAI::mesh::BoxGeneratorStrategy< DIM >:

[legend]

Public Member Functions
	BoxGeneratorStrategy ()

virtual	~BoxGeneratorStrategy ()

virtual void	findBoxesContainingTags (hier::BoxList< DIM > &boxes, const tbox::Pointer< hier::PatchLevel< DIM > > level, const int index, const int tag_val, const hier::Box< DIM > &bound_box, const hier::IntVector< DIM > &min_box, const double efficiency_tol, const double combine_tol) const =0

Private Member Functions
	BoxGeneratorStrategy (const BoxGeneratorStrategy< DIM > &)

void	operator= (const BoxGeneratorStrategy< DIM > &)

Detailed Description

template<int DIM>
class SAMRAI::mesh::BoxGeneratorStrategy< DIM >

Class BoxGeneratorStrategy<DIM> is an abstract base class that defines a Strategy pattern interface for operations to build boxes that cover a collection of tagged cells on a single AMR patch hierarchy level.

See also: hier::PatchLevel

Constructor & Destructor Documentation

◆ BoxGeneratorStrategy() [1/2]

template<int DIM>

SAMRAI::mesh::BoxGeneratorStrategy< DIM >::BoxGeneratorStrategy ( )

Default constructor.

◆ ~BoxGeneratorStrategy()

template<int DIM>

virtual SAMRAI::mesh::BoxGeneratorStrategy< DIM >::~BoxGeneratorStrategy ( )

virtual

Virtual destructor.

◆ BoxGeneratorStrategy() [2/2]

template<int DIM>

SAMRAI::mesh::BoxGeneratorStrategy< DIM >::BoxGeneratorStrategy ( const BoxGeneratorStrategy< DIM > & )

private

Member Function Documentation

◆ findBoxesContainingTags()

template<int DIM>

virtual void SAMRAI::mesh::BoxGeneratorStrategy< DIM >::findBoxesContainingTags	(	hier::BoxList< DIM > &	boxes,
		const tbox::Pointer< hier::PatchLevel< DIM > >	level,
		const int	index,
		const int	tag_val,
		const hier::Box< DIM > &	bound_box,
		const hier::IntVector< DIM > &	min_box,
		const double	efficiency_tol,
		const double	combine_tol
	)		const

pure virtual

Create list of boxes whose union covers all integer tags on the patch level that match the specified tag value. Each box must be at least as large as the given minimum size and the tolerances must be met.

Implemented in SAMRAI::mesh::AsyncBergerRigoutsos< DIM >, and SAMRAI::mesh::BergerRigoutsos< DIM >.
