#include <tbox/AbstractStream.h>

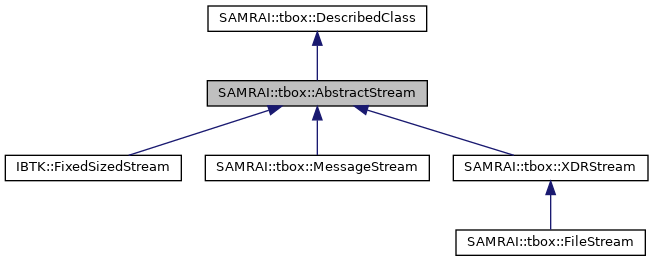

Inheritance diagram for SAMRAI::tbox::AbstractStream:

[legend]

Public Member Functions
	AbstractStream ()

virtual	~AbstractStream ()

Boolean Stream Primitives
Pack and unpack booleans into and out of the abstract stream.
virtual AbstractStream &	operator<< (const bool &data)=0
	Pack a single bool into the abstract stream. More...

virtual AbstractStream &	operator>> (bool &data)=0
	Remove a single bool from the abstract stream. More...

virtual void	pack (const bool *data, const int n=1)=0
	Pack an array of bools into the abstract stream. More...

virtual void	unpack (bool *data, const int n=1)=0
	Remove an array of bools from the abstract stream. More...

Character Stream Primitives
Pack and unpack chars into and out of the abstract stream.
virtual AbstractStream &	operator<< (const char &data)=0
	Pack a single char into the abstract stream. More...

virtual AbstractStream &	operator>> (char &data)=0
	Remove a single char from the abstract stream. More...

virtual void	pack (const char *data, const int n=1)=0
	Pack an array of chars into the abstract stream. More...

virtual void	unpack (char *data, const int n=1)=0
	Remove an array of chars from the abstract stream. More...

Double Complex Stream Primitives
Pack and unpack double complex into and out of the abstract stream.
virtual AbstractStream &	operator<< (const dcomplex &data)=0
	Pack a single double complex into the abstract stream. More...

virtual AbstractStream &	operator>> (dcomplex &data)=0
	Remove a single double complex from the abstract stream. More...

virtual void	pack (const dcomplex *data, const int n=1)=0
	Pack an array of double complex into the abstract stream. More...

virtual void	unpack (dcomplex *data, const int n=1)=0
	Remove an array of double complex from the abstract stream. More...

Double Stream Primitives
Pack and unpack doubles into and out of the abstract stream.
virtual AbstractStream &	operator<< (const double &data)=0
	Pack a single double into the abstract stream. More...

virtual AbstractStream &	operator>> (double &data)=0
	Remove a single double from the abstract stream. More...

virtual void	pack (const double *data, const int n=1)=0
	Pack an array of doubles into the abstract stream. More...

virtual void	unpack (double *data, const int n=1)=0
	Remove an array of doubles from the abstract stream. More...

Float Stream Primitives
Pack and unpack floats into and out of the abstract stream.
virtual AbstractStream &	operator<< (const float &data)=0
	Pack a single float into the abstract stream. More...

virtual AbstractStream &	operator>> (float &data)=0
	Remove a single float from the abstract stream. More...

virtual void	pack (const float *data, const int n=1)=0
	Pack an array of floats into the abstract stream. More...

virtual void	unpack (float *data, const int n=1)=0
	Remove an array of floats from the abstract stream. More...

Static Public Member Functions
Stream Space Calculation Primitives
Calculate the stream space needed for various data types.
static int	sizeofBool (const int n=1)
	Calculate the stream space needed for n bools. More...

static int	sizeofChar (const int n=1)
	Calculate the stream space needed for n chars. More...

static int	sizeofDoubleComplex (const int n=1)
	Calculate the stream space needed for n double complex. More...

static int	sizeofDouble (const int n=1)
	Calculate the stream space needed for n doubles. More...

static int	sizeofFloat (const int n=1)
	Calculate the stream space needed for n floats. More...

static int	sizeofInt (const int n=1)
	Calculate the stream space needed for n ints. More...

Integer Stream Primitives
Pack and unpack integers into and out of the abstract stream.
virtual AbstractStream &	operator<< (const int &data)=0
	Pack a single integer into the abstract stream. More...

virtual AbstractStream &	operator>> (int &data)=0
	Remove a single integer from the abstract stream. More...

virtual void	pack (const int *data, const int n=1)=0
	Pack an array of integers into the abstract stream. More...

virtual void	unpack (int *data, const int n=1)=0
	Remove an array of integers from the abstract stream. More...

static int	roundXDR (const int n)

Detailed Description

Class AbstractStream is an abstract virtual base class that provides a stream abstraction for packing and unpacking data. Data sizes are defined to be compliant with the XDR specs (the data buffer is always four-byte aligned). This alignment may make buffers a bit larger than necessary, but allows for XDR translation.

The sizeofXXX() functions should be used to calculate the amount of buffer space needed to pack primitive data type XXX, where XXX is one of bool, char, double, float, or int.

Constructor & Destructor Documentation

◆ AbstractStream()

SAMRAI::tbox::AbstractStream::AbstractStream ( )

Default constructor for an abstract stream.

◆ ~AbstractStream()

virtual SAMRAI::tbox::AbstractStream::~AbstractStream ( )

virtual

Virtual destructor for an abstract stream.

Member Function Documentation

◆ sizeofBool()

static int SAMRAI::tbox::AbstractStream::sizeofBool ( const int n = 1 )

static

◆ sizeofChar()

static int SAMRAI::tbox::AbstractStream::sizeofChar ( const int n = 1 )

static

◆ sizeofDoubleComplex()

static int SAMRAI::tbox::AbstractStream::sizeofDoubleComplex ( const int n = 1 )

static

◆ sizeofDouble()

static int SAMRAI::tbox::AbstractStream::sizeofDouble ( const int n = 1 )

static

◆ sizeofFloat()

static int SAMRAI::tbox::AbstractStream::sizeofFloat ( const int n = 1 )

static

◆ sizeofInt()

static int SAMRAI::tbox::AbstractStream::sizeofInt ( const int n = 1 )

static

◆ operator<<() [1/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator<< ( const bool & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator>>() [1/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator>> ( bool & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ pack() [1/6]

virtual void SAMRAI::tbox::AbstractStream::pack	(	const bool *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ unpack() [1/6]

virtual void SAMRAI::tbox::AbstractStream::unpack	(	bool *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator<<() [2/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator<< ( const char & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator>>() [2/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator>> ( char & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ pack() [2/6]

virtual void SAMRAI::tbox::AbstractStream::pack	(	const char *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ unpack() [2/6]

virtual void SAMRAI::tbox::AbstractStream::unpack	(	char *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator<<() [3/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator<< ( const dcomplex & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator>>() [3/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator>> ( dcomplex & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ pack() [3/6]

virtual void SAMRAI::tbox::AbstractStream::pack	(	const dcomplex *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ unpack() [3/6]

virtual void SAMRAI::tbox::AbstractStream::unpack	(	dcomplex *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator<<() [4/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator<< ( const double & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator>>() [4/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator>> ( double & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ pack() [4/6]

virtual void SAMRAI::tbox::AbstractStream::pack	(	const double *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ unpack() [4/6]

virtual void SAMRAI::tbox::AbstractStream::unpack	(	double *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator<<() [5/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator<< ( const float & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator>>() [5/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator>> ( float & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ pack() [5/6]

virtual void SAMRAI::tbox::AbstractStream::pack	(	const float *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ unpack() [5/6]

virtual void SAMRAI::tbox::AbstractStream::unpack	(	float *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator<<() [6/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator<< ( const int & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ operator>>() [6/6]

virtual AbstractStream& SAMRAI::tbox::AbstractStream::operator>> ( int & data )

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ pack() [6/6]

virtual void SAMRAI::tbox::AbstractStream::pack	(	const int *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ unpack() [6/6]

virtual void SAMRAI::tbox::AbstractStream::unpack	(	int *	data,
		const int	n = `1`
	)

pure virtual

Implemented in IBTK::FixedSizedStream, SAMRAI::tbox::XDRStream, and SAMRAI::tbox::MessageStream.

◆ roundXDR()

static int SAMRAI::tbox::AbstractStream::roundXDR ( const int n )

staticprivate

The documentation for this class was generated from the following file:

/samrai/include/tbox/AbstractStream.h
