SAMRAI::xfer::CoarsenOperator< DIM > Class Template Reference

#include <CoarsenOperator.h>

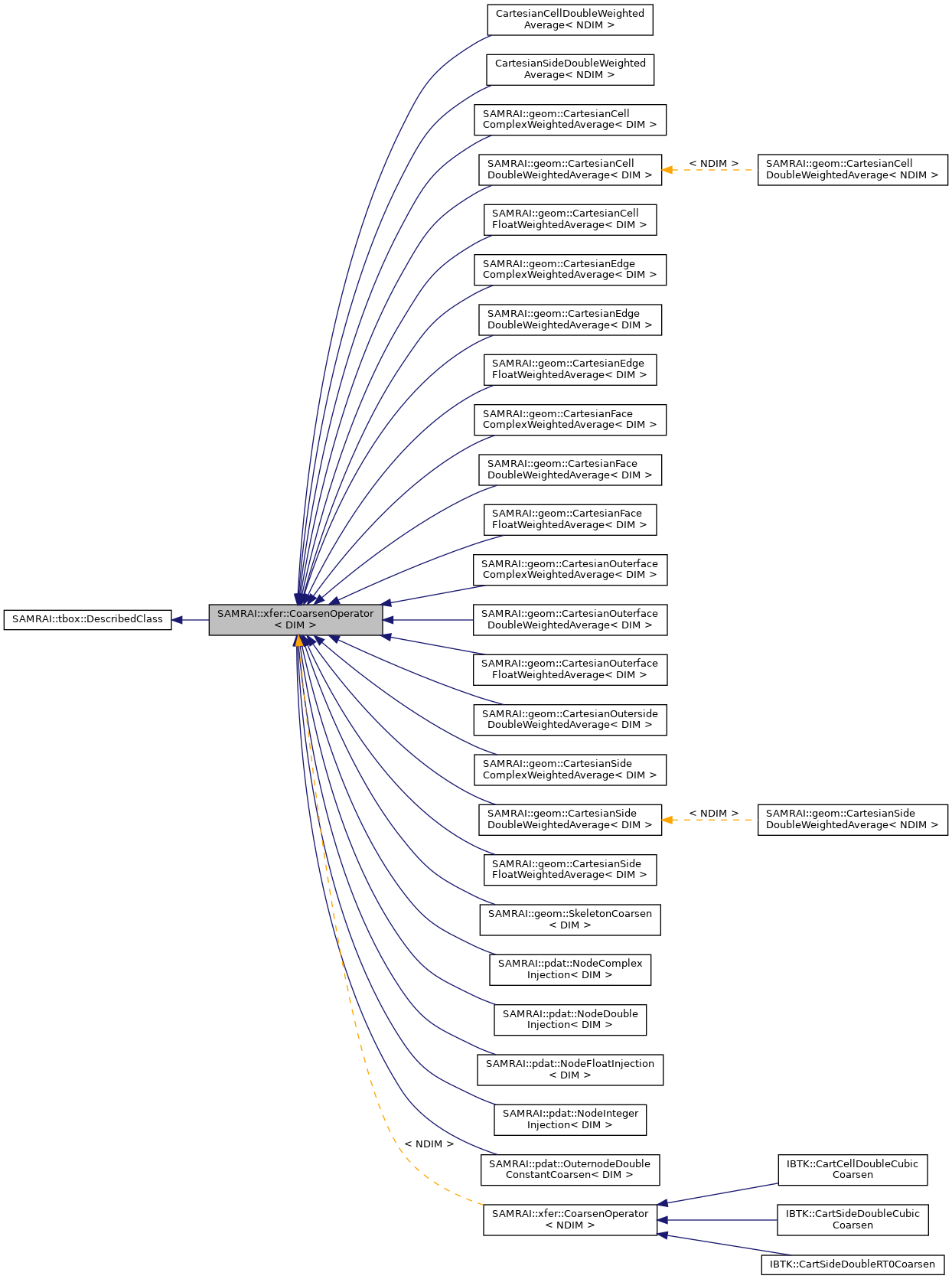

Inheritance diagram for SAMRAI::xfer::CoarsenOperator< DIM >:

Public Member Functions
	CoarsenOperator ()
virtual	~CoarsenOperator ()
virtual bool	findCoarsenOperator (const tbox::Pointer< hier::Variable< DIM > > &var, const std::string &op_name) const =0
virtual const std::string &	getOperatorName () const =0
virtual int	getOperatorPriority () const =0
virtual hier::IntVector< DIM >	getStencilWidth () const =0
virtual void	coarsen (hier::Patch< DIM > &coarse, const hier::Patch< DIM > &fine, const int dst_component, const int src_component, const hier::Box< DIM > &coarse_box, const hier::IntVector< DIM > &ratio) const =0

Private Member Functions
	CoarsenOperator (const CoarsenOperator< DIM > &)
void	operator= (const CoarsenOperator< DIM > &)

Detailed Description

template<int DIM>
class SAMRAI::xfer::CoarsenOperator< DIM >

Class CoarsenOperator<DIM> is an abstract base class for each spatial coarsening operator used in the SAMRAI framework. This class defines the interface between numerical coarsening routines and the rest of the framework. Each concrete coarsening operator subclass must provide four operations:

• (1) {an implementation of the coarsening operation appropriate for its corresponding patch data type.}
• (2) {a function that determines whether or not the operator matches an arbitrary request for a coarsening operator.}
• (3) {a function that returns the stencil width of the operator (i.e., the number of ghost cells needed by the operator).}
• (4) {a function that returns an integer stating the priority of the operator with respect to other coarsening operators.}

To add a new coarsening operator (either for a new patch data type or for a new time coarsening routine on an existing type), define the operator by inheriting from this abstract base class. The operator subclass must implement the coarsening operation in the coarsen() function, and provide a response to a general operator request in the findCoarsenOperator() function. The stencil width and operator priority must be returned from the getStencilWidth() and getOperatorPriority() functions, respectively. Then, the new operator must be added to the operator list for the appropriate transfer geometry object using the Geometry<DIM>::addSpatialCOarsenOperator() function.

Since spatial coarsening operators usually depend on patch data centering and data type as well as the mesh coordinate system, they are defined in the geometry package.

See also

xfer::Geometry

Constructor & Destructor Documentation

CoarsenOperator() [1/2]

template<int DIM>

SAMRAI::xfer::CoarsenOperator< DIM >::CoarsenOperator

(

)

The default constructor for the coarsening operator does nothing interesting.

~CoarsenOperator()

template<int DIM>

virtual SAMRAI::xfer::CoarsenOperator< DIM >::~CoarsenOperator ( )

virtual

The virtual destructor for the coarsening operator does nothing interesting.

CoarsenOperator() [2/2]

template<int DIM>

SAMRAI::xfer::CoarsenOperator< DIM >::CoarsenOperator ( const CoarsenOperator< DIM > &  )

private

Member Function Documentation

findCoarsenOperator()

template<int DIM>

virtual bool SAMRAI::xfer::CoarsenOperator< DIM >::findCoarsenOperator ( const tbox::Pointer< hier::Variable< DIM > > &  var, const std::string &  op_name  ) const

pure virtual

Return true if the coarsening operation matches the variable and name string identifier request; false, otherwise.

Implemented in SAMRAI::pdat::OuternodeDoubleConstantCoarsen< DIM >, SAMRAI::pdat::NodeComplexInjection< DIM >, SAMRAI::pdat::NodeDoubleInjection< DIM >, SAMRAI::pdat::NodeFloatInjection< DIM >, SAMRAI::pdat::NodeIntegerInjection< DIM >, SAMRAI::geom::CartesianCellComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianCellDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianCellFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOutersideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianSideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianCellDoubleWeightedAverage< NDIM >, SAMRAI::geom::CartesianSideDoubleWeightedAverage< NDIM >, SAMRAI::geom::CartesianFaceComplexWeightedAverage< DIM >, and SAMRAI::geom::SkeletonCoarsen< DIM >.

getOperatorName()

template<int DIM>

virtual const std::string& SAMRAI::xfer::CoarsenOperator< DIM >::getOperatorName ( ) const

pure virtual

Return name string identifier of the coarsening operation.

Implemented in SAMRAI::pdat::OuternodeDoubleConstantCoarsen< DIM >, SAMRAI::pdat::NodeComplexInjection< DIM >, SAMRAI::pdat::NodeDoubleInjection< DIM >, SAMRAI::pdat::NodeFloatInjection< DIM >, SAMRAI::pdat::NodeIntegerInjection< DIM >, SAMRAI::geom::CartesianCellComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianCellDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianCellFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOutersideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianSideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceComplexWeightedAverage< DIM >, and SAMRAI::geom::SkeletonCoarsen< DIM >.

getOperatorPriority()

template<int DIM>

virtual int SAMRAI::xfer::CoarsenOperator< DIM >::getOperatorPriority ( ) const

pure virtual

Return the priority of this operator relative to other coarsening operators. The SAMRAI transfer routines guarantee that coarsening using operators with lower priority will be performed before those with higher priority.

Implemented in SAMRAI::pdat::OuternodeDoubleConstantCoarsen< DIM >, SAMRAI::pdat::NodeComplexInjection< DIM >, SAMRAI::pdat::NodeDoubleInjection< DIM >, SAMRAI::pdat::NodeFloatInjection< DIM >, SAMRAI::pdat::NodeIntegerInjection< DIM >, SAMRAI::geom::CartesianCellComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianCellDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianCellFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOutersideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianSideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceComplexWeightedAverage< DIM >, and SAMRAI::geom::SkeletonCoarsen< DIM >.

getStencilWidth()

template<int DIM>

virtual hier::IntVector<DIM> SAMRAI::xfer::CoarsenOperator< DIM >::getStencilWidth ( ) const

pure virtual

Return the stencil width associated with the coarsening operator. The SAMRAI transfer routines guarantee that the source patch will contain sufficient ghost cell data surrounding the interior to satisfy the stencil width requirements for each coarsening operator.

Implemented in SAMRAI::pdat::OuternodeDoubleConstantCoarsen< DIM >, SAMRAI::pdat::NodeComplexInjection< DIM >, SAMRAI::pdat::NodeDoubleInjection< DIM >, SAMRAI::pdat::NodeFloatInjection< DIM >, SAMRAI::pdat::NodeIntegerInjection< DIM >, SAMRAI::geom::CartesianCellComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianCellDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianCellFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOutersideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianSideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceComplexWeightedAverage< DIM >, and SAMRAI::geom::SkeletonCoarsen< DIM >.

coarsen()

template<int DIM>

virtual void SAMRAI::xfer::CoarsenOperator< DIM >::coarsen ( hier::Patch< DIM > &  coarse, const hier::Patch< DIM > &  fine, const int  dst_component, const int  src_component, const hier::Box< DIM > &  coarse_box, const hier::IntVector< DIM > &  ratio  ) const

pure virtual

Coarsen the source component on the fine patch to the destination component on the coarse patch. The coarsening operation is performed on the intersection of the destination patch and the coarse box. The fine patch is guaranteed to contain sufficient data for the stencil width of the coarsening operator.

Implemented in SAMRAI::pdat::OuternodeDoubleConstantCoarsen< DIM >, SAMRAI::pdat::NodeComplexInjection< DIM >, SAMRAI::pdat::NodeDoubleInjection< DIM >, SAMRAI::pdat::NodeFloatInjection< DIM >, SAMRAI::pdat::NodeIntegerInjection< DIM >, SAMRAI::geom::CartesianCellComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianCellDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianCellFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianEdgeFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianFaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianOuterfaceFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianOutersideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideComplexWeightedAverage< DIM >, SAMRAI::geom::CartesianSideDoubleWeightedAverage< DIM >, SAMRAI::geom::CartesianSideFloatWeightedAverage< DIM >, SAMRAI::geom::CartesianCellDoubleWeightedAverage< NDIM >, SAMRAI::geom::CartesianSideDoubleWeightedAverage< NDIM >, SAMRAI::geom::CartesianFaceComplexWeightedAverage< DIM >, and SAMRAI::geom::SkeletonCoarsen< DIM >.

operator=()

template<int DIM>

void SAMRAI::xfer::CoarsenOperator< DIM >::operator= ( const CoarsenOperator< DIM > &  )

private

---

The documentation for this class was generated from the following file:

• /samrai/include/CoarsenOperator.h
