Class IBStandardSourceGen provides support for distributed internal fluid sources/sinks.

#include <ibamr/IBStandardSourceGen.h>

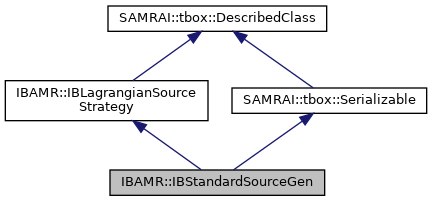

Inheritance diagram for IBAMR::IBStandardSourceGen:

[legend]

Public Member Functions
	IBStandardSourceGen ()
	Default constructor. More...

	~IBStandardSourceGen ()=default
	Destructor. More...

std::vector< double > &	getSourceStrengths (int ln)
	Return a reference to the vector of source strengths. More...

const std::vector< double > &	getSourceStrengths (int ln) const
	Return a const reference to the vector of source strengths. More...

const std::vector< double > &	getSourcePressures (int ln) const
	Return a const reference to the vector of source pressures. More...

void	initializeLevelData (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double init_data_time, bool initial_time, IBTK::LDataManager *l_data_manager) override
	Setup the data needed to compute source/sink data on the specified level of the patch hierarchy. More...

unsigned int	getNumSources (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double data_time, IBTK::LDataManager *l_data_manager) override
	Specify the number of distributed internal sources or sinks. More...

void	getSourceLocations (std::vector< IBTK::Point > &X_src, std::vector< double > &r_src, SAMRAI::tbox::Pointer< IBTK::LData > X_data, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double data_time, IBTK::LDataManager *l_data_manager) override
	Compute the source locations for each of the distributed internal sources or sinks. More...

void	setSourcePressures (const std::vector< double > &P_src, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double data_time, IBTK::LDataManager *l_data_manager) override
	Set the normalized pressures at the sources. More...

void	computeSourceStrengths (std::vector< double > &Q_src, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double data_time, IBTK::LDataManager *l_data_manager) override
	Compute the source strengths for each of the distributed internal sources or sinks. More...

void	putToDatabase (SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db) override

virtual void	setTimeInterval (double current_time, double new_time)
	Set the current and new times for the present timestep. More...

Static Public Member Functions
static bool	getIsRegisteredWithStreamableManager ()
	Returns a boolean indicating whether the class has been registered with the singleton IBTK::StreamableManager object. More...

static void	setNumSources (int ln, unsigned int num_sources)
	Set the number of internal sources and sinks on the specified level of the patch hierarchy. More...

static unsigned int	getNumSources (int ln)
	Get the number of internal sources and sinks on the specified level of the patch hierarchy. More...

static void	setSourceNames (int ln, const std::vector< std::string > &names)
	Set the names of the internal sources and sinks on the specified level of the patch hierarchy. More...

static const std::vector< std::string > &	getSourceNames (int ln)
	Get the names of the internal sources and sinks on the specified level of the patch hierarchy. More...

static void	setSourceRadii (int ln, const std::vector< double > &radii)
	Set the sizes of the internal sources and sinks on the specified level of the patch hierarchy. More...

static const std::vector< double > &	getSourceRadii (int ln)
	Get the sizes of the internal sources and sinks on the specified level of the patch hierarchy. More...

Private Member Functions
	IBStandardSourceGen (const IBStandardSourceGen &from)=delete
	Copy constructor. More...

IBStandardSourceGen &	operator= (const IBStandardSourceGen &that)=delete
	Assignment operator. More...

void	getFromRestart ()

Private Attributes
std::vector< int >	d_n_src

std::vector< std::vector< std::string > >	d_source_names

std::vector< std::vector< double > >	d_r_src

std::vector< std::vector< int > >	d_num_perimeter_nodes

std::vector< std::vector< double > >	d_Q_src

std::vector< std::vector< double > >	d_P_src

Static Private Attributes
static std::vector< int >	s_num_sources

static std::vector< std::vector< std::string > >	s_source_names

static std::vector< std::vector< double > >	s_source_radii

Constructor & Destructor Documentation

◆ IBStandardSourceGen() [1/2]

IBAMR::IBStandardSourceGen::IBStandardSourceGen ( )

◆ ~IBStandardSourceGen()

IBAMR::IBStandardSourceGen::~IBStandardSourceGen ( )

default

◆ IBStandardSourceGen() [2/2]

IBAMR::IBStandardSourceGen::IBStandardSourceGen ( const IBStandardSourceGen & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ getIsRegisteredWithStreamableManager()

static bool IBAMR::IBStandardSourceGen::getIsRegisteredWithStreamableManager ( )

static

◆ setNumSources()

static void IBAMR::IBStandardSourceGen::setNumSources	(	int	ln,
		unsigned int	num_sources
	)

static

◆ getNumSources() [1/2]

static unsigned int IBAMR::IBStandardSourceGen::getNumSources ( int ln )

static

◆ setSourceNames()

static void IBAMR::IBStandardSourceGen::setSourceNames	(	int	ln,
		const std::vector< std::string > &	names
	)

static

◆ getSourceNames()

static const std::vector<std::string>& IBAMR::IBStandardSourceGen::getSourceNames ( int ln )

static

◆ setSourceRadii()

static void IBAMR::IBStandardSourceGen::setSourceRadii	(	int	ln,
		const std::vector< double > &	radii
	)

static

◆ getSourceRadii()

static const std::vector<double>& IBAMR::IBStandardSourceGen::getSourceRadii ( int ln )

static

◆ getSourceStrengths() [1/2]

std::vector<double>& IBAMR::IBStandardSourceGen::getSourceStrengths ( int ln )

Note: Users must not change the size of this vector.

◆ getSourceStrengths() [2/2]

const std::vector<double>& IBAMR::IBStandardSourceGen::getSourceStrengths ( int ln ) const

◆ getSourcePressures()

const std::vector<double>& IBAMR::IBStandardSourceGen::getSourcePressures ( int ln ) const

◆ initializeLevelData()

void IBAMR::IBStandardSourceGen::initializeLevelData	(	SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	init_data_time,
		bool	initial_time,
		IBTK::LDataManager *	l_data_manager
	)

overridevirtual

Note: A default empty implementation is provided.

Reimplemented from IBAMR::IBLagrangianSourceStrategy.

◆ getNumSources() [2/2]

unsigned int IBAMR::IBStandardSourceGen::getNumSources	(	SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	data_time,
		IBTK::LDataManager *	l_data_manager
	)

overridevirtual

Note: The return value must be the total number of internal sources/sinks in the entire computational domain. This implies that the return value must be identical on each MPI process.

Implements IBAMR::IBLagrangianSourceStrategy.

◆ getSourceLocations()

void IBAMR::IBStandardSourceGen::getSourceLocations	(	std::vector< IBTK::Point > &	X_src,
		std::vector< double > &	r_src,
		SAMRAI::tbox::Pointer< IBTK::LData >	X_data,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	data_time,
		IBTK::LDataManager *	l_data_manager
	)

overridevirtual

Note: Implementations of this method must compute the same values for X_src on each MPI process. That is to say, X_src must provide the location of all of the distributed sources/sinks.

Implements IBAMR::IBLagrangianSourceStrategy.

◆ setSourcePressures()

void IBAMR::IBStandardSourceGen::setSourcePressures	(	const std::vector< double > &	P_src,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	data_time,
		IBTK::LDataManager *	l_data_manager
	)

overridevirtual

Implements IBAMR::IBLagrangianSourceStrategy.

◆ computeSourceStrengths()

void IBAMR::IBStandardSourceGen::computeSourceStrengths	(	std::vector< double > &	Q_src,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	data_time,
		IBTK::LDataManager *	l_data_manager
	)

overridevirtual

Note: Implementations of this method must compute the same values for Q_src on each MPI process. That is to say, Q_src must provide the strengths of all of the distributed sources/sinks.

Implements IBAMR::IBLagrangianSourceStrategy.

◆ putToDatabase()

void IBAMR::IBStandardSourceGen::putToDatabase ( SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db )

overridevirtual

Write out object state to the given database.

When assertion checking is active, database pointer must be non-null.

Implements SAMRAI::tbox::Serializable.

◆ operator=()

IBStandardSourceGen& IBAMR::IBStandardSourceGen::operator= ( const IBStandardSourceGen & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ getFromRestart()

void IBAMR::IBStandardSourceGen::getFromRestart ( )

private

Read object state from the restart file and initialize class data members.

◆ setTimeInterval()

virtual void IBAMR::IBLagrangianSourceStrategy::setTimeInterval	(	double	current_time,
		double	new_time
	)

virtualinherited

Note: A default empty implementation is provided.

Member Data Documentation

◆ s_num_sources

std::vector<int> IBAMR::IBStandardSourceGen::s_num_sources

staticprivate

The numbers of sources/sinks on each level of the patch hierarchy.

◆ s_source_names

std::vector<std::vector<std::string> > IBAMR::IBStandardSourceGen::s_source_names

staticprivate

The names of the sources and sinks.

◆ s_source_radii

std::vector<std::vector<double> > IBAMR::IBStandardSourceGen::s_source_radii

staticprivate

The sizes of the sources and sinks.

◆ d_n_src

std::vector<int> IBAMR::IBStandardSourceGen::d_n_src

private

◆ d_source_names

std::vector<std::vector<std::string> > IBAMR::IBStandardSourceGen::d_source_names

private

◆ d_r_src

std::vector<std::vector<double> > IBAMR::IBStandardSourceGen::d_r_src

private

◆ d_num_perimeter_nodes

std::vector<std::vector<int> > IBAMR::IBStandardSourceGen::d_num_perimeter_nodes

private

◆ d_Q_src

std::vector<std::vector<double> > IBAMR::IBStandardSourceGen::d_Q_src

private

◆ d_P_src

std::vector<std::vector<double> > IBAMR::IBStandardSourceGen::d_P_src

private

The documentation for this class was generated from the following file:

include/ibamr/IBStandardSourceGen.h
