IBTK::LDataManager Class Reference

Class LDataManager coordinates the irregular distribution of LNode and LData on the patch hierarchy. More...

#include <ibtk/LDataManager.h>

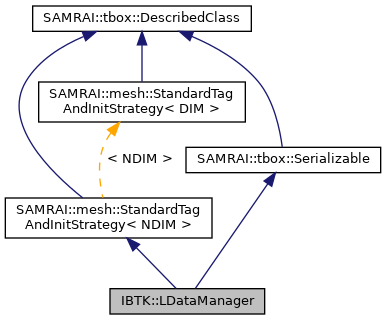

Inheritance diagram for IBTK::LDataManager:

Public Member Functions
virtual double	getLevelDt (const tbox::Pointer< hier::BasePatchLevel< DIM > > level, const double dt_time, const bool initial_time)
virtual double	advanceLevel (const tbox::Pointer< hier::BasePatchLevel< DIM > > level, const tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const double current_time, const double new_time, const bool first_step, const bool last_step, const bool regrid_advance=false)
virtual void	resetTimeDependentData (const tbox::Pointer< hier::BasePatchLevel< DIM > > level, const double new_time, const bool can_be_refined)
virtual void	resetDataToPreadvanceState (const tbox::Pointer< hier::BasePatchLevel< DIM > > level)
virtual void	initializeLevelData (const tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const int level_number, const double init_data_time, const bool can_be_refined, const bool initial_time, const tbox::Pointer< hier::BasePatchLevel< DIM > > old_level=tbox::Pointer< hier::BasePatchLevel< DIM > >(NULL), const bool allocate_data=true)=0
virtual void	resetHierarchyConfiguration (const tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const int coarsest_level, const int finest_level)=0
virtual void	applyGradientDetector (const tbox::Pointer< hier::BasePatchHierarchy< DIM > > hierarchy, const int level_number, const double error_data_time, const int tag_index, const bool initial_time, const bool uses_richardson_extrapolation_too)
virtual void	applyRichardsonExtrapolation (const tbox::Pointer< hier::PatchLevel< DIM > > level, const double error_data_time, const int tag_index, const double deltat, const int error_coarsen_ratio, const bool initial_time, const bool uses_gradient_detector_too)
virtual void	coarsenDataForRichardsonExtrapolation (const tbox::Pointer< hier::PatchHierarchy< DIM > > hierarchy, const int level_number, const tbox::Pointer< hier::PatchLevel< DIM > > coarser_level, const double coarsen_data_time, const bool before_advance)

Static Public Member Functions
static LDataManager *	getManager (const std::string &name, const std::string &default_interp_kernel_fcn, const std::string &default_spread_kernel_fcn, bool error_if_points_leave_domain=false, const SAMRAI::hier::IntVector< NDIM > &min_ghost_width=SAMRAI::hier::IntVector< NDIM >(0), bool register_for_restart=true)
static void	freeAllManagers ()

Static Public Attributes
static const std::string	POSN_DATA_NAME
static const std::string	INIT_POSN_DATA_NAME
static const std::string	VEL_DATA_NAME

Methods to set and get the patch hierarchy and range of patch
levels associated with this manager class.
static std::map< std::string, LDataManager * >	s_data_manager_instances
static bool	s_registered_callback
static unsigned char	s_shutdown_priority
std::string	d_object_name
bool	d_registered_for_restart
SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	d_hierarchy
SAMRAI::tbox::Pointer< SAMRAI::geom::CartesianGridGeometry< NDIM > >	d_grid_geom
int	d_coarsest_ln = IBTK::invalid_level_number
int	d_finest_ln = IBTK::invalid_level_number
SAMRAIDataCache	d_cached_eulerian_data
SAMRAI::tbox::Pointer< SAMRAI::appu::VisItDataWriter< NDIM > >	d_visit_writer
SAMRAI::tbox::Pointer< LSiloDataWriter >	d_silo_writer
SAMRAI::tbox::Pointer< SAMRAI::mesh::LoadBalancer< NDIM > >	d_load_balancer
SAMRAI::tbox::Pointer< LInitStrategy >	d_lag_init
std::vector< bool >	d_level_contains_lag_data
SAMRAI::tbox::Pointer< LNodeSetVariable >	d_lag_node_index_var
int	d_lag_node_index_current_idx = IBTK::invalid_index
int	d_lag_node_index_scratch_idx = IBTK::invalid_index
std::vector< SAMRAI::tbox::Pointer< std::vector< LNode > > >	d_local_and_ghost_nodes
double	d_beta_work = 1.0
SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	d_workload_var
int	d_workload_idx = IBTK::invalid_index
bool	d_output_workload = false
SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	d_node_count_var
int	d_node_count_idx = IBTK::invalid_index
bool	d_output_node_count = false
const std::string	d_default_interp_kernel_fcn
const std::string	d_default_spread_kernel_fcn
bool	d_error_if_points_leave_domain
const SAMRAI::hier::IntVector< NDIM >	d_ghost_width
SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineAlgorithm< NDIM > >	d_lag_node_index_bdry_fill_alg
std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >	d_lag_node_index_bdry_fill_scheds
SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenAlgorithm< NDIM > >	d_node_count_coarsen_alg
std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >	d_node_count_coarsen_scheds
SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext >	d_current_context
SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext >	d_scratch_context
SAMRAI::hier::ComponentSelector	d_current_data
SAMRAI::hier::ComponentSelector	d_scratch_data
void	setPatchHierarchy (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy)
	Reset patch hierarchy over which operations occur. More...
SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	getPatchHierarchy () const
	Get the patch hierarchy used by this object. More...
void	setPatchLevels (int coarsest_ln, int finest_ln)
	Reset range of patch levels over which operations occur. More...
std::pair< int, int >	getPatchLevels () const
	Get the range of patch levels used by this object. More...
const SAMRAI::hier::IntVector< NDIM > &	getGhostCellWidth () const
	Return the ghost cell width associated with the interaction scheme. More...
const std::string &	getDefaultInterpKernelFunction () const
	Return the default kernel function associated with the Eulerian-to-Lagrangian interpolation scheme. More...
const std::string &	getDefaultSpreadKernelFunction () const
	Return the default kernel function associated with the Lagrangian-to-Eulerian spreading scheme. More...
void	spread (int f_data_idx, SAMRAI::tbox::Pointer< LData > F_data, SAMRAI::tbox::Pointer< LData > X_data, SAMRAI::tbox::Pointer< LData > ds_data, RobinPhysBdryPatchStrategy *f_phys_bdry_op, int level_num, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true, bool ds_data_ghost_node_update=true)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using the default spreading kernel function. More...
void	spread (int f_data_idx, SAMRAI::tbox::Pointer< LData > F_data, SAMRAI::tbox::Pointer< LData > X_data, SAMRAI::tbox::Pointer< LData > ds_data, const std::string &spread_kernel_fcn, RobinPhysBdryPatchStrategy *f_phys_bdry_op, int level_num, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true, bool ds_data_ghost_node_update=true)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using a specified spreading kernel function. More...
void	spread (int f_data_idx, std::vector< SAMRAI::tbox::Pointer< LData > > &F_data, std::vector< SAMRAI::tbox::Pointer< LData > > &X_data, std::vector< SAMRAI::tbox::Pointer< LData > > &ds_data, RobinPhysBdryPatchStrategy *f_phys_bdry_op, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true, bool ds_data_ghost_node_update=true, int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using the default spreading kernel function. More...
void	spread (int f_data_idx, std::vector< SAMRAI::tbox::Pointer< LData > > &F_data, std::vector< SAMRAI::tbox::Pointer< LData > > &X_data, std::vector< SAMRAI::tbox::Pointer< LData > > &ds_data, const std::string &spread_kernel_fcn, RobinPhysBdryPatchStrategy *f_phys_bdry_op, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true, bool ds_data_ghost_node_update=true, int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using a specified spreading kernel function. More...
void	spread (int f_data_idx, SAMRAI::tbox::Pointer< LData > F_data, SAMRAI::tbox::Pointer< LData > X_data, RobinPhysBdryPatchStrategy *f_phys_bdry_op, int level_num, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using the default spreading kernel function. More...
void	spread (int f_data_idx, SAMRAI::tbox::Pointer< LData > F_data, SAMRAI::tbox::Pointer< LData > X_data, const std::string &spread_kernel_fcn, RobinPhysBdryPatchStrategy *f_phys_bdry_op, int level_num, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using the specified spreading kernel function. More...
void	spread (int f_data_idx, std::vector< SAMRAI::tbox::Pointer< LData > > &F_data, std::vector< SAMRAI::tbox::Pointer< LData > > &X_data, RobinPhysBdryPatchStrategy *f_phys_bdry_op, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true, int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using the default spreading kernel function. More...
void	spread (int f_data_idx, std::vector< SAMRAI::tbox::Pointer< LData > > &F_data, std::vector< SAMRAI::tbox::Pointer< LData > > &X_data, const std::string &spread_kernel_fcn, RobinPhysBdryPatchStrategy *f_phys_bdry_op, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_prolongation_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, bool F_data_ghost_node_update=true, bool X_data_ghost_node_update=true, int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Spread a quantity from the Lagrangian mesh to the Eulerian grid using the specified spreading kernel function. More...
void	interp (int f_data_idx, SAMRAI::tbox::Pointer< LData > F_data, SAMRAI::tbox::Pointer< LData > X_data, int level_num, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &f_synch_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(), const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_ghost_fill_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0)
	Interpolate a quantity from the Eulerian grid to the Lagrangian mesh using the default interpolation kernel function. More...
void	interp (int f_data_idx, SAMRAI::tbox::Pointer< LData > F_data, SAMRAI::tbox::Pointer< LData > X_data, const std::string &interp_kernel_fcn, int level_num, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &f_synch_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(), const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_ghost_fill_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0)
	Interpolate a quantity from the Eulerian grid to the Lagrangian mesh using the specified interpolation kernel function. More...
void	interp (int f_data_idx, std::vector< SAMRAI::tbox::Pointer< LData > > &F_data, std::vector< SAMRAI::tbox::Pointer< LData > > &X_data, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &f_synch_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(), const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_ghost_fill_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Interpolate a quantity from the Eulerian grid to the Lagrangian mesh using the default interpolation kernel function. More...
void	interp (int f_data_idx, std::vector< SAMRAI::tbox::Pointer< LData > > &F_data, std::vector< SAMRAI::tbox::Pointer< LData > > &X_data, const std::string &interp_kernel_fcn, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &f_synch_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(), const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &f_ghost_fill_scheds=std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(), double fill_data_time=0.0, int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Interpolate a quantity from the Eulerian grid to the Lagrangian mesh using the specified interpolation kernel function. More...
void	registerLInitStrategy (SAMRAI::tbox::Pointer< LInitStrategy > lag_init)
void	freeLInitStrategy ()
void	registerVisItDataWriter (SAMRAI::tbox::Pointer< SAMRAI::appu::VisItDataWriter< NDIM > > visit_writer)
	Register a VisIt data writer with the manager. More...
void	registerLSiloDataWriter (SAMRAI::tbox::Pointer< LSiloDataWriter > silo_writer)
	Register a Silo data writer with the manager. More...
void	registerLoadBalancer (SAMRAI::tbox::Pointer< SAMRAI::mesh::LoadBalancer< NDIM > > load_balancer, int workload_data_idx)
	Register a load balancer for non-uniform load balancing. More...
bool	levelContainsLagrangianData (int level_number) const
	Indicates whether there is Lagrangian data on the given patch hierarchy level. More...
unsigned int	getNumberOfNodes (int level_number) const
unsigned int	getNumberOfLocalNodes (int level_number) const
unsigned int	getNumberOfGhostNodes (int level_number) const
unsigned int	getGlobalNodeOffset (int level_number) const
SAMRAI::tbox::Pointer< LMesh >	getLMesh (int level_number) const
	Get the Lagrangian mesh associated with the given patch hierarchy level. More...
SAMRAI::tbox::Pointer< LData >	getLData (const std::string &quantity_name, int level_number) const
	Get the specified Lagrangian quantity data on the given patch hierarchy level. More...
SAMRAI::tbox::Pointer< LData >	createLData (const std::string &quantity_name, int level_number, unsigned int depth=1, bool maintain_data=false)
	Allocate new Lagrangian level data with the specified name and depth. If specified, the quantity is maintained as the patch hierarchy evolves. More...
int	getLNodePatchDescriptorIndex () const
	Get the patch data descriptor index for the Lagrangian index data. More...
int	getWorkloadPatchDescriptorIndex () const
	Get the patch data descriptor index for the workload cell data. More...
int	getNodeCountPatchDescriptorIndex () const
	Get the patch data descriptor index for the Lagrangian node count cell data. More...
std::vector< std::string >	getLagrangianStructureNames (int level_number) const
	Get a list of Lagrangian structure names for the specified level of the patch hierarchy. More...
std::vector< int >	getLagrangianStructureIDs (int level_number) const
	Get a list of Lagrangian structure IDs for the specified level of the patch hierarchy. More...
int	getLagrangianStructureID (int lagrangian_index, int level_number) const
	Get the ID of the Lagrangian structure associated with the specified Lagrangian index. More...
int	getLagrangianStructureID (const std::string &structure_name, int level_number) const
	Get the ID of the Lagrangian structure with the specified name. More...
std::string	getLagrangianStructureName (int structure_id, int level_number) const
	Get the name of the Lagrangian structure with the specified ID. More...
std::pair< int, int >	getLagrangianStructureIndexRange (int structure_id, int level_number) const
	Get the range of Lagrangian indices for the Lagrangian structure with the specified ID. More...
Point	computeLagrangianStructureCenterOfMass (int structure_id, int level_number)
	Get the center of mass of the Lagrangian structure with the specified ID. More...
std::pair< Point, Point >	computeLagrangianStructureBoundingBox (int structure_id, int level_number)
	Get the bounding box of the Lagrangian structure with the specified ID. More...
void	reinitLagrangianStructure (const Point &X_center, int structure_id, int level_number)
	Reset the positions of the nodes of the Lagrangian structure with the specified ID to be equal to the initial positions but shifted so that the bounding box of the structure is centered about X_center. More...
void	displaceLagrangianStructure (const Vector &dX, int structure_id, int level_number)
	Shift the positions of the nodes of the Lagrangian structure with the specified ID by a displacement dX. More...
void	activateLagrangianStructures (const std::vector< int > &structure_ids, int level_number)
	Activate the Lagrangian structures with the specified ID numbers. More...
void	inactivateLagrangianStructures (const std::vector< int > &structure_ids, int level_number)
	Inactivate the Lagrangian structures with the specified ID numbers. More...
bool	getLagrangianStructureIsActivated (int structure_id, int level_number) const
	Determine whether the Lagrangian structure with the specified ID number is activated. More...
void	zeroInactivatedComponents (SAMRAI::tbox::Pointer< LData > lag_data, int level_number) const
	Set the components of the supplied LData object to zero for those entries that correspond to inactivated structures. More...
void	mapLagrangianToPETSc (std::vector< int > &inds, int level_number) const
	Map the collection of Lagrangian indices to the corresponding global PETSc indices. More...
void	mapPETScToLagrangian (std::vector< int > &inds, int level_number) const
	Map the collection of global PETSc indices to the corresponding Lagrangian indices. More...
AO &	getAO (int level_number)
	Return the AO object that maps Lagrangian indices to PETSc indices. More...
void	scatterLagrangianToPETSc (Vec &lagrangian_vec, Vec &petsc_vec, int level_number) const
	Scatter data from the Lagrangian ordering to the global PETSc ordering. More...
void	scatterPETScToLagrangian (Vec &petsc_vec, Vec &lagrangian_vec, int level_number) const
	Scatter data from the global PETSc ordering to the Lagrangian ordering. More...
void	scatterToAll (Vec &parallel_vec, Vec &sequential_vec) const
	Scatter data from a distributed PETSc vector to all processors. More...
void	scatterToZero (Vec &parallel_vec, Vec &sequential_vec) const
	Scatter data from a distributed PETSc vector to processor zero. More...
void	beginDataRedistribution (int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Start the process of redistributing the Lagrangian data. More...
void	endDataRedistribution (int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Finish the process of redistributing the Lagrangian data. More...
void	addWorkloadEstimate (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, const int workload_data_idx, const int coarsest_ln=invalid_level_number, const int finest_ln=invalid_level_number)
	Update the workload and count of nodes per cell. More...
void	updateNodeCountData (int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Update the count of nodes per cell. More...
void	initializeLevelData (SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > > hierarchy, int level_number, double init_data_time, bool can_be_refined, bool initial_time, SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchLevel< NDIM > > old_level=SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchLevel< NDIM > >(nullptr), bool allocate_data=true) override
void	resetHierarchyConfiguration (SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > > hierarchy, int coarsest_ln, int finest_ln) override
void	applyGradientDetector (SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > > hierarchy, int level_number, double error_data_time, int tag_index, bool initial_time, bool uses_richardson_extrapolation_too) override
void	putToDatabase (SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db) override
void	registerUserDefinedLData (const std::string &data_name, int depth)
	LDataManager (std::string object_name, std::string default_interp_kernel_fcn, std::string default_spread_kernel_fcn, bool error_if_points_leave_domain, SAMRAI::hier::IntVector< NDIM > ghost_width, bool register_for_restart=true)
	Constructor. More...
	~LDataManager ()
	The LDataManager destructor cleans up any remaining PETSc AO objects. More...
	LDataManager ()
	Default constructor. More...
	LDataManager (const LDataManager &from)=delete
	Copy constructor. More...
LDataManager &	operator= (const LDataManager &that)=delete
	Assignment operator. More...
void	scatterData (Vec &lagrangian_vec, Vec &petsc_vec, int level_number, ScatterMode mode) const
	Common implementation of scatterPETScToLagrangian() and scatterLagrangianToPETSc(). More...
void	beginNonlocalDataFill (int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	Begin the process of refilling nonlocal Lagrangian quantities over the specified range of levels in the patch hierarchy. More...
void	endNonlocalDataFill (int coarsest_ln=invalid_level_number, int finest_ln=invalid_level_number)
	End the process of refilling nonlocal Lagrangian quantities over the specified range of levels in the patch hierarchy. More...
void	computeNodeDistribution (AO &ao, std::vector< int > &local_lag_indices, std::vector< int > &nonlocal_lag_indices, std::vector< int > &local_petsc_indices, std::vector< int > &nonlocal_petsc_indices, unsigned int &num_nodes, unsigned int &node_offset, int level_number)
void	getFromRestart ()
static void	computeNodeOffsets (unsigned int &num_nodes, unsigned int &node_offset, unsigned int num_local_nodes)

Data that is separately maintained for each level of the patch
hierarchy.
static std::vector< int >	s_ao_dummy
std::vector< std::map< std::string, int > >	d_strct_name_to_strct_id_map
std::vector< std::map< int, std::string > >	d_strct_id_to_strct_name_map
std::vector< std::map< int, std::pair< int, int > > >	d_strct_id_to_lag_idx_range_map
std::vector< std::map< int, int > >	d_last_lag_idx_to_strct_id_map
std::vector< ParallelSet >	d_inactive_strcts
std::vector< std::vector< int > >	d_displaced_strct_ids
std::vector< std::vector< std::pair< Point, Point > > >	d_displaced_strct_bounding_boxes
std::vector< std::vector< LNodeSet::value_type > >	d_displaced_strct_lnode_idxs
std::vector< std::vector< Point > >	d_displaced_strct_lnode_posns
std::vector< SAMRAI::tbox::Pointer< LMesh > >	d_lag_mesh
std::vector< std::map< std::string, SAMRAI::tbox::Pointer< LData > > >	d_lag_mesh_data
std::vector< bool >	d_needs_synch
std::vector< AO >	d_ao
std::vector< unsigned int >	d_num_nodes
std::vector< unsigned int >	d_node_offset
std::vector< std::vector< int > >	d_local_lag_indices
std::vector< std::vector< int > >	d_nonlocal_lag_indices
std::vector< std::vector< int > >	d_local_petsc_indices
std::vector< std::vector< int > >	d_nonlocal_petsc_indices
std::map< std::string, int >	d_user_defined_ldata

Detailed Description

The manager class is responsible for maintaining this data distribution and for all inter-processor communications. All access to instantiated LDataManager objects is via the static method getManager().

Each Lagrangian point is associated with an LNode object which provides an interface between the Lagrangian and PETSc ordering as well as the data storage for force specification objects and other objects associated with the point. From each LNode object, we can retrieve the Lagrangian index as well as any associated node data. The LNode objects for each processor are contained in an LMesh object. The LMesh object contains two vectors of LNodes: one containing just the local LNode objects, and another containing 'ghost' LNodes. The 'ghost' LNodes are Lagrangian points assigned to other processors but have data needed for calculations. Interacting with Lagrangian data is mediated through the static LDataManager object. From this class, we can get the local LMesh object for each level of the Cartesian grid, and then loop through all associated Lagrangian nodes.

As an example, suppose we have a circle of Lagrangian points that are tethered to target points, and we wish to specify the motion of the target points, and hence the circle, to move in a straight line. We can do this by looping through all the nodes, pull out the IBAMR::IBTargetPointForceSpec, and then update the target point location. In parallel, we also need to update the target point locations of the ghost data.

void
update_target_points(Pointer<PatchHierarchy<NDIM>> hierarchy,
                     LDataManager* const l_data_manager,
                     const double current_time,
                     const double dt)
{
    const int finest_ln = hierarchy->getFinestLevelNumber();
    // Note we assume the circle is the 0th structure and on the finest level.
    const std::pair<int, int>& circle_lag_idxs = l_data_manager->getLagrangianStructureIndexRange(0, finest_ln);
    Pointer<LMesh> mesh = l_data_manager->getLMesh(finest_ln);
    const std::vector<LNode*>& local_nodes = mesh->getLocalNodes();
    const std::vector<LNode*>& ghost_nodes = mesh->getGhostNodes();
    std::vector<LNode*> nodes = local_nodes;
    nodes.insert(nodes.end(), ghost_nodes.begin(), ghost_nodes.end());
    for (auto& node : nodes)
    {
        auto force_spec = node->getNodeDataItem<IBTargetPointForceSpec>();
        if (force_spec == nullptr) continue;
        const int lag_idx = node->getLagrangianIndex();
        Point& X_target = force_spec->getTargetPointPosition();
        if (circle_lag_idxs.first <= lag_idx && lag_idx < circle_lag_idxs.second)
        {
            X_target[0] += 0.1 * dt; // Move point to the right with speed 0.1
        }
    }
    return;
}

For some applications, it might be useful to get the Eulerian data of the Lagrangian points. To do this, it is important to understand the Lagrangian and PETSc index ordering. The Lagrangian ordering is fixed at the beginning of the simulation and is set by the reading of the vertices, whether through an input file or programmatically. The PETSc ordering, however, will change over the course of the simulation. Whenever a regridding operation is triggered, the PETSc indexing is changed to ensure efficient memory usage. The Eulerian data is stored in PETSc ordering, so in order to access that data, we need to map Lagrangian indices to their corresponding PETSc indices. We can then access the corresponding components of the PETSc data vector which is wrapped in an LData object. As an example, here we loop over and print out the physical coordinates of all the Lagrangian points on the finest level.

void
print_eul_data(Pointer<PatchHierarchy<NDIM>> hierarchy,
               LDataManager* const l_data_manager)
{
    const int finest_ln = hierarchy->getFinestLevelNumber();
    Pointer<LData> X_data = l_data_manager->getLData("X", finest_ln);
    Vec X_vec = X_data->getVec();
    double* x_vals;
    int ierr = VecGetArray(X_vec, &x_vals);
    IBTK_CHKERRQ(ierr);

    Pointer<LMesh> mesh = l_data_manager->getLMesh(finest_ln);
    const std::vector<LNode*>& nodes = mesh->getLocalNodes();
    for (const auto& node : nodes)
    {
        const int lag_idx = node->getLagrangianIndex();
        // Note we use the local index instead of the global index.
        // The global index is the local index plust the total indices on all processors of lower rank.
        const int petsc_idx = node->getLocalPETScIndex();
        Eigen::Map<VectorNd> X(&x_vals[petsc_idx * NDIM]);
        pout << "Euerian location of node " << lag_idx << ":\n"
             << X << "\n";
    }
    return;
}

Note

Multiple LDataManager objects may be instantiated simultaneously.

See also

LMesh, LNode, LData

Constructor & Destructor Documentation

LDataManager() [1/3]

IBTK::LDataManager::LDataManager ( std::string  object_name, std::string  default_interp_kernel_fcn, std::string  default_spread_kernel_fcn, bool  error_if_points_leave_domain, SAMRAI::hier::IntVector< NDIM >  ghost_width, bool  register_for_restart = true  )

protected

~LDataManager()

IBTK::LDataManager::~LDataManager ( )

protected

LDataManager() [2/3]

IBTK::LDataManager::LDataManager ( )

private

Note

This constructor is not implemented and should not be used.

LDataManager() [3/3]

IBTK::LDataManager::LDataManager ( const LDataManager &  from )

privatedelete

Note

This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

getManager()

static LDataManager* IBTK::LDataManager::getManager ( const std::string &  name, const std::string &  default_interp_kernel_fcn, const std::string &  default_spread_kernel_fcn, bool  error_if_points_leave_domain = false, const SAMRAI::hier::IntVector< NDIM > &  min_ghost_width = SAMRAI::hier::IntVector< NDIM >(0), bool  register_for_restart = true  )

static

Return a pointer to the instance of the Lagrangian data manager corresponding to the specified name. Access to LDataManager objects is mediated by the getManager() function.

Note that when a manager is accessed for the first time, the freeAllManagers static method is registered with the ShutdownRegistry class. Consequently, all allocated managers are freed at program completion. Thus, users of this class do not explicitly allocate or deallocate the LDataManager instances.

Returns

A pointer to the data manager instance.

Note

By default, the ghost cell width is set according to the interpolation and spreading kernel functions.

freeAllManagers()

static void IBTK::LDataManager::freeAllManagers ( )

static

Deallocate all of the LDataManager instances.

It is not necessary to call this function at program termination since it is automatically called by the ShutdownRegistry class.

setPatchHierarchy()

void IBTK::LDataManager::setPatchHierarchy

(

SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >

hierarchy

)

getPatchHierarchy()

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchHierarchy<NDIM> > IBTK::LDataManager::getPatchHierarchy

(

)

const

setPatchLevels()

void IBTK::LDataManager::setPatchLevels	(	int	coarsest_ln,
		int	finest_ln
	)

The levels must exist in the hierarchy or an assertion failure will result.

getPatchLevels()

std::pair<int, int> IBTK::LDataManager::getPatchLevels

(

)

const

Note

Returns [coarsest_ln,finest_ln+1).

getGhostCellWidth()

const SAMRAI::hier::IntVector< NDIM > & IBTK::LDataManager::getGhostCellWidth ( ) const

inline

getDefaultInterpKernelFunction()

const std::string & IBTK::LDataManager::getDefaultInterpKernelFunction ( ) const

inline

getDefaultSpreadKernelFunction()

const std::string & IBTK::LDataManager::getDefaultSpreadKernelFunction ( ) const

inline

spread() [1/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		SAMRAI::tbox::Pointer< LData >	F_data,
		SAMRAI::tbox::Pointer< LData >	X_data,
		SAMRAI::tbox::Pointer< LData >	ds_data,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		int	level_num,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true,
		bool	ds_data_ghost_node_update = true
	)

Note

This spreading operation does include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s)) ds(q,r,s)

This is the standard regularized delta function spreading operation, which spreads densities, NOT values.

spread() [2/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		SAMRAI::tbox::Pointer< LData >	F_data,
		SAMRAI::tbox::Pointer< LData >	X_data,
		SAMRAI::tbox::Pointer< LData >	ds_data,
		const std::string &	spread_kernel_fcn,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		int	level_num,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true,
		bool	ds_data_ghost_node_update = true
	)

Note

This spreading operation does include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s)) ds(q,r,s)

This is the standard regularized delta function spreading operation, which spreads densities, NOT values.

spread() [3/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	F_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	X_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	ds_data,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true,
		bool	ds_data_ghost_node_update = true,
		int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

Note

This spreading operation does include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s)) ds(q,r,s)

This is the standard regularized delta function spreading operation, which spreads densities, NOT values.

spread() [4/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	F_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	X_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	ds_data,
		const std::string &	spread_kernel_fcn,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true,
		bool	ds_data_ghost_node_update = true,
		int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

Note

This spreading operation does include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s)) ds(q,r,s)

This is the standard regularized delta function spreading operation, which spreads densities, NOT values.

spread() [5/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		SAMRAI::tbox::Pointer< LData >	F_data,
		SAMRAI::tbox::Pointer< LData >	X_data,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		int	level_num,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true
	)

Note

This spreading operation does NOT include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s))

Unlike the standard regularized delta function spreading operation, the implemented operation spreads values, NOT densities.

spread() [6/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		SAMRAI::tbox::Pointer< LData >	F_data,
		SAMRAI::tbox::Pointer< LData >	X_data,
		const std::string &	spread_kernel_fcn,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		int	level_num,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true
	)

Note

This spreading operation does NOT include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s))

Unlike the standard regularized delta function spreading operation, the implemented operation spreads values, NOT densities.

spread() [7/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	F_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	X_data,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true,
		int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

Note

This spreading operation does NOT include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s))

Unlike the standard regularized delta function spreading operation, the implemented operation spreads values, NOT densities.

spread() [8/8]

void IBTK::LDataManager::spread	(	int	f_data_idx,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	F_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	X_data,
		const std::string &	spread_kernel_fcn,
		RobinPhysBdryPatchStrategy *	f_phys_bdry_op,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_prolongation_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		bool	F_data_ghost_node_update = true,
		bool	X_data_ghost_node_update = true,
		int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

Note

This spreading operation does NOT include the scale factor corresponding to the curvilinear volume element (dq dr ds). The spreading formula is

f(i,j,k) = f(i,j,k) + Sum_{q,r,s} F(q,r,s) delta_h(x(i,j,k) - X(q,r,s))

Unlike the standard regularized delta function spreading operation, the implemented operation spreads values, NOT densities.

interp() [1/4]

void IBTK::LDataManager::interp	(	int	f_data_idx,
		SAMRAI::tbox::Pointer< LData >	F_data,
		SAMRAI::tbox::Pointer< LData >	X_data,
		int	level_num,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &	f_synch_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(),
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_ghost_fill_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0
	)

interp() [2/4]

void IBTK::LDataManager::interp	(	int	f_data_idx,
		SAMRAI::tbox::Pointer< LData >	F_data,
		SAMRAI::tbox::Pointer< LData >	X_data,
		const std::string &	interp_kernel_fcn,
		int	level_num,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &	f_synch_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(),
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_ghost_fill_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0
	)

interp() [3/4]

void IBTK::LDataManager::interp	(	int	f_data_idx,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	F_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	X_data,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &	f_synch_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(),
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_ghost_fill_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

interp() [4/4]

void IBTK::LDataManager::interp	(	int	f_data_idx,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	F_data,
		std::vector< SAMRAI::tbox::Pointer< LData > > &	X_data,
		const std::string &	interp_kernel_fcn,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > > &	f_synch_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >(),
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > > &	f_ghost_fill_scheds = std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >(),
		double	fill_data_time = 0.0,
		int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

registerLInitStrategy()

void IBTK::LDataManager::registerLInitStrategy

(

SAMRAI::tbox::Pointer< LInitStrategy >

lag_init

)

Register a concrete strategy object with the integrator that specifies the initial configuration of the curvilinear mesh nodes.

Note

This function calls LInitStrategy::init(). All preprocessing should be completed before registering a LInitStrategy object.

freeLInitStrategy()

void IBTK::LDataManager::freeLInitStrategy

(

)

Free the concrete initialization strategy object.

Note

Be sure to call this method only once the initialization object is no longer needed.

registerVisItDataWriter()

void IBTK::LDataManager::registerVisItDataWriter

(

SAMRAI::tbox::Pointer< SAMRAI::appu::VisItDataWriter< NDIM > >

visit_writer

)

registerLSiloDataWriter()

void IBTK::LDataManager::registerLSiloDataWriter

(

SAMRAI::tbox::Pointer< LSiloDataWriter >

silo_writer

)

registerLoadBalancer()

void IBTK::LDataManager::registerLoadBalancer	(	SAMRAI::tbox::Pointer< SAMRAI::mesh::LoadBalancer< NDIM > >	load_balancer,
		int	workload_data_idx
	)

Deprecated:

This method is deprecated since the current strategy for handling non-uniform load balancing does not require that this object store a pointer to the load balancer.

levelContainsLagrangianData()

bool IBTK::LDataManager::levelContainsLagrangianData ( int  level_number ) const

inline

getNumberOfNodes()

unsigned int IBTK::LDataManager::getNumberOfNodes ( int  level_number ) const

inline

Returns

The number of total nodes of the Lagrangian data for the specified level of the patch hierarchy.

getNumberOfLocalNodes()

unsigned int IBTK::LDataManager::getNumberOfLocalNodes ( int  level_number ) const

inline

Returns

The number of local (i.e., on-processor) nodes of the Lagrangian data for the specified level of the patch hierarchy.

Note

This count does not include nodes that only lie in ghost cells for the current process.

See also

getNumberOfNodes

getNumberOfGhostNodes

getNumberOfGhostNodes()

unsigned int IBTK::LDataManager::getNumberOfGhostNodes ( int  level_number ) const

inline

Returns

The number of ghost (i.e., off-processor) nodes of the Lagrangian data for the specified level of the patch hierarchy.

See also

getNumberOfNodes

getNumberOfLocalNodes

getGlobalNodeOffset()

unsigned int IBTK::LDataManager::getGlobalNodeOffset ( int  level_number ) const

inline

Returns

The number of nodes on all processors with MPI rank less than the current process on the specified level of the patch hierarchy.

Note

This count does not include nodes that only lie in ghost cells for the current process.

getLMesh()

SAMRAI::tbox::Pointer< LMesh > IBTK::LDataManager::getLMesh ( int  level_number ) const

inline

getLData()

SAMRAI::tbox::Pointer< LData > IBTK::LDataManager::getLData ( const std::string &  quantity_name, int  level_number  ) const

inline

createLData()

SAMRAI::tbox::Pointer<LData> IBTK::LDataManager::createLData	(	const std::string &	quantity_name,
		int	level_number,
		unsigned int	depth = 1,
		bool	maintain_data = false
	)

Note

Quantities maintained by the LDataManager must have unique names. The name "X" is reserved for the nodal coordinates.

getLNodePatchDescriptorIndex()

int IBTK::LDataManager::getLNodePatchDescriptorIndex ( ) const

inline

getWorkloadPatchDescriptorIndex()

int IBTK::LDataManager::getWorkloadPatchDescriptorIndex ( ) const

inline

Deprecated:

This method is deprecated since, in future versions of IBAMR, this value will no longer be stored and will only be available via the parent hierarchy integrator.

getNodeCountPatchDescriptorIndex()

int IBTK::LDataManager::getNodeCountPatchDescriptorIndex ( ) const

inline

getLagrangianStructureNames()

std::vector< std::string > IBTK::LDataManager::getLagrangianStructureNames ( int  level_number ) const

inline

getLagrangianStructureIDs()

std::vector< int > IBTK::LDataManager::getLagrangianStructureIDs ( int  level_number ) const

inline

getLagrangianStructureID() [1/2]

int IBTK::LDataManager::getLagrangianStructureID ( int  lagrangian_index, int  level_number  ) const

inline

Note

Returns -1 in the case that the Lagrangian index is not associated with any Lagrangian structure.

getLagrangianStructureID() [2/2]

int IBTK::LDataManager::getLagrangianStructureID ( const std::string &  structure_name, int  level_number  ) const

inline

Note

Returns -1 in the case that the Lagrangian structure name is not associated with any Lagrangian structure.

getLagrangianStructureName()

std::string IBTK::LDataManager::getLagrangianStructureName ( int  structure_id, int  level_number  ) const

inline

Note

Returns "UNKNOWN" in the case that the Lagrangian structure ID is not associated with any Lagrangian structure.

getLagrangianStructureIndexRange()

std::pair< int, int > IBTK::LDataManager::getLagrangianStructureIndexRange ( int  structure_id, int  level_number  ) const

inline

Returns

A pair of indices such that if pair.first <= lag_idx < pair.second, then lag_idx is associated with the specified structure; otherwise, lag_idx is not associated with the specified structure.

Note

Returns std::make_pair(-1,-1) in the case that the Lagrangian structure ID is not associated with any Lagrangian structure.

computeLagrangianStructureCenterOfMass()

Point IBTK::LDataManager::computeLagrangianStructureCenterOfMass	(	int	structure_id,
		int	level_number
	)

Note

The center of mass X of a particular structure is computed as

X = (1/N) Sum_{k in structure} X_k

in which N is the number of nodes associated with that structure.

Note

Returns Point::Zero() in the case that the Lagrangian structure ID is not associated with any Lagrangian structure.

computeLagrangianStructureBoundingBox()

std::pair<Point, Point> IBTK::LDataManager::computeLagrangianStructureBoundingBox	(	int	structure_id,
		int	level_number
	)

Note

Returns the entire range of double precision values in the case that the Lagrangian structure ID is not associated with any Lagrangian structure.

reinitLagrangianStructure()

void IBTK::LDataManager::reinitLagrangianStructure	(	const Point &	X_center,
		int	structure_id,
		int	level_number
	)

Note

This operation must be performed immediately before a regridding operation, otherwise the results are undefined.

displaceLagrangianStructure()

void IBTK::LDataManager::displaceLagrangianStructure	(	const Vector &	dX,
		int	structure_id,
		int	level_number
	)

Note

This operation must be performed immediately before a regridding operation, otherwise the results are undefined.

Warning

All displacements must involve shifts that do not cross periodic boundaries.

activateLagrangianStructures()

void IBTK::LDataManager::activateLagrangianStructures	(	const std::vector< int > &	structure_ids,
		int	level_number
	)

Note

This method is collective (i.e., must be called by all MPI processes); however, each MPI process may provide a different collection of structures to activate.

inactivateLagrangianStructures()

void IBTK::LDataManager::inactivateLagrangianStructures	(	const std::vector< int > &	structure_ids,
		int	level_number
	)

Note

This method is collective (i.e., must be called by all MPI processes); however, each MPI process may provide a different collection of structures to inactivate.

getLagrangianStructureIsActivated()

bool IBTK::LDataManager::getLagrangianStructureIsActivated ( int  structure_id, int  level_number  ) const

inline

zeroInactivatedComponents()

void IBTK::LDataManager::zeroInactivatedComponents	(	SAMRAI::tbox::Pointer< LData >	lag_data,
		int	level_number
	)		const

mapLagrangianToPETSc()

void IBTK::LDataManager::mapLagrangianToPETSc	(	std::vector< int > &	inds,
		int	level_number
	)		const

mapPETScToLagrangian()

void IBTK::LDataManager::mapPETScToLagrangian	(	std::vector< int > &	inds,
		int	level_number
	)		const

getAO()

AO& IBTK::LDataManager::getAO

(

int

level_number

)

scatterLagrangianToPETSc()

void IBTK::LDataManager::scatterLagrangianToPETSc	(	Vec &	lagrangian_vec,
		Vec &	petsc_vec,
		int	level_number
	)		const

Todo:

Optimize the implementation of this method.

scatterPETScToLagrangian()

void IBTK::LDataManager::scatterPETScToLagrangian	(	Vec &	petsc_vec,
		Vec &	lagrangian_vec,
		int	level_number
	)		const

Todo:

Optimize the implementation of this method.

scatterToAll()

void IBTK::LDataManager::scatterToAll	(	Vec &	parallel_vec,
		Vec &	sequential_vec
	)		const

Todo:

Optimize the implementation of this method.

scatterToZero()

void IBTK::LDataManager::scatterToZero	(	Vec &	parallel_vec,
		Vec &	sequential_vec
	)		const

Todo:

Optimize the implementation of this method.

beginDataRedistribution()

void IBTK::LDataManager::beginDataRedistribution	(	int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

This method uses the present location of each Lagrangian mesh node to redistribute the LNodeData managed by this object.

Note

This routine assumes that the time interval between node redistribution satisfies a timestep restriction of the form dt <= C*dx*|U| with C <= 1. This restriction prevents nodes from moving more than one cell width per timestep.

See also

endDataRedistribution

endDataRedistribution()

void IBTK::LDataManager::endDataRedistribution	(	int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

This method redistributes the quantities associated with each node in the Lagrangian mesh according to the data distribution defined by the LNodeData managed by this object. This routine potentially involves SUBSTANTIAL inter-processor communication.

Note

Since this routine potentially results in a large amount of inter-processor communication, it may be worth putting it off for as long as possible. If the timestep dt satisfies a condition of the form dt <= C*dx*|U| with C << 1, it may be possible to redistribute the Lagrangian data less frequently than every timestep.

See also

beginDataRedistribution

addWorkloadEstimate()

void IBTK::LDataManager::addWorkloadEstimate	(	SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		const int	workload_data_idx,
		const int	coarsest_ln = invalid_level_number,
		const int	finest_ln = invalid_level_number
	)

This routine updates cell data that is maintained on the patch hierarchy to track the number of nodes in each cell of the AMR index space. The node count data is used to tag cells for refinement, and to specify non-uniform load balancing. The workload per cell is defined by

workload(i) = 1 + beta_work*node_count(i)

in which alpha and beta are parameters that each default to the value 1.

updateNodeCountData()

void IBTK::LDataManager::updateNodeCountData	(	int	coarsest_ln = invalid_level_number,
		int	finest_ln = invalid_level_number
	)

This routine updates cell data that is maintained on the patch hierarchy to track the number of nodes in each cell of the AMR index space. The node count data is used to tag cells for refinement, and to specify non-uniform load balancing.

initializeLevelData() [1/2]

void IBTK::LDataManager::initializeLevelData ( SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > >  hierarchy, int  level_number, double  init_data_time, bool  can_be_refined, bool  initial_time, SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchLevel< NDIM > >  old_level = SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchLevel< NDIM > >(nullptr), bool  allocate_data = true  )

override

Initialize data on a new level after it is inserted into an AMR patch hierarchy by the gridding algorithm. The level number indicates that of the new level. The old_level pointer corresponds to the level that resided in the hierarchy before the level with the specified number was introduced. If the pointer is null, there was no level in the hierarchy prior to the call and the level data is set based on the user routines and the simulation time. Otherwise, the specified level replaces the old level and the new level receives data from the old level appropriately before it is destroyed.

The boolean argument initial_time indicates whether the level is being introduced for the first time (i.e., at initialization time) or after some regrid process during the calculation beyond the initial hierarchy construction. This information is provided since the initialization of the data on a patch may be different in each of those circumstances. The can_be_refined boolean argument indicates whether the level is the finest level allowed in the hierarchy. This may or may not affect the data initialization process depending on the problem.

When assertion checking is active, an unrecoverable exception will result if the hierarchy pointer is null, the level number does not match any level in the hierarchy, or the old level number does not match the level number (if the old level pointer is non-null).

resetHierarchyConfiguration() [1/2]

void IBTK::LDataManager::resetHierarchyConfiguration ( SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > >  hierarchy, int  coarsest_ln, int  finest_ln  )

override

Reset cached communication schedules after the hierarchy has changed (for example, due to regridding) and the data has been initialized on the new levels. The intent is that the cost of data movement on the hierarchy will be amortized across multiple communication cycles, if possible. The level numbers indicate the range of levels in the hierarchy that have changed. However, this routine updates communication schedules every level finer than and including that indexed by the coarsest level number given.

When assertion checking is active, an unrecoverable exception will result if the hierarchy pointer is null, any pointer to a level in the hierarchy that is coarser than the finest level is null, or the given level numbers not specified properly; e.g., coarsest_ln > finest_ln.

applyGradientDetector() [1/2]

void IBTK::LDataManager::applyGradientDetector ( SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > >  hierarchy, int  level_number, double  error_data_time, int  tag_index, bool  initial_time, bool  uses_richardson_extrapolation_too  )

override

Set integer tags to "one" in cells where refinement of the given level should occur due to the presence of Lagrangian data. The double time argument is the regrid time. The integer "tag_index" argument is the patch descriptor index of the cell centered integer tag array on each patch in the hierarchy. The boolean argument initial_time indicates whether the level is being subject to refinement at the initial simulation time. If it is false, then the error estimation process is being invoked at some later time after the AMR hierarchy was initially constructed. The boolean argument uses_richardson_extrapolation_too is true when Richardson extrapolation error estimation is used in addition to the gradient detector, and false otherwise. This argument helps the user to manage multiple regridding criteria.

When assertion checking is active, an unrecoverable exception will result if the hierarchy pointer is null or the level number does not match any existing level in the hierarchy.

putToDatabase()

void IBTK::LDataManager::putToDatabase ( SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >  db )

overridevirtual

Write out object state to the given database.

When assertion checking is active, database pointer must be non-null.

Implements SAMRAI::tbox::Serializable.

registerUserDefinedLData()

void IBTK::LDataManager::registerUserDefinedLData	(	const std::string &	data_name,
		int	depth
	)

Register user defined Lagrangian data to be maintained

operator=()

LDataManager& IBTK::LDataManager::operator= ( const LDataManager &  that )

privatedelete

Note

This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns

A reference to this object.

scatterData()

void IBTK::LDataManager::scatterData ( Vec &  lagrangian_vec, Vec &  petsc_vec, int  level_number, ScatterMode  mode  ) const

private

beginNonlocalDataFill()

void IBTK::LDataManager::beginNonlocalDataFill ( int  coarsest_ln = invalid_level_number, int  finest_ln = invalid_level_number  )

private

The operation is essentially equivalent to refilling ghost cells for structured (SAMRAI native) data.

endNonlocalDataFill()

void IBTK::LDataManager::endNonlocalDataFill ( int  coarsest_ln = invalid_level_number, int  finest_ln = invalid_level_number  )

private

The operation is essentially equivalent to refilling ghost cells for structured (SAMRAI native) data.

computeNodeDistribution()

void IBTK::LDataManager::computeNodeDistribution ( AO &  ao, std::vector< int > &  local_lag_indices, std::vector< int > &  nonlocal_lag_indices, std::vector< int > &  local_petsc_indices, std::vector< int > &  nonlocal_petsc_indices, unsigned int &  num_nodes, unsigned int &  node_offset, int  level_number  )

private

Determines the global Lagrangian and PETSc indices of the local and nonlocal nodes associated with the processor as well as the local PETSc indices of the interior and ghost nodes in each patch of the specified level.

Note

The set of local Lagrangian indices lists all the nodes that are owned by this processor. The set of nonlocal Lagrangian indices lists all of the nodes that are not owned by this processor but that appear in the ghost cell region of some patch on this processor. Both of these sets of node indices use the fixed, global Lagrangian indexing scheme.

The set of interior local indices lists the nodes that live on the interior on each patch. The set of ghost local indices lists the nodes that live in the ghost cell region of each patch. Both of these sets of node indices use the local PETSc indexing scheme, determined by the present distribution of data across the processors.

Since each processor may own multiple patches in a given level, nodes appearing in the ghost cell region of a patch may or may not be owned by this processor.

computeNodeOffsets()

static void IBTK::LDataManager::computeNodeOffsets ( unsigned int &  num_nodes, unsigned int &  node_offset, unsigned int  num_local_nodes  )

staticprivate

Determine the number of local Lagrangian nodes on all MPI processes with rank less than the rank of the current MPI process.

getFromRestart()

void IBTK::LDataManager::getFromRestart ( )

private

Read object state from the restart file and initialize class data members. The database from which the restart data is read is determined by the object_name specified in the constructor.

Unrecoverable Errors:

• The database corresponding to object_name is not found in the restart file.
• The class version number and restart version number do not match.

getLevelDt()

virtual double SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::getLevelDt ( const tbox::Pointer< hier::BasePatchLevel< DIM > >  level, const double  dt_time, const bool  initial_time  )

virtualinherited

Determine time increment to advance data on level. The recompute_dt option specifies whether to compute the timestep using the current level data or to return the value stored by the time integrator. The default true setting means the timestep will be computed if no value is supplied.

This routine is only when Richardson extrapolation is being used. It is virtual with an empty implementation here (rather than pure virtual) so that users are not required to provide an implementation when the function is not needed.

advanceLevel()

virtual double SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::advanceLevel ( const tbox::Pointer< hier::BasePatchLevel< DIM > >  level, const tbox::Pointer< hier::BasePatchHierarchy< DIM > >  hierarchy, const double  current_time, const double  new_time, const bool  first_step, const bool  last_step, const bool  regrid_advance = false  )

virtualinherited

Advance data on all patches on specified patch level from current time (current_time) to new time (new_time). This routine is called only during time-dependent regridding procedures, such as Richardson extrapolation. It is virtual with an empty implementation here (rather than pure virtual) so that users are not required to provide an implementation when the function is not needed. The boolean arguments are used to determine the state of the algorithm and the data when the advance routine is called. Note that this advance function is also used during normal time integration steps.

When this function is called, the level data required to begin the advance must be allocated and be defined appropriately. Typically, this is equivalent to what is needed to initialize a new level after regridding. Upon exiting this routine, both current and new data may exist on the level. This data is needed until level synchronization occurs, in general. Current and new data may be reset by calling the member function resetTimeDependentData().

This routine is called from two different points within the Richardson exptrapolation process: to advance a temporary level that is coarser than the hierarchy level on which error estimation is performed, and to advance the hierarchy level itself. In the first case, the values of the boolean flags are:

• first_step = true.
• last_step = true.
• regrid_advance = true.

In the second case, the values of the boolean flags are:

• first_step (when regridding during time integration sequence) = true when the level is not coarsest level to synchronize immediately before the regridding process; else, false. (when generating initial hierarchy construction) = true, even though there may be multiple advance steps.
• last_step = true when the advance is the last in the Richardson extrapolation step sequence; else false.
• regrid_advance = true.

resetTimeDependentData()

virtual void SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::resetTimeDependentData ( const tbox::Pointer< hier::BasePatchLevel< DIM > >  level, const double  new_time, const bool  can_be_refined  )

virtualinherited

Reset time-dependent data storage for the specified patch level.

This routine only applies when Richardson extrapolation is being used. It is virtual with an empty implementation here (rather than pure virtual) so that users are not required to provide an implementation when the function is not needed.

resetDataToPreadvanceState()

virtual void SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::resetDataToPreadvanceState ( const tbox::Pointer< hier::BasePatchLevel< DIM > >  level )

virtualinherited

Reset data on the patch level by destroying all patch data other than that which is needed to initialize the solution on that level. In other words, this is the data needed to begin a time integration step on the level.

This routine is only when Richardson extrapolation is being used. It is virtual with an empty implementation here (rather than pure virtual) so that users are not required to provide an implementation when the function is not needed.

initializeLevelData() [2/2]

virtual void SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::initializeLevelData ( const tbox::Pointer< hier::BasePatchHierarchy< DIM > >  hierarchy, const int  level_number, const double  init_data_time, const bool  can_be_refined, const bool  initial_time, const tbox::Pointer< hier::BasePatchLevel< DIM > >  old_level = tbox::Pointer< hier::BasePatchLevel<DIM> >(NULL), const bool  allocate_data = true  )

pure virtualinherited

Initialize data on a new level after it is inserted into an AMR patch hierarchy by the gridding algorithm. The level number indicates that of the new level.

Generally, when data is set, it is interpolated from coarser levels in the hierarchy. If the old level pointer in the argument list is non-null, then data is copied from the old level to the new level on regions of intersection between those levels before interpolation occurs. In this case, the level number must match that of the old level. The specific operations that occur when initializing level data are determined by the particular solution methods in use; i.e., in the subclass of this abstract base class.

The boolean argument initial_time indicates whether the level is being introduced for the first time (i.e., at initialization time), or after some regrid process during the calculation beyond the initial hierarchy construction. This information is provided since the initialization of the data may be different in each of those circumstances. The can_be_refined boolean argument indicates whether the level is the finest allowable level in the hierarchy.

resetHierarchyConfiguration() [2/2]

virtual void SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::resetHierarchyConfiguration ( const tbox::Pointer< hier::BasePatchHierarchy< DIM > >  hierarchy, const int  coarsest_level, const int  finest_level  )

pure virtualinherited

After hierarchy levels have changed and data has been initialized on the new levels, this routine can be used to reset any information needed by the solution method that is particular to the hierarchy configuration. For example, the solution procedure may cache communication schedules to amortize the cost of data movement on the AMR patch hierarchy. This function will be called by the gridding algorithm after the initialization occurs so that the algorithm-specific subclass can reset such things. Also, if the solution method must make the solution consistent across multiple levels after the hierarchy is changed, this process may be invoked by this routine. Of course the details of these processes are determined by the particular solution methods in use.

The level number arguments indicate the coarsest and finest levels in the current hierarchy configuration that have changed. It should be assumed that all intermediate levels have changed as well.

applyGradientDetector() [2/2]

virtual void SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::applyGradientDetector ( const tbox::Pointer< hier::BasePatchHierarchy< DIM > >  hierarchy, const int  level_number, const double  error_data_time, const int  tag_index, const bool  initial_time, const bool  uses_richardson_extrapolation_too  )

virtualinherited

Set integer tags to "one" in cells where refinement of the given level should occur according to some user-supplied gradient criteria. The double time argument is the regrid time. The integer "tag_index" argument is the patch descriptor index of the cell-centered integer tag array on each patch in the hierarchy. The boolean argument initial_time indicates whether the level is being subject to refinement at the initial simulation time. If it is false, then the error estimation process is being invoked at some later time after the AMR hierarchy was initially constructed. Typically, this information is passed to the user's patch tagging routines since the error estimator or gradient detector may be different in each case.

The boolean uses_richardson_extrapolation_too is true when Richardson extrapolation error estimation is used in addition to the gradient detector, and false otherwise. This argument helps the user to manage multiple regridding criteria.

This routine is only when gradient detector is being used. It is virtual with an empty implementation here (rather than pure virtual) so that users are not required to provide an implementation when the function is not needed.

applyRichardsonExtrapolation()

virtual void SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::applyRichardsonExtrapolation ( const tbox::Pointer< hier::PatchLevel< DIM > >  level, const double  error_data_time, const int  tag_index, const double  deltat, const int  error_coarsen_ratio, const bool  initial_time, const bool  uses_gradient_detector_too  )

virtualinherited

Set integer tags to "one" in cells where refinement of the given level should occur according to some user-supplied Richardson extrapolation criteria. The "error_data_time" argument is the regrid time. The "deltat" argument is the time increment to advance the solution on the level to be refined. Note that that level is finer than the level in the argument list, in general. The ratio between the argument level and the actual hierarchy level is given by the integer "coarsen ratio".

The integer "tag_index" argument is the patch descriptor index of the cell-centered integer tag array on each patch in the hierarchy.

The boolean argument initial_time indicates whether the level is being subject to refinement at the initial simulation time. If it is false, then the error estimation process is being invoked at some later time after the AMR hierarchy was initially constructed. Typically, this information is passed to the user's patch tagging routines since the application of the Richardson extrapolation process may be different in each case.

The boolean uses_gradient_detector_too is true when a gradient detector procedure is used in addition to Richardson extrapolation, and false otherwise. This argument helps the user to manage multiple regridding criteria.

This routine is only when Richardson extrapolation is being used. It is virtual with an empty implementation here (rather than pure virtual) so that users are not required to provide an implementation when the function is not needed.

coarsenDataForRichardsonExtrapolation()

virtual void SAMRAI::mesh::StandardTagAndInitStrategy< DIM >::coarsenDataForRichardsonExtrapolation ( const tbox::Pointer< hier::PatchHierarchy< DIM > >  hierarchy, const int  level_number, const tbox::Pointer< hier::PatchLevel< DIM > >  coarser_level, const double  coarsen_data_time, const bool  before_advance  )

virtualinherited

Coarsen solution data from level to coarse_level for Richardson extrapolation. Note that this routine will be called twice during the Richardson extrapolation error estimation process, once to set data on the coarser level and once to coarsen data from after advancing the fine level. The init_coarse_level boolean argument indicates whether data is set on the coarse level by coarsening the "old" time level solution or by coarsening the "new" solution on the fine level (i.e., after it has been advanced).

This routine is only when Richardson extrapolation is being used. It is virtual with an empty implementation here (rather than pure virtual) so that users are not required to provide an implementation when the function is not needed.

Member Data Documentation

POSN_DATA_NAME

const std::string IBTK::LDataManager::POSN_DATA_NAME

static

The name of the LData that specifies the current positions of the curvilinear mesh nodes.

INIT_POSN_DATA_NAME

const std::string IBTK::LDataManager::INIT_POSN_DATA_NAME

static

The name of the LData that specifies the initial positions of the curvilinear mesh nodes.

VEL_DATA_NAME

const std::string IBTK::LDataManager::VEL_DATA_NAME

static

The name of the LData that specifies the velocities of the curvilinear mesh nodes.

s_data_manager_instances

std::map<std::string, LDataManager*> IBTK::LDataManager::s_data_manager_instances

staticprivate

Static data members used to control access to and destruction of singleton data manager instance.

s_registered_callback

bool IBTK::LDataManager::s_registered_callback

staticprivate

s_shutdown_priority

unsigned char IBTK::LDataManager::s_shutdown_priority

staticprivate

d_object_name

std::string IBTK::LDataManager::d_object_name

private

d_registered_for_restart

bool IBTK::LDataManager::d_registered_for_restart

private

d_hierarchy

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchHierarchy<NDIM> > IBTK::LDataManager::d_hierarchy

private

d_grid_geom

SAMRAI::tbox::Pointer<SAMRAI::geom::CartesianGridGeometry<NDIM> > IBTK::LDataManager::d_grid_geom

private

d_coarsest_ln

int IBTK::LDataManager::d_coarsest_ln = IBTK::invalid_level_number

private

d_finest_ln

int IBTK::LDataManager::d_finest_ln = IBTK::invalid_level_number

private

d_cached_eulerian_data

SAMRAIDataCache IBTK::LDataManager::d_cached_eulerian_data

private

d_visit_writer

SAMRAI::tbox::Pointer<SAMRAI::appu::VisItDataWriter<NDIM> > IBTK::LDataManager::d_visit_writer

private

d_silo_writer

SAMRAI::tbox::Pointer<LSiloDataWriter> IBTK::LDataManager::d_silo_writer

private

d_load_balancer

SAMRAI::tbox::Pointer<SAMRAI::mesh::LoadBalancer<NDIM> > IBTK::LDataManager::d_load_balancer

private

d_lag_init

SAMRAI::tbox::Pointer<LInitStrategy> IBTK::LDataManager::d_lag_init

private

d_level_contains_lag_data

std::vector<bool> IBTK::LDataManager::d_level_contains_lag_data

private

d_lag_node_index_var

SAMRAI::tbox::Pointer<LNodeSetVariable> IBTK::LDataManager::d_lag_node_index_var

private

d_lag_node_index_current_idx

int IBTK::LDataManager::d_lag_node_index_current_idx = IBTK::invalid_index

private

d_lag_node_index_scratch_idx

int IBTK::LDataManager::d_lag_node_index_scratch_idx = IBTK::invalid_index

private

d_local_and_ghost_nodes

std::vector<SAMRAI::tbox::Pointer<std::vector<LNode> > > IBTK::LDataManager::d_local_and_ghost_nodes

private

d_beta_work

double IBTK::LDataManager::d_beta_work = 1.0

private

d_workload_var

SAMRAI::tbox::Pointer<SAMRAI::pdat::CellVariable<NDIM, double> > IBTK::LDataManager::d_workload_var

private

d_workload_idx

int IBTK::LDataManager::d_workload_idx = IBTK::invalid_index

private

d_output_workload

bool IBTK::LDataManager::d_output_workload = false

private

d_node_count_var

SAMRAI::tbox::Pointer<SAMRAI::pdat::CellVariable<NDIM, double> > IBTK::LDataManager::d_node_count_var

private

d_node_count_idx

int IBTK::LDataManager::d_node_count_idx = IBTK::invalid_index

private

d_output_node_count

bool IBTK::LDataManager::d_output_node_count = false

private

d_default_interp_kernel_fcn

const std::string IBTK::LDataManager::d_default_interp_kernel_fcn

private

d_default_spread_kernel_fcn

const std::string IBTK::LDataManager::d_default_spread_kernel_fcn

private

d_error_if_points_leave_domain

bool IBTK::LDataManager::d_error_if_points_leave_domain

private

d_ghost_width

const SAMRAI::hier::IntVector<NDIM> IBTK::LDataManager::d_ghost_width

private

d_lag_node_index_bdry_fill_alg

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineAlgorithm<NDIM> > IBTK::LDataManager::d_lag_node_index_bdry_fill_alg

private

d_lag_node_index_bdry_fill_scheds

std::vector<SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineSchedule<NDIM> > > IBTK::LDataManager::d_lag_node_index_bdry_fill_scheds

private

d_node_count_coarsen_alg

SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenAlgorithm<NDIM> > IBTK::LDataManager::d_node_count_coarsen_alg

private

d_node_count_coarsen_scheds

std::vector<SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenSchedule<NDIM> > > IBTK::LDataManager::d_node_count_coarsen_scheds

private

d_current_context

SAMRAI::tbox::Pointer<SAMRAI::hier::VariableContext> IBTK::LDataManager::d_current_context

private

d_scratch_context

SAMRAI::tbox::Pointer<SAMRAI::hier::VariableContext> IBTK::LDataManager::d_scratch_context

private

d_current_data

SAMRAI::hier::ComponentSelector IBTK::LDataManager::d_current_data

private

d_scratch_data

SAMRAI::hier::ComponentSelector IBTK::LDataManager::d_scratch_data

private

d_strct_name_to_strct_id_map

std::vector<std::map<std::string, int> > IBTK::LDataManager::d_strct_name_to_strct_id_map

private

Information about the names and IDs of the various Lagrangian structures.

d_strct_id_to_strct_name_map

std::vector<std::map<int, std::string> > IBTK::LDataManager::d_strct_id_to_strct_name_map

private

d_strct_id_to_lag_idx_range_map

std::vector<std::map<int, std::pair<int, int> > > IBTK::LDataManager::d_strct_id_to_lag_idx_range_map

private

d_last_lag_idx_to_strct_id_map

std::vector<std::map<int, int> > IBTK::LDataManager::d_last_lag_idx_to_strct_id_map

private

d_inactive_strcts

std::vector<ParallelSet> IBTK::LDataManager::d_inactive_strcts

private

d_displaced_strct_ids

std::vector<std::vector<int> > IBTK::LDataManager::d_displaced_strct_ids

private

d_displaced_strct_bounding_boxes

std::vector<std::vector<std::pair<Point, Point> > > IBTK::LDataManager::d_displaced_strct_bounding_boxes

private

d_displaced_strct_lnode_idxs

std::vector<std::vector<LNodeSet::value_type> > IBTK::LDataManager::d_displaced_strct_lnode_idxs

private

d_displaced_strct_lnode_posns

std::vector<std::vector<Point> > IBTK::LDataManager::d_displaced_strct_lnode_posns

private

d_lag_mesh

std::vector<SAMRAI::tbox::Pointer<LMesh> > IBTK::LDataManager::d_lag_mesh

private

Lagrangian mesh data.

d_lag_mesh_data

std::vector<std::map<std::string, SAMRAI::tbox::Pointer<LData> > > IBTK::LDataManager::d_lag_mesh_data

private

The Lagrangian mesh data owned by the manager object.

d_needs_synch

std::vector<bool> IBTK::LDataManager::d_needs_synch

private

Indicates whether the LData is in synch with the LNodeData.

d_ao

std::vector<AO> IBTK::LDataManager::d_ao

private

PETSc AO objects provide mappings between the fixed global Lagrangian node IDs and the ever-changing global PETSc ordering.

s_ao_dummy

std::vector<int> IBTK::LDataManager::s_ao_dummy

staticprivate

d_num_nodes

std::vector<unsigned int> IBTK::LDataManager::d_num_nodes

private

The total number of nodes for all processors.

d_node_offset

std::vector<unsigned int> IBTK::LDataManager::d_node_offset

private

The total number of local nodes for all processors with rank less than the rank of the current processor.

d_local_lag_indices

std::vector<std::vector<int> > IBTK::LDataManager::d_local_lag_indices

private

The Lagrangian node indices of all local and nonlocal nodes on each level of the patch hierarchy.

A local node is one that is owned by a patch on this processor, while a nonlocal node is one that is owned by a patch on another processor, but found in the ghost region of some patch owned by this processor.

Note that these sets of indices provide the information necessary to determine the local PETSc index for all nodes. Local node d_local_lag_indices[ln][j] has local PETSc index j, while nonlocal node d_nonlocal_lag_indices[ln][k] has local PETSc index d_local_lag_indices.size()+j.

It is possible to determine the global PETSc index of a local node by making use of d_node_offset. Local node d_local_lag_indices[ln][j] has global PETSc index j+d_node_offset[ln]. A similar mapping for nonlocal nodes is not well defined.

d_nonlocal_lag_indices

std::vector<std::vector<int> > IBTK::LDataManager::d_nonlocal_lag_indices

private

d_local_petsc_indices

std::vector<std::vector<int> > IBTK::LDataManager::d_local_petsc_indices

private

The node indices of all local nodes (i.e. the nodes owned by this processor) on each level of the hierarchy. The indices are in the global PETSc ordering corresponding to a depth of 1.

d_nonlocal_petsc_indices

std::vector<std::vector<int> > IBTK::LDataManager::d_nonlocal_petsc_indices

private

The node indices of all nonlocal nodes (i.e. the nodes owned by another processor that appear in the ghost region of some patch owned by this processor) on each level of the hierarchy. The indices are in the global PETSc ordering corresponding to a depth of 1.

d_user_defined_ldata

std::map<std::string, int> IBTK::LDataManager::d_user_defined_ldata

private

Container for additional user defined Lagrangian data

---

The documentation for this class was generated from the following files:

• ibtk/include/ibtk/LDataManager.h
• ibtk/include/ibtk/private/LDataManager-inl.h
