IBAMR::LSInitStrategy Class Reference

Class LSInitStrategy provides a generic interface for initializing the implementation details of a particular version of the level set method.

#include <ibamr/LSInitStrategy.h>

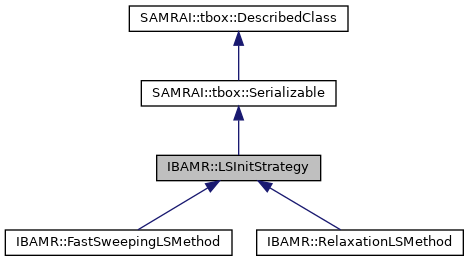

Inheritance diagram for IBAMR::LSInitStrategy:

Public Types
using	LocateInterfaceNeighborhoodFcnPtr = void(*)(int D_idx, SAMRAI::tbox::Pointer< IBTK::HierarchyMathOps > hier_math_ops, double time, bool initial_time, void *ctx)
	Function specifying distance function near an interface. More...

Public Member Functions
	LSInitStrategy (std::string object_name, bool register_for_restart=true)
	Constructor. More...
virtual	~LSInitStrategy ()
	Virtual destructor. More...
virtual void	registerPhysicalBoundaryCondition (SAMRAI::solv::RobinBcCoefStrategy< NDIM > *robin_bc_coef)
	Register physical boundary condition for the level set. More...
virtual void	registerInterfaceNeighborhoodLocatingFcn (LocateInterfaceNeighborhoodFcnPtr callback, void *ctx)
	Register interface neighborhood locating functions. More...
virtual void	initializeLSData (int dst_idx, SAMRAI::tbox::Pointer< IBTK::HierarchyMathOps > hierarchy_math_ops, int integrator_step, double time, bool initial_time)=0
	Initialize level set data. More...
virtual void	setReinitializeLSData (bool reinit_ls_data)
	Indicate that the class should reinitialize level set. More...
void	putToDatabase (SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db) override

Protected Attributes
std::string	d_object_name
bool	d_registered_for_restart
LevelSetOrder	d_ls_order = FIRST_ORDER_LS
LevelSetTimeStepping	d_ls_ts = GAUSS_SEIDEL_PSEUDO_TS
double	d_abs_tol = 1.0e-5
int	d_max_its = 100
bool	d_enable_logging = false
bool	d_reinitialize_ls = false
int	d_reinit_interval = 0
SAMRAI::solv::RobinBcCoefStrategy< NDIM > *	d_bc_coef
std::vector< LocateInterfaceNeighborhoodFcnPtr >	d_locate_interface_fcns
std::vector< void * >	d_locate_interface_fcns_ctx

Private Member Functions
	LSInitStrategy (const LSInitStrategy &from)=delete
	Copy constructor. More...
LSInitStrategy &	operator= (const LSInitStrategy &that)=delete
	Assignment operator. More...

Member Typedef Documentation

LocateInterfaceNeighborhoodFcnPtr

using IBAMR::LSInitStrategy::LocateInterfaceNeighborhoodFcnPtr = void (*)(int D_idx, SAMRAI::tbox::Pointer<IBTK::HierarchyMathOps> hier_math_ops, double time, bool initial_time, void* ctx)

Constructor & Destructor Documentation

LSInitStrategy() [1/2]

IBAMR::LSInitStrategy::LSInitStrategy	(	std::string	object_name,
		bool	register_for_restart = true
	)

~LSInitStrategy()

virtual IBAMR::LSInitStrategy::~LSInitStrategy ( )

virtual

LSInitStrategy() [2/2]

IBAMR::LSInitStrategy::LSInitStrategy ( const LSInitStrategy &  from )

privatedelete

Note

This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

registerPhysicalBoundaryCondition()

virtual void IBAMR::LSInitStrategy::registerPhysicalBoundaryCondition ( SAMRAI::solv::RobinBcCoefStrategy< NDIM > *  robin_bc_coef )

virtual

registerInterfaceNeighborhoodLocatingFcn()

virtual void IBAMR::LSInitStrategy::registerInterfaceNeighborhoodLocatingFcn ( LocateInterfaceNeighborhoodFcnPtr  callback, void *  ctx  )

virtual

initializeLSData()

virtual void IBAMR::LSInitStrategy::initializeLSData ( int  dst_idx, SAMRAI::tbox::Pointer< IBTK::HierarchyMathOps >  hierarchy_math_ops, int  integrator_step, double  time, bool  initial_time  )

pure virtual

Implemented in IBAMR::RelaxationLSMethod, and IBAMR::FastSweepingLSMethod.

setReinitializeLSData()

virtual void IBAMR::LSInitStrategy::setReinitializeLSData ( bool  reinit_ls_data )

virtual

putToDatabase()

void IBAMR::LSInitStrategy::putToDatabase ( SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >  db )

overridevirtual

Write out object state to the given database.

An empty default implementation is provided.

Implements SAMRAI::tbox::Serializable.

operator=()

LSInitStrategy& IBAMR::LSInitStrategy::operator= ( const LSInitStrategy &  that )

privatedelete

Note

This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns

A reference to this object.

Member Data Documentation

d_object_name

std::string IBAMR::LSInitStrategy::d_object_name

protected

d_registered_for_restart

bool IBAMR::LSInitStrategy::d_registered_for_restart

protected

d_ls_order

LevelSetOrder IBAMR::LSInitStrategy::d_ls_order = FIRST_ORDER_LS

protected

d_ls_ts

LevelSetTimeStepping IBAMR::LSInitStrategy::d_ls_ts = GAUSS_SEIDEL_PSEUDO_TS

protected

d_abs_tol

double IBAMR::LSInitStrategy::d_abs_tol = 1.0e-5

protected

d_max_its

int IBAMR::LSInitStrategy::d_max_its = 100

protected

d_enable_logging

bool IBAMR::LSInitStrategy::d_enable_logging = false

protected

d_reinitialize_ls

bool IBAMR::LSInitStrategy::d_reinitialize_ls = false

protected

d_reinit_interval

int IBAMR::LSInitStrategy::d_reinit_interval = 0

protected

d_bc_coef

SAMRAI::solv::RobinBcCoefStrategy<NDIM>* IBAMR::LSInitStrategy::d_bc_coef

protected

d_locate_interface_fcns

std::vector<LocateInterfaceNeighborhoodFcnPtr> IBAMR::LSInitStrategy::d_locate_interface_fcns

protected

d_locate_interface_fcns_ctx

std::vector<void*> IBAMR::LSInitStrategy::d_locate_interface_fcns_ctx

protected

---

The documentation for this class was generated from the following file:

• include/ibamr/LSInitStrategy.h
