Class STSMassFluxIntegrator is an abstract class which integrates the density field. More...

#include <ibamr/STSMassFluxIntegrator.h>

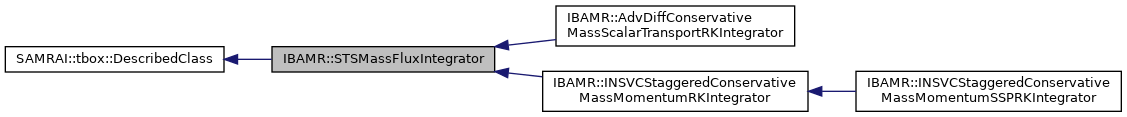

Inheritance diagram for IBAMR::STSMassFluxIntegrator:

[legend]

Public Member Functions
	STSMassFluxIntegrator (std::string object_name, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db)
	Class constructor. More...

virtual	~STSMassFluxIntegrator ()=default
	Destructor. More...

virtual void	integrate (double dt)=0
	Integrate density and compute the convective operator of the momentum and/or energy. More...

General time stepping functionality.
std::string	d_object_name

SAMRAI::tbox::Pointer< StaggeredStokesPhysicalBoundaryHelper >	d_bc_helper

std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_bc_coefs

std::string	d_density_bdry_extrap_type = "CONSTANT"

std::vector< IBTK::HierarchyGhostCellInterpolation::InterpolationTransactionComponent >	d_rho_transaction_comps

SAMRAI::tbox::Pointer< IBTK::HierarchyGhostCellInterpolation >	d_hier_rho_bdry_fill

SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	d_hierarchy

int	d_coarsest_ln = IBTK::invalid_level_number

int	d_finest_ln = IBTK::invalid_level_number

std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_u_bc_coefs

std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_rho_bc_coefs

SAMRAI::tbox::Pointer< SAMRAI::math::HierarchyFaceDataOpsReal< NDIM, double > >	d_hier_fc_data_ops

SAMRAI::tbox::Pointer< SAMRAI::math::HierarchySideDataOpsReal< NDIM, double > >	d_hier_sc_data_ops

SAMRAI::tbox::Pointer< SAMRAI::math::HierarchyCellDataOpsReal< NDIM, double > >	d_hier_cc_data_ops

SAMRAI::tbox::Pointer< SAMRAI::hier::Variable< NDIM > >	d_V_var

int	d_V_scratch_idx = IBTK::invalid_index

int	d_V_old_idx = IBTK::invalid_index

int	d_V_current_idx = IBTK::invalid_index

int	d_V_new_idx = IBTK::invalid_index

int	d_V_composite_idx = IBTK::invalid_index

SAMRAI::tbox::Pointer< SAMRAI::hier::Variable< NDIM > >	d_rho_var

int	d_rho_current_idx = IBTK::invalid_index

int	d_rho_scratch_idx = IBTK::invalid_index

int	d_rho_new_idx = IBTK::invalid_index

int	d_rho_composite_idx = IBTK::invalid_index

int	d_N_idx = IBTK::invalid_index

SAMRAI::tbox::Pointer< SAMRAI::hier::Variable< NDIM > >	d_S_var

int	d_S_scratch_idx = IBTK::invalid_index

SAMRAI::tbox::Pointer< IBTK::CartGridFunction >	d_S_fcn

SAMRAI::tbox::Pointer< SAMRAI::hier::Variable< NDIM > >	d_E_var

int	d_E_scratch_idx = IBTK::invalid_index

SAMRAI::tbox::Pointer< IBTK::HierarchyMathOps >	d_hier_math_ops

bool	d_hier_math_ops_external = false

bool	d_is_initialized = false

bool	d_enable_logging = false

LimiterType	d_density_convective_limiter = CUI

int	d_density_limiter_gcw = 1

TimeSteppingType	d_density_time_stepping_type = FORWARD_EULER

int	d_cycle_num = -1

double	d_current_time = std::numeric_limits<double>::quiet_NaN()

double	d_new_time = std::numeric_limits<double>::quiet_NaN()

double	d_solution_time = std::numeric_limits<double>::quiet_NaN()

double	d_dt = std::numeric_limits<double>::quiet_NaN()

double	d_dt_prev = -1.0

std::vector< SAMRAI::hier::CoarseFineBoundary< NDIM > >	d_cf_boundary

virtual void	initializeSTSIntegrator (SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > > base_hierarchy)=0
	Compute hierarchy dependent data required for time integrating variables. More...

virtual void	deallocateSTSIntegrator ()=0
	Remove all hierarchy dependent data allocated by initializeSTSIntegrator(). More...

void	setDensityPatchDataIndex (int rho_idx)
	Set the current cell-centered density patch data index. More...

void	setConvectiveDerivativePatchDataIndex (int N_idx)
	Set the new convective derivative patch data index. More...

void	setDensityBoundaryConditions (const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &rho_sc_bc_coefs)
	Set the boundary condition object for the density. More...

int	getUpdatedDensityPatchDataIndex ()
	Get the newly constructed density patch data index. More...

void	setFluidVelocityPatchDataIndices (int V_old_idx, int V_current_idx, int V_new_idx)
	Set the patch data indices corresponding to the velocity at the previous time step to be used when computing the density update. More...

void	setCycleNumber (int cycle_num)
	Set the cycle number currently being executed by the INS integrator. This will determine the rho advection velocity. More...

void	setSolutionTime (double solution_time)
	Set solution time. More...

void	setTimeInterval (double current_time, double new_time)
	Set the current time interval. More...

std::pair< double, double >	getTimeInterval () const
	Get the current time interval. More...

double	getTimeStepSize () const
	Get the current time step size. More...

void	setPreviousTimeStepSize (double dt_prev)
	Set the previous time step value between times n - 1 (old) and n (current). This is used during velocity extrapolation. More...

void	setHierarchyMathOps (SAMRAI::tbox::Pointer< IBTK::HierarchyMathOps > hier_math_ops)
	Set the HierarchyMathOps object used by the operator. More...

SAMRAI::tbox::Pointer< IBTK::HierarchyMathOps >	getHierarchyMathOps () const
	Get the HierarchyMathOps object used by the operator. More...

	STSMassFluxIntegrator ()=delete
	Default constructor. More...

	STSMassFluxIntegrator (const STSMassFluxIntegrator &from)=delete
	Copy constructor. More...

STSMassFluxIntegrator &	operator= (const STSMassFluxIntegrator &that)=delete
	Assignment operator. More...

Detailed Description

$ \frac{\partial \rho}{\partial t} + \nabla \cdot (\rho \mathbf{u}) = S(x,t) $

and computes the conservative form of the convective operator $ \nabla \cdot (\rho \mathbf{u} \otimes \mathbf{u})$ for the momentum and $ \nabla \cdot (\rho \mathbf{u} Q)$ for the energy equation where $ Q = C_\textrm{p} T$ or $ Q = h$ based on the form of the energy equation.

Note: STSMassFluxIntegrator is an intermediate or a lightweight integrator that is used within one or a single time step (STS) to get a consistent mass flux $ m_\rho = \rho \mathbf{u} $ for advecting either momentum $ \mathbf{u} $ through $ \nabla \cdot (\rho \mathbf{u} \otimes \mathbf{u}) = \nabla \cdot (m_\rho \otimes \mathbf{u} ) $ or a scalar $ Q $ through $ \nabla \cdot (\rho \mathbf{u} Q) = \nabla \cdot (m_\rho Q) $. It does not maintain any hierarchy data, child or parent integrator, as done in implementations of HierarchyIntegrator.

The core concept behind STSMassFluxIntegrator is to obtain a consistent mass flux $\mathbf{m_\rho} = \rho \mathbf{u}$ for stabilizing high density ratio flows. It also ensures a consistency condition that:

When there are no viscous, pressure forces or any other body forces in the domain, the momentum equation becomes discretely equal to the mass equation.
Under isothermal/isenthalpic conditions, with no additional heat source, the energy/enthalpy equation reverts to mass balance equation.

To achieve these conditions, the time integrator scheme of STSMassFluxIntegrator is tightly coupled to how INSVCStaggeredHierarchyIntegrator or PhaseChangeHierarchyIntegrator integrate their respective variables. Note that when flow is incompressible, one does not need to solve mass balance equation. Here, we are solving a redundant mass balance equation through STSMassFluxIntegrator class in order to achieve consistency and stability.

Reference Nangia et. al, A robust incompressible Navier-Stokes solver for high density ratio multiphase flows

Thirumalaisamy and Bhalla, A low Mach enthalpy method to model non-isothermal gas-liquid-solid flows with melting and solidification

Constructor & Destructor Documentation

◆ STSMassFluxIntegrator() [1/3]

IBAMR::STSMassFluxIntegrator::STSMassFluxIntegrator	(	std::string	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db
	)

◆ ~STSMassFluxIntegrator()

virtual IBAMR::STSMassFluxIntegrator::~STSMassFluxIntegrator ( )

virtualdefault

◆ STSMassFluxIntegrator() [2/3]

IBAMR::STSMassFluxIntegrator::STSMassFluxIntegrator ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ STSMassFluxIntegrator() [3/3]

IBAMR::STSMassFluxIntegrator::STSMassFluxIntegrator ( const STSMassFluxIntegrator & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ integrate()

virtual void IBAMR::STSMassFluxIntegrator::integrate ( double dt )

pure virtual

Implemented in IBAMR::INSVCStaggeredConservativeMassMomentumRKIntegrator, IBAMR::INSVCStaggeredConservativeMassMomentumSSPRKIntegrator, and IBAMR::AdvDiffConservativeMassScalarTransportRKIntegrator.

◆ initializeSTSIntegrator()

virtual void IBAMR::STSMassFluxIntegrator::initializeSTSIntegrator ( SAMRAI::tbox::Pointer< SAMRAI::hier::BasePatchHierarchy< NDIM > > base_hierarchy )

pure virtual

Implemented in IBAMR::INSVCStaggeredConservativeMassMomentumRKIntegrator, and IBAMR::AdvDiffConservativeMassScalarTransportRKIntegrator.

◆ deallocateSTSIntegrator()

virtual void IBAMR::STSMassFluxIntegrator::deallocateSTSIntegrator ( )

pure virtual

Note: It is safe to call deallocateSTSIntegrator() when the time integrator is already deallocated.

See also: initializeSTSIntegrator

Implemented in IBAMR::INSVCStaggeredConservativeMassMomentumRKIntegrator, and IBAMR::AdvDiffConservativeMassScalarTransportRKIntegrator.

◆ setDensityPatchDataIndex()

void IBAMR::STSMassFluxIntegrator::setDensityPatchDataIndex ( int rho_idx )

◆ setConvectiveDerivativePatchDataIndex()

void IBAMR::STSMassFluxIntegrator::setConvectiveDerivativePatchDataIndex ( int N_idx )

◆ setDensityBoundaryConditions()

void IBAMR::STSMassFluxIntegrator::setDensityBoundaryConditions ( const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > & rho_sc_bc_coefs )

◆ getUpdatedDensityPatchDataIndex()

int IBAMR::STSMassFluxIntegrator::getUpdatedDensityPatchDataIndex ( )

◆ setFluidVelocityPatchDataIndices()

void IBAMR::STSMassFluxIntegrator::setFluidVelocityPatchDataIndices	(	int	V_old_idx,
		int	V_current_idx,
		int	V_new_idx
	)

Note: This velocities will be used to compute an approximation to velocities required for time integrator. For example, SSPRK updates V_old_idx = n-1, V_current_idx = n, V_new_idx = n+1,k (after an INS cycle). If V_old_idx or V_new_idx are not set, then they will degenerate to V_current automatically, for the very first simulation time step and cases where an INS cycle has not been executed, respectively.

◆ setCycleNumber()

void IBAMR::STSMassFluxIntegrator::setCycleNumber ( int cycle_num )

◆ setSolutionTime()

void IBAMR::STSMassFluxIntegrator::setSolutionTime ( double solution_time )

◆ setTimeInterval()

void IBAMR::STSMassFluxIntegrator::setTimeInterval	(	double	current_time,
		double	new_time
	)

◆ getTimeInterval()

std::pair<double, double> IBAMR::STSMassFluxIntegrator::getTimeInterval ( ) const

◆ getTimeStepSize()

double IBAMR::STSMassFluxIntegrator::getTimeStepSize ( ) const

◆ setPreviousTimeStepSize()

void IBAMR::STSMassFluxIntegrator::setPreviousTimeStepSize ( double dt_prev )

◆ setHierarchyMathOps()

void IBAMR::STSMassFluxIntegrator::setHierarchyMathOps ( SAMRAI::tbox::Pointer< IBTK::HierarchyMathOps > hier_math_ops )

◆ getHierarchyMathOps()

SAMRAI::tbox::Pointer<IBTK::HierarchyMathOps> IBAMR::STSMassFluxIntegrator::getHierarchyMathOps ( ) const

◆ operator=()

STSMassFluxIntegrator& IBAMR::STSMassFluxIntegrator::operator= ( const STSMassFluxIntegrator & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

Member Data Documentation

◆ d_object_name

std::string IBAMR::STSMassFluxIntegrator::d_object_name

protected

◆ d_bc_helper

SAMRAI::tbox::Pointer<StaggeredStokesPhysicalBoundaryHelper> IBAMR::STSMassFluxIntegrator::d_bc_helper

protected

◆ d_bc_coefs

std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBAMR::STSMassFluxIntegrator::d_bc_coefs

protected

◆ d_density_bdry_extrap_type

std::string IBAMR::STSMassFluxIntegrator::d_density_bdry_extrap_type = "CONSTANT"

protected

◆ d_rho_transaction_comps

std::vector<IBTK::HierarchyGhostCellInterpolation::InterpolationTransactionComponent> IBAMR::STSMassFluxIntegrator::d_rho_transaction_comps

protected

◆ d_hier_rho_bdry_fill

SAMRAI::tbox::Pointer<IBTK::HierarchyGhostCellInterpolation> IBAMR::STSMassFluxIntegrator::d_hier_rho_bdry_fill

protected

◆ d_hierarchy

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchHierarchy<NDIM> > IBAMR::STSMassFluxIntegrator::d_hierarchy

protected

◆ d_coarsest_ln

int IBAMR::STSMassFluxIntegrator::d_coarsest_ln = IBTK::invalid_level_number

protected

◆ d_finest_ln

int IBAMR::STSMassFluxIntegrator::d_finest_ln = IBTK::invalid_level_number

protected

◆ d_u_bc_coefs

std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBAMR::STSMassFluxIntegrator::d_u_bc_coefs

protected

◆ d_rho_bc_coefs

std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBAMR::STSMassFluxIntegrator::d_rho_bc_coefs

protected

◆ d_hier_fc_data_ops

SAMRAI::tbox::Pointer<SAMRAI::math::HierarchyFaceDataOpsReal<NDIM, double> > IBAMR::STSMassFluxIntegrator::d_hier_fc_data_ops

protected

◆ d_hier_sc_data_ops

SAMRAI::tbox::Pointer<SAMRAI::math::HierarchySideDataOpsReal<NDIM, double> > IBAMR::STSMassFluxIntegrator::d_hier_sc_data_ops

protected

◆ d_hier_cc_data_ops

SAMRAI::tbox::Pointer<SAMRAI::math::HierarchyCellDataOpsReal<NDIM, double> > IBAMR::STSMassFluxIntegrator::d_hier_cc_data_ops

protected

◆ d_V_var

SAMRAI::tbox::Pointer<SAMRAI::hier::Variable<NDIM> > IBAMR::STSMassFluxIntegrator::d_V_var

protected

◆ d_V_scratch_idx

int IBAMR::STSMassFluxIntegrator::d_V_scratch_idx = IBTK::invalid_index

protected

◆ d_V_old_idx

int IBAMR::STSMassFluxIntegrator::d_V_old_idx = IBTK::invalid_index

protected

◆ d_V_current_idx

int IBAMR::STSMassFluxIntegrator::d_V_current_idx = IBTK::invalid_index

protected

◆ d_V_new_idx

int IBAMR::STSMassFluxIntegrator::d_V_new_idx = IBTK::invalid_index

protected

◆ d_V_composite_idx

int IBAMR::STSMassFluxIntegrator::d_V_composite_idx = IBTK::invalid_index

protected

◆ d_rho_var

SAMRAI::tbox::Pointer<SAMRAI::hier::Variable<NDIM> > IBAMR::STSMassFluxIntegrator::d_rho_var

protected

◆ d_rho_current_idx

int IBAMR::STSMassFluxIntegrator::d_rho_current_idx = IBTK::invalid_index

protected

◆ d_rho_scratch_idx

int IBAMR::STSMassFluxIntegrator::d_rho_scratch_idx = IBTK::invalid_index

protected

◆ d_rho_new_idx

int IBAMR::STSMassFluxIntegrator::d_rho_new_idx = IBTK::invalid_index

protected

◆ d_rho_composite_idx

int IBAMR::STSMassFluxIntegrator::d_rho_composite_idx = IBTK::invalid_index

protected

◆ d_N_idx

int IBAMR::STSMassFluxIntegrator::d_N_idx = IBTK::invalid_index

protected

◆ d_S_var

SAMRAI::tbox::Pointer<SAMRAI::hier::Variable<NDIM> > IBAMR::STSMassFluxIntegrator::d_S_var

protected

◆ d_S_scratch_idx

int IBAMR::STSMassFluxIntegrator::d_S_scratch_idx = IBTK::invalid_index

protected

◆ d_S_fcn

SAMRAI::tbox::Pointer<IBTK::CartGridFunction> IBAMR::STSMassFluxIntegrator::d_S_fcn

protected

◆ d_E_var

SAMRAI::tbox::Pointer<SAMRAI::hier::Variable<NDIM> > IBAMR::STSMassFluxIntegrator::d_E_var

protected

◆ d_E_scratch_idx

int IBAMR::STSMassFluxIntegrator::d_E_scratch_idx = IBTK::invalid_index

protected

◆ d_hier_math_ops

SAMRAI::tbox::Pointer<IBTK::HierarchyMathOps> IBAMR::STSMassFluxIntegrator::d_hier_math_ops

protected

◆ d_hier_math_ops_external

bool IBAMR::STSMassFluxIntegrator::d_hier_math_ops_external = false

protected

◆ d_is_initialized

bool IBAMR::STSMassFluxIntegrator::d_is_initialized = false

protected

◆ d_enable_logging

bool IBAMR::STSMassFluxIntegrator::d_enable_logging = false

protected

◆ d_density_convective_limiter

LimiterType IBAMR::STSMassFluxIntegrator::d_density_convective_limiter = CUI

protected

◆ d_density_limiter_gcw

int IBAMR::STSMassFluxIntegrator::d_density_limiter_gcw = 1

protected

◆ d_density_time_stepping_type

TimeSteppingType IBAMR::STSMassFluxIntegrator::d_density_time_stepping_type = FORWARD_EULER

protected

◆ d_cycle_num

int IBAMR::STSMassFluxIntegrator::d_cycle_num = -1

protected

◆ d_current_time

double IBAMR::STSMassFluxIntegrator::d_current_time = std::numeric_limits<double>::quiet_NaN()

protected

◆ d_new_time

double IBAMR::STSMassFluxIntegrator::d_new_time = std::numeric_limits<double>::quiet_NaN()

protected

◆ d_solution_time

double IBAMR::STSMassFluxIntegrator::d_solution_time = std::numeric_limits<double>::quiet_NaN()

protected

◆ d_dt

double IBAMR::STSMassFluxIntegrator::d_dt = std::numeric_limits<double>::quiet_NaN()

protected

◆ d_dt_prev

double IBAMR::STSMassFluxIntegrator::d_dt_prev = -1.0

protected

◆ d_cf_boundary

std::vector<SAMRAI::hier::CoarseFineBoundary<NDIM> > IBAMR::STSMassFluxIntegrator::d_cf_boundary

protected

The documentation for this class was generated from the following file:

include/ibamr/STSMassFluxIntegrator.h

Public Member Functions

General time stepping functionality.

Detailed Description

Constructor & Destructor Documentation

◆ STSMassFluxIntegrator() [1/3]

◆ ~STSMassFluxIntegrator()

◆ STSMassFluxIntegrator() [2/3]

◆ STSMassFluxIntegrator() [3/3]

Member Function Documentation

◆ integrate()

◆ initializeSTSIntegrator()

◆ deallocateSTSIntegrator()

◆ setDensityPatchDataIndex()

◆ setConvectiveDerivativePatchDataIndex()

◆ setDensityBoundaryConditions()

◆ getUpdatedDensityPatchDataIndex()

◆ setFluidVelocityPatchDataIndices()

◆ setCycleNumber()

◆ setSolutionTime()

◆ setTimeInterval()

◆ getTimeInterval()

◆ getTimeStepSize()

◆ setPreviousTimeStepSize()

◆ setHierarchyMathOps()

◆ getHierarchyMathOps()

◆ operator=()

Member Data Documentation

◆ d_object_name

◆ d_bc_helper

◆ d_bc_coefs

◆ d_density_bdry_extrap_type

◆ d_rho_transaction_comps

◆ d_hier_rho_bdry_fill

◆ d_hierarchy

◆ d_coarsest_ln

◆ d_finest_ln

◆ d_u_bc_coefs

◆ d_rho_bc_coefs

◆ d_hier_fc_data_ops

◆ d_hier_sc_data_ops

◆ d_hier_cc_data_ops

◆ d_V_var

◆ d_V_scratch_idx

◆ d_V_old_idx

◆ d_V_current_idx

◆ d_V_new_idx

◆ d_V_composite_idx

◆ d_rho_var

◆ d_rho_current_idx

◆ d_rho_scratch_idx

◆ d_rho_new_idx

◆ d_rho_composite_idx

◆ d_N_idx

◆ d_S_var

◆ d_S_scratch_idx

◆ d_S_fcn

◆ d_E_var

◆ d_E_scratch_idx

◆ d_hier_math_ops

◆ d_hier_math_ops_external

◆ d_is_initialized

◆ d_enable_logging

◆ d_density_convective_limiter

◆ d_density_limiter_gcw

◆ d_density_time_stepping_type

◆ d_cycle_num

◆ d_current_time

◆ d_new_time

◆ d_solution_time

◆ d_dt

◆ d_dt_prev

◆ d_cf_boundary
