Class CartSideDoubleDivPreservingRefine is a concrete SAMRAI::xfer::RefinePatchStrategy which prolongs side-centered double precision patch data via conservative linear interpolation with divergence- and curl-preserving corrections.

#include <ibtk/CartSideDoubleDivPreservingRefine.h>

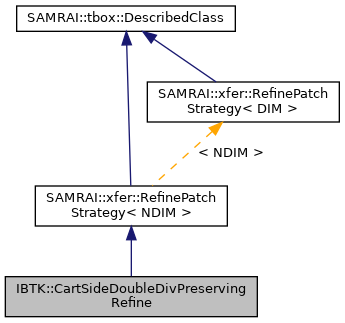

Inheritance diagram for IBTK::CartSideDoubleDivPreservingRefine:

[legend]

Public Member Functions
	CartSideDoubleDivPreservingRefine (int u_dst_idx, int u_src_idx, int indicator_idx, SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineOperator< NDIM > > refine_op, SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenOperator< NDIM > > coarsen_op, double fill_time, SAMRAI::xfer::RefinePatchStrategy< NDIM > *phys_bdry_op)
	Constructor. More...

virtual	~CartSideDoubleDivPreservingRefine ()=default
	Virtual destructor. More...

virtual void	setPhysicalBoundaryConditions (hier::Patch< DIM > &patch, const double fill_time, const hier::IntVector< DIM > &ghost_width_to_fill)=0

virtual hier::IntVector< DIM >	getRefineOpStencilWidth () const=0

virtual void	preprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)=0

virtual void	postprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)=0

virtual void	preprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

virtual void	postprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

Static Public Attributes
static const int	REFINE_OP_STENCIL_WIDTH = 4
	The number of required ghost cells. More...

Implementation of SAMRAI::xfer::RefinePatchStrategy interface.
const int	d_u_dst_idx

const int	d_u_src_idx

const int	d_indicator_idx

const double	d_fill_time

SAMRAI::xfer::RefinePatchStrategy< NDIM > *const	d_phys_bdry_op

SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineOperator< NDIM > >	d_refine_op

SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenOperator< NDIM > >	d_coarsen_op

virtual void	setPhysicalBoundaryConditions (SAMRAI::hier::Patch< NDIM > &patch, double fill_time, const SAMRAI::hier::IntVector< NDIM > &ghost_width_to_fill) override

virtual SAMRAI::hier::IntVector< NDIM >	getRefineOpStencilWidth () const override

virtual void	preprocessRefine (SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Box< NDIM > &fine_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

virtual void	postprocessRefine (SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Box< NDIM > &fine_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

	CartSideDoubleDivPreservingRefine ()=delete
	Default constructor. More...

	CartSideDoubleDivPreservingRefine (const CartSideDoubleDivPreservingRefine &from)=delete
	Copy constructor. More...

CartSideDoubleDivPreservingRefine &	operator= (const CartSideDoubleDivPreservingRefine &that)=delete
	Assignment operator. More...

Constructor & Destructor Documentation

◆ CartSideDoubleDivPreservingRefine() [1/3]

IBTK::CartSideDoubleDivPreservingRefine::CartSideDoubleDivPreservingRefine	(	int	u_dst_idx,
		int	u_src_idx,
		int	indicator_idx,
		SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineOperator< NDIM > >	refine_op,
		SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenOperator< NDIM > >	coarsen_op,
		double	fill_time,
		SAMRAI::xfer::RefinePatchStrategy< NDIM > *	phys_bdry_op
	)

◆ ~CartSideDoubleDivPreservingRefine()

virtual IBTK::CartSideDoubleDivPreservingRefine::~CartSideDoubleDivPreservingRefine ( )

virtualdefault

◆ CartSideDoubleDivPreservingRefine() [2/3]

IBTK::CartSideDoubleDivPreservingRefine::CartSideDoubleDivPreservingRefine ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ CartSideDoubleDivPreservingRefine() [3/3]

IBTK::CartSideDoubleDivPreservingRefine::CartSideDoubleDivPreservingRefine ( const CartSideDoubleDivPreservingRefine & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ setPhysicalBoundaryConditions() [1/2]

virtual void IBTK::CartSideDoubleDivPreservingRefine::setPhysicalBoundaryConditions	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	fill_time,
		const SAMRAI::hier::IntVector< NDIM > &	ghost_width_to_fill
	)

overridevirtual

Function to set data associated with the given list of patch data indices at patch boundaries that intersect the physical domain boundary. The specific boundary conditions are determined by the user. The patch data components set in this routine correspond to the scratch components specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Parameters

patch	Patch on which to fill boundary data.
fill_time	Double simulation time for boundary filling.
ghost_width_to_fill	Integer vector describing maximum ghost width to fill over all registered scratch components.

◆ getRefineOpStencilWidth() [1/2]

virtual SAMRAI::hier::IntVector<NDIM> IBTK::CartSideDoubleDivPreservingRefine::getRefineOpStencilWidth ( ) const

overridevirtual

Function to return maximum stencil width needed over user-defined data interpolation operations. This is needed to determine the correct interpolation data dependencies.

◆ preprocessRefine() [1/2]

virtual void IBTK::CartSideDoubleDivPreservingRefine::preprocessRefine	(	SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Box< NDIM > &	fine_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

overridevirtual

Function to perform user-defined preprocess data refine operations. This member function is called before standard refine operations (expressed using concrete subclasses of the SAMRAI::xfer::RefineOperator base class). The preprocess function refines data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefine() [1/2]

virtual void IBTK::CartSideDoubleDivPreservingRefine::postprocessRefine	(	SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Box< NDIM > &	fine_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

overridevirtual

Function to perform user-defined preprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the SAMRAI::xfer::RefineOperator base class). The postprocess function refines data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the SAMRAI::xfer::RefineAlgorithm class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ operator=()

CartSideDoubleDivPreservingRefine& IBTK::CartSideDoubleDivPreservingRefine::operator= ( const CartSideDoubleDivPreservingRefine & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ setPhysicalBoundaryConditions() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::setPhysicalBoundaryConditions	(	hier::Patch< DIM > &	patch,
		const double	fill_time,
		const hier::IntVector< DIM > &	ghost_width_to_fill
	)

pure virtualinherited

Pure virtual function to set data associated with the given list of patch data indices at patch boundaries that intersect the physical domain boundary. The specific boundary conditions are determined by the user. The patch data components set in this routine correspond to the "scratch" components specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

patch	hier::Patch on which to fill boundary data.
fill_time	Double simulation time for boundary filling.
ghost_width_to_fill	Integer vector describing maximum ghost width to fill over all registered scratch components.

◆ getRefineOpStencilWidth() [2/2]

virtual hier::IntVector<DIM> SAMRAI::xfer::RefinePatchStrategy< DIM >::getRefineOpStencilWidth ( ) const

pure virtualinherited

Pure virtual function to return maximum stencil width needed over user-defined data interpolation operations. This is needed to determine the correct interpolation data dependencies.

◆ preprocessRefine() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Pure virtual function to perform user-defined preprocess data refine operations. This member function is called before standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefine() [2/2]

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Pure virtual function to perform user-defined postprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ preprocessRefineBoxes()

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called before standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the preprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessRefineBoxes()

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called after standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the postprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Member Data Documentation

◆ REFINE_OP_STENCIL_WIDTH

const int IBTK::CartSideDoubleDivPreservingRefine::REFINE_OP_STENCIL_WIDTH = 4

static

Note: This value is chosen to allow refinement ratios up to 4. A larger value would be necessary for refinement ratios greater than 4.

◆ d_u_dst_idx

const int IBTK::CartSideDoubleDivPreservingRefine::d_u_dst_idx

private

Patch data indices.

◆ d_u_src_idx

const int IBTK::CartSideDoubleDivPreservingRefine::d_u_src_idx

private

◆ d_indicator_idx

const int IBTK::CartSideDoubleDivPreservingRefine::d_indicator_idx

private

◆ d_fill_time

const double IBTK::CartSideDoubleDivPreservingRefine::d_fill_time

private

Routines for setting physical boundary conditions.

◆ d_phys_bdry_op

SAMRAI::xfer::RefinePatchStrategy<NDIM>* const IBTK::CartSideDoubleDivPreservingRefine::d_phys_bdry_op

private

◆ d_refine_op

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineOperator<NDIM> > IBTK::CartSideDoubleDivPreservingRefine::d_refine_op

private

The basic linear refine operator.

◆ d_coarsen_op

SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenOperator<NDIM> > IBTK::CartSideDoubleDivPreservingRefine::d_coarsen_op

private

The basic coarsening operator.

The documentation for this class was generated from the following file:

ibtk/include/ibtk/CartSideDoubleDivPreservingRefine.h
