Class NodeCellSynchCopyFillPattern is a concrete implementation of the abstract base class SAMRAI::xfer::VariableFillPattern. It is used to calculate overlaps according to a pattern which limits overlaps to the node-centered ghost region surrounding a patch appropriate for "synchronizing" node-centered values in an axis-by-axis manner at patch boundaries. More...

#include <ibtk/NodeSynchCopyFillPattern.h>

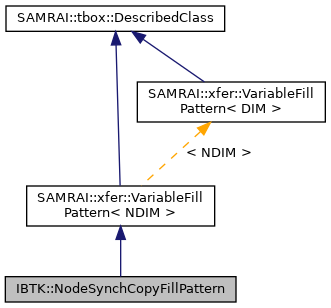

Inheritance diagram for IBTK::NodeSynchCopyFillPattern:

[legend]

Public Member Functions
	NodeSynchCopyFillPattern (unsigned int axis)
	Constructor. More...

	~NodeSynchCopyFillPattern ()=default
	Destructor. More...

SAMRAI::tbox::Pointer< SAMRAI::hier::BoxOverlap< NDIM > >	calculateOverlap (const SAMRAI::hier::BoxGeometry< NDIM > &dst_geometry, const SAMRAI::hier::BoxGeometry< NDIM > &src_geometry, const SAMRAI::hier::Box< NDIM > &dst_patch_box, const SAMRAI::hier::Box< NDIM > &src_mask, bool overwrite_interior, const SAMRAI::hier::IntVector< NDIM > &src_offset) const override

SAMRAI::hier::IntVector< NDIM > &	getStencilWidth () override

const std::string &	getPatternName () const override

virtual tbox::Pointer< hier::BoxOverlap< DIM > >	calculateOverlap (const hier::BoxGeometry< DIM > &dst_geometry, const hier::BoxGeometry< DIM > &src_geometry, const hier::Box< DIM > &dst_patch_box, const hier::Box< DIM > &src_mask, const bool overwrite_interior, const hier::IntVector< DIM > &src_offset) const=0

virtual tbox::Pointer< hier::BoxOverlap< DIM > >	calculateOverlapOnLevel (const hier::BoxGeometry< DIM > &dst_geometry, const hier::BoxGeometry< DIM > &src_geometry, const hier::Box< DIM > &dst_patch_box, const hier::Box< DIM > &src_mask, const bool overwrite_interior, const hier::IntVector< DIM > &src_offset, const int dst_level_num, const int src_level_num) const

virtual void	setTargetPatchLevelNumber (const int level_num)

virtual const std::string &	getPatternName () const=0

Private Member Functions
	NodeSynchCopyFillPattern ()=delete
	Default constructor. More...

	NodeSynchCopyFillPattern (const NodeSynchCopyFillPattern &from)=delete
	Copy constructor. More...

NodeSynchCopyFillPattern &	operator= (const NodeSynchCopyFillPattern &that)=delete
	Assignment operator. More...

Private Attributes
SAMRAI::hier::IntVector< NDIM >	d_stencil_width = 1

const unsigned int	d_axis

Detailed Description

Note: We synchronize data one axis at a time because node-centered values can be shared by more than two patches. For instance, to synchronize nodal values in three spatial dimensions, we first synchronize values in the x direction, then in the y direction, and finally in the z direction.

Constructor & Destructor Documentation

◆ NodeSynchCopyFillPattern() [1/3]

IBTK::NodeSynchCopyFillPattern::NodeSynchCopyFillPattern ( unsigned int axis )

◆ ~NodeSynchCopyFillPattern()

IBTK::NodeSynchCopyFillPattern::~NodeSynchCopyFillPattern ( )

default

◆ NodeSynchCopyFillPattern() [2/3]

IBTK::NodeSynchCopyFillPattern::NodeSynchCopyFillPattern ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ NodeSynchCopyFillPattern() [3/3]

IBTK::NodeSynchCopyFillPattern::NodeSynchCopyFillPattern ( const NodeSynchCopyFillPattern & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ calculateOverlap() [1/2]

SAMRAI::tbox::Pointer<SAMRAI::hier::BoxOverlap<NDIM> > IBTK::NodeSynchCopyFillPattern::calculateOverlap	(	const SAMRAI::hier::BoxGeometry< NDIM > &	dst_geometry,
		const SAMRAI::hier::BoxGeometry< NDIM > &	src_geometry,
		const SAMRAI::hier::Box< NDIM > &	dst_patch_box,
		const SAMRAI::hier::Box< NDIM > &	src_mask,
		bool	overwrite_interior,
		const SAMRAI::hier::IntVector< NDIM > &	src_offset
	)		const

override

Calculate overlaps between the destination and source geometries according to the desired pattern. This will return the portion of the intersection of the geometries that lies in the ghost region of the specified width surrounding the patch, excluding all edges and corners. The patch is identified by the argument dst_patch_box.

Parameters

dst_geometry	geometry object for destination box
src_geometry	geometry object for source box
dst_patch_box	box for the destination patch
src_mask	the source mask, the box resulting from shifting the source box
overwrite_interior	controls whether or not to include the destination box interior in the overlap
src_offset	the offset between source and destination index space (src + src_offset = dst)

Returns: pointer to the calculated overlap object

◆ getStencilWidth()

SAMRAI::hier::IntVector<NDIM>& IBTK::NodeSynchCopyFillPattern::getStencilWidth ( )

overridevirtual

Returns the stencil width.

Implements SAMRAI::xfer::VariableFillPattern< NDIM >.

◆ getPatternName() [1/2]

const std::string& IBTK::NodeSynchCopyFillPattern::getPatternName ( ) const

override

Returns a string name identifier "NODE_SYNCH_COPY_FILL_PATTERN".

◆ operator=()

NodeSynchCopyFillPattern& IBTK::NodeSynchCopyFillPattern::operator= ( const NodeSynchCopyFillPattern & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ calculateOverlap() [2/2]

virtual tbox::Pointer< hier::BoxOverlap<DIM> > SAMRAI::xfer::VariableFillPattern< DIM >::calculateOverlap	(	const hier::BoxGeometry< DIM > &	dst_geometry,
		const hier::BoxGeometry< DIM > &	src_geometry,
		const hier::Box< DIM > &	dst_patch_box,
		const hier::Box< DIM > &	src_mask,
		const bool	overwrite_interior,
		const hier::IntVector< DIM > &	src_offset
	)		const

pure virtualinherited

This pure virtual method provides an interface to calculate overlaps between the destination and source geometries.

Parameters

dst_geometry	geometry object for destination box
src_geometry	geometry object for source box
dst_patch_box	box for the destination patch
src_mask	the source mask, the box resulting from shifting the source box
overwrite_interior	controls whether or not to include the destination box interior in the overlap
src_offset	the offset between source and destination index space. src + src_offset = dst

Returns: Pointer to the calculated overlap object

◆ calculateOverlapOnLevel()

virtual tbox::Pointer< hier::BoxOverlap<DIM> > SAMRAI::xfer::VariableFillPattern< DIM >::calculateOverlapOnLevel	(	const hier::BoxGeometry< DIM > &	dst_geometry,
		const hier::BoxGeometry< DIM > &	src_geometry,
		const hier::Box< DIM > &	dst_patch_box,
		const hier::Box< DIM > &	src_mask,
		const bool	overwrite_interior,
		const hier::IntVector< DIM > &	src_offset,
		const int	dst_level_num,
		const int	src_level_num
	)		const

virtualinherited

This virtual method provides an interface to calculate overlaps between the destination and source geometries on a specified level of the patch hierarchy.

Note: A default implementation is provided that simply calls the pure virtual method calculateOverlap() for implementations that are level independent.

Parameters

dst_geometry	geometry object for destination box
src_geometry	geometry object for source box
dst_patch_box	box for the destination patch
src_mask	the source mask, the box resulting from shifting the source box
overwrite_interior	controls whether or not to include the destination box interior in the overlap
src_offset	the offset between source and destination index space. src + src_offset = dst
dst_level_num	the level of the patch hierarchy on which the dst boxes are located
src_level_num	the level of the patch hierarchy on which the src boxes are located

Returns: Pointer to the calculated overlap object

◆ setTargetPatchLevelNumber()

virtual void SAMRAI::xfer::VariableFillPattern< DIM >::setTargetPatchLevelNumber ( const int level_num )

virtualinherited

Set the target patch level number for the variable fill pattern. The default implementation is empty.

Reimplemented in IBTK::SideNoCornersFillPattern, and IBTK::CellNoCornersFillPattern.

◆ getPatternName() [2/2]

virtual const std::string& SAMRAI::xfer::VariableFillPattern< DIM >::getPatternName ( ) const

pure virtualinherited

Return a string name identifying the concrete subclass.

Member Data Documentation

◆ d_stencil_width

SAMRAI::hier::IntVector<NDIM> IBTK::NodeSynchCopyFillPattern::d_stencil_width = 1

private

◆ d_axis

const unsigned int IBTK::NodeSynchCopyFillPattern::d_axis

private

The documentation for this class was generated from the following file:

ibtk/include/ibtk/NodeSynchCopyFillPattern.h
