Const data version of the multidimensional array access template class MDA_Access. More...
#include <MDA_Access.h>

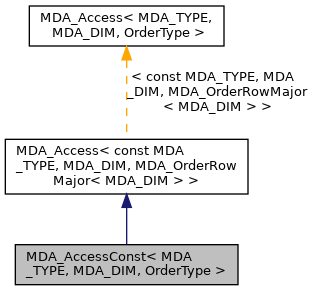

Inheritance diagram for MDA_AccessConst< MDA_TYPE, MDA_DIM, OrderType >:
Public Types | |
| typedef MDA_IndexRange< MDA_DIM > | range_t |
| typedef range_t::dim_t | dim_t |
| typedef range_t::index_t | index_t |
| typedef OrderType | order_t |
| typedef MDA_OrderRowMajor< MDA_DIM > ::reduced_order_t | reduced_order_t |
Public Member Functions | |
| MDA_AccessConst (value_t *p=((MDA_TYPE *) 0), const size_t *sz=((size_t *) 0), const index_t *st=((index_t *) 0)) | |
| See the MDA_Access version of this function. More... | |
| MDA_AccessConst (value_t *p, const index_t *si, const index_t *sf) | |
| See the MDA_Access version of this function. More... | |
| MDA_AccessConst (value_t *p, const MDA_IndexRange< MDA_DIM > &r) | |
| See the MDA_Access version of this function. More... | |
| MDA_AccessConst (const MDA_Access< MDA_TYPE, MDA_DIM, OrderType > &r) | |
| Construct from an object of the non-const version. More... | |
| const MDA_AccessConst & | operator= (const MDA_Access< MDA_TYPE, MDA_DIM, OrderType > &r) |
| Assign value from an object of the non-const version. More... | |
| operator bool () const | |
| Conversion into boolean. More... | |
| operator value_t * () const | |
| Conversion into pointer. More... | |
| void | setPointer (value_t *p) |
| Set the data pointer. More... | |
| void | setSizeAndStart (const size_t *sz=((size_t *) 0), const index_t *st=((index_t *) 0)) |
| void | setInclusiveRange (const index_t first[MDA_DIM], const index_t final[MDA_DIM]) |
| const range_t & | adjustDim (dim_t d, index_t first, index_t final) |
| Adjust the dimensions. More... | |
Equivalence comparison | |
| bool | operator== (const MDA_Access &r) const |
Equivalence comparison | |
| bool | operator== (const MDA_Access &r) const |
Public Attributes | |
| const typedef MDA_TYPE | value_t |
| Type of data. More... | |
Inequivalence comparison | |
| bool | operator!= (const MDA_Access &r) const |
| const range_t & | range () const |
| const index_t & | beg (size_t i) const |
| const index_t & | end (size_t i) const |
| const size_t & | size (size_t i) const |
| value_t & | operator() (const index_t i[MDA_DIM]) const |
| Grant general access to item in an arbitrary dimensional array. More... | |
| value_t & | operator() (index_t i0) const |
| Grant general access to item in a 1D array. More... | |
| value_t & | operator() (index_t i0, index_t i1) const |
| Grant general access to item in a 2D array. More... | |
| value_t & | operator() (index_t i0, index_t i1, index_t i2) const |
| Grant general access to item in a 3D array. More... | |
| value_t & | operator() (index_t i0, index_t i1, index_t i2, index_t i3) const |
| Grant general access to item in a 4D array. More... | |
| value_t & | operator[] (index_t i0) const |
Special case for 1D arrays, identical to operator(index_t), using pre-added fixed offsets. More... | |
| MDA_Access< const MDA_TYPE, MDA_OrderRowMajor< MDA_DIM > ::MDA_Reduced_DIM, typename MDA_OrderRowMajor< MDA_DIM > ::reduced_order_t > | reduce (index_t i) const |
| Fix the index of the slowest dimension and return the corresponding sub-array. More... | |
| value_t * | d_ptr |
| Pointer to data. More... | |
| value_t * | d_ptr1 |
Value of d_ptr-beg(0), used for optimizing 1D access. More... | |
| order_t | d_order |
| Offset computing object. More... | |
| void | setPtr1 () |
Detailed Description
template<class MDA_TYPE, unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
class MDA_AccessConst< MDA_TYPE, MDA_DIM, OrderType >
This class is almost exactly identical to its non-const counterpart, MDA_Access. It is used when the data is const.
This class differs only in that the value type is a const. In fact, this class is trivial, except for the public inheritance of MDA_Access with the const type for the first template argument, a constructor to build an object from a MDA_Access object and an assignment operator to assign from a MDA_Access object. Other than that, see MDA_Access for documentations.
The interfaces that are added by this class are trivial, mirroring the interfaces defined in MDA_Access with minor changes.
- See also
- MDA_Access
Member Typedef Documentation
◆ range_t
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
| typedef MDA_IndexRange<MDA_DIM> MDA_AccessConst< MDA_TYPE, MDA_DIM, OrderType >::range_t |
◆ dim_t
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
| typedef range_t::dim_t MDA_AccessConst< MDA_TYPE, MDA_DIM, OrderType >::dim_t |
◆ index_t
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
| typedef range_t::index_t MDA_AccessConst< MDA_TYPE, MDA_DIM, OrderType >::index_t |
◆ order_t
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
| typedef OrderType MDA_AccessConst< MDA_TYPE, MDA_DIM, OrderType >::order_t |
◆ reduced_order_t
|
inherited |
Constructor & Destructor Documentation
◆ MDA_AccessConst() [1/4]
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
|
inline |
- Parameters
-
p Pointer to data sz Array sizes st Array starting indices
◆ MDA_AccessConst() [2/4]
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
|
inline |
- Parameters
-
p Pointer to data si Array of initial indices sf Array of final indices
◆ MDA_AccessConst() [3/4]
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
|
inline |
- See also
- MDA_Access::MDA_Access(value_t*,const MDA_IndexRange<MDA_DIM>&)
- Parameters
-
p Pointer to data r Array index object
◆ MDA_AccessConst() [4/4]
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
|
inline |
- See also
- MDA_Access::MDA_Access(const MDA_Access<const MDA_TYPE,MDA_DIM>&)
Member Function Documentation
◆ operator=()
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
|
inline |
◆ operator bool()
|
inlineinherited |
- Returns
- true iff data pointer is not NULL.
◆ operator value_t *()
|
inlineinherited |
- Returns
- the data pointer.
◆ setPointer()
|
inlineinherited |
- Parameters
-
p Pointer value
◆ setSizeAndStart()
|
inlineinherited |
Set size and starting indices.
- See also
- MDA_IndexRange
- Parameters
-
sz Array sizes (NULL for no change) st Starting indices (NULL for no change)
◆ setInclusiveRange()
|
inlineinherited |
Set first and final indices (inclusive).
- See also
- MDA_IndexRange
- Parameters
-
first First valid indices (NULL for no change) final Final valid indices (NULL for no change)
◆ adjustDim()
|
inlineinherited |
- See also
- MDA_IndexRange::adjustDim.
- Parameters
-
d Dimension to adjust first Increment to first index final Increment to final index
◆ operator==()
|
inlineinherited |
◆ operator!=()
|
inlineinherited |
◆ range()
|
inlineinherited |
◆ beg()
|
inlineinherited |
◆ end()
|
inlineinherited |
◆ size()
|
inlineinherited |
◆ operator()() [1/5]
|
inlineinherited |
This is flexible but not efficient! You should use dimension-specific accesses whenever possible.
◆ operator()() [2/5]
|
inlineinherited |
◆ operator()() [3/5]
|
inlineinherited |
◆ operator()() [4/5]
|
inlineinherited |
◆ operator()() [5/5]
|
inlineinherited |
◆ operator[]()
|
inlineinherited |
This may be more efficient than (i) but it only works in 1D. It is not guaranteed to work if the fixed offset is negative and has greater value than the pointer address, since the addition of the two gives a negative address, which the C standard leaves as undefined behavior.
◆ reduce()
|
inlineinherited |
This function is meant to facilitate optimization when using this class. In nested loops, the inner loops executes many times with the indices corresponding to outer loops remaining constants. This leads to many many repeated integer arithmetics operations that could be removed from the inner loop (but may not be removed automatically by the compiler optimization). To do this, reduce the array dimensionality one dimension at a time, by fixing index corresponding to the slowest varying dimension. (If you code is written to maximize cache data, this will NOT be the index of the innermost loop.)
To reduce multiple dimensions, string these calls together, i.e. array.reduce(i).reduce(j). However, since reduction contains loops that cost O(MDA_DIM) and may be difficult for compilers to optimize, you may want to save array.reduce(i) and reuse it.
- Parameters
-
i Index in slowest dimension, which is the first dimension in a row-major array and the last dimension in a column-major array.
- Returns
- The sub-array of dimension
MDA_DIM-1, corresponding to the index given.
◆ setPtr1()
|
inlineprivateinherited |
Member Data Documentation
◆ value_t
template<class MDA_TYPE , unsigned short MDA_DIM, class OrderType = MDA_OrderRowMajor<MDA_DIM>>
| const typedef MDA_TYPE MDA_AccessConst< MDA_TYPE, MDA_DIM, OrderType >::value_t |
This declaration is redundant because it should already be inherited, but the xlC compiler on ASCI Blue does not get it.
◆ d_ptr
|
privateinherited |
◆ d_ptr1
|
privateinherited |
The use of precomputed d_ptr1=d_ptr-beg(0) speeds up 1D offset computations by allowing us to compute d_ptr1+i0 instead of d_ptr+(i0-beg(0)), saving one integer subtraction for each 1D access. However, this could be a real problem if d_ptr<beg(0). So far, that has not happened, and we are keeping our fingers crossed.
- See also
- setPtr1()
◆ d_order
|
privateinherited |
The documentation for this class was generated from the following file:
- /samrai/include/MDA_Access.h
