Class PETScKrylovStaggeredStokesSolver is an extension of class PETScKrylovLinearSolver that provides an implementation of the StaggeredStokesSolver interface.

#include <ibamr/PETScKrylovStaggeredStokesSolver.h>

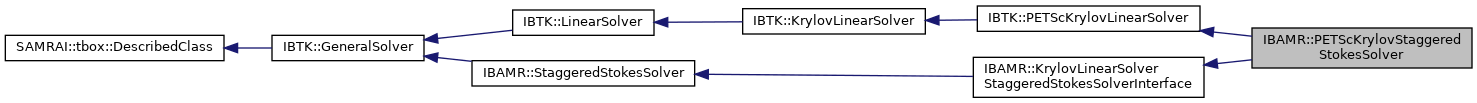

Inheritance diagram for IBAMR::PETScKrylovStaggeredStokesSolver:

[legend]

Public Member Functions
	PETScKrylovStaggeredStokesSolver (const std::string &object_name, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, const std::string &default_options_prefix)
	Constructor. More...

	~PETScKrylovStaggeredStokesSolver ()=default
	Destructor. More...

void	setKSPType (const std::string &ksp_type)
	Set the KSP type. More...

void	setOptionsPrefix (const std::string &options_prefix)
	Set the options prefix used by this PETSc solver object. More...

void	setHierarchyMathOps (SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops) override
	Set the HierarchyMathOps object used by the solver. More...

void	setVelocityPoissonSpecifications (const SAMRAI::solv::PoissonSpecifications &U_problem_coefs) override
	Set the PoissonSpecifications object used to specify the coefficients for the momentum equation in the incompressible Stokes operator. More...

void	setComponentsHaveNullSpace (const bool has_velocity_nullspace, const bool has_pressure_nullspace) override
	Set if velocity and pressure have nullspace. More...

void	setPhysicalBcCoefs (const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &U_bc_coefs, SAMRAI::solv::RobinBcCoefStrategy< NDIM > *P_bc_coef) override
	Set the SAMRAI::solv::RobinBcCoefStrategy objects used to specify physical boundary conditions. More...

void	setPhysicalBoundaryHelper (SAMRAI::tbox::Pointer< StaggeredStokesPhysicalBoundaryHelper > bc_helper) override
	Set the StokesSpecifications object and timestep size used to specify the coefficients for the time-dependent incompressible Stokes operator. More...

General-purpose solver functionality.
void	setHomogeneousBc (bool homogeneous_bc) override
	Set whether the solver should use homogeneous boundary conditions. More...

void	setSolutionTime (double solution_time) override
	Set the time at which the solution is to be evaluated. More...

void	setTimeInterval (double current_time, double new_time) override
	Set the current time interval. More...

Functions to access the underlying PETSc objects.
const KSP &	getPETScKSP () const
	Get the PETSc KSP object. More...

General-purpose solver functionality.
void	setHomogeneousBc (bool homogeneous_bc) override
	Set whether the solver should use homogeneous boundary conditions. More...

void	setSolutionTime (double solution_time) override
	Set the time at which the solution is to be evaluated. More...

void	setTimeInterval (double current_time, double new_time) override
	Set the current time interval. More...

Functions to access the underlying PETSc objects.
const KSP &	getPETScKSP () const
	Get the PETSc KSP object. More...

General-purpose solver functionality.
void	setHomogeneousBc (bool homogeneous_bc) override
	Set whether the solver should use homogeneous boundary conditions. More...

void	setSolutionTime (double solution_time) override
	Set the time at which the solution is to be evaluated. More...

void	setTimeInterval (double current_time, double new_time) override
	Set the current time interval. More...

Functions to access the underlying PETSc objects.
const KSP &	getPETScKSP () const
	Get the PETSc KSP object. More...

General-purpose solver functionality.
void	setHomogeneousBc (bool homogeneous_bc) override
	Set whether the solver should use homogeneous boundary conditions. More...

void	setSolutionTime (double solution_time) override
	Set the time at which the solution is to be evaluated. More...

void	setTimeInterval (double current_time, double new_time) override
	Set the current time interval. More...

Static Public Member Functions
static SAMRAI::tbox::Pointer< KrylovLinearSolver >	allocate_solver (const std::string &object_name, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, const std::string &default_options_prefix)
	Static function to construct a PETScKrylovLinearSolver. More...

Protected Attributes
SAMRAI::solv::PoissonSpecifications	d_U_problem_coefs

SAMRAI::solv::LocationIndexRobinBcCoefs< NDIM >	d_default_U_bc_coef

std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_U_bc_coefs

SAMRAI::solv::LocationIndexRobinBcCoefs< NDIM >	d_default_P_bc_coef

SAMRAI::solv::RobinBcCoefStrategy< NDIM > *	d_P_bc_coef

SAMRAI::tbox::Pointer< StaggeredStokesPhysicalBoundaryHelper >	d_bc_helper

bool	d_has_velocity_nullspace = false

bool	d_has_pressure_nullspace = false

Private Member Functions
	PETScKrylovStaggeredStokesSolver ()=delete
	Default constructor. More...

	PETScKrylovStaggeredStokesSolver (const PETScKrylovStaggeredStokesSolver &from)=delete
	Copy constructor. More...

PETScKrylovStaggeredStokesSolver &	operator= (const PETScKrylovStaggeredStokesSolver &that)=delete
	Assignment operator. More...

Functions to access solver parameters.
virtual void	setMaxIterations (int max_iterations)
	Set the maximum number of nonlinear iterations to use per solve. More...

virtual int	getMaxIterations () const
	Get the maximum number of nonlinear iterations to use per solve. More...

virtual void	setAbsoluteTolerance (double abs_residual_tol)
	Set the absolute residual tolerance for convergence. More...

virtual double	getAbsoluteTolerance () const
	Get the absolute residual tolerance for convergence. More...

virtual void	setRelativeTolerance (double rel_residual_tol)
	Set the relative residual tolerance for convergence. More...

virtual double	getRelativeTolerance () const
	Get the relative residual tolerance for convergence. More...

Logging functions.
virtual void	setLoggingEnabled (bool enable_logging=true)
	Enable or disable logging. More...

virtual bool	getLoggingEnabled () const
	Determine whether logging is enabled or disabled. More...

std::string	d_object_name = "unitialized"

bool	d_is_initialized = false

bool	d_homogeneous_bc = false

double	d_solution_time = std::numeric_limits<double>::quiet_NaN()

double	d_current_time = std::numeric_limits<double>::quiet_NaN()

double	d_new_time = std::numeric_limits<double>::quiet_NaN()

double	d_rel_residual_tol = 0.0

double	d_abs_residual_tol = 0.0

int	d_max_iterations = 100

int	d_current_iterations = 0

double	d_current_residual_norm = std::numeric_limits<double>::quiet_NaN()

SAMRAI::tbox::Pointer< HierarchyMathOps >	d_hier_math_ops

bool	d_hier_math_ops_external = false

bool	d_enable_logging = false

void	init (const std::string &object_name, bool homogeneous_bc)

virtual void	initSpecialized (const std::string &object_name, bool homogeneous_bc)

Krylov solver functionality.
virtual SAMRAI::tbox::Pointer< LinearOperator >	getOperator () const
	Retrieve the linear operator used when solving \(Ax=b\). More...

virtual SAMRAI::tbox::Pointer< LinearSolver >	getPreconditioner () const
	Retrieve the preconditioner used by the Krylov subspace method when solving \(Ax=b\). More...

SAMRAI::tbox::Pointer< LinearOperator >	d_A

SAMRAI::tbox::Pointer< LinearSolver >	d_pc_solver

SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > >	d_x

SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > >	d_b

Functions to access solver parameters.
virtual void	setInitialGuessNonzero (bool initial_guess_nonzero=true)
	Set whether the initial guess is non-zero. More...

virtual bool	getInitialGuessNonzero () const
	Get whether the initial guess is non-zero. More...

Logging functions.
virtual void	printClassData (std::ostream &stream) override
	Print class data to stream. More...

bool	d_initial_guess_nonzero = true

bool	d_nullspace_contains_constant_vec = false

std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > >	d_nullspace_basis_vecs

Krylov solver functionality.
void	setOperator (SAMRAI::tbox::Pointer< LinearOperator > A) override
	Set the linear operator used when solving \(Ax=b\). More...

void	setPreconditioner (SAMRAI::tbox::Pointer< LinearSolver > pc_solver=nullptr) override
	Set the preconditioner used by the Krylov subspace method when solving \(Ax=b\). More...

void	setNullSpace (bool contains_constant_vec, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > > &nullspace_basis_vecs=std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > >()) override
	Set the nullspace of the linear system. More...

bool	solveSystem (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &b) override
	Solve the linear system of equations \(Ax=b\) for \(x\). More...

void	initializeSolverState (const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &b) override
	Compute hierarchy dependent data required for solving \(Ax=b\). More...

void	deallocateSolverState () override
	Remove all hierarchy dependent data allocated by initializeSolverState(). More...

void	common_ctor ()
	Common routine used by all class constructors. More...

void	resetWrappedKSP (KSP &petsc_ksp)
	Reset the KSP wrapped by this solver class. More...

void	resetKSPOptions ()
	Reset the values of the convergence tolerances for the PETSc KSP object. More...

void	resetKSPOperators ()
	Reset the KSP operators to correspond to the supplied LinearOperator. More...

void	resetKSPPC ()
	Reset the KSP PC to correspond to the supplied preconditioner. More...

void	resetMatNullSpace ()
	Reset the Mat nullspace object to correspond to the supplied nullspace basis vectors. More...

void	deallocateNullSpaceData ()
	Destroy data allocated to describe nullspace. More...

Static functions for use by PETSc KSP and MatShell objects.
std::string	d_ksp_type

bool	d_reinitializing_solver = false

Vec	d_petsc_x = nullptr

Vec	d_petsc_b = nullptr

std::string	d_options_prefix

MPI_Comm	d_petsc_comm

KSP	d_petsc_ksp = nullptr

Mat	d_petsc_mat = nullptr

MatNullSpace	d_petsc_nullsp = nullptr

bool	d_managing_petsc_ksp = true

bool	d_user_provided_mat = false

bool	d_user_provided_pc = false

SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > >	d_nullspace_constant_vec

Vec	d_petsc_nullspace_constant_vec = nullptr

std::vector< Vec >	d_petsc_nullspace_basis_vecs

bool	d_solver_has_attached_nullspace = false

static PetscErrorCode	MatVecMult_SAMRAI (Mat A, Vec x, Vec y)
	Compute the matrix vector product \(y=Ax\). More...

static PetscErrorCode	PCApply_SAMRAI (PC pc, Vec x, Vec y)
	Apply the preconditioner to x and store the result in y. More...

Constructor & Destructor Documentation

◆ PETScKrylovStaggeredStokesSolver() [1/3]

IBAMR::PETScKrylovStaggeredStokesSolver::PETScKrylovStaggeredStokesSolver	(	const std::string &	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		const std::string &	default_options_prefix
	)

◆ ~PETScKrylovStaggeredStokesSolver()

IBAMR::PETScKrylovStaggeredStokesSolver::~PETScKrylovStaggeredStokesSolver ( )

default

◆ PETScKrylovStaggeredStokesSolver() [2/3]

IBAMR::PETScKrylovStaggeredStokesSolver::PETScKrylovStaggeredStokesSolver ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ PETScKrylovStaggeredStokesSolver() [3/3]

IBAMR::PETScKrylovStaggeredStokesSolver::PETScKrylovStaggeredStokesSolver ( const PETScKrylovStaggeredStokesSolver & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ operator=()

PETScKrylovStaggeredStokesSolver& IBAMR::PETScKrylovStaggeredStokesSolver::operator= ( const PETScKrylovStaggeredStokesSolver & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ allocate_solver()

static SAMRAI::tbox::Pointer<KrylovLinearSolver> IBTK::PETScKrylovLinearSolver::allocate_solver	(	const std::string &	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		const std::string &	default_options_prefix
	)

inlinestaticinherited

◆ setKSPType()

void IBTK::PETScKrylovLinearSolver::setKSPType ( const std::string & ksp_type )

inherited

◆ setOptionsPrefix()

void IBTK::PETScKrylovLinearSolver::setOptionsPrefix ( const std::string & options_prefix )

inherited

◆ getPETScKSP()

const KSP& IBTK::PETScKrylovLinearSolver::getPETScKSP ( ) const

inherited

◆ setOperator()

void IBTK::PETScKrylovLinearSolver::setOperator ( SAMRAI::tbox::Pointer< LinearOperator > A )

overridevirtualinherited

Reimplemented from IBTK::KrylovLinearSolver.

◆ setPreconditioner()

void IBTK::PETScKrylovLinearSolver::setPreconditioner ( SAMRAI::tbox::Pointer< LinearSolver > pc_solver = nullptr )

overridevirtualinherited

Note: If the preconditioner is nullptr, no preconditioning is performed.

Reimplemented from IBTK::KrylovLinearSolver.

◆ setNullSpace()

void IBTK::PETScKrylovLinearSolver::setNullSpace	(	bool	contains_constant_vec,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > > &	nullspace_basis_vecs = `std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > >()`
	)

overridevirtualinherited

Basis vectors must be orthogonal but are not required to be orthonormal. Basis vectors will be normalized automatically.

Reimplemented from IBTK::LinearSolver.

◆ solveSystem()

bool IBTK::PETScKrylovLinearSolver::solveSystem	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	b
	)

overridevirtualinherited

Before calling solveSystem(), the form of the solution x and right-hand-side b vectors must be set properly by the user on all patch interiors on the specified range of levels in the patch hierarchy. The user is responsible for all data management for the quantities associated with the solution and right-hand-side vectors. In particular, patch data in these vectors must be allocated prior to calling this method.

Parameters

x	solution vector
b	right-hand-side vector

Conditions on Parameters:

vectors x and b must have same patch hierarchy
vectors x and b must have same structure, depth, etc.

Note: The vector arguments for solveSystem() need not match those for initializeSolverState(). However, there must be a certain degree of similarity, including:

hierarchy configuration (hierarchy pointer and range of levels)
number, type and alignment of vector component data
ghost cell widths of data in the solution x and right-hand-side b vectors

Note: The solver need not be initialized prior to calling solveSystem(); however, see initializeSolverState() and deallocateSolverState() for opportunities to save overhead when performing multiple consecutive solves.

See also: initializeSolverState; deallocateSolverState

Returns: true if the solver converged to the specified tolerances, false otherwise

Implements IBTK::GeneralSolver.

◆ initializeSolverState()

void IBTK::PETScKrylovLinearSolver::initializeSolverState	(	const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	b
	)

overridevirtualinherited

By default, the solveSystem() method computes some required hierarchy dependent data before solving and removes that data after the solve. For multiple solves that use the same hierarchy configuration, it is more efficient to:

initialize the hierarchy-dependent data required by the solver via initializeSolverState(),
solve the system one or more times via solveSystem(), and
remove the hierarchy-dependent data via deallocateSolverState().

Note that it is generally necessary to reinitialize the solver state when the hierarchy configuration changes.

When linear operator or preconditioner objects have been registered with this class via setOperator() and setPreconditioner(), they are also initialized by this member function.

Parameters

x	solution vector
b	right-hand-side vector

Conditions on Parameters:

vectors x and b must have same patch hierarchy
vectors x and b must have same structure, depth, etc.

Note: The vector arguments for solveSystem() need not match those for initializeSolverState(). However, there must be a certain degree of similarity, including:

hierarchy configuration (hierarchy pointer and range of levels)
number, type and alignment of vector component data
ghost cell widths of data in the solution x and right-hand-side b vectors

Note: It is safe to call initializeSolverState() when the state is already initialized. In this case, the solver state is first deallocated and then reinitialized.

See also: deallocateSolverState

Reimplemented from IBTK::GeneralSolver.

◆ deallocateSolverState()

void IBTK::PETScKrylovLinearSolver::deallocateSolverState ( )

overridevirtualinherited

When linear operator or preconditioner objects have been registered with this class via setOperator() and setPreconditioner(), they are also deallocated by this member function.

Note: It is safe to call deallocateSolverState() when the solver state is already deallocated.

See also: initializeSolverState

Reimplemented from IBTK::GeneralSolver.

◆ common_ctor()

void IBTK::PETScKrylovLinearSolver::common_ctor ( )

privateinherited

◆ resetWrappedKSP()

void IBTK::PETScKrylovLinearSolver::resetWrappedKSP ( KSP & petsc_ksp )

privateinherited

◆ resetKSPOptions()

void IBTK::PETScKrylovLinearSolver::resetKSPOptions ( )

privateinherited

◆ resetKSPOperators()

void IBTK::PETScKrylovLinearSolver::resetKSPOperators ( )

privateinherited

◆ resetKSPPC()

void IBTK::PETScKrylovLinearSolver::resetKSPPC ( )

privateinherited

◆ resetMatNullSpace()

void IBTK::PETScKrylovLinearSolver::resetMatNullSpace ( )

privateinherited

◆ deallocateNullSpaceData()

void IBTK::PETScKrylovLinearSolver::deallocateNullSpaceData ( )

privateinherited

◆ MatVecMult_SAMRAI()

static PetscErrorCode IBTK::PETScKrylovLinearSolver::MatVecMult_SAMRAI	(	Mat	A,
		Vec	x,
		Vec	y
	)

staticprivateinherited

◆ PCApply_SAMRAI()

static PetscErrorCode IBTK::PETScKrylovLinearSolver::PCApply_SAMRAI	(	PC	pc,
		Vec	x,
		Vec	y
	)

staticprivateinherited

◆ setHierarchyMathOps()

void IBTK::KrylovLinearSolver::setHierarchyMathOps ( SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops )

overridevirtualinherited

Reimplemented from IBTK::GeneralSolver.

◆ setHomogeneousBc()

void IBTK::KrylovLinearSolver::setHomogeneousBc ( bool homogeneous_bc )

overridevirtualinherited

Reimplemented from IBTK::GeneralSolver.

◆ setSolutionTime()

void IBTK::KrylovLinearSolver::setSolutionTime ( double solution_time )

overridevirtualinherited

Reimplemented from IBTK::GeneralSolver.

◆ setTimeInterval()

void IBTK::KrylovLinearSolver::setTimeInterval	(	double	current_time,
		double	new_time
	)

overridevirtualinherited

Reimplemented from IBTK::GeneralSolver.

◆ getOperator()

virtual SAMRAI::tbox::Pointer<LinearOperator> IBTK::KrylovLinearSolver::getOperator ( ) const

virtualinherited

◆ getPreconditioner()

virtual SAMRAI::tbox::Pointer<LinearSolver> IBTK::KrylovLinearSolver::getPreconditioner ( ) const

virtualinherited

◆ getNullSpaceContainsConstantVector()

virtual bool IBTK::LinearSolver::getNullSpaceContainsConstantVector ( ) const

virtualinherited

◆ getNullSpaceBasisVectors()

virtual const std::vector<SAMRAI::tbox::Pointer<SAMRAI::solv::SAMRAIVectorReal<NDIM, double> > >& IBTK::LinearSolver::getNullSpaceBasisVectors ( ) const

virtualinherited

◆ setInitialGuessNonzero()

virtual void IBTK::LinearSolver::setInitialGuessNonzero ( bool initial_guess_nonzero = true )

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::FACPreconditioner, IBTK::BJacobiPreconditioner, IBTK::PETScPCLSWrapper, IBAMR::StaggeredStokesBlockFactorizationPreconditioner, IBAMR::StaggeredStokesProjectionPreconditioner, and IBAMR::VCStaggeredStokesProjectionPreconditioner.

◆ getInitialGuessNonzero()

virtual bool IBTK::LinearSolver::getInitialGuessNonzero ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ printClassData()

virtual void IBTK::LinearSolver::printClassData ( std::ostream & stream )

overridevirtualinherited

Reimplemented from IBTK::GeneralSolver.

◆ getName()

const std::string& IBTK::GeneralSolver::getName ( ) const

inherited

◆ getIsInitialized()

virtual bool IBTK::GeneralSolver::getIsInitialized ( ) const

virtualinherited

◆ getHomogeneousBc()

virtual bool IBTK::GeneralSolver::getHomogeneousBc ( ) const

virtualinherited

◆ getSolutionTime()

virtual double IBTK::GeneralSolver::getSolutionTime ( ) const

virtualinherited

◆ getTimeInterval()

virtual std::pair<double, double> IBTK::GeneralSolver::getTimeInterval ( ) const

virtualinherited

◆ getDt()

virtual double IBTK::GeneralSolver::getDt ( ) const

virtualinherited

◆ getHierarchyMathOps()

virtual SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralSolver::getHierarchyMathOps ( ) const

virtualinherited

◆ setMaxIterations()

virtual void IBTK::GeneralSolver::setMaxIterations ( int max_iterations )

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::FACPreconditioner, IBTK::BJacobiPreconditioner, IBTK::PETScPCLSWrapper, IBAMR::StaggeredStokesBlockFactorizationPreconditioner, IBAMR::StaggeredStokesProjectionPreconditioner, and IBAMR::VCStaggeredStokesProjectionPreconditioner.

◆ getMaxIterations()

virtual int IBTK::GeneralSolver::getMaxIterations ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ setAbsoluteTolerance()

virtual void IBTK::GeneralSolver::setAbsoluteTolerance ( double abs_residual_tol )

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ getAbsoluteTolerance()

virtual double IBTK::GeneralSolver::getAbsoluteTolerance ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ setRelativeTolerance()

virtual void IBTK::GeneralSolver::setRelativeTolerance ( double rel_residual_tol )

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ getRelativeTolerance()

virtual double IBTK::GeneralSolver::getRelativeTolerance ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ getNumIterations()

virtual int IBTK::GeneralSolver::getNumIterations ( ) const

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::PETScPCLSWrapper, and IBTK::BJacobiPreconditioner.

◆ getResidualNorm()

virtual double IBTK::GeneralSolver::getResidualNorm ( ) const

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::PETScPCLSWrapper, and IBTK::BJacobiPreconditioner.

◆ setLoggingEnabled()

virtual void IBTK::GeneralSolver::setLoggingEnabled ( bool enable_logging = true )

virtualinherited

◆ getLoggingEnabled()

virtual bool IBTK::GeneralSolver::getLoggingEnabled ( ) const

virtualinherited

◆ init()

void IBTK::GeneralSolver::init	(	const std::string &	object_name,
		bool	homogeneous_bc
	)

protectedinherited

◆ initSpecialized()

virtual void IBTK::GeneralSolver::initSpecialized	(	const std::string &	object_name,
		bool	homogeneous_bc
	)

protectedvirtualinherited

Reimplemented in IBTK::PoissonSolver.

◆ setVelocityPoissonSpecifications()

void IBAMR::KrylovLinearSolverStaggeredStokesSolverInterface::setVelocityPoissonSpecifications ( const SAMRAI::solv::PoissonSpecifications & U_problem_coefs )

overridevirtualinherited

Reimplemented from IBAMR::StaggeredStokesSolver.

◆ setComponentsHaveNullSpace()

void IBAMR::KrylovLinearSolverStaggeredStokesSolverInterface::setComponentsHaveNullSpace	(	const bool	has_velocity_nullspace,
		const bool	has_pressure_nullspace
	)

overridevirtualinherited

Reimplemented from IBAMR::StaggeredStokesSolver.

◆ setPhysicalBcCoefs()

void IBAMR::KrylovLinearSolverStaggeredStokesSolverInterface::setPhysicalBcCoefs	(	const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &	U_bc_coefs,
		SAMRAI::solv::RobinBcCoefStrategy< NDIM > *	P_bc_coef
	)

overridevirtualinherited

Note: Any of the elements of U_bc_coefs may be nullptr. In this case, homogeneous Dirichlet boundary conditions are employed for that data depth. P_bc_coef may also be nullptr; in that case, homogeneous Neumann boundary conditions are employed for the pressure.

Parameters

U_bc_coefs	IBTK::Vector of pointers to objects that can set the Robin boundary condition coefficients for the velocity
P_bc_coef	Pointer to object that can set the Robin boundary condition coefficients for the pressure

Reimplemented from IBAMR::StaggeredStokesSolver.

◆ setPhysicalBoundaryHelper()

void IBAMR::KrylovLinearSolverStaggeredStokesSolverInterface::setPhysicalBoundaryHelper ( SAMRAI::tbox::Pointer< StaggeredStokesPhysicalBoundaryHelper > bc_helper )

overridevirtualinherited

Reimplemented from IBAMR::StaggeredStokesSolver.

Member Data Documentation

◆ d_ksp_type

std::string IBTK::PETScKrylovLinearSolver::d_ksp_type

privateinherited

◆ d_reinitializing_solver

bool IBTK::PETScKrylovLinearSolver::d_reinitializing_solver = false

privateinherited

◆ d_petsc_x

Vec IBTK::PETScKrylovLinearSolver::d_petsc_x = nullptr

privateinherited

◆ d_petsc_b

Vec IBTK::PETScKrylovLinearSolver::d_petsc_b = nullptr

privateinherited

◆ d_options_prefix

std::string IBTK::PETScKrylovLinearSolver::d_options_prefix

privateinherited

◆ d_petsc_comm

MPI_Comm IBTK::PETScKrylovLinearSolver::d_petsc_comm

privateinherited

◆ d_petsc_ksp

KSP IBTK::PETScKrylovLinearSolver::d_petsc_ksp = nullptr

privateinherited

◆ d_petsc_mat

Mat IBTK::PETScKrylovLinearSolver::d_petsc_mat = nullptr

privateinherited

◆ d_petsc_nullsp

MatNullSpace IBTK::PETScKrylovLinearSolver::d_petsc_nullsp = nullptr

privateinherited

◆ d_managing_petsc_ksp

bool IBTK::PETScKrylovLinearSolver::d_managing_petsc_ksp = true

privateinherited

◆ d_user_provided_mat

bool IBTK::PETScKrylovLinearSolver::d_user_provided_mat = false

privateinherited

◆ d_user_provided_pc

bool IBTK::PETScKrylovLinearSolver::d_user_provided_pc = false

privateinherited

◆ d_nullspace_constant_vec

SAMRAI::tbox::Pointer<SAMRAI::solv::SAMRAIVectorReal<NDIM, double> > IBTK::PETScKrylovLinearSolver::d_nullspace_constant_vec

privateinherited

◆ d_petsc_nullspace_constant_vec

Vec IBTK::PETScKrylovLinearSolver::d_petsc_nullspace_constant_vec = nullptr

privateinherited

◆ d_petsc_nullspace_basis_vecs

std::vector<Vec> IBTK::PETScKrylovLinearSolver::d_petsc_nullspace_basis_vecs

privateinherited

◆ d_solver_has_attached_nullspace

bool IBTK::PETScKrylovLinearSolver::d_solver_has_attached_nullspace = false

privateinherited

◆ d_A

SAMRAI::tbox::Pointer<LinearOperator> IBTK::KrylovLinearSolver::d_A

protectedinherited

◆ d_pc_solver

SAMRAI::tbox::Pointer<LinearSolver> IBTK::KrylovLinearSolver::d_pc_solver

protectedinherited

◆ d_x

SAMRAI::tbox::Pointer<SAMRAI::solv::SAMRAIVectorReal<NDIM, double> > IBTK::KrylovLinearSolver::d_x

protectedinherited

◆ d_b

SAMRAI::tbox::Pointer<SAMRAI::solv::SAMRAIVectorReal<NDIM, double> > IBTK::KrylovLinearSolver::d_b

protectedinherited

◆ d_initial_guess_nonzero

bool IBTK::LinearSolver::d_initial_guess_nonzero = true

protectedinherited

◆ d_nullspace_contains_constant_vec

bool IBTK::LinearSolver::d_nullspace_contains_constant_vec = false

protectedinherited

◆ d_nullspace_basis_vecs

std::vector<SAMRAI::tbox::Pointer<SAMRAI::solv::SAMRAIVectorReal<NDIM, double> > > IBTK::LinearSolver::d_nullspace_basis_vecs

protectedinherited

◆ d_object_name

std::string IBTK::GeneralSolver::d_object_name = "unitialized"

protectedinherited

◆ d_is_initialized

bool IBTK::GeneralSolver::d_is_initialized = false

protectedinherited

◆ d_homogeneous_bc

bool IBTK::GeneralSolver::d_homogeneous_bc = false

protectedinherited

◆ d_solution_time

double IBTK::GeneralSolver::d_solution_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_current_time

double IBTK::GeneralSolver::d_current_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_new_time

double IBTK::GeneralSolver::d_new_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_rel_residual_tol

double IBTK::GeneralSolver::d_rel_residual_tol = 0.0

protectedinherited

◆ d_abs_residual_tol

double IBTK::GeneralSolver::d_abs_residual_tol = 0.0

protectedinherited

◆ d_max_iterations

int IBTK::GeneralSolver::d_max_iterations = 100

protectedinherited

◆ d_current_iterations

int IBTK::GeneralSolver::d_current_iterations = 0

protectedinherited

◆ d_current_residual_norm

double IBTK::GeneralSolver::d_current_residual_norm = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_hier_math_ops

SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralSolver::d_hier_math_ops

protectedinherited

◆ d_hier_math_ops_external

bool IBTK::GeneralSolver::d_hier_math_ops_external = false

protectedinherited

◆ d_enable_logging

bool IBTK::GeneralSolver::d_enable_logging = false

protectedinherited

◆ d_U_problem_coefs

SAMRAI::solv::PoissonSpecifications IBAMR::StaggeredStokesSolver::d_U_problem_coefs

protectedinherited

◆ d_default_U_bc_coef

SAMRAI::solv::LocationIndexRobinBcCoefs<NDIM> IBAMR::StaggeredStokesSolver::d_default_U_bc_coef

protectedinherited

◆ d_U_bc_coefs

std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBAMR::StaggeredStokesSolver::d_U_bc_coefs

protectedinherited

◆ d_default_P_bc_coef

SAMRAI::solv::LocationIndexRobinBcCoefs<NDIM> IBAMR::StaggeredStokesSolver::d_default_P_bc_coef

protectedinherited

◆ d_P_bc_coef

SAMRAI::solv::RobinBcCoefStrategy<NDIM>* IBAMR::StaggeredStokesSolver::d_P_bc_coef

protectedinherited

◆ d_bc_helper

SAMRAI::tbox::Pointer<StaggeredStokesPhysicalBoundaryHelper> IBAMR::StaggeredStokesSolver::d_bc_helper

protectedinherited

◆ d_has_velocity_nullspace

bool IBAMR::StaggeredStokesSolver::d_has_velocity_nullspace = false

protectedinherited

◆ d_has_pressure_nullspace

bool IBAMR::StaggeredStokesSolver::d_has_pressure_nullspace = false

protectedinherited

The documentation for this class was generated from the following file:

include/ibamr/PETScKrylovStaggeredStokesSolver.h

Public Member Functions

Static Public Member Functions

Protected Attributes

Private Member Functions

Functions to access solver parameters.

Logging functions.

Krylov solver functionality.

Functions to access solver parameters.

Logging functions.

Krylov solver functionality.

Static functions for use by PETSc KSP and MatShell objects.

Constructor & Destructor Documentation

◆ PETScKrylovStaggeredStokesSolver() [1/3]

◆ ~PETScKrylovStaggeredStokesSolver()

◆ PETScKrylovStaggeredStokesSolver() [2/3]

◆ PETScKrylovStaggeredStokesSolver() [3/3]

Member Function Documentation

◆ operator=()

◆ allocate_solver()

◆ setKSPType()

◆ setOptionsPrefix()

◆ getPETScKSP()

◆ setOperator()

◆ setPreconditioner()

◆ setNullSpace()

◆ solveSystem()

◆ initializeSolverState()

◆ deallocateSolverState()

◆ common_ctor()

◆ resetWrappedKSP()

◆ resetKSPOptions()

◆ resetKSPOperators()

◆ resetKSPPC()

◆ resetMatNullSpace()

◆ deallocateNullSpaceData()

◆ MatVecMult_SAMRAI()

◆ PCApply_SAMRAI()

◆ setHierarchyMathOps()

◆ setHomogeneousBc()

◆ setSolutionTime()

◆ setTimeInterval()

◆ getOperator()

◆ getPreconditioner()

◆ getNullSpaceContainsConstantVector()

◆ getNullSpaceBasisVectors()

◆ setInitialGuessNonzero()

◆ getInitialGuessNonzero()

◆ printClassData()

◆ getName()

◆ getIsInitialized()

◆ getHomogeneousBc()

◆ getSolutionTime()

◆ getTimeInterval()

◆ getDt()

◆ getHierarchyMathOps()

◆ setMaxIterations()

◆ getMaxIterations()

◆ setAbsoluteTolerance()

◆ getAbsoluteTolerance()

◆ setRelativeTolerance()

◆ getRelativeTolerance()

◆ getNumIterations()

◆ getResidualNorm()

◆ setLoggingEnabled()

◆ getLoggingEnabled()

◆ init()

◆ initSpecialized()

◆ setVelocityPoissonSpecifications()

◆ setComponentsHaveNullSpace()

◆ setPhysicalBcCoefs()

◆ setPhysicalBoundaryHelper()

Member Data Documentation

◆ d_ksp_type

◆ d_reinitializing_solver

◆ d_petsc_x

◆ d_petsc_b

◆ d_options_prefix

◆ d_petsc_comm

◆ d_petsc_ksp

◆ d_petsc_mat
