Class CoarsenPatchStrategySet is a utility class that allows multiple SAMRAI::xfer::CoarsenPatchStrategy objects to be employed by a single SAMRAI::xfer::CoarsenSchedule.

#include <ibtk/CoarsenPatchStrategySet.h>

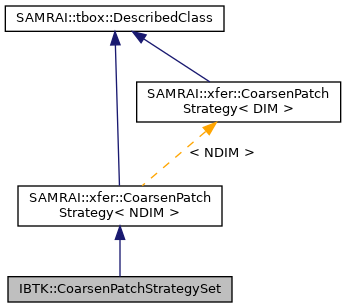

Inheritance diagram for IBTK::CoarsenPatchStrategySet:

[legend]

Public Member Functions
template<typename InputIterator >
	CoarsenPatchStrategySet (InputIterator first, InputIterator last, bool managed=true)
	Constructor. More...

	~CoarsenPatchStrategySet ()
	Destructor. More...

SAMRAI::hier::IntVector< NDIM >	getCoarsenOpStencilWidth () const override

void	preprocessCoarsen (SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Box< NDIM > &coarse_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

void	postprocessCoarsen (SAMRAI::hier::Patch< NDIM > &coarse, const SAMRAI::hier::Patch< NDIM > &fine, const SAMRAI::hier::Box< NDIM > &coarse_box, const SAMRAI::hier::IntVector< NDIM > &ratio) override

virtual hier::IntVector< DIM >	getCoarsenOpStencilWidth () const=0

virtual void	preprocessCoarsen (hier::Patch< DIM > &coarse, const hier::Patch< DIM > &fine, const hier::Box< DIM > &coarse_box, const hier::IntVector< DIM > &ratio)=0

virtual void	postprocessCoarsen (hier::Patch< DIM > &coarse, const hier::Patch< DIM > &fine, const hier::Box< DIM > &coarse_box, const hier::IntVector< DIM > &ratio)=0

Private Member Functions
	CoarsenPatchStrategySet ()=delete
	Default constructor. More...

	CoarsenPatchStrategySet (const CoarsenPatchStrategySet &from)=delete
	Copy constructor. More...

CoarsenPatchStrategySet &	operator= (const CoarsenPatchStrategySet &that)=delete
	Assignment operator. More...

Private Attributes
std::vector< SAMRAI::xfer::CoarsenPatchStrategy< NDIM > * >	d_strategy_set
	The set of SAMRAI::xfer:CoarsenPatchStrategy objects. More...

const bool	d_managed
	Boolean value that indicates whether this class should provide memory management for the strategy objects. More...

Constructor & Destructor Documentation

◆ CoarsenPatchStrategySet() [1/3]

template<typename InputIterator >

IBTK::CoarsenPatchStrategySet::CoarsenPatchStrategySet	(	InputIterator	first,
		InputIterator	last,
		bool	managed = `true`
	)

inline

◆ ~CoarsenPatchStrategySet()

IBTK::CoarsenPatchStrategySet::~CoarsenPatchStrategySet ( )

◆ CoarsenPatchStrategySet() [2/3]

IBTK::CoarsenPatchStrategySet::CoarsenPatchStrategySet ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ CoarsenPatchStrategySet() [3/3]

IBTK::CoarsenPatchStrategySet::CoarsenPatchStrategySet ( const CoarsenPatchStrategySet & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ getCoarsenOpStencilWidth() [1/2]

SAMRAI::hier::IntVector<NDIM> IBTK::CoarsenPatchStrategySet::getCoarsenOpStencilWidth ( ) const

override

Return maximum stencil width needed over all user-defined data coarsening operations. This is needed to determine the correct coarsening data dependencies.

◆ preprocessCoarsen() [1/2]

void IBTK::CoarsenPatchStrategySet::preprocessCoarsen	(	SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Box< NDIM > &	coarse_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

override

Perform user-defined coarsening operations. This member function is called before standard coarsening operations (expressed using concrete subclasses of the SAMRAI::xfer::CoarsenOperator base class). The preprocess function moves data from the source components on the fine patch into the source components on the coarse patch in the specified coarse box region. Recall that the source components are specified in calls to the registerCoarsen() function in the SAMRAI::xfer::CoarsenAlgorithm class.

Parameters

coarse	Coarse patch containing destination data.
fine	Fine patch containing source data.
coarse_box	Box region on coarse patch into which data is coarsened.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessCoarsen() [1/2]

void IBTK::CoarsenPatchStrategySet::postprocessCoarsen	(	SAMRAI::hier::Patch< NDIM > &	coarse,
		const SAMRAI::hier::Patch< NDIM > &	fine,
		const SAMRAI::hier::Box< NDIM > &	coarse_box,
		const SAMRAI::hier::IntVector< NDIM > &	ratio
	)

override

Perform user-defined coarsening operations. This member function is called after standard coarsening operations (expressed using concrete subclasses of the SAMRAI::xfer::CoarsenOperator base class). The postprocess function moves data from the source components on the fine patch into the source components on the coarse patch in the specified coarse box region. Recall that the source components are specified in calls to the registerCoarsen() function in the SAMRAI::xfer::CoarsenAlgorithm class.

Parameters

coarse	Coarse patch containing destination data.
fine	Fine patch containing source data.
coarse_box	Box region on coarse patch into which data is copied.
ratio	Integer vector containing ratio

◆ operator=()

CoarsenPatchStrategySet& IBTK::CoarsenPatchStrategySet::operator= ( const CoarsenPatchStrategySet & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ getCoarsenOpStencilWidth() [2/2]

virtual hier::IntVector<DIM> SAMRAI::xfer::CoarsenPatchStrategy< DIM >::getCoarsenOpStencilWidth

pure virtualinherited

Return maximum stencil width needed over all user-defined data coarsening operations. This is needed to determine the correct coarsening data dependencies.

◆ preprocessCoarsen() [2/2]

virtual void SAMRAI::xfer::CoarsenPatchStrategy< DIM >::preprocessCoarsen	(	hier::Patch< DIM > &	coarse,
		const hier::Patch< DIM > &	fine,
		const hier::Box< DIM > &	coarse_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Perform user-defined coarsening operations. This member function is called before standard coarsening operations (expressed using concrete subclasses of the CoarsenOperator<DIM> base class).
The preprocess function should move data from the source components on the fine patch into the source components on the coarse patch in the specified coarse box region. Recall that the source components are specified in calls to the registerCoarsen() function in the CoarsenAlgorithm<DIM> class.

Parameters

coarse	Coarse patch containing destination data.
fine	Fine patch containing source data.
coarse_box	hier::Box region on coarse patch into which data is coarsened.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

◆ postprocessCoarsen() [2/2]

virtual void SAMRAI::xfer::CoarsenPatchStrategy< DIM >::postprocessCoarsen	(	hier::Patch< DIM > &	coarse,
		const hier::Patch< DIM > &	fine,
		const hier::Box< DIM > &	coarse_box,
		const hier::IntVector< DIM > &	ratio
	)

pure virtualinherited

Perform user-defined coarsening operations. This member function is called after standard coarsening operations (expressed using concrete subclasses of the CoarsenOperator<DIM> base class).
The postprocess function should move data from the source components on the fine patch into the source components on the coarse patch in the specified coarse box region. Recall that the source components are specified in calls to the registerCoarsen() function in the CoarsenAlgorithm<DIM> class.

Parameters

coarse	Coarse patch containing destination data.
fine	Fine patch containing source data.
coarse_box	hier::Box region on coarse patch into which data is copied.
ratio	Integer vector containing ratio

Member Data Documentation

◆ d_strategy_set

std::vector<SAMRAI::xfer::CoarsenPatchStrategy<NDIM>*> IBTK::CoarsenPatchStrategySet::d_strategy_set

private

◆ d_managed

const bool IBTK::CoarsenPatchStrategySet::d_managed

private

The documentation for this class was generated from the following file:

ibtk/include/ibtk/CoarsenPatchStrategySet.h
