Class LInitStrategy provides a mechanism for specifying the initial configuration of the curvilinear mesh.

#include <ibtk/LInitStrategy.h>

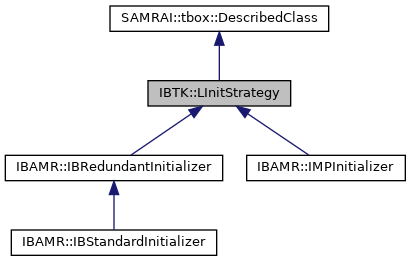

Inheritance diagram for IBTK::LInitStrategy:

[legend]

Public Member Functions
	LInitStrategy ()=default
	Default constructor. More...

virtual	~LInitStrategy ()=default
	Destructor. More...

virtual bool	getLevelHasLagrangianData (int level_number, bool can_be_refined) const =0

virtual bool	getIsAllLagrangianDataInDomain (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy) const =0

virtual unsigned int	computeGlobalNodeCountOnPatchLevel (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double init_data_time, bool can_be_refined, bool initial_time)=0

virtual unsigned int	computeLocalNodeCountOnPatchLevel (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double init_data_time, bool can_be_refined, bool initial_time)=0

virtual void	init ()
	Initialize structure specific configurations. More...

virtual void	initializeStructureIndexingOnPatchLevel (std::map< int, std::string > &strct_id_to_strct_name_map, std::map< int, std::pair< int, int > > &strct_id_to_lag_idx_range_map, int level_number, double init_data_time, bool can_be_refined, bool initial_time, LDataManager *l_data_manager)
	Initialize the structure indexing information on the patch level. More...

virtual unsigned int	initializeDataOnPatchLevel (int lag_node_index_idx, unsigned int global_index_offset, unsigned int local_index_offset, SAMRAI::tbox::Pointer< LData > X_data, SAMRAI::tbox::Pointer< LData > U_data, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double init_data_time, bool can_be_refined, bool initial_time, LDataManager *l_data_manager)=0
	Initialize the LNode and LData data needed to specify the configuration of the curvilinear mesh on the patch level. More...

virtual unsigned int	initializeMassDataOnPatchLevel (unsigned int global_index_offset, unsigned int local_index_offset, SAMRAI::tbox::Pointer< LData > M_data, SAMRAI::tbox::Pointer< LData > K_data, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double init_data_time, bool can_be_refined, bool initial_time, LDataManager *l_data_manager)
	Initialize the LData needed to specify the mass and spring constant data required by the penalty IB method. More...

virtual unsigned int	initializeDirectorDataOnPatchLevel (unsigned int global_index_offset, unsigned int local_index_offset, SAMRAI::tbox::Pointer< LData > D_data, SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double init_data_time, bool can_be_refined, bool initial_time, LDataManager *l_data_manager)
	Initialize the LData needed to specify director vectors required by some material models. More...

virtual void	tagCellsForInitialRefinement (SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy, int level_number, double error_data_time, int tag_index)
	Provide cell tagging for the initial configuration of the Lagrangian mesh. More...

Private Member Functions
	LInitStrategy (const LInitStrategy &from)=delete
	Copy constructor. More...

LInitStrategy &	operator= (const LInitStrategy &that)=delete
	Assignment operator. More...

Constructor & Destructor Documentation

◆ LInitStrategy() [1/2]

IBTK::LInitStrategy::LInitStrategy ( )

default

◆ ~LInitStrategy()

virtual IBTK::LInitStrategy::~LInitStrategy ( )

virtualdefault

◆ LInitStrategy() [2/2]

IBTK::LInitStrategy::LInitStrategy ( const LInitStrategy & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ getLevelHasLagrangianData()

virtual bool IBTK::LInitStrategy::getLevelHasLagrangianData	(	int	level_number,
		bool	can_be_refined
	)		const

pure virtual

Returns: A boolean value indicating whether Lagrangian data is associated with the given level in the patch hierarchy.

Implemented in IBAMR::IMPInitializer, and IBAMR::IBRedundantInitializer.

◆ getIsAllLagrangianDataInDomain()

virtual bool IBTK::LInitStrategy::getIsAllLagrangianDataInDomain ( SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > > hierarchy ) const

pure virtual

Returns: A boolean value indicating whether or not all Lagrangian data is within the computational domain specified by the patch hierarchy.

Implemented in IBAMR::IMPInitializer, and IBAMR::IBRedundantInitializer.

◆ computeGlobalNodeCountOnPatchLevel()

virtual unsigned int IBTK::LInitStrategy::computeGlobalNodeCountOnPatchLevel	(	SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	init_data_time,
		bool	can_be_refined,
		bool	initial_time
	)

pure virtual

Returns: The number of global nodes on the patch level.

Implemented in IBAMR::IMPInitializer, and IBAMR::IBRedundantInitializer.

◆ computeLocalNodeCountOnPatchLevel()

virtual unsigned int IBTK::LInitStrategy::computeLocalNodeCountOnPatchLevel	(	SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	init_data_time,
		bool	can_be_refined,
		bool	initial_time
	)

pure virtual

Returns: The number of local nodes on the patch level.

Implemented in IBAMR::IMPInitializer, and IBAMR::IBRedundantInitializer.

◆ init()

virtual void IBTK::LInitStrategy::init ( )

inlinevirtual

Note: A default empty implementation is provided.

Reimplemented in IBAMR::IBRedundantInitializer, and IBAMR::IBStandardInitializer.

◆ initializeStructureIndexingOnPatchLevel()

virtual void IBTK::LInitStrategy::initializeStructureIndexingOnPatchLevel	(	std::map< int, std::string > &	strct_id_to_strct_name_map,
		std::map< int, std::pair< int, int > > &	strct_id_to_lag_idx_range_map,
		int	level_number,
		double	init_data_time,
		bool	can_be_refined,
		bool	initial_time,
		LDataManager *	l_data_manager
	)

virtual

Note: A default empty implementation is provided.

Reimplemented in IBAMR::IBRedundantInitializer, and IBAMR::IMPInitializer.

◆ initializeDataOnPatchLevel()

virtual unsigned int IBTK::LInitStrategy::initializeDataOnPatchLevel	(	int	lag_node_index_idx,
		unsigned int	global_index_offset,
		unsigned int	local_index_offset,
		SAMRAI::tbox::Pointer< LData >	X_data,
		SAMRAI::tbox::Pointer< LData >	U_data,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	init_data_time,
		bool	can_be_refined,
		bool	initial_time,
		LDataManager *	l_data_manager
	)

pure virtual

Returns: The number of local nodes initialized on the patch level.

Implemented in IBAMR::IBRedundantInitializer, and IBAMR::IMPInitializer.

◆ initializeMassDataOnPatchLevel()

virtual unsigned int IBTK::LInitStrategy::initializeMassDataOnPatchLevel	(	unsigned int	global_index_offset,
		unsigned int	local_index_offset,
		SAMRAI::tbox::Pointer< LData >	M_data,
		SAMRAI::tbox::Pointer< LData >	K_data,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	init_data_time,
		bool	can_be_refined,
		bool	initial_time,
		LDataManager *	l_data_manager
	)

virtual

Returns: The number of local nodes initialized on the patch level.

Note: A default empty implementation is provided when support for massive boundaries is not required.

Reimplemented in IBAMR::IBRedundantInitializer.

◆ initializeDirectorDataOnPatchLevel()

virtual unsigned int IBTK::LInitStrategy::initializeDirectorDataOnPatchLevel	(	unsigned int	global_index_offset,
		unsigned int	local_index_offset,
		SAMRAI::tbox::Pointer< LData >	D_data,
		SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	init_data_time,
		bool	can_be_refined,
		bool	initial_time,
		LDataManager *	l_data_manager
	)

virtual

Returns: The number of local nodes initialized on the patch level.

Note: A default empty implementation is provided when support for directors is not required.

Reimplemented in IBAMR::IBRedundantInitializer.

◆ tagCellsForInitialRefinement()

virtual void IBTK::LInitStrategy::tagCellsForInitialRefinement	(	SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	hierarchy,
		int	level_number,
		double	error_data_time,
		int	tag_index
	)

virtual

When the patch hierarchy is being constructed at the initial simulation time, it is necessary that the gridding algorithm be instructed where to place local refinement in order to accommodate portions of the curvilinear mesh that will reside in the yet-to-be-constructed level(s) of the patch hierarchy.

Note: A default empty implementation is provided when support for local mesh refinement is not required.

Reimplemented in IBAMR::IBRedundantInitializer, and IBAMR::IMPInitializer.

◆ operator=()

LInitStrategy& IBTK::LInitStrategy::operator= ( const LInitStrategy & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

The documentation for this class was generated from the following file:

ibtk/include/ibtk/LInitStrategy.h
