Class CCPoissonPETScLevelSolver is a concrete PETScLevelSolver for solving elliptic equations of the form $ \mbox{$L u$} = \mbox{$(C I + \nabla \cdot D \nabla) u$} = f $ on a single SAMRAI::hier::PatchLevel. More...

#include <ibtk/CCPoissonPETScLevelSolver.h>

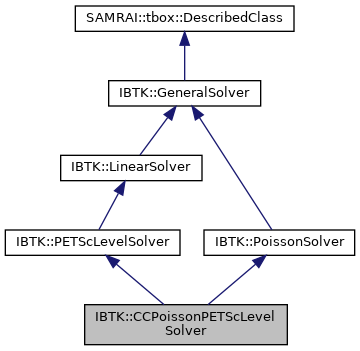

Inheritance diagram for IBTK::CCPoissonPETScLevelSolver:

[legend]

Public Member Functions
	CCPoissonPETScLevelSolver (const std::string &object_name, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, std::string default_options_prefix)
	Constructor. More...

	~CCPoissonPETScLevelSolver ()
	Destructor. More...

void	setKSPType (const std::string &ksp_type)
	Set the KSP type. More...

void	setOptionsPrefix (const std::string &options_prefix)
	Set the options prefix used by this PETSc solver object. More...

const KSP &	getPETScKSP () const
	Get the PETSc KSP object. More...

void	getASMSubdomains (std::vector< IS > nonoverlapping_subdomains, std::vector< IS > overlapping_subdomains)
	Get ASM subdomains. More...

virtual void	setPoissonSpecifications (const SAMRAI::solv::PoissonSpecifications &poisson_spec)
	Set the SAMRAI::solv::PoissonSpecifications object used to specify the coefficients for the scalar-valued or vector-valued Laplace operator. More...

virtual void	setPhysicalBcCoef (SAMRAI::solv::RobinBcCoefStrategy< NDIM > *bc_coef)
	Set the SAMRAI::solv::RobinBcCoefStrategy object used to specify physical boundary conditions. More...

virtual void	setPhysicalBcCoefs (const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &bc_coefs)
	Set the SAMRAI::solv::RobinBcCoefStrategy objects used to specify physical boundary conditions. More...

Static Public Member Functions
static SAMRAI::tbox::Pointer< PoissonSolver >	allocate_solver (const std::string &object_name, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, const std::string &default_options_prefix)
	Static function to construct a CCPoissonPETScLevelSolver. More...

Protected Member Functions
void	generateASMSubdomains (std::vector< std::set< int > > &overlap_is, std::vector< std::set< int > > &nonoverlap_is) override
	Generate IS/subdomains for Schwartz type preconditioners. More...

void	initializeSolverStateSpecialized (const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &b) override
	Compute hierarchy dependent data required for solving $Ax=b$. More...

void	deallocateSolverStateSpecialized () override
	Remove all hierarchy dependent data allocated by initializeSolverStateSpecialized(). More...

void	copyToPETScVec (Vec &petsc_x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x) override
	Copy a generic vector to the PETSc representation. More...

void	copyFromPETScVec (Vec &petsc_x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x) override
	Copy a generic vector from the PETSc representation. More...

void	setupKSPVecs (Vec &petsc_x, Vec &petsc_b, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &b) override
	Copy solution and right-hand-side data to the PETSc representation, including any modifications to account for boundary conditions. More...

void	initSpecialized (const std::string &object_name, bool homogeneous_bc) override

Protected Attributes
SAMRAI::solv::PoissonSpecifications	d_poisson_spec = SAMRAI::solv::PoissonSpecifications("")

std::unique_ptr< SAMRAI::solv::RobinBcCoefStrategy< NDIM > >	d_default_bc_coef

std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_bc_coefs

Private Member Functions
	CCPoissonPETScLevelSolver ()=delete
	Default constructor. More...

	CCPoissonPETScLevelSolver (const CCPoissonPETScLevelSolver &from)=delete
	Copy constructor. More...

CCPoissonPETScLevelSolver &	operator= (const CCPoissonPETScLevelSolver &that)=delete
	Assignment operator. More...

Private Attributes
PETSc objects.
SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext >	d_context

std::vector< int >	d_num_dofs_per_proc

int	d_dof_index_idx = IBTK::invalid_index

SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, int > >	d_dof_index_var

SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > >	d_data_synch_sched

SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > >	d_ghost_fill_sched

Functions to access solver parameters.
virtual void	setMaxIterations (int max_iterations)
	Set the maximum number of nonlinear iterations to use per solve. More...

virtual int	getMaxIterations () const
	Get the maximum number of nonlinear iterations to use per solve. More...

virtual void	setAbsoluteTolerance (double abs_residual_tol)
	Set the absolute residual tolerance for convergence. More...

virtual double	getAbsoluteTolerance () const
	Get the absolute residual tolerance for convergence. More...

virtual void	setRelativeTolerance (double rel_residual_tol)
	Set the relative residual tolerance for convergence. More...

virtual double	getRelativeTolerance () const
	Get the relative residual tolerance for convergence. More...

Logging functions.
virtual void	setLoggingEnabled (bool enable_logging=true)
	Enable or disable logging. More...

virtual bool	getLoggingEnabled () const
	Determine whether logging is enabled or disabled. More...

void	init (const std::string &object_name, bool homogeneous_bc)

virtual void	initSpecialized (const std::string &object_name, bool homogeneous_bc)

std::string	d_object_name = "unitialized"

bool	d_is_initialized = false

bool	d_homogeneous_bc = false

double	d_solution_time = std::numeric_limits<double>::quiet_NaN()

double	d_current_time = std::numeric_limits<double>::quiet_NaN()

double	d_new_time = std::numeric_limits<double>::quiet_NaN()

double	d_rel_residual_tol = 0.0

double	d_abs_residual_tol = 0.0

int	d_max_iterations = 100

int	d_current_iterations = 0

double	d_current_residual_norm = std::numeric_limits<double>::quiet_NaN()

SAMRAI::tbox::Pointer< HierarchyMathOps >	d_hier_math_ops

bool	d_hier_math_ops_external = false

bool	d_enable_logging = false

Functions to access solver parameters.
virtual void	setInitialGuessNonzero (bool initial_guess_nonzero=true)
	Set whether the initial guess is non-zero. More...

virtual bool	getInitialGuessNonzero () const
	Get whether the initial guess is non-zero. More...

Logging functions.
virtual void	printClassData (std::ostream &stream) override
	Print class data to stream. More...

bool	d_initial_guess_nonzero = true

bool	d_nullspace_contains_constant_vec = false

std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > >	d_nullspace_basis_vecs

Linear solver functionality.
void	setNullSpace (bool contains_constant_vec, const std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > > &nullspace_basis_vecs=std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > >()) override
	Set the nullspace of the linear system. More...

bool	solveSystem (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &b) override
	Solve the linear system of equations $Ax=b$ for $x$. More...

void	initializeSolverState (const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &b) override
	Compute hierarchy dependent data required for solving $Ax=b$. More...

void	deallocateSolverState () override
	Remove all hierarchy dependent data allocated by initializeSolverState(). More...

void	init (SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, const std::string &default_options_prefix)
	Basic initialization. More...

virtual void	generateFieldSplitSubdomains (std::vector< std::string > &field_names, std::vector< std::set< int > > &field_is)
	Generate IS/subdomains for fieldsplit type preconditioners. More...

virtual void	setupNullSpace ()
	Setup the solver nullspace (if any). More...

SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	d_hierarchy
	Associated hierarchy. More...

int	d_level_num = IBTK::invalid_level_number
	Associated patch level and C-F boundary (for level numbers > 0). More...

SAMRAI::tbox::Pointer< SAMRAI::hier::PatchLevel< NDIM > >	d_level

SAMRAI::tbox::Pointer< SAMRAI::hier::CoarseFineBoundary< NDIM > >	d_cf_boundary

SAMRAIDataCache	d_cached_eulerian_data
	Scratch data. More...

Field split preconditioner.
std::vector< std::string >	d_field_name

std::vector< IS >	d_field_is

static PetscErrorCode	PCApply_Additive (PC pc, Vec x, Vec y)
	Apply the preconditioner to x and store the result in y. More...

static PetscErrorCode	PCApply_Multiplicative (PC pc, Vec x, Vec y)
	Apply the preconditioner to x and store the result in y. More...

static PetscErrorCode	PCApply_RedBlackMultiplicative (PC pc, Vec x, Vec y)
	Apply the preconditioner to x and store the result in y. More...

Detailed Description

This solver class uses the PETSc library to solve linear equations of the form $ (C I + \nabla \cdot D \nabla ) u = f $, where $C$ and $D$ are scalars, and $u$ and $f$ are cell-centered arrays. The discretization is second-order accurate.

Robin boundary conditions may be specified through the interface class SAMRAI::solv::RobinBcCoefStrategy.

The user must perform the following steps to use class CCPoissonPETScLevelSolver:

Create a CCPoissonPETScLevelSolver object.
Set the problem specification via setPoissonSpecifications(), setPhysicalBcCoef(), and setHomogeneousBc().
Initialize CCPoissonPETScLevelSolver object using the function initializeSolverState().
Solve the linear system using the member function solveSystem(), passing in SAMRAI::solv::SAMRAIVectorReal objects corresponding to $u$ and $f$.

Sample parameters for initialization from database (and their default values):

options_prefix = ""           // see setOptionsPrefix()
ksp_type = "gmres"            // see setKSPType()
initial_guess_nonzero = TRUE  // see setInitialGuessNonzero()
rel_residual_tol = 1.0e-5     // see setRelativeTolerance()
abs_residual_tol = 1.0e-50    // see setAbsoluteTolerance()
max_iterations = 10000        // see setMaxIterations()
enable_logging = FALSE        // see setLoggingEnabled()

PETSc is developed at the Argonne National Laboratory Mathematics and Computer Science Division. For more information about PETSc, see http://www.mcs.anl.gov/petsc/petsc-as.

Constructor & Destructor Documentation

◆ CCPoissonPETScLevelSolver() [1/3]

IBTK::CCPoissonPETScLevelSolver::CCPoissonPETScLevelSolver	(	const std::string &	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		std::string	default_options_prefix
	)

◆ ~CCPoissonPETScLevelSolver()

IBTK::CCPoissonPETScLevelSolver::~CCPoissonPETScLevelSolver ( )

◆ CCPoissonPETScLevelSolver() [2/3]

IBTK::CCPoissonPETScLevelSolver::CCPoissonPETScLevelSolver ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ CCPoissonPETScLevelSolver() [3/3]

IBTK::CCPoissonPETScLevelSolver::CCPoissonPETScLevelSolver ( const CCPoissonPETScLevelSolver & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ allocate_solver()

static SAMRAI::tbox::Pointer<PoissonSolver> IBTK::CCPoissonPETScLevelSolver::allocate_solver	(	const std::string &	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		const std::string &	default_options_prefix
	)

inlinestatic

◆ generateASMSubdomains()

void IBTK::CCPoissonPETScLevelSolver::generateASMSubdomains	(	std::vector< std::set< int > > &	overlap_is,
		std::vector< std::set< int > > &	nonoverlap_is
	)

overrideprotectedvirtual

Reimplemented from IBTK::PETScLevelSolver.

◆ initializeSolverStateSpecialized()

void IBTK::CCPoissonPETScLevelSolver::initializeSolverStateSpecialized	(	const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	b
	)

overrideprotectedvirtual

Implements IBTK::PETScLevelSolver.

◆ deallocateSolverStateSpecialized()

void IBTK::CCPoissonPETScLevelSolver::deallocateSolverStateSpecialized ( )

overrideprotectedvirtual

Implements IBTK::PETScLevelSolver.

◆ copyToPETScVec()

void IBTK::CCPoissonPETScLevelSolver::copyToPETScVec	(	Vec &	petsc_x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x
	)

overrideprotectedvirtual

Implements IBTK::PETScLevelSolver.

◆ copyFromPETScVec()

void IBTK::CCPoissonPETScLevelSolver::copyFromPETScVec	(	Vec &	petsc_x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x
	)

overrideprotectedvirtual

Implements IBTK::PETScLevelSolver.

◆ setupKSPVecs()

void IBTK::CCPoissonPETScLevelSolver::setupKSPVecs	(	Vec &	petsc_x,
		Vec &	petsc_b,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	b
	)

overrideprotectedvirtual

Implements IBTK::PETScLevelSolver.

◆ operator=()

CCPoissonPETScLevelSolver& IBTK::CCPoissonPETScLevelSolver::operator= ( const CCPoissonPETScLevelSolver & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ setKSPType()

void IBTK::PETScLevelSolver::setKSPType ( const std::string & ksp_type )

inherited

◆ setOptionsPrefix()

void IBTK::PETScLevelSolver::setOptionsPrefix ( const std::string & options_prefix )

inherited

◆ getPETScKSP()

const KSP& IBTK::PETScLevelSolver::getPETScKSP ( ) const

inherited

◆ getASMSubdomains()

void IBTK::PETScLevelSolver::getASMSubdomains	(	std::vector< IS > **	nonoverlapping_subdomains,
		std::vector< IS > **	overlapping_subdomains
	)

inherited

◆ setNullSpace()

void IBTK::PETScLevelSolver::setNullSpace	(	bool	contains_constant_vec,
		const std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > > &	nullspace_basis_vecs = `std::vector< SAMRAI::tbox::Pointer< SAMRAI::solv::SAMRAIVectorReal< NDIM, double > > >()`
	)

overridevirtualinherited

Reimplemented from IBTK::LinearSolver.

◆ solveSystem()

bool IBTK::PETScLevelSolver::solveSystem	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	b
	)

overridevirtualinherited

Before calling solveSystem(), the form of the solution x and right-hand-side b vectors must be set properly by the user on all patch interiors on the specified range of levels in the patch hierarchy. The user is responsible for all data management for the quantities associated with the solution and right-hand-side vectors. In particular, patch data in these vectors must be allocated prior to calling this method.

Parameters

x	solution vector
b	right-hand-side vector

Conditions on Parameters:

vectors x and b must have same patch hierarchy
vectors x and b must have same structure, depth, etc.

Note: The vector arguments for solveSystem() need not match those for initializeSolverState(). However, there must be a certain degree of similarity, including:

hierarchy configuration (hierarchy pointer and range of levels)
number, type and alignment of vector component data
ghost cell widths of data in the solution x and right-hand-side b vectors

Note: The solver need not be initialized prior to calling solveSystem(); however, see initializeSolverState() and deallocateSolverState() for opportunities to save overhead when performing multiple consecutive solves.

See also: initializeSolverState; deallocateSolverState

Returns: true if the solver converged to the specified tolerances, false otherwise

Implements IBTK::GeneralSolver.

◆ initializeSolverState()

void IBTK::PETScLevelSolver::initializeSolverState	(	const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	b
	)

overridevirtualinherited

By default, the solveSystem() method computes some required hierarchy dependent data before solving and removes that data after the solve. For multiple solves that use the same hierarchy configuration, it is more efficient to:

initialize the hierarchy-dependent data required by the solver via initializeSolverState(),
solve the system one or more times via solveSystem(), and
remove the hierarchy-dependent data via deallocateSolverState().

Note that it is generally necessary to reinitialize the solver state when the hierarchy configuration changes.

Parameters

x	solution vector
b	right-hand-side vector

Conditions on Parameters:

vectors x and b must have same patch hierarchy
vectors x and b must have same structure, depth, etc.

Note: The vector arguments for solveSystem() need not match those for initializeSolverState(). However, there must be a certain degree of similarity, including:

hierarchy configuration (hierarchy pointer and range of levels)
number, type and alignment of vector component data
ghost cell widths of data in the solution x and right-hand-side b vectors

Note: It is safe to call initializeSolverState() when the state is already initialized. In this case, the solver state is first deallocated and then reinitialized.; Subclasses of class PETScLevelSolver should not override this method. Instead, they should override the protected method initializeSolverStateSpecialized().

See also: deallocateSolverState

Reimplemented from IBTK::GeneralSolver.

◆ deallocateSolverState()

void IBTK::PETScLevelSolver::deallocateSolverState ( )

overridevirtualinherited

Note: It is safe to call deallocateSolverState() when the solver state is already deallocated.; Subclasses of class PETScLevelSolver should not override this method. Instead, they should override the protected method deallocatedSolverStateSpecialized().

See also: initializeSolverState

Reimplemented from IBTK::GeneralSolver.

◆ init() [1/2]

void IBTK::PETScLevelSolver::init	(	SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		const std::string &	default_options_prefix
	)

protectedinherited

◆ init() [2/2]

void IBTK::GeneralSolver::init	(	const std::string &	object_name,
		bool	homogeneous_bc
	)

protectedinherited

◆ generateFieldSplitSubdomains()

virtual void IBTK::PETScLevelSolver::generateFieldSplitSubdomains	(	std::vector< std::string > &	field_names,
		std::vector< std::set< int > > &	field_is
	)

protectedvirtualinherited

Reimplemented in IBAMR::StaggeredStokesPETScLevelSolver.

◆ setupNullSpace()

virtual void IBTK::PETScLevelSolver::setupNullSpace ( )

protectedvirtualinherited

◆ PCApply_Additive()

static PetscErrorCode IBTK::PETScLevelSolver::PCApply_Additive	(	PC	pc,
		Vec	x,
		Vec	y
	)

staticprivateinherited

◆ PCApply_Multiplicative()

static PetscErrorCode IBTK::PETScLevelSolver::PCApply_Multiplicative	(	PC	pc,
		Vec	x,
		Vec	y
	)

staticprivateinherited

◆ PCApply_RedBlackMultiplicative()

static PetscErrorCode IBTK::PETScLevelSolver::PCApply_RedBlackMultiplicative	(	PC	pc,
		Vec	x,
		Vec	y
	)

staticprivateinherited

◆ getNullSpaceContainsConstantVector()

virtual bool IBTK::LinearSolver::getNullSpaceContainsConstantVector ( ) const

virtualinherited

◆ getNullSpaceBasisVectors()

virtual const std::vector<SAMRAI::tbox::Pointer<SAMRAI::solv::SAMRAIVectorReal<NDIM, double> > >& IBTK::LinearSolver::getNullSpaceBasisVectors ( ) const

virtualinherited

◆ setInitialGuessNonzero()

virtual void IBTK::LinearSolver::setInitialGuessNonzero ( bool initial_guess_nonzero = true )

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::FACPreconditioner, IBTK::BJacobiPreconditioner, IBTK::PETScPCLSWrapper, IBAMR::StaggeredStokesBlockFactorizationPreconditioner, IBAMR::StaggeredStokesProjectionPreconditioner, and IBAMR::VCStaggeredStokesProjectionPreconditioner.

◆ getInitialGuessNonzero()

virtual bool IBTK::LinearSolver::getInitialGuessNonzero ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ printClassData()

virtual void IBTK::LinearSolver::printClassData ( std::ostream & stream )

overridevirtualinherited

Reimplemented from IBTK::GeneralSolver.

◆ getName()

const std::string& IBTK::GeneralSolver::getName ( ) const

inherited

◆ getIsInitialized()

virtual bool IBTK::GeneralSolver::getIsInitialized ( ) const

virtualinherited

◆ setHomogeneousBc()

virtual void IBTK::GeneralSolver::setHomogeneousBc ( bool homogeneous_bc )

virtualinherited

Reimplemented in IBTK::FACPreconditioner, IBTK::NewtonKrylovSolver, and IBTK::KrylovLinearSolver.

◆ getHomogeneousBc()

virtual bool IBTK::GeneralSolver::getHomogeneousBc ( ) const

virtualinherited

◆ setSolutionTime()

virtual void IBTK::GeneralSolver::setSolutionTime ( double solution_time )

virtualinherited

Reimplemented in IBAMR::CIBStaggeredStokesSolver, IBTK::FACPreconditioner, IBTK::NewtonKrylovSolver, and IBTK::KrylovLinearSolver.

◆ getSolutionTime()

virtual double IBTK::GeneralSolver::getSolutionTime ( ) const

virtualinherited

◆ setTimeInterval()

virtual void IBTK::GeneralSolver::setTimeInterval	(	double	current_time,
		double	new_time
	)

virtualinherited

Reimplemented in IBAMR::CIBStaggeredStokesSolver, IBTK::FACPreconditioner, IBTK::NewtonKrylovSolver, and IBTK::KrylovLinearSolver.

◆ getTimeInterval()

virtual std::pair<double, double> IBTK::GeneralSolver::getTimeInterval ( ) const

virtualinherited

◆ getDt()

virtual double IBTK::GeneralSolver::getDt ( ) const

virtualinherited

◆ setHierarchyMathOps()

virtual void IBTK::GeneralSolver::setHierarchyMathOps ( SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops )

virtualinherited

Reimplemented in IBTK::NewtonKrylovSolver, and IBTK::KrylovLinearSolver.

◆ getHierarchyMathOps()

virtual SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralSolver::getHierarchyMathOps ( ) const

virtualinherited

◆ setMaxIterations()

virtual void IBTK::GeneralSolver::setMaxIterations ( int max_iterations )

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::FACPreconditioner, IBTK::BJacobiPreconditioner, IBTK::PETScPCLSWrapper, IBAMR::StaggeredStokesBlockFactorizationPreconditioner, IBAMR::StaggeredStokesProjectionPreconditioner, and IBAMR::VCStaggeredStokesProjectionPreconditioner.

◆ getMaxIterations()

virtual int IBTK::GeneralSolver::getMaxIterations ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ setAbsoluteTolerance()

virtual void IBTK::GeneralSolver::setAbsoluteTolerance ( double abs_residual_tol )

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ getAbsoluteTolerance()

virtual double IBTK::GeneralSolver::getAbsoluteTolerance ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ setRelativeTolerance()

virtual void IBTK::GeneralSolver::setRelativeTolerance ( double rel_residual_tol )

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ getRelativeTolerance()

virtual double IBTK::GeneralSolver::getRelativeTolerance ( ) const

virtualinherited

Reimplemented in IBTK::PETScPCLSWrapper.

◆ getNumIterations()

virtual int IBTK::GeneralSolver::getNumIterations ( ) const

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::PETScPCLSWrapper, and IBTK::BJacobiPreconditioner.

◆ getResidualNorm()

virtual double IBTK::GeneralSolver::getResidualNorm ( ) const

virtualinherited

Reimplemented in IBTK::BGaussSeidelPreconditioner, IBTK::PETScPCLSWrapper, and IBTK::BJacobiPreconditioner.

◆ setLoggingEnabled()

virtual void IBTK::GeneralSolver::setLoggingEnabled ( bool enable_logging = true )

virtualinherited

◆ getLoggingEnabled()

virtual bool IBTK::GeneralSolver::getLoggingEnabled ( ) const

virtualinherited

◆ initSpecialized() [1/2]

virtual void IBTK::GeneralSolver::initSpecialized	(	const std::string &	object_name,
		bool	homogeneous_bc
	)

protectedvirtualinherited

Reimplemented in IBTK::PoissonSolver.

◆ setPoissonSpecifications()

virtual void IBTK::PoissonSolver::setPoissonSpecifications ( const SAMRAI::solv::PoissonSpecifications & poisson_spec )

virtualinherited

Reimplemented in IBTK::PoissonFACPreconditioner, and IBTK::KrylovLinearSolverPoissonSolverInterface.

◆ setPhysicalBcCoef()

virtual void IBTK::PoissonSolver::setPhysicalBcCoef ( SAMRAI::solv::RobinBcCoefStrategy< NDIM > * bc_coef )

virtualinherited

Note: bc_coef may be nullptr. In this case, default boundary conditions (as supplied to the class constructor) are employed.

Parameters

bc_coef Pointer to an object that can set the Robin boundary condition coefficients

Reimplemented in IBTK::PoissonFACPreconditioner, and IBTK::KrylovLinearSolverPoissonSolverInterface.

◆ setPhysicalBcCoefs()

virtual void IBTK::PoissonSolver::setPhysicalBcCoefs ( const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > & bc_coefs )

virtualinherited

Note: Any of the elements of bc_coefs may be nullptr. In this case, default boundary conditions (as supplied to the class constructor) are employed for that data depth.

Parameters

bc_coefs Vector of pointers to objects that can set the Robin boundary condition coefficients

Reimplemented in IBTK::PoissonFACPreconditioner, and IBTK::KrylovLinearSolverPoissonSolverInterface.

◆ initSpecialized() [2/2]

void IBTK::PoissonSolver::initSpecialized	(	const std::string &	object_name,
		bool	homogeneous_bc
	)

overrideprotectedvirtualinherited

Reimplemented from IBTK::GeneralSolver.

Member Data Documentation

◆ d_context

SAMRAI::tbox::Pointer<SAMRAI::hier::VariableContext> IBTK::CCPoissonPETScLevelSolver::d_context

private

◆ d_num_dofs_per_proc

std::vector<int> IBTK::CCPoissonPETScLevelSolver::d_num_dofs_per_proc

private

◆ d_dof_index_idx

int IBTK::CCPoissonPETScLevelSolver::d_dof_index_idx = IBTK::invalid_index

private

◆ d_dof_index_var

SAMRAI::tbox::Pointer<SAMRAI::pdat::CellVariable<NDIM, int> > IBTK::CCPoissonPETScLevelSolver::d_dof_index_var

private

◆ d_data_synch_sched

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineSchedule<NDIM> > IBTK::CCPoissonPETScLevelSolver::d_data_synch_sched

private

◆ d_ghost_fill_sched

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineSchedule<NDIM> > IBTK::CCPoissonPETScLevelSolver::d_ghost_fill_sched

private

◆ d_hierarchy

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchHierarchy<NDIM> > IBTK::PETScLevelSolver::d_hierarchy

protectedinherited

◆ d_level_num

int IBTK::PETScLevelSolver::d_level_num = IBTK::invalid_level_number

protectedinherited

◆ d_level

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchLevel<NDIM> > IBTK::PETScLevelSolver::d_level

protectedinherited

◆ d_cf_boundary

SAMRAI::tbox::Pointer<SAMRAI::hier::CoarseFineBoundary<NDIM> > IBTK::PETScLevelSolver::d_cf_boundary

protectedinherited

◆ d_cached_eulerian_data

SAMRAIDataCache IBTK::PETScLevelSolver::d_cached_eulerian_data

protectedinherited

◆ d_ksp_type

std::string IBTK::PETScLevelSolver::d_ksp_type = KSPGMRES

protectedinherited

◆ d_pc_type

std::string IBTK::PETScLevelSolver::d_pc_type = PCILU

protectedinherited

◆ d_shell_pc_type

std::string IBTK::PETScLevelSolver::d_shell_pc_type

protectedinherited

◆ d_options_prefix

std::string IBTK::PETScLevelSolver::d_options_prefix

protectedinherited

◆ d_petsc_ksp

KSP IBTK::PETScLevelSolver::d_petsc_ksp = nullptr

protectedinherited

◆ d_petsc_mat

Mat IBTK::PETScLevelSolver::d_petsc_mat = nullptr

protectedinherited

◆ d_petsc_pc

Mat IBTK::PETScLevelSolver::d_petsc_pc = nullptr

protectedinherited

◆ d_petsc_nullsp

MatNullSpace IBTK::PETScLevelSolver::d_petsc_nullsp

protectedinherited

◆ d_petsc_x

Vec IBTK::PETScLevelSolver::d_petsc_x = nullptr

protectedinherited

◆ d_petsc_b

Vec IBTK::PETScLevelSolver::d_petsc_b = nullptr

protectedinherited

◆ d_local_x

Vec IBTK::PETScLevelSolver::d_local_x

protectedinherited

◆ d_local_y

Vec IBTK::PETScLevelSolver::d_local_y

protectedinherited

◆ d_box_size

SAMRAI::hier::IntVector<NDIM> IBTK::PETScLevelSolver::d_box_size

protectedinherited

◆ d_overlap_size

SAMRAI::hier::IntVector<NDIM> IBTK::PETScLevelSolver::d_overlap_size

protectedinherited

◆ d_n_local_subdomains

int IBTK::PETScLevelSolver::d_n_local_subdomains

protectedinherited

◆ d_n_subdomains_max

int IBTK::PETScLevelSolver::d_n_subdomains_max

protectedinherited

◆ d_overlap_is

std::vector<IS> IBTK::PETScLevelSolver::d_overlap_is

protectedinherited

◆ d_nonoverlap_is

std::vector<IS> IBTK::PETScLevelSolver::d_nonoverlap_is

protectedinherited

◆ d_local_overlap_is

std::vector<IS> IBTK::PETScLevelSolver::d_local_overlap_is

protectedinherited

◆ d_local_nonoverlap_is

std::vector<IS> IBTK::PETScLevelSolver::d_local_nonoverlap_is

protectedinherited

◆ d_restriction

std::vector<VecScatter> IBTK::PETScLevelSolver::d_restriction

protectedinherited

◆ d_prolongation

std::vector<VecScatter> IBTK::PETScLevelSolver::d_prolongation

protectedinherited

◆ d_sub_ksp

std::vector<KSP> IBTK::PETScLevelSolver::d_sub_ksp

protectedinherited

◆ d_sub_mat

Mat* IBTK::PETScLevelSolver::d_sub_mat

protectedinherited

◆ d_sub_bc_mat

Mat * IBTK::PETScLevelSolver::d_sub_bc_mat

protectedinherited

◆ d_sub_x

std::vector<Vec> IBTK::PETScLevelSolver::d_sub_x

protectedinherited

◆ d_sub_y

std::vector<Vec> IBTK::PETScLevelSolver::d_sub_y

protectedinherited

◆ d_field_name

std::vector<std::string> IBTK::PETScLevelSolver::d_field_name

protectedinherited

◆ d_field_is

std::vector<IS> IBTK::PETScLevelSolver::d_field_is

protectedinherited

◆ d_initial_guess_nonzero

bool IBTK::LinearSolver::d_initial_guess_nonzero = true

protectedinherited

◆ d_nullspace_contains_constant_vec

bool IBTK::LinearSolver::d_nullspace_contains_constant_vec = false

protectedinherited

◆ d_nullspace_basis_vecs

std::vector<SAMRAI::tbox::Pointer<SAMRAI::solv::SAMRAIVectorReal<NDIM, double> > > IBTK::LinearSolver::d_nullspace_basis_vecs

protectedinherited

◆ d_object_name

std::string IBTK::GeneralSolver::d_object_name = "unitialized"

protectedinherited

◆ d_is_initialized

bool IBTK::GeneralSolver::d_is_initialized = false

protectedinherited

◆ d_homogeneous_bc

bool IBTK::GeneralSolver::d_homogeneous_bc = false

protectedinherited

◆ d_solution_time

double IBTK::GeneralSolver::d_solution_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_current_time

double IBTK::GeneralSolver::d_current_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_new_time

double IBTK::GeneralSolver::d_new_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_rel_residual_tol

double IBTK::GeneralSolver::d_rel_residual_tol = 0.0

protectedinherited

◆ d_abs_residual_tol

double IBTK::GeneralSolver::d_abs_residual_tol = 0.0

protectedinherited

◆ d_max_iterations

int IBTK::GeneralSolver::d_max_iterations = 100

protectedinherited

◆ d_current_iterations

int IBTK::GeneralSolver::d_current_iterations = 0

protectedinherited

◆ d_current_residual_norm

double IBTK::GeneralSolver::d_current_residual_norm = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_hier_math_ops

SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralSolver::d_hier_math_ops

protectedinherited

◆ d_hier_math_ops_external

bool IBTK::GeneralSolver::d_hier_math_ops_external = false

protectedinherited

◆ d_enable_logging

bool IBTK::GeneralSolver::d_enable_logging = false

protectedinherited

◆ d_poisson_spec

SAMRAI::solv::PoissonSpecifications IBTK::PoissonSolver::d_poisson_spec = SAMRAI::solv::PoissonSpecifications("")

protectedinherited

◆ d_default_bc_coef

std::unique_ptr<SAMRAI::solv::RobinBcCoefStrategy<NDIM> > IBTK::PoissonSolver::d_default_bc_coef

protectedinherited

◆ d_bc_coefs

std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBTK::PoissonSolver::d_bc_coefs

protectedinherited

The documentation for this class was generated from the following file:

ibtk/include/ibtk/CCPoissonPETScLevelSolver.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Functions to access solver parameters.

Logging functions.

Functions to access solver parameters.

Logging functions.

Linear solver functionality.

Field split preconditioner.

Detailed Description

Constructor & Destructor Documentation

◆ CCPoissonPETScLevelSolver() [1/3]

◆ ~CCPoissonPETScLevelSolver()

◆ CCPoissonPETScLevelSolver() [2/3]

◆ CCPoissonPETScLevelSolver() [3/3]

Member Function Documentation

◆ allocate_solver()

◆ generateASMSubdomains()

◆ initializeSolverStateSpecialized()

◆ deallocateSolverStateSpecialized()

◆ copyToPETScVec()

◆ copyFromPETScVec()

◆ setupKSPVecs()

◆ operator=()

◆ setKSPType()

◆ setOptionsPrefix()

◆ getPETScKSP()

◆ getASMSubdomains()

◆ setNullSpace()

◆ solveSystem()

◆ initializeSolverState()

◆ deallocateSolverState()

◆ init() [1/2]

◆ init() [2/2]

◆ generateFieldSplitSubdomains()

◆ setupNullSpace()

◆ PCApply_Additive()

◆ PCApply_Multiplicative()

◆ PCApply_RedBlackMultiplicative()

◆ getNullSpaceContainsConstantVector()

◆ getNullSpaceBasisVectors()

◆ setInitialGuessNonzero()

◆ getInitialGuessNonzero()

◆ printClassData()

◆ getName()

◆ getIsInitialized()

◆ setHomogeneousBc()

◆ getHomogeneousBc()

◆ setSolutionTime()

◆ getSolutionTime()

◆ setTimeInterval()

◆ getTimeInterval()

◆ getDt()

◆ setHierarchyMathOps()

◆ getHierarchyMathOps()

◆ setMaxIterations()

◆ getMaxIterations()

◆ setAbsoluteTolerance()

◆ getAbsoluteTolerance()

◆ setRelativeTolerance()

◆ getRelativeTolerance()

◆ getNumIterations()

◆ getResidualNorm()

◆ setLoggingEnabled()

◆ getLoggingEnabled()

◆ initSpecialized() [1/2]

◆ setPoissonSpecifications()

◆ setPhysicalBcCoef()

◆ setPhysicalBcCoefs()

◆ initSpecialized() [2/2]

Member Data Documentation

◆ d_context

◆ d_num_dofs_per_proc

◆ d_dof_index_idx

◆ d_dof_index_var

◆ d_data_synch_sched

◆ d_ghost_fill_sched
