Class VCSCViscousOperator is a subclass of SCLaplaceOperator which implements a globally second-order accurate side-centered finite difference discretization of a vector elliptic operator of the form \( L = \beta C I + \alpha \nabla \cdot \mu ( (\nabla u) + (\nabla u)^T ) \). More...

#include <ibtk/VCSCViscousOperator.h>

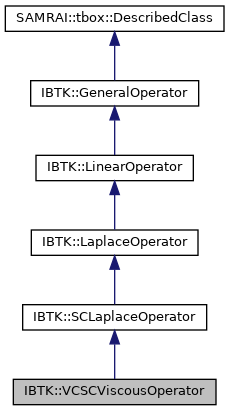

Inheritance diagram for IBTK::VCSCViscousOperator:

[legend]

Public Member Functions
	VCSCViscousOperator (std::string object_name, bool homogeneous_bc=true)
	Constructor for class VCSCViscousOperator initializes the operator coefficients and boundary conditions to default values. More...

	~VCSCViscousOperator ()
	Destructor. More...

virtual void	setPoissonSpecifications (const SAMRAI::solv::PoissonSpecifications &poisson_spec)
	Set the SAMRAI::solv::PoissonSpecifications object used to specify the coefficients for the scalar-valued or vector-valued Laplace operator. More...

virtual const SAMRAI::solv::PoissonSpecifications &	getPoissonSpecifications () const
	Get the SAMRAI::solv::PoissonSpecifications object used to specify the coefficients for the scalar-valued or vector-valued Laplace operator. More...

virtual void	setPhysicalBcCoef (SAMRAI::solv::RobinBcCoefStrategy< NDIM > *bc_coef)
	Set the SAMRAI::solv::RobinBcCoefStrategy object used to specify physical boundary conditions. More...

virtual void	setPhysicalBcCoefs (const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &bc_coefs)
	Set the SAMRAI::solv::RobinBcCoefStrategy objects used to specify physical boundary conditions. More...

virtual const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &	getPhysicalBcCoefs () const
	Get the SAMRAI::solv::RobinBcCoefStrategy object(s) used to specify physical boundary conditions. More...

Linear operator functionality.
void	modifyRhsForBcs (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y) override
	Modify y to account for boundary conditions. More...

General operator functionality.
const std::string &	getName () const
	Return the object name. More...

virtual bool	getIsInitialized () const
	Return whether the operator is initialized. More...

virtual void	setHomogeneousBc (bool homogeneous_bc)
	Set whether the operator should use homogeneous boundary conditions. More...

virtual bool	getHomogeneousBc () const
	Return whether the operator is using homogeneous boundary conditions. More...

virtual void	setSolutionTime (double solution_time)
	Set the time at which the solution is to be evaluated. More...

virtual double	getSolutionTime () const
	Get the time at which the solution is being evaluated. More...

virtual void	setTimeInterval (double current_time, double new_time)
	Set the current time interval. More...

virtual std::pair< double, double >	getTimeInterval () const
	Get the current time interval. More...

virtual double	getDt () const
	Get the current time step size. More...

virtual void	setHierarchyMathOps (SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops)
	Set the HierarchyMathOps object used by the operator. More...

virtual SAMRAI::tbox::Pointer< HierarchyMathOps >	getHierarchyMathOps () const
	Get the HierarchyMathOps object used by the operator. More...

virtual void	applyAdd (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &z)
	Compute \(z=F[x]+y\). More...

virtual void	imposeSolBcs (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &u)
	Impose boudary conditions in the solution vector. More...

Protected Attributes
SAMRAI::solv::PoissonSpecifications	d_poisson_spec

std::unique_ptr< SAMRAI::solv::RobinBcCoefStrategy< NDIM > >	d_default_bc_coef

std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_bc_coefs

Linear operator functionality.
int	d_ncomp = 0

SAMRAI::tbox::Pointer< SAMRAI::xfer::VariableFillPattern< NDIM > >	d_fill_pattern

std::vector< HierarchyGhostCellInterpolation::InterpolationTransactionComponent >	d_transaction_comps

SAMRAI::tbox::Pointer< HierarchyGhostCellInterpolation >	d_hier_bdry_fill

SAMRAI::tbox::Pointer< HierarchyGhostCellInterpolation >	d_no_fill

SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	d_hierarchy

int	d_coarsest_ln = IBTK::invalid_level_number

int	d_finest_ln = IBTK::invalid_level_number

std::vector< SAMRAI::tbox::Pointer< StaggeredPhysicalBoundaryHelper > >	d_bc_helpers

std::string	d_data_refine_type = "NONE"

bool	d_use_cf_interpolation = true

std::string	d_data_coarsen_type = "CUBIC_COARSEN"

std::string	d_bdry_extrap_type = "LINEAR"

bool	d_use_consistent_type_2_bdry = false

Linear operator functionality.
IBTK::VCInterpType	d_D_interp_type

void	apply (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y) override
	Compute y=Ax. More...

void	initializeOperatorState (const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &in, const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &out) override
	Compute hierarchy-dependent data required for computing y=Ax (and y=A'x). More...

void	deallocateOperatorState () override
	Remove all hierarchy-dependent data computed by initializeOperatorState(). More...

void	setDPatchDataInterpolationType (IBTK::VCInterpType D_interp_type)
	Set the interpolation type to be used in computing the variable coefficient viscous Laplacian. More...

	VCSCViscousOperator ()=delete
	Default constructor. More...

	VCSCViscousOperator (const VCSCViscousOperator &from)=delete
	Copy constructor. More...

VCSCViscousOperator &	operator= (const VCSCViscousOperator &that)=delete
	Assignment operator. More...

Logging functions.
virtual void	setLoggingEnabled (bool enable_logging=true)
	Enable or disable logging. More...

virtual bool	getLoggingEnabled () const
	Determine whether logging is enabled or disabled. More...

virtual void	printClassData (std::ostream &stream)
	Print class data to stream. More...

const std::string	d_object_name

bool	d_is_initialized = false

bool	d_homogeneous_bc

double	d_solution_time = std::numeric_limits<double>::quiet_NaN()

double	d_current_time = std::numeric_limits<double>::quiet_NaN()

double	d_new_time = std::numeric_limits<double>::quiet_NaN()

SAMRAI::tbox::Pointer< HierarchyMathOps >	d_hier_math_ops

bool	d_hier_math_ops_external = false

bool	d_enable_logging = false

Detailed Description

Here \( u \) and \( C \) are vector valued side-centered fields and \( \mu \) is a node-(2D) or edge-(3D) centered scalar field.

The scaling factors of \( C \) and \( \mu \) variables are passed separately and are denoted by \( \beta \) and \( \alpha \), respectively.

Constructor & Destructor Documentation

◆ VCSCViscousOperator() [1/3]

IBTK::VCSCViscousOperator::VCSCViscousOperator	(	std::string	object_name,
		bool	homogeneous_bc = `true`
	)

◆ ~VCSCViscousOperator()

IBTK::VCSCViscousOperator::~VCSCViscousOperator ( )

◆ VCSCViscousOperator() [2/3]

IBTK::VCSCViscousOperator::VCSCViscousOperator ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ VCSCViscousOperator() [3/3]

IBTK::VCSCViscousOperator::VCSCViscousOperator ( const VCSCViscousOperator & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ apply()

void IBTK::VCSCViscousOperator::apply	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	y
	)

overridevirtual

Before calling this function, the form of the vectors x and y should be set properly by the user on all patch interiors on the range of levels covered by the operator. All data in these vectors should be allocated. Thus, the user is responsible for managing the storage for the vectors.

Conditions on arguments:

vectors must have same hierarchy
vectors must have same variables (except that x must have enough ghost cells for computation of Ax).

Note: In general, the vectors x and y cannot be the same.

Upon return from this function, the y vector will contain the result of the application of A to x.

initializeOperatorState must be called prior to any calls to applyOperator.

See also: initializeOperatorState

Parameters

x	input
y	output: y=Ax

Reimplemented from IBTK::SCLaplaceOperator.

◆ initializeOperatorState()

void IBTK::VCSCViscousOperator::initializeOperatorState	(	const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	in,
		const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	out
	)

overridevirtual

Parameters

in	input vector
out	output vector

See also: KrylovLinearSolver::initializeSolverState

Reimplemented from IBTK::SCLaplaceOperator.

◆ deallocateOperatorState()

void IBTK::VCSCViscousOperator::deallocateOperatorState ( )

overridevirtual

Remove all hierarchy-dependent data set by initializeOperatorState(). It is safe to call deallocateOperatorState() even if the state is already deallocated.

See also: initializeOperatorState; KrylovLinearSolver::deallocateSolverState

Reimplemented from IBTK::SCLaplaceOperator.

◆ setDPatchDataInterpolationType()

void IBTK::VCSCViscousOperator::setDPatchDataInterpolationType ( IBTK::VCInterpType D_interp_type )

◆ operator=()

VCSCViscousOperator& IBTK::VCSCViscousOperator::operator= ( const VCSCViscousOperator & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ setPoissonSpecifications()

virtual void IBTK::LaplaceOperator::setPoissonSpecifications ( const SAMRAI::solv::PoissonSpecifications & poisson_spec )

virtualinherited

◆ getPoissonSpecifications()

virtual const SAMRAI::solv::PoissonSpecifications& IBTK::LaplaceOperator::getPoissonSpecifications ( ) const

virtualinherited

◆ setPhysicalBcCoef()

virtual void IBTK::LaplaceOperator::setPhysicalBcCoef ( SAMRAI::solv::RobinBcCoefStrategy< NDIM > * bc_coef )

virtualinherited

Note: bc_coef may be nullptr. In this case, default boundary conditions (as supplied to the class constructor) are employed.

Parameters

bc_coef Pointer to an object that can set the Robin boundary condition coefficients

◆ setPhysicalBcCoefs()

virtual void IBTK::LaplaceOperator::setPhysicalBcCoefs ( const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > & bc_coefs )

virtualinherited

Note: Any of the elements of bc_coefs may be nullptr. In this case, default boundary conditions (as supplied to the class constructor) are employed for that data depth.

Parameters

bc_coefs Vector of pointers to objects that can set the Robin boundary condition coefficients

◆ getPhysicalBcCoefs()

virtual const std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*>& IBTK::LaplaceOperator::getPhysicalBcCoefs ( ) const

virtualinherited

◆ modifyRhsForBcs()

void IBTK::LinearOperator::modifyRhsForBcs ( SAMRAI::solv::SAMRAIVectorReal< NDIM, double > & y )

overridevirtualinherited

Before calling this function, the form of the vector y should be set properly by the user on all patch interiors on the range of levels covered by the operator. All data in this vector should be allocated. The user is responsible for managing the storage for the vectors.

Note: The operator MUST be initialized prior to calling modifyRhsForBcs.

See also: initializeOperatorState

Note: A default implementation evaluates y := y - A*0.

Reimplemented from IBTK::GeneralOperator.

◆ getName()

const std::string& IBTK::GeneralOperator::getName ( ) const

inherited

◆ getIsInitialized()

virtual bool IBTK::GeneralOperator::getIsInitialized ( ) const

virtualinherited

◆ setHomogeneousBc()

virtual void IBTK::GeneralOperator::setHomogeneousBc ( bool homogeneous_bc )

virtualinherited

◆ getHomogeneousBc()

virtual bool IBTK::GeneralOperator::getHomogeneousBc ( ) const

virtualinherited

◆ setSolutionTime()

virtual void IBTK::GeneralOperator::setSolutionTime ( double solution_time )

virtualinherited

◆ getSolutionTime()

virtual double IBTK::GeneralOperator::getSolutionTime ( ) const

virtualinherited

◆ setTimeInterval()

virtual void IBTK::GeneralOperator::setTimeInterval	(	double	current_time,
		double	new_time
	)

virtualinherited

◆ getTimeInterval()

virtual std::pair<double, double> IBTK::GeneralOperator::getTimeInterval ( ) const

virtualinherited

◆ getDt()

virtual double IBTK::GeneralOperator::getDt ( ) const

virtualinherited

◆ setHierarchyMathOps()

virtual void IBTK::GeneralOperator::setHierarchyMathOps ( SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops )

virtualinherited

◆ getHierarchyMathOps()

virtual SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralOperator::getHierarchyMathOps ( ) const

virtualinherited

◆ applyAdd()

virtual void IBTK::GeneralOperator::applyAdd	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	y,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	z
	)

virtualinherited

Before calling applyAdd(), the form of the vectors x, y, and z should be set properly by the user on all patch interiors on the specified range of levels in the patch hierarchy. The user is responsible for all data management for the quantities associated with the vectors. In particular, patch data in these vectors must be allocated prior to calling this method.

Parameters

x	input vector
y	input vector
z	output vector, i.e., \(z=F[x]+y\)

Conditions on Parameters:

vectors x, y, and z must have same hierarchy
vectors x, y, and z must have same structure, depth, etc.

In general, the vectors x and y cannot be the same.

Note: Subclasses may require that the operator be initialized prior to calling applyAdd().

See also: initializeOperatorState

Note: A default implementation is provided which employs apply() and SAMRAI::solv::SAMRAIVectorReal::add().

Reimplemented in IBTK::PETScSNESJacobianJOWrapper, and IBTK::PETScMatLOWrapper.

◆ imposeSolBcs()

virtual void IBTK::GeneralOperator::imposeSolBcs ( SAMRAI::solv::SAMRAIVectorReal< NDIM, double > & u )

virtualinherited

Before calling this function, the form of the vector y should be set properly by the user on all patch interiors on the range of levels covered by the operator. All data in this vector should be allocated. The user is responsible for managing the storage for the vectors.

Note: The operator MUST be initialized prior to calling imposeSolBcs.

See also: initializeOperatorState

Note: A default implementation does not modify the sol vector u.

◆ setLoggingEnabled()

virtual void IBTK::GeneralOperator::setLoggingEnabled ( bool enable_logging = true )

virtualinherited

◆ getLoggingEnabled()

virtual bool IBTK::GeneralOperator::getLoggingEnabled ( ) const

virtualinherited

◆ printClassData()

virtual void IBTK::GeneralOperator::printClassData ( std::ostream & stream )

virtualinherited

Member Data Documentation

◆ d_D_interp_type

IBTK::VCInterpType IBTK::VCSCViscousOperator::d_D_interp_type

private

◆ d_ncomp

int IBTK::SCLaplaceOperator::d_ncomp = 0

protectedinherited

◆ d_fill_pattern

SAMRAI::tbox::Pointer<SAMRAI::xfer::VariableFillPattern<NDIM> > IBTK::SCLaplaceOperator::d_fill_pattern

protectedinherited

◆ d_transaction_comps

std::vector<HierarchyGhostCellInterpolation::InterpolationTransactionComponent> IBTK::SCLaplaceOperator::d_transaction_comps

protectedinherited

◆ d_hier_bdry_fill

SAMRAI::tbox::Pointer<HierarchyGhostCellInterpolation> IBTK::SCLaplaceOperator::d_hier_bdry_fill

protectedinherited

◆ d_no_fill

SAMRAI::tbox::Pointer<HierarchyGhostCellInterpolation> IBTK::SCLaplaceOperator::d_no_fill

protectedinherited

◆ d_hierarchy

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchHierarchy<NDIM> > IBTK::SCLaplaceOperator::d_hierarchy

protectedinherited

◆ d_coarsest_ln

int IBTK::SCLaplaceOperator::d_coarsest_ln = IBTK::invalid_level_number

protectedinherited

◆ d_finest_ln

int IBTK::SCLaplaceOperator::d_finest_ln = IBTK::invalid_level_number

protectedinherited

◆ d_bc_helpers

std::vector<SAMRAI::tbox::Pointer<StaggeredPhysicalBoundaryHelper> > IBTK::SCLaplaceOperator::d_bc_helpers

protectedinherited

◆ d_data_refine_type

std::string IBTK::SCLaplaceOperator::d_data_refine_type = "NONE"

protectedinherited

◆ d_use_cf_interpolation

bool IBTK::SCLaplaceOperator::d_use_cf_interpolation = true

protectedinherited

◆ d_data_coarsen_type

std::string IBTK::SCLaplaceOperator::d_data_coarsen_type = "CUBIC_COARSEN"

protectedinherited

◆ d_bdry_extrap_type

std::string IBTK::SCLaplaceOperator::d_bdry_extrap_type = "LINEAR"

protectedinherited

◆ d_use_consistent_type_2_bdry

bool IBTK::SCLaplaceOperator::d_use_consistent_type_2_bdry = false

protectedinherited

◆ d_poisson_spec

SAMRAI::solv::PoissonSpecifications IBTK::LaplaceOperator::d_poisson_spec

protectedinherited

◆ d_default_bc_coef

std::unique_ptr<SAMRAI::solv::RobinBcCoefStrategy<NDIM> > IBTK::LaplaceOperator::d_default_bc_coef

protectedinherited

◆ d_bc_coefs

std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBTK::LaplaceOperator::d_bc_coefs

protectedinherited

◆ d_object_name

const std::string IBTK::GeneralOperator::d_object_name

protectedinherited

◆ d_is_initialized

bool IBTK::GeneralOperator::d_is_initialized = false

protectedinherited

◆ d_homogeneous_bc

bool IBTK::GeneralOperator::d_homogeneous_bc

protectedinherited

◆ d_solution_time

double IBTK::GeneralOperator::d_solution_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_current_time

double IBTK::GeneralOperator::d_current_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_new_time

double IBTK::GeneralOperator::d_new_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_hier_math_ops

SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralOperator::d_hier_math_ops

protectedinherited

◆ d_hier_math_ops_external

bool IBTK::GeneralOperator::d_hier_math_ops_external = false

protectedinherited

◆ d_enable_logging

bool IBTK::GeneralOperator::d_enable_logging = false

protectedinherited

The documentation for this class was generated from the following file:

ibtk/include/ibtk/VCSCViscousOperator.h

Public Member Functions

Protected Attributes

Linear operator functionality.

Logging functions.

Detailed Description

Constructor & Destructor Documentation

◆ VCSCViscousOperator() [1/3]

◆ ~VCSCViscousOperator()

◆ VCSCViscousOperator() [2/3]

◆ VCSCViscousOperator() [3/3]

Member Function Documentation

◆ apply()

◆ initializeOperatorState()

◆ deallocateOperatorState()

◆ setDPatchDataInterpolationType()

◆ operator=()

◆ setPoissonSpecifications()

◆ getPoissonSpecifications()

◆ setPhysicalBcCoef()

◆ setPhysicalBcCoefs()

◆ getPhysicalBcCoefs()

◆ modifyRhsForBcs()

◆ getName()

◆ getIsInitialized()

◆ setHomogeneousBc()

◆ getHomogeneousBc()

◆ setSolutionTime()

◆ getSolutionTime()

◆ setTimeInterval()

◆ getTimeInterval()

◆ getDt()

◆ setHierarchyMathOps()

◆ getHierarchyMathOps()

◆ applyAdd()

◆ imposeSolBcs()

◆ setLoggingEnabled()

◆ getLoggingEnabled()

◆ printClassData()

Member Data Documentation

◆ d_D_interp_type

◆ d_ncomp

◆ d_fill_pattern

◆ d_transaction_comps

◆ d_hier_bdry_fill

◆ d_no_fill

◆ d_hierarchy

◆ d_coarsest_ln

◆ d_finest_ln

◆ d_bc_helpers

◆ d_data_refine_type

◆ d_use_cf_interpolation

◆ d_data_coarsen_type

◆ d_bdry_extrap_type

◆ d_use_consistent_type_2_bdry

◆ d_poisson_spec

◆ d_default_bc_coef

◆ d_bc_coefs

◆ d_object_name

◆ d_is_initialized

◆ d_homogeneous_bc

◆ d_solution_time

◆ d_current_time

◆ d_new_time

◆ d_hier_math_ops

◆ d_hier_math_ops_external

◆ d_enable_logging
