Class LaplaceOperator is an abstract base class for a Laplace-type operators.

#include <ibtk/LaplaceOperator.h>

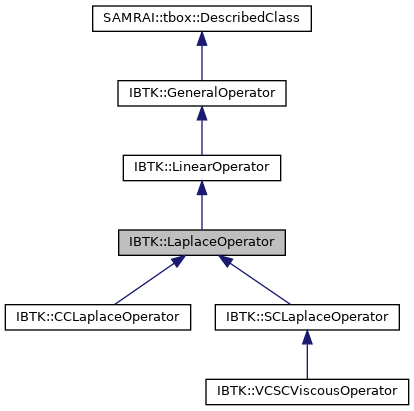

Inheritance diagram for IBTK::LaplaceOperator:

[legend]

Public Member Functions
	LaplaceOperator (std::string object_name, bool homogeneous_bc=false)
	Constructor. More...

	~LaplaceOperator ()=default
	Default destructor. More...

virtual void	setPoissonSpecifications (const SAMRAI::solv::PoissonSpecifications &poisson_spec)
	Set the SAMRAI::solv::PoissonSpecifications object used to specify the coefficients for the scalar-valued or vector-valued Laplace operator. More...

virtual const SAMRAI::solv::PoissonSpecifications &	getPoissonSpecifications () const
	Get the SAMRAI::solv::PoissonSpecifications object used to specify the coefficients for the scalar-valued or vector-valued Laplace operator. More...

virtual void	setPhysicalBcCoef (SAMRAI::solv::RobinBcCoefStrategy< NDIM > *bc_coef)
	Set the SAMRAI::solv::RobinBcCoefStrategy object used to specify physical boundary conditions. More...

virtual void	setPhysicalBcCoefs (const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &bc_coefs)
	Set the SAMRAI::solv::RobinBcCoefStrategy objects used to specify physical boundary conditions. More...

virtual const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &	getPhysicalBcCoefs () const
	Get the SAMRAI::solv::RobinBcCoefStrategy object(s) used to specify physical boundary conditions. More...

Protected Attributes
SAMRAI::solv::PoissonSpecifications	d_poisson_spec

std::unique_ptr< SAMRAI::solv::RobinBcCoefStrategy< NDIM > >	d_default_bc_coef

std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_bc_coefs

Private Member Functions
	LaplaceOperator ()=delete
	Default constructor. More...

	LaplaceOperator (const LaplaceOperator &from)=delete
	Copy constructor. More...

LaplaceOperator &	operator= (const LaplaceOperator &that)=delete
	Assignment operator. More...

General operator functionality.
const std::string &	getName () const
	Return the object name. More...

virtual bool	getIsInitialized () const
	Return whether the operator is initialized. More...

virtual void	setHomogeneousBc (bool homogeneous_bc)
	Set whether the operator should use homogeneous boundary conditions. More...

virtual bool	getHomogeneousBc () const
	Return whether the operator is using homogeneous boundary conditions. More...

virtual void	setSolutionTime (double solution_time)
	Set the time at which the solution is to be evaluated. More...

virtual double	getSolutionTime () const
	Get the time at which the solution is being evaluated. More...

virtual void	setTimeInterval (double current_time, double new_time)
	Set the current time interval. More...

virtual std::pair< double, double >	getTimeInterval () const
	Get the current time interval. More...

virtual double	getDt () const
	Get the current time step size. More...

virtual void	setHierarchyMathOps (SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops)
	Set the HierarchyMathOps object used by the operator. More...

virtual SAMRAI::tbox::Pointer< HierarchyMathOps >	getHierarchyMathOps () const
	Get the HierarchyMathOps object used by the operator. More...

virtual void	apply (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y)=0
	Compute \(y=F[x]\). More...

virtual void	applyAdd (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &z)
	Compute \(z=F[x]+y\). More...

virtual void	initializeOperatorState (const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &in, const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &out)
	Compute hierarchy dependent data required for computing y=F[x] and z=F[x]+y. More...

virtual void	deallocateOperatorState ()
	Remove all hierarchy dependent data allocated by initializeOperatorState(). More...

virtual void	imposeSolBcs (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &u)
	Impose boudary conditions in the solution vector. More...

Logging functions.
const std::string	d_object_name

bool	d_is_initialized = false

bool	d_homogeneous_bc

double	d_solution_time = std::numeric_limits<double>::quiet_NaN()

double	d_current_time = std::numeric_limits<double>::quiet_NaN()

double	d_new_time = std::numeric_limits<double>::quiet_NaN()

SAMRAI::tbox::Pointer< HierarchyMathOps >	d_hier_math_ops

bool	d_hier_math_ops_external = false

bool	d_enable_logging = false

virtual void	setLoggingEnabled (bool enable_logging=true)
	Enable or disable logging. More...

virtual bool	getLoggingEnabled () const
	Determine whether logging is enabled or disabled. More...

virtual void	printClassData (std::ostream &stream)
	Print class data to stream. More...

Constructor & Destructor Documentation

◆ LaplaceOperator() [1/3]

IBTK::LaplaceOperator::LaplaceOperator	(	std::string	object_name,
		bool	homogeneous_bc = `false`
	)

◆ ~LaplaceOperator()

IBTK::LaplaceOperator::~LaplaceOperator ( )

default

◆ LaplaceOperator() [2/3]

IBTK::LaplaceOperator::LaplaceOperator ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ LaplaceOperator() [3/3]

IBTK::LaplaceOperator::LaplaceOperator ( const LaplaceOperator & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ setPoissonSpecifications()

virtual void IBTK::LaplaceOperator::setPoissonSpecifications ( const SAMRAI::solv::PoissonSpecifications & poisson_spec )

virtual

◆ getPoissonSpecifications()

virtual const SAMRAI::solv::PoissonSpecifications& IBTK::LaplaceOperator::getPoissonSpecifications ( ) const

virtual

◆ setPhysicalBcCoef()

virtual void IBTK::LaplaceOperator::setPhysicalBcCoef ( SAMRAI::solv::RobinBcCoefStrategy< NDIM > * bc_coef )

virtual

Note: bc_coef may be nullptr. In this case, default boundary conditions (as supplied to the class constructor) are employed.

Parameters

bc_coef Pointer to an object that can set the Robin boundary condition coefficients

◆ setPhysicalBcCoefs()

virtual void IBTK::LaplaceOperator::setPhysicalBcCoefs ( const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > & bc_coefs )

virtual

Note: Any of the elements of bc_coefs may be nullptr. In this case, default boundary conditions (as supplied to the class constructor) are employed for that data depth.

Parameters

bc_coefs Vector of pointers to objects that can set the Robin boundary condition coefficients

◆ getPhysicalBcCoefs()

virtual const std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*>& IBTK::LaplaceOperator::getPhysicalBcCoefs ( ) const

virtual

◆ operator=()

LaplaceOperator& IBTK::LaplaceOperator::operator= ( const LaplaceOperator & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ modifyRhsForBcs()

void IBTK::LinearOperator::modifyRhsForBcs ( SAMRAI::solv::SAMRAIVectorReal< NDIM, double > & y )

overridevirtualinherited

Before calling this function, the form of the vector y should be set properly by the user on all patch interiors on the range of levels covered by the operator. All data in this vector should be allocated. The user is responsible for managing the storage for the vectors.

Note: The operator MUST be initialized prior to calling modifyRhsForBcs.

See also: initializeOperatorState

Note: A default implementation evaluates y := y - A*0.

Reimplemented from IBTK::GeneralOperator.

◆ getName()

const std::string& IBTK::GeneralOperator::getName ( ) const

inherited

◆ getIsInitialized()

virtual bool IBTK::GeneralOperator::getIsInitialized ( ) const

virtualinherited

◆ setHomogeneousBc()

virtual void IBTK::GeneralOperator::setHomogeneousBc ( bool homogeneous_bc )

virtualinherited

◆ getHomogeneousBc()

virtual bool IBTK::GeneralOperator::getHomogeneousBc ( ) const

virtualinherited

◆ setSolutionTime()

virtual void IBTK::GeneralOperator::setSolutionTime ( double solution_time )

virtualinherited

◆ getSolutionTime()

virtual double IBTK::GeneralOperator::getSolutionTime ( ) const

virtualinherited

◆ setTimeInterval()

virtual void IBTK::GeneralOperator::setTimeInterval	(	double	current_time,
		double	new_time
	)

virtualinherited

◆ getTimeInterval()

virtual std::pair<double, double> IBTK::GeneralOperator::getTimeInterval ( ) const

virtualinherited

◆ getDt()

virtual double IBTK::GeneralOperator::getDt ( ) const

virtualinherited

◆ setHierarchyMathOps()

virtual void IBTK::GeneralOperator::setHierarchyMathOps ( SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops )

virtualinherited

◆ getHierarchyMathOps()

virtual SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralOperator::getHierarchyMathOps ( ) const

virtualinherited

◆ apply()

virtual void IBTK::GeneralOperator::apply	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	y
	)

pure virtualinherited

Before calling apply(), the form of the vectors x and y should be set properly by the user on all patch interiors on the specified range of levels in the patch hierarchy. The user is responsible for all data management for the quantities associated with the vectors. In particular, patch data in these vectors must be allocated prior to calling this method.

Parameters

x	input vector
y	output vector, i.e., \(y=F[x]\)

Conditions on Parameters:

vectors x and y must have same hierarchy
vectors x and y must have same structure, depth, etc.

In general, the vectors x and y cannot be the same.

Note: Subclasses may require that the operator be initialized prior to calling apply().

See also: initializeOperatorState

Implemented in IBTK::PETScSNESJacobianJOWrapper, IBTK::PETScMFFDJacobianOperator, IBTK::PETScSNESFunctionGOWrapper, IBAMR::ConvectiveOperator, IBAMR::VCStaggeredStokesOperator, IBTK::PETScMatLOWrapper, IBTK::SCLaplaceOperator, IBTK::CCLaplaceOperator, and IBTK::VCSCViscousOperator.

◆ applyAdd()

virtual void IBTK::GeneralOperator::applyAdd	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	y,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	z
	)

virtualinherited

Before calling applyAdd(), the form of the vectors x, y, and z should be set properly by the user on all patch interiors on the specified range of levels in the patch hierarchy. The user is responsible for all data management for the quantities associated with the vectors. In particular, patch data in these vectors must be allocated prior to calling this method.

Parameters

x	input vector
y	input vector
z	output vector, i.e., \(z=F[x]+y\)

Conditions on Parameters:

vectors x, y, and z must have same hierarchy
vectors x, y, and z must have same structure, depth, etc.

In general, the vectors x and y cannot be the same.

Note: Subclasses may require that the operator be initialized prior to calling applyAdd().

See also: initializeOperatorState

Note: A default implementation is provided which employs apply() and SAMRAI::solv::SAMRAIVectorReal::add().

Reimplemented in IBTK::PETScSNESJacobianJOWrapper, and IBTK::PETScMatLOWrapper.

◆ initializeOperatorState()

virtual void IBTK::GeneralOperator::initializeOperatorState	(	const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	in,
		const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	out
	)

virtualinherited

The vector arguments for apply(), applyAdd(), etc, need not match those for initializeOperatorState(). However, there must be a certain degree of similarity, including

hierarchy configuration (hierarchy pointer and level range)
number, type and alignment of vector component data
ghost cell widths of data in the input and output vectors

Note: It is generally necessary to reinitialize the operator state when the hierarchy configuration changes.

It is safe to call initializeOperatorState() when the state is already initialized. In this case, the operator state is first deallocated and then reinitialized.

Conditions on arguments:

input and output vectors must have same hierarchy
input and output vectors must have same structure, depth, etc.

Call deallocateOperatorState() to remove any data allocated by this method.

See also: deallocateOperatorState

Parameters

in	input vector
out	output vector

◆ deallocateOperatorState()

virtual void IBTK::GeneralOperator::deallocateOperatorState ( )

virtualinherited

Note: Subclasses are required to be implemented so that it is safe to call deallocateOperatorState() when the operator state is already deallocated.

See also: initializeOperatorState

◆ imposeSolBcs()

virtual void IBTK::GeneralOperator::imposeSolBcs ( SAMRAI::solv::SAMRAIVectorReal< NDIM, double > & u )

virtualinherited

Before calling this function, the form of the vector y should be set properly by the user on all patch interiors on the range of levels covered by the operator. All data in this vector should be allocated. The user is responsible for managing the storage for the vectors.

Note: The operator MUST be initialized prior to calling imposeSolBcs.

See also: initializeOperatorState

Note: A default implementation does not modify the sol vector u.

◆ setLoggingEnabled()

virtual void IBTK::GeneralOperator::setLoggingEnabled ( bool enable_logging = true )

virtualinherited

◆ getLoggingEnabled()

virtual bool IBTK::GeneralOperator::getLoggingEnabled ( ) const

virtualinherited

◆ printClassData()

virtual void IBTK::GeneralOperator::printClassData ( std::ostream & stream )

virtualinherited

Member Data Documentation

◆ d_poisson_spec

SAMRAI::solv::PoissonSpecifications IBTK::LaplaceOperator::d_poisson_spec

protected

◆ d_default_bc_coef

std::unique_ptr<SAMRAI::solv::RobinBcCoefStrategy<NDIM> > IBTK::LaplaceOperator::d_default_bc_coef

protected

◆ d_bc_coefs

std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBTK::LaplaceOperator::d_bc_coefs

protected

◆ d_object_name

const std::string IBTK::GeneralOperator::d_object_name

protectedinherited

◆ d_is_initialized

bool IBTK::GeneralOperator::d_is_initialized = false

protectedinherited

◆ d_homogeneous_bc

bool IBTK::GeneralOperator::d_homogeneous_bc

protectedinherited

◆ d_solution_time

double IBTK::GeneralOperator::d_solution_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_current_time

double IBTK::GeneralOperator::d_current_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_new_time

double IBTK::GeneralOperator::d_new_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_hier_math_ops

SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralOperator::d_hier_math_ops

protectedinherited

◆ d_hier_math_ops_external

bool IBTK::GeneralOperator::d_hier_math_ops_external = false

protectedinherited

◆ d_enable_logging

bool IBTK::GeneralOperator::d_enable_logging = false

protectedinherited

The documentation for this class was generated from the following file:

ibtk/include/ibtk/LaplaceOperator.h

Public Member Functions

Protected Attributes

Private Member Functions

General operator functionality.

Logging functions.

Constructor & Destructor Documentation

◆ LaplaceOperator() [1/3]

◆ ~LaplaceOperator()

◆ LaplaceOperator() [2/3]

◆ LaplaceOperator() [3/3]

Member Function Documentation

◆ setPoissonSpecifications()

◆ getPoissonSpecifications()

◆ setPhysicalBcCoef()

◆ setPhysicalBcCoefs()

◆ getPhysicalBcCoefs()

◆ operator=()

◆ modifyRhsForBcs()

◆ getName()

◆ getIsInitialized()

◆ setHomogeneousBc()

◆ getHomogeneousBc()

◆ setSolutionTime()

◆ getSolutionTime()

◆ setTimeInterval()

◆ getTimeInterval()

◆ getDt()

◆ setHierarchyMathOps()

◆ getHierarchyMathOps()

◆ apply()

◆ applyAdd()

◆ initializeOperatorState()

◆ deallocateOperatorState()

◆ imposeSolBcs()

◆ setLoggingEnabled()

◆ getLoggingEnabled()

◆ printClassData()

Member Data Documentation

◆ d_poisson_spec

◆ d_default_bc_coef

◆ d_bc_coefs

◆ d_object_name

◆ d_is_initialized

◆ d_homogeneous_bc

◆ d_solution_time

◆ d_current_time

◆ d_new_time

◆ d_hier_math_ops

◆ d_hier_math_ops_external

◆ d_enable_logging
