Class AdvDiffCenteredConvectiveOperator is a concrete ConvectiveOperator that implements a centered convective differencing operator. More...

#include <ibamr/AdvDiffCenteredConvectiveOperator.h>

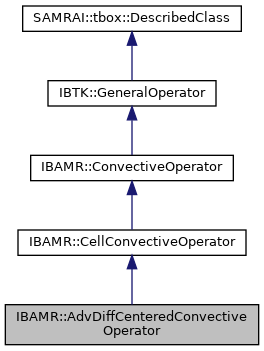

Inheritance diagram for IBAMR::AdvDiffCenteredConvectiveOperator:

[legend]

Public Member Functions
	AdvDiffCenteredConvectiveOperator (std::string object_name, SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, ConvectiveDifferencingType difference_form, std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > bc_coefs)
	Class constructor. More...

	~AdvDiffCenteredConvectiveOperator ()=default
	Default destructor. More...

void	interpolateToFaceOnPatch (SAMRAI::pdat::FaceData< NDIM, double > &q_interp_data, const SAMRAI::pdat::CellData< NDIM, double > &Q_cell_data, const SAMRAI::pdat::FaceData< NDIM, double > &u_data, const SAMRAI::hier::Patch< NDIM > &patch) override
	Interpolate a cell-centered field Q to a face-centered field q on a single grid patch. More...

virtual void	interpolateToFaceOnHierarchy (int q_interp_idx, int Q_cell_idx, int u_idx, bool synch_cf_bdry=true)
	Interpolate a cell-centered field Q to a face-centered field q, possibly using the provided advection velocity field. More...

virtual void	evaluateAdvectiveFluxOnHierarchy (int q_flux_idx, int Q_cell_idx, int u_idx, const bool synch_cf_bdry=true)
	Evaluate the face-centered flux Q to a face-centered field q using the provided advection velocity field. More...

virtual void	computeAdvectiveDerivativeOnHierarchy (int N_cell_idx, int q_interp_idx, int u_idx, bool synch_cf_bdry=true)
	Compute the advective derivative N = u * grad Q on the patch hierarchy. More...

virtual void	computeConservativeDerivativeOnHierarchy (int N_cell_idx, int q_flux_idx, bool synch_cf_bdry=true)
	Compute the conservative derivative N = div(Q u) on the patch hierarchy. More...

virtual void	computeSkewSymmetricDerivativeOnHierarchy (int N_cell_idx, int q_interp_idx, int q_flux_idx, int u_idx, bool synch_cf_bdry=true)
	Compute the skew-symmetric derivative N = 0.5[u * grad Q + div(Q u)] on the patch hierarchy. More...

virtual void	evaluateAdvectiveFluxOnPatch (SAMRAI::pdat::FaceData< NDIM, double > &q_flux_data, const SAMRAI::pdat::CellData< NDIM, double > &Q_cell_data, const SAMRAI::pdat::FaceData< NDIM, double > &u_data, const SAMRAI::hier::Patch< NDIM > &patch)
	Evaluate the face-centered flux Q to a face-centered field q using the provided advection velocity field. More...

void	applyConvectiveOperator (int Q_idx, int N_idx) override
	Compute N = u * grad Q or N = div(Q u). More...

void	setAdvectionVelocity (int u_idx)
	Set the patch data index corresponding to the advection velocity to be used when computing the convective derivative. More...

int	getAdvectionVelocity () const
	Get the patch data index corresponding to the advection velocity used when computing the convective derivative. More...

void	setConvectiveDifferencingType (ConvectiveDifferencingType difference_form)
	Set the convective differencing form to be used by the operator. More...

ConvectiveDifferencingType	getConvectiveDifferencingType () const
	Get the convective differencing form used by the operator. More...

Static Public Member Functions
static SAMRAI::tbox::Pointer< ConvectiveOperator >	allocate_operator (const std::string &object_name, SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, ConvectiveDifferencingType difference_form, const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &bc_coefs)
	Static function to construct an AdvDiffCenteredConvectiveOperator. More...

Private Member Functions
	AdvDiffCenteredConvectiveOperator ()=delete
	Default constructor. More...

	AdvDiffCenteredConvectiveOperator (const AdvDiffCenteredConvectiveOperator &from)=delete
	Copy constructor. More...

AdvDiffCenteredConvectiveOperator &	operator= (const AdvDiffCenteredConvectiveOperator &that)=delete
	Assignment operator. More...

General operator functionality.
void	initializeOperatorState (const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &in, const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &out) override
	Compute hierarchy dependent data required for computing y=F[x] and z=F[x]+y. More...

void	deallocateOperatorState () override
	Remove all hierarchy dependent data allocated by initializeOperatorState(). More...

SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineOperator< NDIM > >	d_Q_cell_refine_op

SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineAlgorithm< NDIM > >	d_Q_cell_refine_alg

SAMRAI::tbox::Pointer< SAMRAI::xfer::RefinePatchStrategy< NDIM > >	d_Q_cell_refine_bdry_op

std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::RefineSchedule< NDIM > > >	d_Q_cell_refine_scheds

SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenOperator< NDIM > >	d_q_flux_coarsen_op

SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenOperator< NDIM > >	d_q_interp_coarsen_op

SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenAlgorithm< NDIM > >	d_q_flux_coarsen_alg

SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenAlgorithm< NDIM > >	d_q_interp_coarsen_alg

std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >	d_q_flux_coarsen_scheds

std::vector< SAMRAI::tbox::Pointer< SAMRAI::xfer::CoarsenSchedule< NDIM > > >	d_q_interp_coarsen_scheds

const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	d_bc_coefs

std::string	d_outflow_bdry_extrap_type = "CONSTANT"

SAMRAI::tbox::Pointer< SAMRAI::hier::PatchHierarchy< NDIM > >	d_hierarchy

SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	d_Q_cell_var

SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >	d_q_flux_var

SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >	d_q_interp_var

SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >	d_u_var

int	d_Q_scratch_idx

int	d_Q_ghost_idx

int	d_q_flux_idx

int	d_q_interp_idx

General operator functionality.
void	apply (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y) override
	Compute \(y=F[x]\). More...

ConvectiveDifferencingType	d_difference_form

int	d_u_idx = IBTK::invalid_index

General operator functionality.
const std::string &	getName () const
	Return the object name. More...

virtual bool	getIsInitialized () const
	Return whether the operator is initialized. More...

virtual void	setHomogeneousBc (bool homogeneous_bc)
	Set whether the operator should use homogeneous boundary conditions. More...

virtual bool	getHomogeneousBc () const
	Return whether the operator is using homogeneous boundary conditions. More...

virtual void	setSolutionTime (double solution_time)
	Set the time at which the solution is to be evaluated. More...

virtual double	getSolutionTime () const
	Get the time at which the solution is being evaluated. More...

virtual void	setTimeInterval (double current_time, double new_time)
	Set the current time interval. More...

virtual std::pair< double, double >	getTimeInterval () const
	Get the current time interval. More...

virtual double	getDt () const
	Get the current time step size. More...

virtual void	setHierarchyMathOps (SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops)
	Set the HierarchyMathOps object used by the operator. More...

virtual SAMRAI::tbox::Pointer< HierarchyMathOps >	getHierarchyMathOps () const
	Get the HierarchyMathOps object used by the operator. More...

virtual void	applyAdd (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &x, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y, SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &z)
	Compute \(z=F[x]+y\). More...

virtual void	modifyRhsForBcs (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &y)
	Modify the RHS vector to account for boundary conditions. More...

virtual void	imposeSolBcs (SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &u)
	Impose boudary conditions in the solution vector. More...

Logging functions.
virtual void	setLoggingEnabled (bool enable_logging=true)
	Enable or disable logging. More...

virtual bool	getLoggingEnabled () const
	Determine whether logging is enabled or disabled. More...

virtual void	printClassData (std::ostream &stream)
	Print class data to stream. More...

const std::string	d_object_name

bool	d_is_initialized = false

bool	d_homogeneous_bc

double	d_solution_time = std::numeric_limits<double>::quiet_NaN()

double	d_current_time = std::numeric_limits<double>::quiet_NaN()

double	d_new_time = std::numeric_limits<double>::quiet_NaN()

SAMRAI::tbox::Pointer< HierarchyMathOps >	d_hier_math_ops

bool	d_hier_math_ops_external = false

bool	d_enable_logging = false

Detailed Description

See also: AdvDiffSemiImplicitHierarchyIntegrator

Constructor & Destructor Documentation

◆ AdvDiffCenteredConvectiveOperator() [1/3]

IBAMR::AdvDiffCenteredConvectiveOperator::AdvDiffCenteredConvectiveOperator	(	std::string	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		ConvectiveDifferencingType	difference_form,
		std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	bc_coefs
	)

◆ ~AdvDiffCenteredConvectiveOperator()

IBAMR::AdvDiffCenteredConvectiveOperator::~AdvDiffCenteredConvectiveOperator ( )

default

◆ AdvDiffCenteredConvectiveOperator() [2/3]

IBAMR::AdvDiffCenteredConvectiveOperator::AdvDiffCenteredConvectiveOperator ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ AdvDiffCenteredConvectiveOperator() [3/3]

IBAMR::AdvDiffCenteredConvectiveOperator::AdvDiffCenteredConvectiveOperator ( const AdvDiffCenteredConvectiveOperator & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ allocate_operator()

static SAMRAI::tbox::Pointer<ConvectiveOperator> IBAMR::AdvDiffCenteredConvectiveOperator::allocate_operator	(	const std::string &	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		ConvectiveDifferencingType	difference_form,
		const std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > &	bc_coefs
	)

inlinestatic

◆ interpolateToFaceOnPatch()

void IBAMR::AdvDiffCenteredConvectiveOperator::interpolateToFaceOnPatch	(	SAMRAI::pdat::FaceData< NDIM, double > &	q_interp_data,
		const SAMRAI::pdat::CellData< NDIM, double > &	Q_cell_data,
		const SAMRAI::pdat::FaceData< NDIM, double > &	u_data,
		const SAMRAI::hier::Patch< NDIM > &	patch
	)

overridevirtual

Implements IBAMR::CellConvectiveOperator.

◆ operator=()

AdvDiffCenteredConvectiveOperator& IBAMR::AdvDiffCenteredConvectiveOperator::operator= ( const AdvDiffCenteredConvectiveOperator & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ interpolateToFaceOnHierarchy()

virtual void IBAMR::CellConvectiveOperator::interpolateToFaceOnHierarchy	(	int	q_interp_idx,
		int	Q_cell_idx,
		int	u_idx,
		bool	synch_cf_bdry = `true`
	)

virtualinherited

◆ evaluateAdvectiveFluxOnHierarchy()

virtual void IBAMR::CellConvectiveOperator::evaluateAdvectiveFluxOnHierarchy	(	int	q_flux_idx,
		int	Q_cell_idx,
		int	u_idx,
		const bool	synch_cf_bdry = `true`
	)

virtualinherited

◆ computeAdvectiveDerivativeOnHierarchy()

virtual void IBAMR::CellConvectiveOperator::computeAdvectiveDerivativeOnHierarchy	(	int	N_cell_idx,
		int	q_interp_idx,
		int	u_idx,
		bool	synch_cf_bdry = `true`
	)

virtualinherited

◆ computeConservativeDerivativeOnHierarchy()

virtual void IBAMR::CellConvectiveOperator::computeConservativeDerivativeOnHierarchy	(	int	N_cell_idx,
		int	q_flux_idx,
		bool	synch_cf_bdry = `true`
	)

virtualinherited

◆ computeSkewSymmetricDerivativeOnHierarchy()

virtual void IBAMR::CellConvectiveOperator::computeSkewSymmetricDerivativeOnHierarchy	(	int	N_cell_idx,
		int	q_interp_idx,
		int	q_flux_idx,
		int	u_idx,
		bool	synch_cf_bdry = `true`
	)

virtualinherited

◆ evaluateAdvectiveFluxOnPatch()

virtual void IBAMR::CellConvectiveOperator::evaluateAdvectiveFluxOnPatch	(	SAMRAI::pdat::FaceData< NDIM, double > &	q_flux_data,
		const SAMRAI::pdat::CellData< NDIM, double > &	Q_cell_data,
		const SAMRAI::pdat::FaceData< NDIM, double > &	u_data,
		const SAMRAI::hier::Patch< NDIM > &	patch
	)

virtualinherited

A default implementation is provided that uses interpolateToFaceOnPatch to determine the advective fluxes.

◆ applyConvectiveOperator()

void IBAMR::CellConvectiveOperator::applyConvectiveOperator	(	int	Q_idx,
		int	N_idx
	)

overridevirtualinherited

Implements IBAMR::ConvectiveOperator.

◆ initializeOperatorState()

void IBAMR::CellConvectiveOperator::initializeOperatorState	(	const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	in,
		const SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	out
	)

overridevirtualinherited

The vector arguments for apply(), applyAdd(), etc, need not match those for initializeOperatorState(). However, there must be a certain degree of similarity, including

hierarchy configuration (hierarchy pointer and level range)
number, type and alignment of vector component data
ghost cell widths of data in the input and output vectors

Note: It is generally necessary to reinitialize the operator state when the hierarchy configuration changes.

It is safe to call initializeOperatorState() when the state is already initialized. In this case, the operator state is first deallocated and then reinitialized.

Conditions on arguments:

input and output vectors must have same hierarchy
input and output vectors must have same structure, depth, etc.

Call deallocateOperatorState() to remove any data allocated by this method.

See also: deallocateOperatorState

Parameters

in	input vector
out	output vector

Reimplemented from IBTK::GeneralOperator.

◆ deallocateOperatorState()

void IBAMR::CellConvectiveOperator::deallocateOperatorState ( )

overridevirtualinherited

Reimplemented from IBTK::GeneralOperator.

◆ setAdvectionVelocity()

void IBAMR::ConvectiveOperator::setAdvectionVelocity ( int u_idx )

inherited

◆ getAdvectionVelocity()

int IBAMR::ConvectiveOperator::getAdvectionVelocity ( ) const

inherited

◆ setConvectiveDifferencingType()

void IBAMR::ConvectiveOperator::setConvectiveDifferencingType ( ConvectiveDifferencingType difference_form )

inherited

◆ getConvectiveDifferencingType()

ConvectiveDifferencingType IBAMR::ConvectiveOperator::getConvectiveDifferencingType ( ) const

inherited

◆ apply()

void IBAMR::ConvectiveOperator::apply	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	y
	)

overridevirtualinherited

Before calling apply(), the form of the vectors x and y should be set properly by the user on all patch interiors on the specified range of levels in the patch hierarchy. The user is responsible for all data management for the quantities associated with the vectors. In particular, patch data in these vectors must be allocated prior to calling this method.

Parameters

x	input vector
y	output vector, i.e., \(y=F[x]\)

Conditions on Parameters:

vectors x and y must have same hierarchy
vectors x and y must have same structure, depth, etc.

In general, the vectors x and y cannot be the same.

See also: initializeOperatorState

Implements IBTK::GeneralOperator.

◆ getName()

const std::string& IBTK::GeneralOperator::getName ( ) const

inherited

◆ getIsInitialized()

virtual bool IBTK::GeneralOperator::getIsInitialized ( ) const

virtualinherited

◆ setHomogeneousBc()

virtual void IBTK::GeneralOperator::setHomogeneousBc ( bool homogeneous_bc )

virtualinherited

◆ getHomogeneousBc()

virtual bool IBTK::GeneralOperator::getHomogeneousBc ( ) const

virtualinherited

◆ setSolutionTime()

virtual void IBTK::GeneralOperator::setSolutionTime ( double solution_time )

virtualinherited

◆ getSolutionTime()

virtual double IBTK::GeneralOperator::getSolutionTime ( ) const

virtualinherited

◆ setTimeInterval()

virtual void IBTK::GeneralOperator::setTimeInterval	(	double	current_time,
		double	new_time
	)

virtualinherited

◆ getTimeInterval()

virtual std::pair<double, double> IBTK::GeneralOperator::getTimeInterval ( ) const

virtualinherited

◆ getDt()

virtual double IBTK::GeneralOperator::getDt ( ) const

virtualinherited

◆ setHierarchyMathOps()

virtual void IBTK::GeneralOperator::setHierarchyMathOps ( SAMRAI::tbox::Pointer< HierarchyMathOps > hier_math_ops )

virtualinherited

◆ getHierarchyMathOps()

virtual SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralOperator::getHierarchyMathOps ( ) const

virtualinherited

◆ applyAdd()

virtual void IBTK::GeneralOperator::applyAdd	(	SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	x,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	y,
		SAMRAI::solv::SAMRAIVectorReal< NDIM, double > &	z
	)

virtualinherited

Before calling applyAdd(), the form of the vectors x, y, and z should be set properly by the user on all patch interiors on the specified range of levels in the patch hierarchy. The user is responsible for all data management for the quantities associated with the vectors. In particular, patch data in these vectors must be allocated prior to calling this method.

Parameters

x	input vector
y	input vector
z	output vector, i.e., \(z=F[x]+y\)

Conditions on Parameters:

vectors x, y, and z must have same hierarchy
vectors x, y, and z must have same structure, depth, etc.

In general, the vectors x and y cannot be the same.

Note: Subclasses may require that the operator be initialized prior to calling applyAdd().

See also: initializeOperatorState

Note: A default implementation is provided which employs apply() and SAMRAI::solv::SAMRAIVectorReal::add().

Reimplemented in IBTK::PETScSNESJacobianJOWrapper, and IBTK::PETScMatLOWrapper.

◆ modifyRhsForBcs()

virtual void IBTK::GeneralOperator::modifyRhsForBcs ( SAMRAI::solv::SAMRAIVectorReal< NDIM, double > & y )

virtualinherited

Before calling this function, the form of the vector y should be set properly by the user on all patch interiors on the range of levels covered by the operator. All data in this vector should be allocated. The user is responsible for managing the storage for the vectors.

Note: The operator MUST be initialized prior to calling modifyRhsForBcs.

See also: initializeOperatorState

Note: A default implementation does not modify the RHS vector y.

Reimplemented in IBTK::LinearOperator.

◆ imposeSolBcs()

virtual void IBTK::GeneralOperator::imposeSolBcs ( SAMRAI::solv::SAMRAIVectorReal< NDIM, double > & u )

virtualinherited

Before calling this function, the form of the vector y should be set properly by the user on all patch interiors on the range of levels covered by the operator. All data in this vector should be allocated. The user is responsible for managing the storage for the vectors.

Note: The operator MUST be initialized prior to calling imposeSolBcs.

See also: initializeOperatorState

Note: A default implementation does not modify the sol vector u.

◆ setLoggingEnabled()

virtual void IBTK::GeneralOperator::setLoggingEnabled ( bool enable_logging = true )

virtualinherited

◆ getLoggingEnabled()

virtual bool IBTK::GeneralOperator::getLoggingEnabled ( ) const

virtualinherited

◆ printClassData()

virtual void IBTK::GeneralOperator::printClassData ( std::ostream & stream )

virtualinherited

Member Data Documentation

◆ d_Q_cell_refine_op

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineOperator<NDIM> > IBAMR::CellConvectiveOperator::d_Q_cell_refine_op

privateinherited

◆ d_Q_cell_refine_alg

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineAlgorithm<NDIM> > IBAMR::CellConvectiveOperator::d_Q_cell_refine_alg

privateinherited

◆ d_Q_cell_refine_bdry_op

SAMRAI::tbox::Pointer<SAMRAI::xfer::RefinePatchStrategy<NDIM> > IBAMR::CellConvectiveOperator::d_Q_cell_refine_bdry_op

privateinherited

◆ d_Q_cell_refine_scheds

std::vector<SAMRAI::tbox::Pointer<SAMRAI::xfer::RefineSchedule<NDIM> > > IBAMR::CellConvectiveOperator::d_Q_cell_refine_scheds

privateinherited

◆ d_q_flux_coarsen_op

SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenOperator<NDIM> > IBAMR::CellConvectiveOperator::d_q_flux_coarsen_op

privateinherited

◆ d_q_interp_coarsen_op

SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenOperator<NDIM> > IBAMR::CellConvectiveOperator::d_q_interp_coarsen_op

privateinherited

◆ d_q_flux_coarsen_alg

SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenAlgorithm<NDIM> > IBAMR::CellConvectiveOperator::d_q_flux_coarsen_alg

privateinherited

◆ d_q_interp_coarsen_alg

SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenAlgorithm<NDIM> > IBAMR::CellConvectiveOperator::d_q_interp_coarsen_alg

privateinherited

◆ d_q_flux_coarsen_scheds

std::vector<SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenSchedule<NDIM> > > IBAMR::CellConvectiveOperator::d_q_flux_coarsen_scheds

privateinherited

◆ d_q_interp_coarsen_scheds

std::vector<SAMRAI::tbox::Pointer<SAMRAI::xfer::CoarsenSchedule<NDIM> > > IBAMR::CellConvectiveOperator::d_q_interp_coarsen_scheds

privateinherited

◆ d_bc_coefs

const std::vector<SAMRAI::solv::RobinBcCoefStrategy<NDIM>*> IBAMR::CellConvectiveOperator::d_bc_coefs

privateinherited

◆ d_outflow_bdry_extrap_type

std::string IBAMR::CellConvectiveOperator::d_outflow_bdry_extrap_type = "CONSTANT"

privateinherited

◆ d_hierarchy

SAMRAI::tbox::Pointer<SAMRAI::hier::PatchHierarchy<NDIM> > IBAMR::CellConvectiveOperator::d_hierarchy

privateinherited

◆ d_Q_cell_var

SAMRAI::tbox::Pointer<SAMRAI::pdat::CellVariable<NDIM, double> > IBAMR::CellConvectiveOperator::d_Q_cell_var

privateinherited

◆ d_q_flux_var

SAMRAI::tbox::Pointer<SAMRAI::pdat::FaceVariable<NDIM, double> > IBAMR::CellConvectiveOperator::d_q_flux_var

privateinherited

◆ d_q_interp_var

SAMRAI::tbox::Pointer<SAMRAI::pdat::FaceVariable<NDIM, double> > IBAMR::CellConvectiveOperator::d_q_interp_var

privateinherited

◆ d_u_var

SAMRAI::tbox::Pointer<SAMRAI::pdat::FaceVariable<NDIM, double> > IBAMR::CellConvectiveOperator::d_u_var

privateinherited

◆ d_Q_scratch_idx

int IBAMR::CellConvectiveOperator::d_Q_scratch_idx

privateinherited

◆ d_Q_ghost_idx

int IBAMR::CellConvectiveOperator::d_Q_ghost_idx

privateinherited

◆ d_q_flux_idx

int IBAMR::CellConvectiveOperator::d_q_flux_idx

privateinherited

◆ d_q_interp_idx

int IBAMR::CellConvectiveOperator::d_q_interp_idx

privateinherited

◆ d_difference_form

ConvectiveDifferencingType IBAMR::ConvectiveOperator::d_difference_form

protectedinherited

Enumerated type that determines which form of differencing to use.

◆ d_u_idx

int IBAMR::ConvectiveOperator::d_u_idx = IBTK::invalid_index

protectedinherited

The advection velocity patch data descriptor index.

◆ d_object_name

const std::string IBTK::GeneralOperator::d_object_name

protectedinherited

◆ d_is_initialized

bool IBTK::GeneralOperator::d_is_initialized = false

protectedinherited

◆ d_homogeneous_bc

bool IBTK::GeneralOperator::d_homogeneous_bc

protectedinherited

◆ d_solution_time

double IBTK::GeneralOperator::d_solution_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_current_time

double IBTK::GeneralOperator::d_current_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_new_time

double IBTK::GeneralOperator::d_new_time = std::numeric_limits<double>::quiet_NaN()

protectedinherited

◆ d_hier_math_ops

SAMRAI::tbox::Pointer<HierarchyMathOps> IBTK::GeneralOperator::d_hier_math_ops

protectedinherited

◆ d_hier_math_ops_external

bool IBTK::GeneralOperator::d_hier_math_ops_external = false

protectedinherited

◆ d_enable_logging

bool IBTK::GeneralOperator::d_enable_logging = false

protectedinherited

The documentation for this class was generated from the following file:

include/ibamr/AdvDiffCenteredConvectiveOperator.h

Public Member Functions

Static Public Member Functions

Private Member Functions

General operator functionality.

General operator functionality.

General operator functionality.

Logging functions.

Detailed Description

Constructor & Destructor Documentation

◆ AdvDiffCenteredConvectiveOperator() [1/3]

◆ ~AdvDiffCenteredConvectiveOperator()

◆ AdvDiffCenteredConvectiveOperator() [2/3]

◆ AdvDiffCenteredConvectiveOperator() [3/3]

Member Function Documentation

◆ allocate_operator()

◆ interpolateToFaceOnPatch()

◆ operator=()

◆ interpolateToFaceOnHierarchy()

◆ evaluateAdvectiveFluxOnHierarchy()

◆ computeAdvectiveDerivativeOnHierarchy()

◆ computeConservativeDerivativeOnHierarchy()

◆ computeSkewSymmetricDerivativeOnHierarchy()

◆ evaluateAdvectiveFluxOnPatch()

◆ applyConvectiveOperator()

◆ initializeOperatorState()

◆ deallocateOperatorState()

◆ setAdvectionVelocity()

◆ getAdvectionVelocity()

◆ setConvectiveDifferencingType()

◆ getConvectiveDifferencingType()

◆ apply()

◆ getName()

◆ getIsInitialized()

◆ setHomogeneousBc()

◆ getHomogeneousBc()

◆ setSolutionTime()

◆ getSolutionTime()

◆ setTimeInterval()

◆ getTimeInterval()

◆ getDt()

◆ setHierarchyMathOps()

◆ getHierarchyMathOps()

◆ applyAdd()

◆ modifyRhsForBcs()

◆ imposeSolBcs()

◆ setLoggingEnabled()

◆ getLoggingEnabled()

◆ printClassData()

Member Data Documentation

◆ d_Q_cell_refine_op

◆ d_Q_cell_refine_alg

◆ d_Q_cell_refine_bdry_op

◆ d_Q_cell_refine_scheds

◆ d_q_flux_coarsen_op

◆ d_q_interp_coarsen_op

◆ d_q_flux_coarsen_alg

◆ d_q_interp_coarsen_alg

◆ d_q_flux_coarsen_scheds

◆ d_q_interp_coarsen_scheds

◆ d_bc_coefs

◆ d_outflow_bdry_extrap_type

◆ d_hierarchy

◆ d_Q_cell_var

◆ d_q_flux_var

◆ d_q_interp_var

◆ d_u_var

◆ d_Q_scratch_idx

◆ d_Q_ghost_idx

◆ d_q_flux_idx

◆ d_q_interp_idx

◆ d_difference_form

◆ d_u_idx

◆ d_object_name

◆ d_is_initialized

◆ d_homogeneous_bc

◆ d_solution_time

◆ d_current_time

◆ d_new_time

◆ d_hier_math_ops

◆ d_hier_math_ops_external
