Class AdvDiffPredictorCorrectorHyperbolicPatchOps is a specialization of class AdvectorPredictorCorrectorHyperbolicPatchOps for use with a linearly-implicit time integrator for the advection-diffusion equation. More...

#include <ibamr/AdvDiffPredictorCorrectorHyperbolicPatchOps.h>

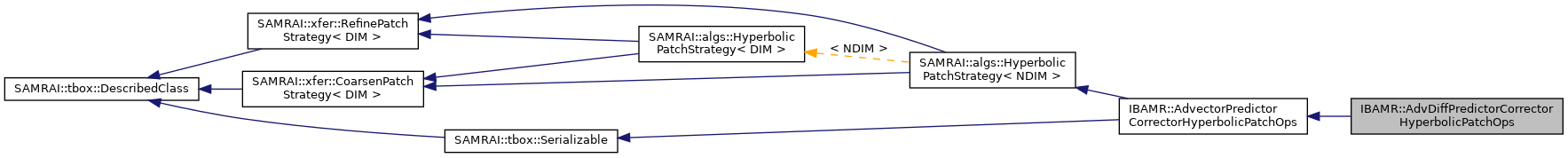

Inheritance diagram for IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps:

[legend]

Public Member Functions
	AdvDiffPredictorCorrectorHyperbolicPatchOps (std::string object_name, SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > input_db, SAMRAI::tbox::Pointer< AdvectorExplicitPredictorPatchOps > explicit_predictor, SAMRAI::tbox::Pointer< SAMRAI::geom::CartesianGridGeometry< NDIM > > grid_geom, bool register_for_restart=true)

	~AdvDiffPredictorCorrectorHyperbolicPatchOps ()=default

void	conservativeDifferenceOnPatch (SAMRAI::hier::Patch< NDIM > &patch, double time, double dt, bool at_synchronization) override

void	preprocessAdvanceLevelState (const SAMRAI::tbox::Pointer< SAMRAI::hier::PatchLevel< NDIM > > &level, double current_time, double dt, bool first_step, bool last_step, bool regrid_advance) override

void	postprocessAdvanceLevelState (const SAMRAI::tbox::Pointer< SAMRAI::hier::PatchLevel< NDIM > > &level, double current_time, double dt, bool first_step, bool last_step, bool regrid_advance) override

const std::string &	getName () const

void	registerVisItDataWriter (SAMRAI::tbox::Pointer< SAMRAI::appu::VisItDataWriter< NDIM > > visit_writer)

void	registerAdvectionVelocity (SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > u_var)

void	setAdvectionVelocityIsDivergenceFree (SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > u_var, bool is_div_free)

void	setAdvectionVelocityFunction (SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > u_var, SAMRAI::tbox::Pointer< IBTK::CartGridFunction > u_fcn)

void	registerSourceTerm (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > F_var)

void	setSourceTermFunction (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > F_var, SAMRAI::tbox::Pointer< IBTK::CartGridFunction > F_fcn)

void	registerTransportedQuantity (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var)

void	setAdvectionVelocity (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > u_var)

void	setSourceTerm (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > F_var)

void	setConvectiveDifferencingType (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, ConvectiveDifferencingType difference_form)

void	setInitialConditions (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::tbox::Pointer< IBTK::CartGridFunction > Q_init)

void	setPhysicalBcCoefs (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::solv::RobinBcCoefStrategy< NDIM > *Q_bc_coef)

void	setPhysicalBcCoefs (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > Q_bc_coef)

virtual void	registerModelVariables (SAMRAI::algs::HyperbolicLevelIntegrator< NDIM > *integrator) override
	Register AdvectorPredictorCorrectorHyperbolicPatchOps model variables with the SAMRAI::algs::HyperbolicLevelIntegrator according to the variable registration function provided by the integrator. More...

virtual void	registerModelVariables (HyperbolicLevelIntegrator< DIM > *integrator)=0

virtual void	initializeDataOnPatch (SAMRAI::hier::Patch< NDIM > &patch, double data_time, bool initial_time) override
	Set the data on the patch interior to some initial values via the concrete IBTK::CartGridFunction objects registered with the patch strategy when provided. Otherwise, initialize data to zero. More...

virtual void	initializeDataOnPatch (hier::Patch< DIM > &patch, const double data_time, const bool initial_time)=0

virtual double	computeStableDtOnPatch (SAMRAI::hier::Patch< NDIM > &patch, bool initial_time, double dt_time) override
	Compute a stable time increment for patch using an explicit CFL condition and return the computed dt. More...

virtual double	computeStableDtOnPatch (hier::Patch< DIM > &patch, const bool initial_time, const double dt_time)=0

virtual void	computeFluxesOnPatch (SAMRAI::hier::Patch< NDIM > &patch, double time, double dt) override
	Compute the time integral of the fluxes to be used in conservative difference for patch integration. More...

virtual void	computeFluxesOnPatch (hier::Patch< DIM > &patch, const double time, const double dt)=0

virtual void	conservativeDifferenceOnPatch (hier::Patch< DIM > &patch, const double time, const double dt, bool at_syncronization)=0

virtual void	preprocessAdvanceLevelState (const tbox::Pointer< hier::PatchLevel< DIM > > &level, double current_time, double dt, bool first_step, bool last_step, bool regrid_advance)

virtual void	postprocessAdvanceLevelState (const tbox::Pointer< hier::PatchLevel< DIM > > &level, double current_time, double dt, bool first_step, bool last_step, bool regrid_advance)

virtual void	tagGradientDetectorCells (SAMRAI::hier::Patch< NDIM > &patch, double regrid_time, bool initial_error, int tag_indexindx, bool uses_richardson_extrapolation_too) override
	Tag cells for refinement using a gradient detector. More...

virtual void	tagGradientDetectorCells (hier::Patch< DIM > &patch, const double regrid_time, const bool initial_error, const int tag_index, const bool uses_richardson_extrapolation_too)

virtual void	setPhysicalBoundaryConditions (SAMRAI::hier::Patch< NDIM > &patch, double fill_time, const SAMRAI::hier::IntVector< NDIM > &ghost_width_to_fill) override
	Set the data in ghost cells corresponding to physical boundary conditions. More...

virtual void	setPhysicalBoundaryConditions (hier::Patch< DIM > &patch, const double fill_time, const hier::IntVector< DIM > &ghost_width_to_fill)=0

virtual void	putToDatabase (SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db) override
	Write state of AdvectorPredictorCorrectorHyperbolicPatchOps object to the given database for restart. More...

virtual void	setupLoadBalancer (HyperbolicLevelIntegrator< DIM > integrator, mesh::GriddingAlgorithm< DIM > gridding_algorithm)

virtual void	tagRichardsonExtrapolationCells (hier::Patch< DIM > &patch, const int error_level_number, const tbox::Pointer< hier::VariableContext > coarsened_fine, const tbox::Pointer< hier::VariableContext > advanced_coarse, const double regrid_time, const double deltat, const int error_coarsen_ratio, const bool initial_error, const int tag_index, const bool uses_gradient_detector_too)

virtual hier::IntVector< DIM >	getRefineOpStencilWidth () const

virtual hier::IntVector< DIM >	getRefineOpStencilWidth () const =0

virtual void	preprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)

virtual void	postprocessRefine (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::Box< DIM > &fine_box, const hier::IntVector< DIM > &ratio)

virtual hier::IntVector< DIM >	getCoarsenOpStencilWidth () const

virtual hier::IntVector< DIM >	getCoarsenOpStencilWidth () const =0

virtual void	preprocessCoarsen (hier::Patch< DIM > &coarse, const hier::Patch< DIM > &fine, const hier::Box< DIM > &coarse_box, const hier::IntVector< DIM > &ratio)

virtual void	postprocessCoarsen (hier::Patch< DIM > &coarse, const hier::Patch< DIM > &fine, const hier::Box< DIM > &coarse_box, const hier::IntVector< DIM > &ratio)

tbox::Pointer< hier::VariableContext >	getDataContext () const

void	setDataContext (tbox::Pointer< hier::VariableContext > context)

void	clearDataContext ()

virtual void	preprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

virtual void	postprocessRefineBoxes (hier::Patch< DIM > &fine, const hier::Patch< DIM > &coarse, const hier::BoxList< DIM > &fine_boxes, const hier::IntVector< DIM > &ratio)

Protected Member Functions
SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceData< NDIM, double > >	getFluxIntegralData (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::hier::Patch< NDIM > &patch, SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext > context)
	Get a pointer to the requested flux integral patch data on the specified patch. More...

SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceData< NDIM, double > >	getQIntegralData (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::hier::Patch< NDIM > &patch, SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext > context)
	Get a pointer to the requested q integral patch data on the specified patch. More...

SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceData< NDIM, double > >	getUIntegralData (SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var, SAMRAI::hier::Patch< NDIM > &patch, SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext > context)
	Get a pointer to the requested u integral patch data on the specified patch. More...

Protected Attributes
SAMRAI::algs::HyperbolicLevelIntegrator< NDIM > *	d_integrator = nullptr

SAMRAI::tbox::Pointer< AdvectorExplicitPredictorPatchOps >	d_explicit_predictor

std::set< SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > >	d_u_var

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >, bool >	d_u_is_div_free

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >, SAMRAI::tbox::Pointer< IBTK::CartGridFunction > >	d_u_fcn

bool	d_compute_init_velocity = true

bool	d_compute_half_velocity = true

bool	d_compute_final_velocity = true

std::set< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > >	d_F_var

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, SAMRAI::tbox::Pointer< IBTK::CartGridFunction > >	d_F_fcn

std::set< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > >	d_Q_var

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > >	d_Q_u_map

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > >	d_Q_F_map

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, ConvectiveDifferencingType >	d_Q_difference_form

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, SAMRAI::tbox::Pointer< IBTK::CartGridFunction > >	d_Q_init

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * > >	d_Q_bc_coef

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > >	d_flux_integral_var

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >, SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > >	d_q_integral_var

std::map< SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >, SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > >	d_u_integral_var

bool	d_overwrite_tags = true

Private Member Functions
	AdvDiffPredictorCorrectorHyperbolicPatchOps ()=delete
	Default constructor. More...

	AdvDiffPredictorCorrectorHyperbolicPatchOps (const AdvDiffPredictorCorrectorHyperbolicPatchOps &from)=delete
	Copy constructor. More...

AdvDiffPredictorCorrectorHyperbolicPatchOps &	operator= (const AdvDiffPredictorCorrectorHyperbolicPatchOps &that)=delete
	Assignment operator. More...

void	setInflowBoundaryConditions (SAMRAI::hier::Patch< NDIM > &patch, double fill_time)

void	getFromInput (SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db, bool is_from_restart)

void	getFromRestart ()

Private Attributes
std::string	d_object_name

bool	d_registered_for_restart

SAMRAI::tbox::Pointer< SAMRAI::geom::CartesianGridGeometry< NDIM > >	d_grid_geometry

SAMRAI::tbox::Pointer< SAMRAI::appu::VisItDataWriter< NDIM > >	d_visit_writer

IBTK::CartExtrapPhysBdryOp	d_extrap_bc_helper

SAMRAI::hier::IntVector< NDIM >	d_ghosts

SAMRAI::hier::IntVector< NDIM >	d_flux_ghosts

std::string	d_extrap_type = "CONSTANT"

SAMRAI::tbox::Array< std::string >	d_refinement_criteria

SAMRAI::tbox::Array< double >	d_dev_tol

SAMRAI::tbox::Array< double >	d_dev

SAMRAI::tbox::Array< double >	d_dev_time_max

SAMRAI::tbox::Array< double >	d_dev_time_min

SAMRAI::tbox::Array< double >	d_grad_tol

SAMRAI::tbox::Array< double >	d_grad_time_max

SAMRAI::tbox::Array< double >	d_grad_time_min

tbox::Pointer< hier::VariableContext >	d_data_context

Detailed Description

See also: AdvDiffGodunovHierarchyIntegrator; AdvectorPredictorCorrectorHyperbolicPatchOps

Constructor & Destructor Documentation

◆ AdvDiffPredictorCorrectorHyperbolicPatchOps() [1/3]

IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::AdvDiffPredictorCorrectorHyperbolicPatchOps	(	std::string	object_name,
		SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	input_db,
		SAMRAI::tbox::Pointer< AdvectorExplicitPredictorPatchOps >	explicit_predictor,
		SAMRAI::tbox::Pointer< SAMRAI::geom::CartesianGridGeometry< NDIM > >	grid_geom,
		bool	register_for_restart = `true`
	)

The constructor for AdvDiffPredictorCorrectorHyperbolicPatchOps sets default parameters for the patch strategy. The constructor also registers this object for restart with the restart manager using the object name when so requested.

After default values are set, this routine calls getFromRestart() if execution from a restart file is specified. Finally, getFromInput() is called to read values from the given input database (potentially overriding those found in the restart file).

◆ ~AdvDiffPredictorCorrectorHyperbolicPatchOps()

IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::~AdvDiffPredictorCorrectorHyperbolicPatchOps ( )

default

The destructor for AdvDiffPredictorCorrectorHyperbolicPatchOps unregisters the patch strategy object with the restart manager when so registered.

◆ AdvDiffPredictorCorrectorHyperbolicPatchOps() [2/3]

IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::AdvDiffPredictorCorrectorHyperbolicPatchOps ( )

privatedelete

Note: This constructor is not implemented and should not be used.

◆ AdvDiffPredictorCorrectorHyperbolicPatchOps() [3/3]

IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::AdvDiffPredictorCorrectorHyperbolicPatchOps ( const AdvDiffPredictorCorrectorHyperbolicPatchOps & from )

privatedelete

Note: This constructor is not implemented and should not be used.

Parameters

from	The value to copy to this object.

Member Function Documentation

◆ conservativeDifferenceOnPatch() [1/2]

void IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::conservativeDifferenceOnPatch	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	time,
		double	dt,
		bool	at_synchronization
	)

overridevirtual

Update solution variables by performing a conservative difference using the fluxes calculated in computeFluxesOnPatch().

Reimplemented from IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps.

◆ preprocessAdvanceLevelState() [1/2]

void IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::preprocessAdvanceLevelState	(	const SAMRAI::tbox::Pointer< SAMRAI::hier::PatchLevel< NDIM > > &	level,
		double	current_time,
		double	dt,
		bool	first_step,
		bool	last_step,
		bool	regrid_advance
	)

overridevirtual

Compute the values of any time-dependent source terms for use by the explicit predictor.

This routine is called after patch boundary data is filled (i.e., ghosts) and before computeFluxesOnPatch().

Note that when this routine is called, the scratch data is filled on all patches (i.e., ghost cells) and that data is the same as the current level data on all patch interiors. That is, both scratch and current data correspond to current_time.

Reimplemented from IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps.

◆ postprocessAdvanceLevelState() [1/2]

void IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::postprocessAdvanceLevelState	(	const SAMRAI::tbox::Pointer< SAMRAI::hier::PatchLevel< NDIM > > &	level,
		double	current_time,
		double	dt,
		bool	first_step,
		bool	last_step,
		bool	regrid_advance
	)

overridevirtual

Add source terms to the updated solution.

This routine is called after conservativeDifferenceOnPatch() is called and before computeStableDtOnPatch().

Note that when this routine is called, the scratch data is filled on all patches (i.e., ghost cells) and that data is the same as the new level data on all patch interiors. That is, both scratch and new data correspond to current_time + dt on patch interiors. The current data and ghost values correspond to the current_time.

Reimplemented from IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps.

◆ operator=()

AdvDiffPredictorCorrectorHyperbolicPatchOps& IBAMR::AdvDiffPredictorCorrectorHyperbolicPatchOps::operator= ( const AdvDiffPredictorCorrectorHyperbolicPatchOps & that )

privatedelete

Note: This operator is not implemented and should not be used.

Parameters

that	The value to assign to this object.

Returns: A reference to this object.

◆ getName()

const std::string& IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::getName ( ) const

inherited

Return the name of the patch operations object.

◆ registerVisItDataWriter()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::registerVisItDataWriter ( SAMRAI::tbox::Pointer< SAMRAI::appu::VisItDataWriter< NDIM > > visit_writer )

inherited

Register a VisIt data writer so this class will write plot files that may be postprocessed with the VisIt visualization tool.

◆ registerAdvectionVelocity()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::registerAdvectionVelocity ( SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > > u_var )

inherited

Register a face-centered advection velocity to be used to advect cell-centered quantities by the hierarchy integrator.

Note: By default, each registered advection velocity is assumed to be divergence free.

◆ setAdvectionVelocityIsDivergenceFree()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setAdvectionVelocityIsDivergenceFree	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >	u_var,
		bool	is_div_free
	)

inherited

Indicate whether a particular advection velocity is discretely divergence free.

◆ setAdvectionVelocityFunction()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setAdvectionVelocityFunction	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >	u_var,
		SAMRAI::tbox::Pointer< IBTK::CartGridFunction >	u_fcn
	)

inherited

Set an IBTK::CartGridFunction object that specifies the value of a particular advection velocity.

◆ registerSourceTerm()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::registerSourceTerm ( SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > F_var )

inherited

Register a cell-centered source term.

◆ setSourceTermFunction()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setSourceTermFunction	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	F_var,
		SAMRAI::tbox::Pointer< IBTK::CartGridFunction >	F_fcn
	)

inherited

Set an IBTK::CartGridFunction object that specifies the value of a particular source term.

◆ registerTransportedQuantity()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::registerTransportedQuantity ( SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > > Q_var )

inherited

Register a cell-centered quantity to be advected and diffused by the hierarchy integrator.

◆ setAdvectionVelocity()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setAdvectionVelocity	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::tbox::Pointer< SAMRAI::pdat::FaceVariable< NDIM, double > >	u_var
	)

inherited

Set the face-centered advection velocity to be used with a particular cell-centered quantity.

Note: The specified advection velocity must have been already registered with the hierarchy integrator.

◆ setSourceTerm()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setSourceTerm	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	F_var
	)

inherited

Set the cell-centered source term to be used with a particular cell-centered quantity.

Note: The specified source term must have been already registered with the hierarchy integrator.

◆ setConvectiveDifferencingType()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setConvectiveDifferencingType	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		ConvectiveDifferencingType	difference_form
	)

inherited

Set the convective differencing form for a quantity that has been registered with the hierarchy integrator.

◆ setInitialConditions()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setInitialConditions	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::tbox::Pointer< IBTK::CartGridFunction >	Q_init
	)

inherited

Set a grid function to provide initial conditions for a quantity that has been registered with the hierarchy integrator.

◆ setPhysicalBcCoefs() [1/2]

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setPhysicalBcCoefs	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::solv::RobinBcCoefStrategy< NDIM > *	Q_bc_coef
	)

inherited

Set an object to provide boundary conditions for a scalar-valued quantity that has been registered with the hierarchy integrator.

◆ setPhysicalBcCoefs() [2/2]

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setPhysicalBcCoefs	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		std::vector< SAMRAI::solv::RobinBcCoefStrategy< NDIM > * >	Q_bc_coef
	)

inherited

Set objects to provide boundary conditions for a vector-valued quantity that has been registered with the hierarchy integrator.

◆ registerModelVariables() [1/2]

virtual void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::registerModelVariables ( SAMRAI::algs::HyperbolicLevelIntegrator< NDIM > * integrator )

overridevirtualinherited

In other words, variables are registered according to their role in the integration process (e.g. time-dependent, flux, etc.). This routine also registers variables for plotting with the VisIt writer.

◆ registerModelVariables() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::registerModelVariables ( HyperbolicLevelIntegrator< DIM > * integrator )

pure virtualinherited

Register specific variables needed in the numerical routines with the hyperbolic level integrator using the registerVariable() function in that class. The integrator manipulates storage for the data and this registration defines the way in which data for each quantity will be manipulated on the patches. Typically, the derived data quantities for plotting are registered with a visualization data writer in this routine as well, since the hyperbolic level integrator provides the variable context for plotting (i.e., which data is available when a plot file is generated). The integrator pointer cannot be null in most cases.

The gridding algorithm pointer is provided so that patch data objects may be registered with the load balancer object (owned by the gridding algorithm) for non-uniform load balancing, if needed.

◆ initializeDataOnPatch() [1/2]

virtual void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::initializeDataOnPatch	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	data_time,
		bool	initial_time
	)

overridevirtualinherited

◆ initializeDataOnPatch() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::initializeDataOnPatch	(	hier::Patch< DIM > &	patch,
		const double	data_time,
		const bool	initial_time
	)

pure virtualinherited

Set the initial data on a patch interior only. Note that no ghost cells need to be set in this routine regardless of whether the patch data corresponding to the context requires ghost cells. The data_time is the simulation time when the routine is called. The boolean initial_time is true if the routine is called at the initial time when the hierarchy is initially constructed, otherwise it is false.

◆ computeStableDtOnPatch() [1/2]

virtual double IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::computeStableDtOnPatch	(	SAMRAI::hier::Patch< NDIM > &	patch,
		bool	initial_time,
		double	dt_time
	)

overridevirtualinherited

◆ computeStableDtOnPatch() [2/2]

virtual double SAMRAI::algs::HyperbolicPatchStrategy< DIM >::computeStableDtOnPatch	(	hier::Patch< DIM > &	patch,
		const bool	initial_time,
		const double	dt_time
	)

pure virtualinherited

Compute the stable time increment for a patch on the level with the given number. The boolean flag initial_time is true if the routine is called at the initial simulation time; otherwise it is false. The double argument dt_time is the simulation time.

◆ computeFluxesOnPatch() [1/2]

virtual void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::computeFluxesOnPatch	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	time,
		double	dt
	)

overridevirtualinherited

The conservative difference used to update the integrated quantities is implemented in conservativeDifferenceOnPatch().

◆ computeFluxesOnPatch() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::computeFluxesOnPatch	(	hier::Patch< DIM > &	patch,
		const double	time,
		const double	dt
	)

pure virtualinherited

Compute TIME INTEGRALS of fluxes to be used in conservative difference for patch integration. That is, it is assumed that this numerical routine will compute the fluxes corresponding to the cell faces multiplied by the time increment. Typically, the numerical flux is the normal flux at the cell face. The flux integrals will be used in the conservative difference that updates the conserved quantities.

Note that the numerical routines in this method generally require ghost cells. Ghost cells data is filled before this routine is called.

◆ conservativeDifferenceOnPatch() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::conservativeDifferenceOnPatch	(	hier::Patch< DIM > &	patch,
		const double	time,
		const double	dt,
		bool	at_syncronization
	)

pure virtualinherited

Update patch data with a conservative difference (approximating the divergence theorem) using the flux integrals computed in computeFluxesOnPatch() routine. The boolean flag is true when this routine is called during a flux synchronization step. Otherwise, it is false. Note that the computeFluxesOnPatch() routine computes TIME INTEGRALs of the numerical fluxes (e.g., they have been multiplied by dt). So the conservative difference routine should be consistent with this.

◆ preprocessAdvanceLevelState() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::preprocessAdvanceLevelState	(	const tbox::Pointer< hier::PatchLevel< DIM > > &	level,
		double	current_time,
		double	dt,
		bool	first_step,
		bool	last_step,
		bool	regrid_advance
	)

inlinevirtualinherited

This is an optional routine for user to process any application-specific patch strategy data BEFORE patches are advanced on the given level. This routine is called after patch boundary data is filled (i.e., ghosts) and before computeFluxesOnPatch(). The arguments are: level – level that will be advanced, current_time – current integration time, dt – current time increment, first_step – boolean flag that is true if advance is first in time step sequence on level (i.e., previous advance step was on another level, false otherwise, last_step – boolean flag that is true if advance is last in time step sequence on level (i.e., synchronization with coarser level will occur immediately after this advance), regrid_advance – boolean flag that is true if the advance is during a regridding phase (i.e., the advance is not used to integrate data on the hierarchy) in which case the results of the advance will be discarded.

Note that when this routine is called, the scratch data is filled on all patches (i.e., ghost cells) and that data is the same as the current level data on all patch interiors. That is, both scratch and current data correspond to current_time.

Note that this function is not pure virtual. It is given a dummy implementation here so that users may ignore it when inheriting from this class.

◆ postprocessAdvanceLevelState() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::postprocessAdvanceLevelState	(	const tbox::Pointer< hier::PatchLevel< DIM > > &	level,
		double	current_time,
		double	dt,
		bool	first_step,
		bool	last_step,
		bool	regrid_advance
	)

inlinevirtualinherited

This is an optional routine for user to process any application-specific patch strategy data AFTER patches are advanced on the given level. This routine is called after conservativeDifferenceOnPatch() is called and before computeStableDtOnPatch(). The arguments are: level – level that will be advanced, current_time – current integration time, dt – current time increment, first_step – boolean flag that is true if advance is first in time step sequence on level (i.e., previous advance step was on another level, false otherwise, last_step – boolean flag that is true if advance is last in time step sequence on level (i.e., synchronization with coarser level will occur immediately after this advance), regrid_advance – boolean flag that is true if the advance is during a regridding phase (i.e., the advance is not used to integrate data on the hierarchy) in which case the results of the advance will be discarded.

Note that when this routine is called, the scratch data is filled on all patches (i.e., ghost cells) and that data is the same as the new level data on all patch interiors. That is, both scratch and new data correspond to current_time + dt on patch interiors.
The current data and ghost values correspond to the current_time.

Note that this function is not pure virtual. It is given a dummy implementation here so that users may ignore it when inheriting from this class.

◆ tagGradientDetectorCells() [1/2]

virtual void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::tagGradientDetectorCells	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	regrid_time,
		bool	initial_error,
		int	tag_indexindx,
		bool	uses_richardson_extrapolation_too
	)

overridevirtualinherited

◆ tagGradientDetectorCells() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::tagGradientDetectorCells	(	hier::Patch< DIM > &	patch,
		const double	regrid_time,
		const bool	initial_error,
		const int	tag_index,
		const bool	uses_richardson_extrapolation_too
	)

virtualinherited

Tag cells on the given patch that require refinement based on application-specific numerical quantities. The tag index argument indicates the index of the tag data on the patch data array. The boolean argument initial_error is true if tagging is being done at the initial simulation time; otherwise, it is false. The other boolean flag uses_richardson_extrapolation_too is true when Richardson extrapolation is used in addition to the gradient detector. This flag helps users manage multiple regridding criteria.

Note that this function is not pure virtual. It is given a dummy implementation here so that users may ignore it when inheriting from this class.

◆ setPhysicalBoundaryConditions() [1/2]

virtual void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setPhysicalBoundaryConditions	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	fill_time,
		const SAMRAI::hier::IntVector< NDIM > &	ghost_width_to_fill
	)

overridevirtualinherited

◆ setPhysicalBoundaryConditions() [2/2]

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::setPhysicalBoundaryConditions	(	hier::Patch< DIM > &	patch,
		const double	fill_time,
		const hier::IntVector< DIM > &	ghost_width_to_fill
	)

pure virtualinherited

Set user-defined boundary conditions at the physical domain boundary.

Implements SAMRAI::xfer::RefinePatchStrategy< DIM >.

◆ putToDatabase()

virtual void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::putToDatabase ( SAMRAI::tbox::Pointer< SAMRAI::tbox::Database > db )

overridevirtualinherited

This routine is a concrete implementation of the function declared in the SAMRAI::tbox::Serializable abstract base class.

Implements SAMRAI::tbox::Serializable.

◆ getFluxIntegralData()

SAMRAI::tbox::Pointer<SAMRAI::pdat::FaceData<NDIM, double> > IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::getFluxIntegralData	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::hier::Patch< NDIM > &	patch,
		SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext >	context
	)

protectedinherited

◆ getQIntegralData()

SAMRAI::tbox::Pointer<SAMRAI::pdat::FaceData<NDIM, double> > IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::getQIntegralData	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::hier::Patch< NDIM > &	patch,
		SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext >	context
	)

protectedinherited

◆ getUIntegralData()

SAMRAI::tbox::Pointer<SAMRAI::pdat::FaceData<NDIM, double> > IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::getUIntegralData	(	SAMRAI::tbox::Pointer< SAMRAI::pdat::CellVariable< NDIM, double > >	Q_var,
		SAMRAI::hier::Patch< NDIM > &	patch,
		SAMRAI::tbox::Pointer< SAMRAI::hier::VariableContext >	context
	)

protectedinherited

◆ setInflowBoundaryConditions()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::setInflowBoundaryConditions	(	SAMRAI::hier::Patch< NDIM > &	patch,
		double	fill_time
	)

privateinherited

◆ getFromInput()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::getFromInput	(	SAMRAI::tbox::Pointer< SAMRAI::tbox::Database >	db,
		bool	is_from_restart
	)

privateinherited

◆ getFromRestart()

void IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::getFromRestart ( )

privateinherited

◆ setupLoadBalancer()

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::setupLoadBalancer	(	HyperbolicLevelIntegrator< DIM > *	integrator,
		mesh::GriddingAlgorithm< DIM > *	gridding_algorithm
	)

inlinevirtualinherited

Set up parameters in the load balancer object (owned by the gridding algorithm) if needed. This function is called immediately after the registerModelVariables() function is called. The hyperbolic level integrator pointer is provided so that the integrator can be used to manage data for the load balancer if needed (e.g., when using non-uniform load balancing).

Note that this function is not pure virtual. It is given a dummy implementation here so that users may ignore it when inheriting from this class.

◆ tagRichardsonExtrapolationCells()

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::tagRichardsonExtrapolationCells	(	hier::Patch< DIM > &	patch,
		const int	error_level_number,
		const tbox::Pointer< hier::VariableContext >	coarsened_fine,
		const tbox::Pointer< hier::VariableContext >	advanced_coarse,
		const double	regrid_time,
		const double	deltat,
		const int	error_coarsen_ratio,
		const bool	initial_error,
		const int	tag_index,
		const bool	uses_gradient_detector_too
	)

virtualinherited

Tag cells based from differences computed in the Richardson extrapolation. The Richardson extrapolation algorithm creates a coarsened version of some hierarchy patch level and advances data in time on both the coarsened patch level and the hierarchy level. This routine takes the data resulting from the advance on both the coarse and fine levels, compares them, and tags cells according to the difference.

*              (2)
*      n+1 ^------->x finish      (1) advanced_coarse
*          |        ^             (2) coarsened_fine
*  time  n -        |
*          ^        |(1)
*          |        |
*          <--------o start
*        fine     coarse
*

The patch supplied to this routine is on the coarsened level. However, the error_level_number corresponds to the actual hierarchy level from which it was coarsened. Data resides on this patch in two contexts - advanced_coarse'' andcoarsened_fine''. Advanced coarse is data advanced on the coarsened version of the level, while coarsened fine is the data advanced on the fine level and then coarsened to the coarse level. The regrid time and the time increment are given for the actual hierarchy level. The error coarsen ratio argument is the ratio between the index spaces on the hierarchy level and the coarsened hierarchy level. The boolean flag `‘initial_error’' is true when the error estimation is performed at the initial simulation time; i.e., when the hierarchy levels are being constructed for the first time. The tag index argument is the index of the tag data on the patch data array. The other boolean flag uses_gradient_detector_too is true when a gradient detector scheme is used in addition to Richardson extrapolation. This flag helps users manage multiple regridding criteria.

Note that this function is not pure virtual. It is given a dummy implementation here so that users may ignore it when inheriting from this class.

◆ getRefineOpStencilWidth() [1/2]

virtual hier::IntVector<DIM> SAMRAI::algs::HyperbolicPatchStrategy< DIM >::getRefineOpStencilWidth

inlinevirtualinherited

Return maximum stencil width needed for user-defined data interpolation operations. Default is to return zero, assuming no user-defined operations provided.

Note that this function is not pure virtual. It is given a dummy implementation here so that users may ignore it when inheriting from this class.

◆ getRefineOpStencilWidth() [2/2]

template<int DIM>

virtual hier::IntVector<DIM> SAMRAI::xfer::RefinePatchStrategy< DIM >::getRefineOpStencilWidth ( ) const

pure virtualinherited

Pure virtual function to return maximum stencil width needed over user-defined data interpolation operations. This is needed to determine the correct interpolation data dependencies.

Implemented in SAMRAI::xfer::MultiblockRefinePatchStrategy< DIM >, SAMRAI::appu::EmbeddedBoundaryGeometry< DIM >, SAMRAI::algs::HyperbolicPatchStrategy< DIM >, SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >, SAMRAI::mesh::MultiblockGriddingTagger< DIM >, and SAMRAI::solv::CartesianRobinBcHelper< DIM >.

◆ preprocessRefine()

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::preprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtualinherited

Pre- and post-processing routines for implementing user-defined spatial interpolation routines applied to variables. The interpolation routines are used in the hyperbolic AMR algorithm for filling patch ghost cells before advancing data on a level and after regridding a level to fill portions of the new level from some coarser level. These routines are called automatically from within patch boundary filling schedules; thus, some concrete function matching these signatures must be provided in the user's patch routines. However, the routines only need to perform some operations when "USER_DEFINED_REFINE" is given as the interpolation method for some variable when the patch routines register variables with the hyperbolic level integration algorithm, typically. If the user does not provide operations that refine such variables in either of these routines, then they will not be refined.

The order in which these operations are used in each patch boundary filling schedule is:

(1) {Call user's preprocessRefine() routine.}
(2) {Refine all variables with standard interpolation operators.}
(3) {Call user's postprocessRefine() routine.}

Note that these functions are not pure virtual. They are given dummy implementations here so that users may ignore them when inheriting from this class.

Implements SAMRAI::xfer::RefinePatchStrategy< DIM >.

◆ postprocessRefine()

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::postprocessRefine	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::Box< DIM > &	fine_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtualinherited

Pure virtual function to perform user-defined postprocess data refine operations. This member function is called after standard refine operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box region. Recall that the scratch components are specified in calls to the registerRefine() function in the RefineAlgorithm<DIM> class.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_box	hier::Box region on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Implements SAMRAI::xfer::RefinePatchStrategy< DIM >.

◆ getCoarsenOpStencilWidth() [1/2]

virtual hier::IntVector<DIM> SAMRAI::algs::HyperbolicPatchStrategy< DIM >::getCoarsenOpStencilWidth

inlinevirtualinherited

Return maximum stencil width needed for user-defined data coarsen operations. Default is to return zero, assuming no user-defined operations provided.

Note that this function is not pure virtual. It is given a dummy implementation here so that users may ignore it when inheriting from this class.

◆ getCoarsenOpStencilWidth() [2/2]

template<int DIM>

virtual hier::IntVector<DIM> SAMRAI::xfer::CoarsenPatchStrategy< DIM >::getCoarsenOpStencilWidth ( ) const

pure virtualinherited

Return maximum stencil width needed over all user-defined data coarsening operations. This is needed to determine the correct coarsening data dependencies.

Implemented in SAMRAI::algs::HyperbolicPatchStrategy< DIM >, and SAMRAI::algs::MethodOfLinesPatchStrategy< DIM >.

◆ preprocessCoarsen()

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::preprocessCoarsen	(	hier::Patch< DIM > &	coarse,
		const hier::Patch< DIM > &	fine,
		const hier::Box< DIM > &	coarse_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtualinherited

Pre- and post-processing routines for implementing user-defined spatial coarsening routines applied to variables. The coarsening routines are used in the hyperbolic AMR algorithm synchronizing coarse and fine levels when they have been integrated to the same point. These routines are called automatically from within the data synchronization coarsen schedules; thus, some concrete function matching these signatures must be provided in the user's patch routines. However, the routines only need to perform some operations when "USER_DEFINED_COARSEN" is given as the coarsening method for some variable when the patch routines register variables with the hyperbolic level integration algorithm, typically. If the user does not provide operations that coarsen such variables in either of these routines, then they will not be coarsened.

The order in which these operations are used in each coarsening schedule is:

(1) {Call user's preprocessCoarsen() routine.}
(2) {Coarsen all variables with standard coarsening operators.}
(3) {Call user's postprocessCoarsen() routine.}

Note that these functions are not pure virtual. They are given dummy implementations here so that users may ignore them when inheriting from this class.

Implements SAMRAI::xfer::CoarsenPatchStrategy< DIM >.

◆ postprocessCoarsen()

virtual void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::postprocessCoarsen	(	hier::Patch< DIM > &	coarse,
		const hier::Patch< DIM > &	fine,
		const hier::Box< DIM > &	coarse_box,
		const hier::IntVector< DIM > &	ratio
	)

inlinevirtualinherited

Perform user-defined coarsening operations. This member function is called after standard coarsening operations (expressed using concrete subclasses of the CoarsenOperator<DIM> base class).
The postprocess function should move data from the source components on the fine patch into the source components on the coarse patch in the specified coarse box region. Recall that the source components are specified in calls to the registerCoarsen() function in the CoarsenAlgorithm<DIM> class.

Parameters

coarse	Coarse patch containing destination data.
fine	Fine patch containing source data.
coarse_box	hier::Box region on coarse patch into which data is copied.
ratio	Integer vector containing ratio

Implements SAMRAI::xfer::CoarsenPatchStrategy< DIM >.

◆ getDataContext()

tbox::Pointer<hier::VariableContext> SAMRAI::algs::HyperbolicPatchStrategy< DIM >::getDataContext

inlineinherited

Return pointer to patch data context.

◆ setDataContext()

void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::setDataContext ( tbox::Pointer< hier::VariableContext > context )

inlineinherited

The hyperbolic integrator controls the context for the data to be used in the numerical routines implemented in the concrete patch strategy. The setDataContext() allows the integrator to set the context for data on a patch on which to operate.

◆ clearDataContext()

void SAMRAI::algs::HyperbolicPatchStrategy< DIM >::clearDataContext

inlineinherited

The clearDataContext() routine resets the data context to be null.

◆ preprocessRefineBoxes()

template<int DIM>

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::preprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called before standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The preprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the preprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

Reimplemented in SAMRAI::solv::CartesianRobinBcHelper< DIM >.

◆ postprocessRefineBoxes()

template<int DIM>

virtual void SAMRAI::xfer::RefinePatchStrategy< DIM >::postprocessRefineBoxes	(	hier::Patch< DIM > &	fine,
		const hier::Patch< DIM > &	coarse,
		const hier::BoxList< DIM > &	fine_boxes,
		const hier::IntVector< DIM > &	ratio
	)

virtualinherited

Virtual function to perform user-defined refine operations. This member function is called after standard refining operations (expressed using concrete subclasses of the RefineOperator<DIM> base class). The postprocess function must refine data from the scratch components of the coarse patch into the scratch components of the fine patch on the specified fine box regions.

Typically, only the pure virtual members of this class are implemented in user-defined subclasses of this base class. This version of the postprocess function operates on an entire box list. By default, this version simply loops over the box list and calls the single-box version, which is a pure virtual function.

Parameters

fine	Fine patch containing destination data.
coarse	Coarse patch containing source data.
fine_boxes	tbox::List of box regions on fine patch into which data is refined.
ratio	Integer vector containing ratio relating index space between coarse and fine patches.

SAMRAI::tbox::Array<double> IBAMR::AdvectorPredictorCorrectorHyperbolicPatchOps::d_grad_time_min

privateinherited

◆ d_data_context

tbox::Pointer<hier::VariableContext> SAMRAI::algs::HyperbolicPatchStrategy< DIM >::d_data_context

privateinherited

The documentation for this class was generated from the following file:

include/ibamr/AdvDiffPredictorCorrectorHyperbolicPatchOps.h

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ AdvDiffPredictorCorrectorHyperbolicPatchOps() [1/3]

◆ ~AdvDiffPredictorCorrectorHyperbolicPatchOps()

◆ AdvDiffPredictorCorrectorHyperbolicPatchOps() [2/3]

◆ AdvDiffPredictorCorrectorHyperbolicPatchOps() [3/3]

Member Function Documentation

◆ conservativeDifferenceOnPatch() [1/2]

◆ preprocessAdvanceLevelState() [1/2]

◆ postprocessAdvanceLevelState() [1/2]

◆ operator=()

◆ getName()

◆ registerVisItDataWriter()

◆ registerAdvectionVelocity()

◆ setAdvectionVelocityIsDivergenceFree()

◆ setAdvectionVelocityFunction()

◆ registerSourceTerm()

◆ setSourceTermFunction()

◆ registerTransportedQuantity()

◆ setAdvectionVelocity()

◆ setSourceTerm()

◆ setConvectiveDifferencingType()

◆ setInitialConditions()

◆ setPhysicalBcCoefs() [1/2]

◆ setPhysicalBcCoefs() [2/2]

◆ registerModelVariables() [1/2]

◆ registerModelVariables() [2/2]

◆ initializeDataOnPatch() [1/2]

◆ initializeDataOnPatch() [2/2]

◆ computeStableDtOnPatch() [1/2]

◆ computeStableDtOnPatch() [2/2]

◆ computeFluxesOnPatch() [1/2]

◆ computeFluxesOnPatch() [2/2]

◆ conservativeDifferenceOnPatch() [2/2]

◆ preprocessAdvanceLevelState() [2/2]

◆ postprocessAdvanceLevelState() [2/2]

◆ tagGradientDetectorCells() [1/2]

◆ tagGradientDetectorCells() [2/2]

◆ setPhysicalBoundaryConditions() [1/2]

◆ setPhysicalBoundaryConditions() [2/2]

◆ putToDatabase()

◆ getFluxIntegralData()

◆ getQIntegralData()

◆ getUIntegralData()

◆ setInflowBoundaryConditions()

◆ getFromInput()

◆ getFromRestart()

◆ setupLoadBalancer()

◆ tagRichardsonExtrapolationCells()

◆ getRefineOpStencilWidth() [1/2]

◆ getRefineOpStencilWidth() [2/2]

◆ preprocessRefine()

◆ postprocessRefine()

◆ getCoarsenOpStencilWidth() [1/2]

◆ getCoarsenOpStencilWidth() [2/2]

◆ preprocessCoarsen()

◆ postprocessCoarsen()

◆ getDataContext()

◆ setDataContext()

◆ clearDataContext()

◆ preprocessRefineBoxes()

◆ postprocessRefineBoxes()

Member Data Documentation

◆ d_integrator

◆ d_explicit_predictor

◆ d_u_var

◆ d_u_is_div_free

◆ d_u_fcn

◆ d_compute_init_velocity

◆ d_compute_half_velocity

◆ d_compute_final_velocity

◆ d_F_var

◆ d_F_fcn

◆ d_Q_var

◆ d_Q_u_map
